1. Introduction
The SICCE Syncra Pro 7000 is a high-performance, energy-efficient, and exceptionally quiet pump designed for a variety of aquatic applications. It is suitable for both fresh and saltwater environments and can be used in submersible or in-line configurations. Its robust design, featuring a ceramic shaft and thermal protection, ensures reliable and long-lasting operation for aquariums, indoor fountains, and water-cooling systems.
Image: The SICCE Syncra Pro 7000 pump, showcasing its compact design, power cord, and included accessories like stepped hose adapters and an anti-vibration pad.
2. Safety Information
Please read this manual carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Always disconnect the pump from the power supply before performing any maintenance or cleaning.
- Ensure the power outlet is a grounded, three-prong outlet. Do not remove the grounding prong.
- Do not operate the pump if the power cord or plug is damaged.
- Do not lift the pump by its power cord.
- Ensure the pump is fully submerged when used in submersible applications to prevent dry running and overheating.
- Keep children and pets away from the pump during operation.
- This pump is designed for household use only.
3. Package Contents
Verify that all items are present in the package:
- SICCE Syncra Pro 7000 Pump
- Power Cord
- Threaded Adapters (various sizes)
- Stepped Hoses
- Anti-Vibration Pad
4. Setup and Installation
The Syncra Pro 7000 pump can be configured for both submersible and in-line applications. Follow the steps below for proper installation.
4.1. General Preparation
- Attach Anti-Vibration Pad: Peel the backing from the anti-vibration pad and firmly attach it to the bottom of the pump in your desired location. This helps reduce noise and vibration.
- Clean Area: Before placing the pump, ensure the installation area is clean and free of debris.
- Stable Placement: Place the pump on a very steady and level surface to ensure optimal performance and minimize vibration.
4.2. Submersible (Return Pump) Application
For use as a return pump within a sump or aquarium:
- Connect Outlet Tubing: Attach a threaded adapter to the top outlet of the Syncra Pro pump. Then, connect your rigid hose or flexible tubing to the adapter, leading to the desired return location in your filtration system or aquarium.
- Adjust Flow Rate: The Syncra Pro 7000 features an adjustable flow rate. Locate the flow adjustment dial on the pre-chamber (front) of the pump and rotate it to select your desired flow rate.

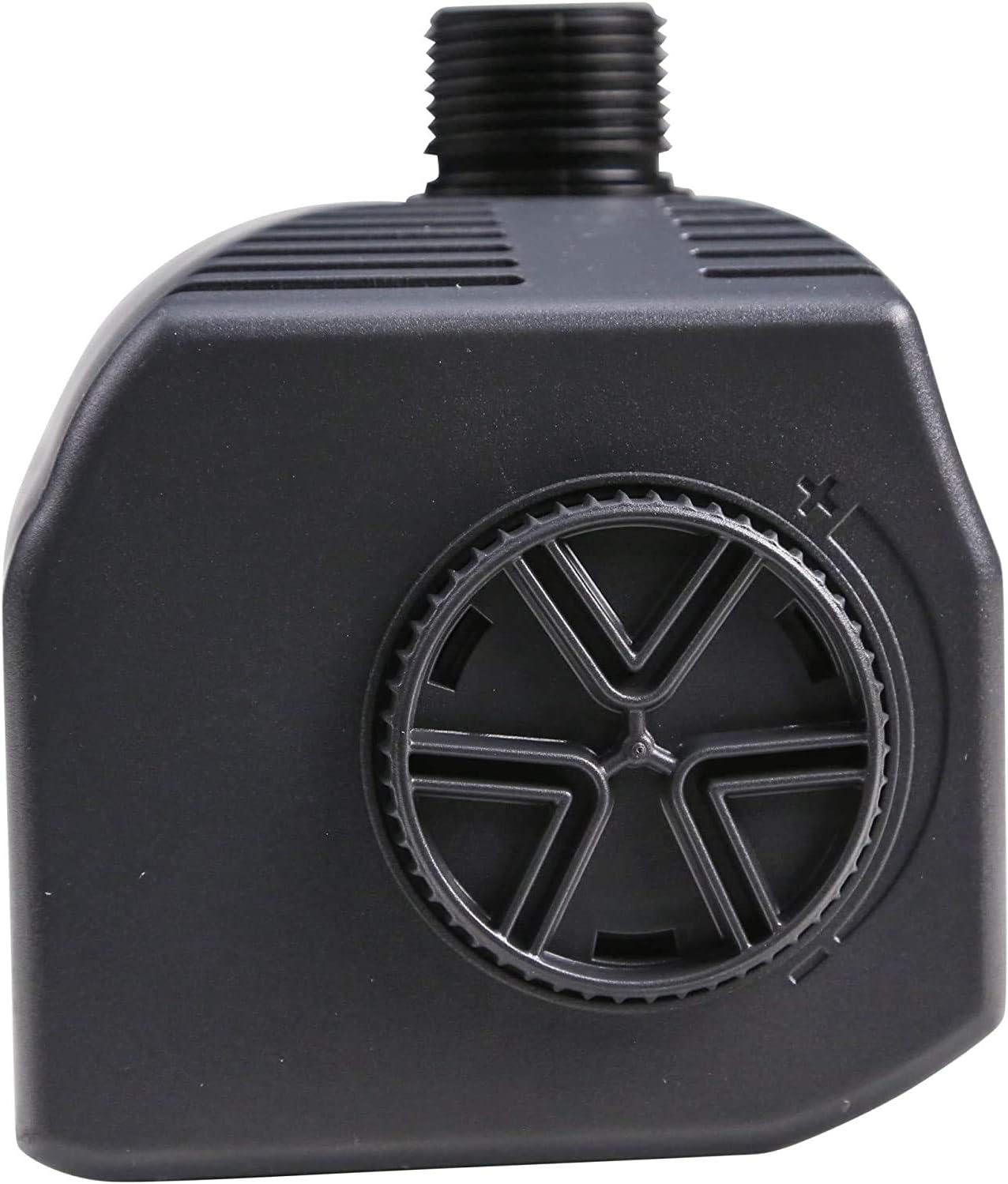

Image: The adjustable flow rate dial on the pre-chamber of the Syncra Pro 7000, allowing precise control over water flow.
4.3. In-Line (Non-Submerged) Application
For use outside of water, where water is fed to the pump via an inlet hose:
- Remove Pre-Chamber: If using the pump in-line, the pre-chamber (front cover) must be removed.
- Connect Inlet Tubing: Attach another threaded fitting to the inlet side of the pump (where the pre-chamber was removed). Connect your necessary tubing or rigid pipe to this fitting for the water intake.
- Connect Outlet Tubing: As with submersible use, attach a threaded adapter to the top outlet and connect your tubing for water discharge.
Image: The Syncra Pro 7000 pump with a stepped hose adapter securely attached to its water outlet, ready for tubing connection.
4.4. Installation Video Guide
Watch this official video from Sicce for a visual guide on setting up your Syncra Pro pump:
Video: Official Sicce Syncra Pro setup guide, demonstrating how to prepare the pump, attach accessories, and configure it for both submersible and in-line applications.
5. Operation
Once installed and connected to the appropriate tubing, ensure the pump is either fully submerged (for submersible use) or has water flowing to its inlet (for in-line use) before plugging it into a grounded power outlet. The pump will begin operating immediately. Adjust the flow rate as needed using the dial on the pre-chamber.
6. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your Syncra Pro 7000 pump. Always disconnect the pump from the power supply before performing any maintenance.
- Cleaning: Periodically remove the pre-chamber and impeller cover to clean the impeller and its housing. Remove any debris, algae, or mineral buildup. A soft brush and warm water can be used.
- Impeller Inspection: Check the ceramic shaft and impeller for any signs of wear, cracks, or damage. Replace if necessary.
- Hose Connections: Ensure all hose connections are secure and free of leaks.
- Anti-Vibration Pad: Check the anti-vibration pad for wear and ensure it is still securely attached.
With regular maintenance, your Syncra Pro pump is designed to provide successful performance for multiple years.
7. Troubleshooting
If you encounter issues with your Syncra Pro 7000 pump, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; Impeller jammed; Thermal overload activated | Check power connection/outlet; Disconnect and clean impeller; Allow pump to cool down and reset. |
| Reduced flow rate | Clogged intake/impeller; Kinked tubing; Incorrect flow rate setting | Clean intake and impeller; Straighten tubing; Adjust flow rate dial. |
| Excessive noise/vibration | Debris in impeller; Pump not stable; Air in system (in-line) | Clean impeller; Ensure pump is on a flat, stable surface with anti-vibration pad; Bleed air from tubing. |
| Pump stops intermittently | Overheating (dry running, blocked intake); Power fluctuations | Ensure pump is fully submerged or has constant water supply; Check for blockages; Verify stable power supply. |
If problems persist after attempting these solutions, please contact Sicce customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Sicce |
| Model | Syncra Pro 7000 |
| Part Number | 34896228 |
| Power Source | AC/DC |
| Style | Submersible / In-line |
| Material | Stainless Steel (internal components) |
| Color | Black |
| Item Weight | 2.69 pounds (1.22 Kilograms) |
| Package Dimensions | 7.48 x 5.91 x 4.72 inches |
| Applications | Freshwater and Saltwater Aquariums, Indoor Fountains, Water-cooling |
9. Warranty and Support
SICCE products are designed for long-term use and reliable performance. For specific warranty information and terms, please refer to the documentation included with your purchase or visit the official Sicce website.
For technical support, spare parts, or any inquiries, please contact Sicce customer service. You can find more information and contact details on their official website:
