Universal Trimmer Gearbox Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your FJSaDobo Universal Trimmer Gearbox. This gearbox is designed as a replacement part for various brush cutters, strimmer trimmers, and lawnmowers, featuring a 25.4mm round rod and 9 teeth spline for compatibility with many models, including Stihl, Echo, Ryobi, Homelite, and Husqvarna.

The gearbox is constructed from durable manganese material, ensuring high hardness, toughness, and abrasion resistance for a long service life. Its design allows for direct installation without the need for screw threads, and it facilitates the use of blades that can be freely stretched for more even cutting and thorough weeding.

2. Safety Information

Always prioritize safety when working with power tools. Failure to follow these instructions may result in serious injury or property damage.

• Read and understand the entire instruction manual for your trimmer or brush cutter before installing or operating this gearbox.
• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, gloves, and sturdy footwear.
• Ensure the power tool is turned off and disconnected from its power source (e.g., spark plug wire removed, battery pack removed) before performing any installation, maintenance, or cleaning.
• Inspect the gearbox and your power tool for any damage or wear before each use. Do not use if damaged.
• Keep bystanders, children, and pets at a safe distance from the work area.
• Use only genuine replacement parts and accessories recommended by the manufacturer.

3. Package Contents

Verify that all items are present and undamaged upon opening the package:

• 1 x Universal Trimmer Gearbox (25.4mm diameter, 9 teeth spline)
• 2 x Nuts (for attachment)

4. Setup and Installation

Follow these steps to install the universal trimmer gearbox onto your compatible brush cutter or lawnmower. Ensure your power tool is turned off and disconnected from its power source before proceeding.

Figure 4.1: Overview of the FJSaDobo Universal Trimmer Gearbox and its components.

1. Prepare the Trimmer Shaft: Carefully remove the existing trimmer head or gearbox from your brush cutter. Ensure the shaft end is clean and free of debris. Verify that your trimmer's shaft is a round rod with a 25.4mm diameter and has a 9-tooth spline for proper fitment.
2. Align the Gearbox: Slide the new FJSaDobo Universal Trimmer Gearbox onto the end of the trimmer shaft. The gearbox is designed for direct installation without screw threads, ensuring a snug fit.
3. Secure the Gearbox: Once the gearbox is fully seated on the shaft, use the provided nuts to secure it firmly in place. Ensure all fasteners are tightened securely to prevent any movement during operation.
4. Attach Cutting Attachment: Install your desired cutting attachment (e.g., blade, string head) onto the gearbox spindle according to the attachment's specific instructions. Ensure it is properly aligned and secured with the provided nuts.
5. Final Check: Before starting the trimmer, double-check all connections and fasteners to ensure they are tight and secure. Manually rotate the cutting attachment to confirm smooth movement and proper installation.

Detailed Views of the Gearbox

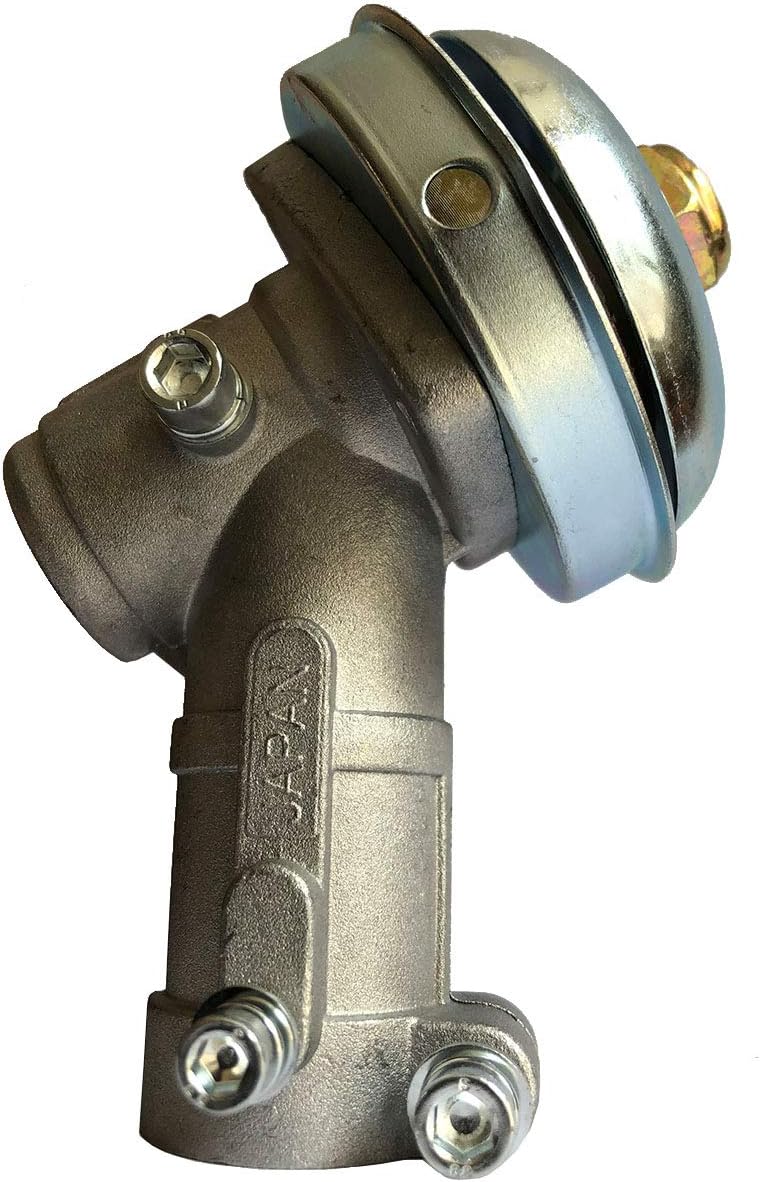

Figure 4.2: Side view of the gearbox, highlighting its robust construction.

Figure 4.3: Angled view showing the mounting points and overall shape.

Figure 4.4: Bottom view, showing the shaft connection area.

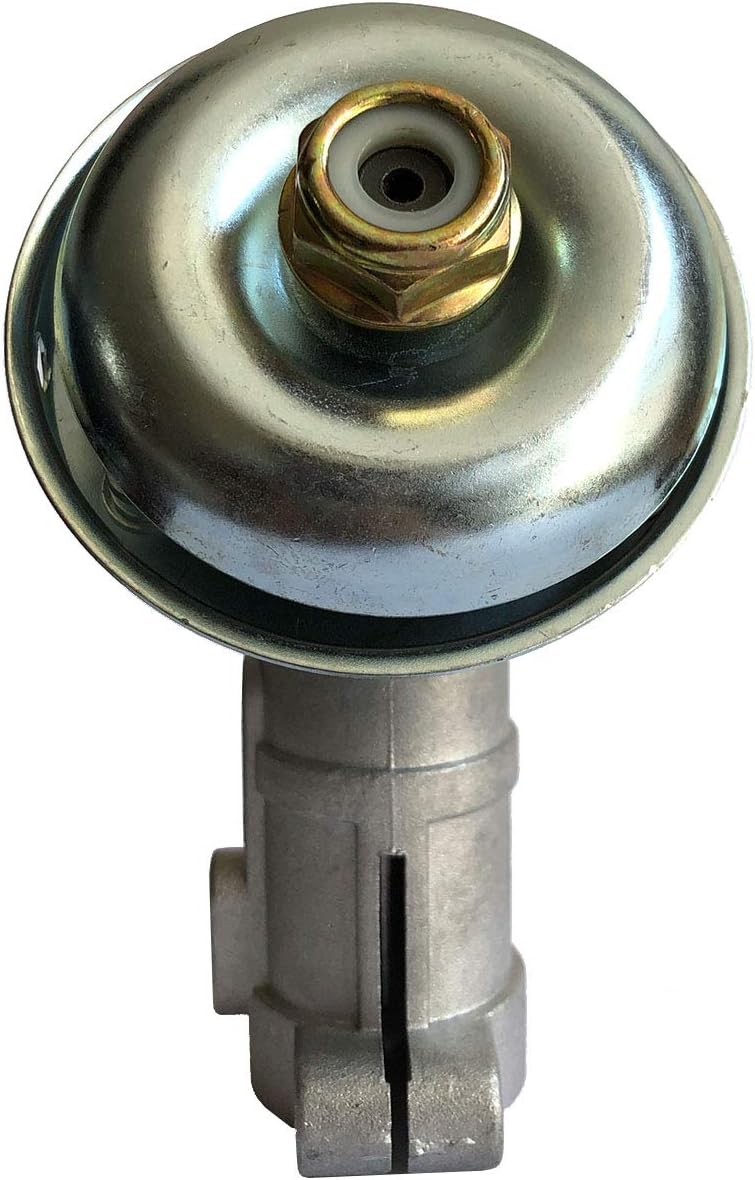

Figure 4.5: Top view, displaying the output spindle and securing nut.

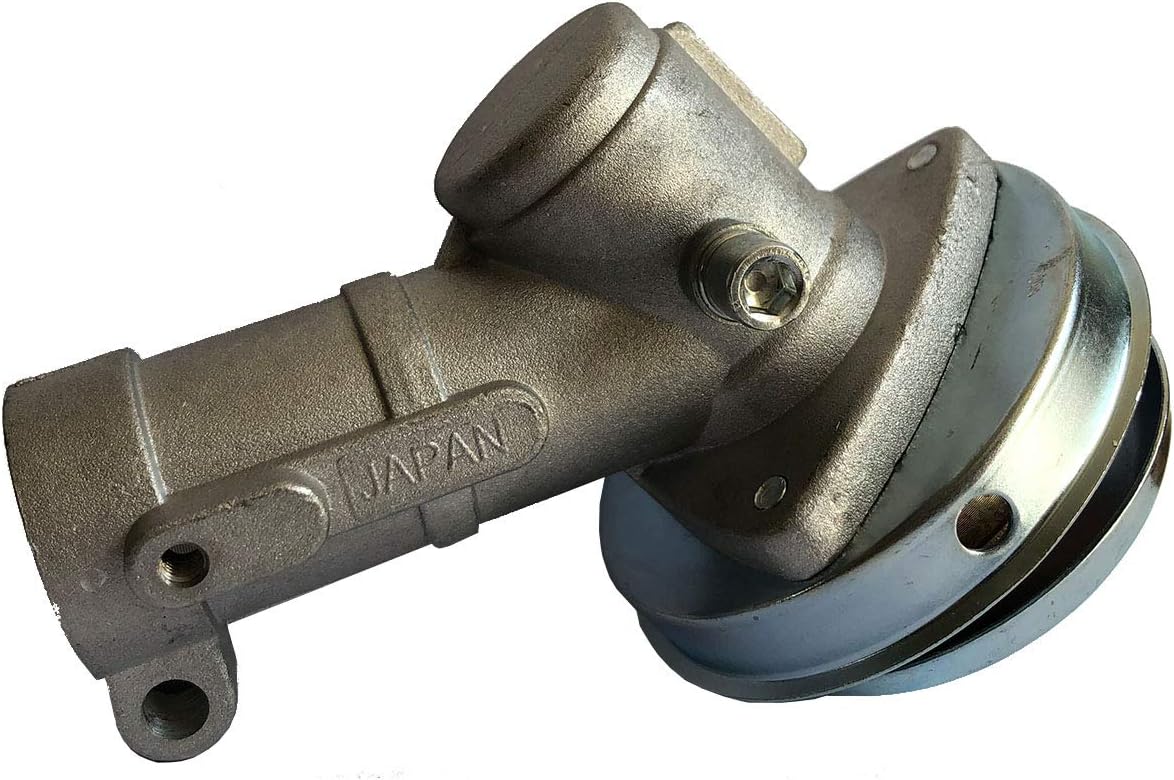

Figure 4.6: Close-up of the shaft connection point, showing the internal spline.

5. Operating Instructions

Once the gearbox is securely installed and your cutting attachment is in place, operate your trimmer or brush cutter according to its original manufacturer's instructions. The FJSaDobo gearbox is designed to provide smooth and efficient power transfer for various cutting tasks.

• Ensure the cutting attachment is appropriate for the task (e.g., string for grass, blade for brush).
• Maintain a firm grip on the trimmer and keep your balance.
• Avoid striking hard objects, as this can damage the gearbox or cutting attachment.
• Allow the engine to reach full operating speed before engaging the cutting attachment with vegetation.

Figure 5.1: The gearbox in operation on a grass trimmer.

6. Maintenance

Regular maintenance will extend the life of your gearbox and ensure optimal performance.

• Cleaning: After each use, clean the exterior of the gearbox to remove grass, dirt, and debris. Use a damp cloth; avoid harsh chemicals.
• Inspection: Periodically inspect the gearbox for any signs of wear, cracks, or damage. Check that all bolts and nuts remain tight.
• Lubrication: Consult your trimmer's manual for specific lubrication requirements for the gearbox. Some gearboxes may require periodic greasing.
• Storage: Store the gearbox in a clean, dry place when not in use.

7. Troubleshooting

If you encounter issues with your gearbox, refer to the following common problems and solutions:

If you are unable to resolve an issue, contact customer support or a qualified service technician.

8. Specifications

• Model Number: FJSa-GBH-9T-25.4
• Brand: FJSaDobo
• Shaft Diameter Compatibility: 25.4 mm (1 inch)
• Spline Teeth Count: 9 teeth
• Material: Durable Manganese
• Item Weight: 1.15 pounds (approx. 0.52 kg)
• Package Dimensions: 5.4 x 3.5 x 3 inches (approx. 13.7 x 8.9 x 7.6 cm)
• UPC: 738627076947

9. Warranty and Support

FJSa provides a 3-month warranty for all products sold. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical assistance, or general inquiries, please refer to the contact information provided with your purchase or visit the FJSaDobo official store page on Amazon:

Visit the FJSaDobo Store on Amazon

Please have your model number (FJSa-GBH-9T-25.4) and purchase details ready when contacting support.
