1. Important Safety Instructions
Please read and understand all instructions before assembling and using this product. Keep this manual for future reference.
- Ensure the power is off before installation, cleaning, or replacing bulbs.
- Use only E26 base bulbs with a maximum wattage of 60W per socket. Do not exceed the recommended wattage to prevent overheating.
- This lamp is designed for indoor use only. Do not expose to moisture or extreme temperatures.
- Place the lamp on a stable, level surface to prevent tipping. The heavy base is designed for stability.
- Keep the power cord away from heat sources, sharp edges, and moving parts.
- Do not operate the lamp with a damaged cord or plug. Contact customer support for assistance.
- Avoid looking directly into the light source when the lamp is on.
2. Package Contents
Verify that all components are present before beginning assembly:
- Lamp Base
- Lamp Pole Sections (multiple)
- Gooseneck Light Head Assembly (with 3 flexible arms)
- Lamp Shades (3 pieces)
- Power Cable (integrated)
- User Manual (this document)
3. Assembly and Installation
Follow these steps to assemble your DINGLILIGHTING DLLT Floor Lamp:
- Attach the Lamp Base: Carefully thread the lowest lamp pole section into the lamp base. Ensure it is securely tightened.
- Assemble Lamp Pole: Connect the remaining lamp pole sections by twisting them clockwise until they are firmly joined. Guide the power cord through the pole sections as you assemble.
- Attach Gooseneck Light Head: Screw the gooseneck light head assembly onto the top pole section. Ensure the electrical connection is secure.
- Install Lamp Shades: Gently place each lamp shade over its respective light socket on the gooseneck arms. Twist the shade clockwise to secure it.
- Install Bulbs: Screw E26 base bulbs (not included, max 60W) into each of the three sockets.
Figure 3.1: Step-by-step assembly of the lamp pole and light head.
Figure 3.2: Proper installation of an E26 light bulb.
Video 3.1: Official installation guide demonstrating the assembly process of the floor lamp.
4. Operating Instructions
Once assembled, plug the lamp into a standard 120V electrical outlet.
- Turning On/Off: Each of the three light heads features an individual rotary switch. Rotate the switch clockwise to turn on a single light. Continue rotating to turn on additional lights or to turn them off.
- Adjusting Light Direction: The three gooseneck arms are flexible and can be adjusted 360 degrees. Bend and position each arm to direct light precisely where needed for reading, tasks, or ambient lighting.

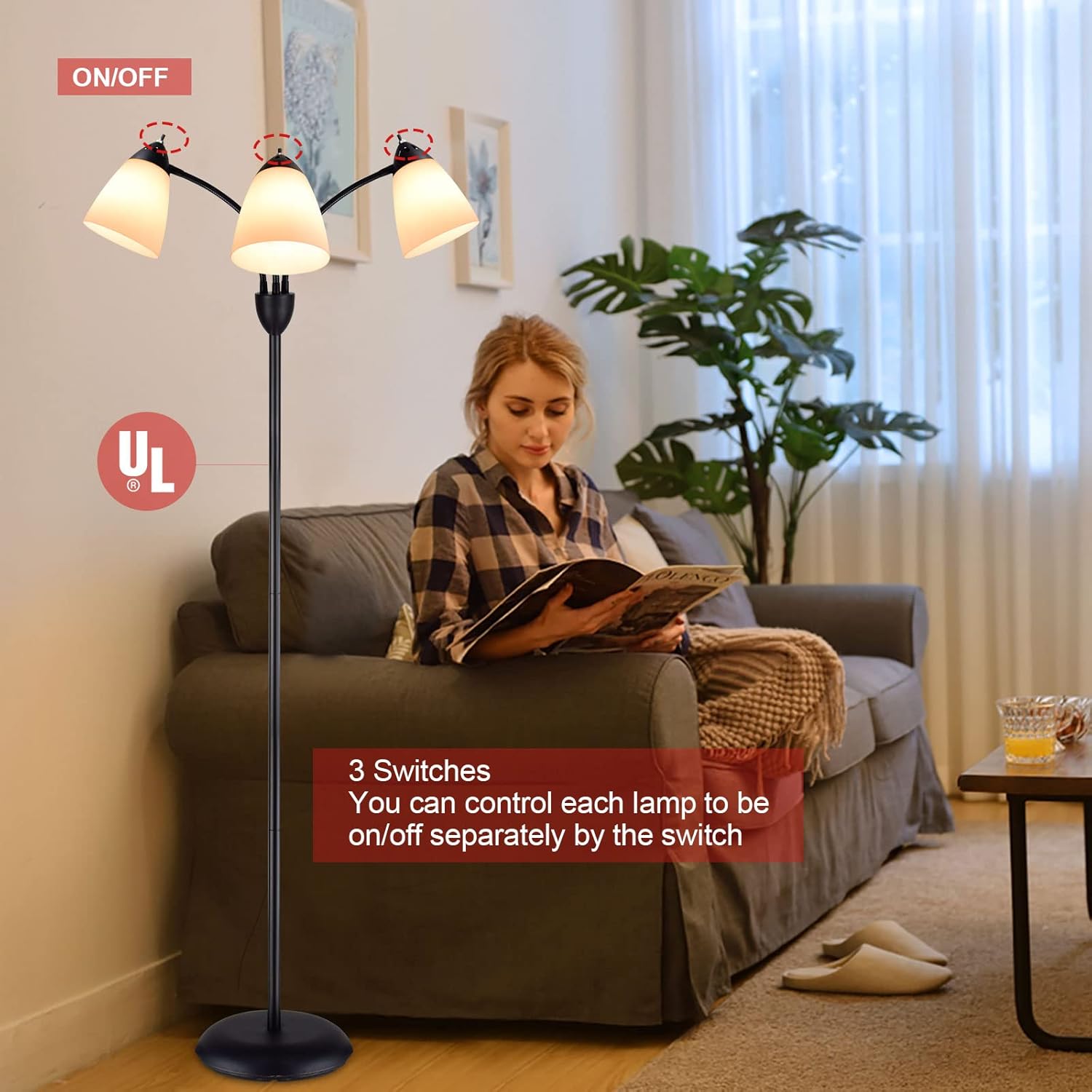

Figure 4.1: Individual rotary switches for each light head.
Figure 4.2: Flexible gooseneck arms allow for 360-degree light adjustment.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your lamp.
- Cleaning: Disconnect the power before cleaning. Use a soft, dry cloth to wipe down the lamp. Avoid abrasive cleaners or solvents that may damage the finish.
- Bulb Replacement: Ensure the lamp is unplugged and bulbs are cool before replacing. Unscrew the old bulb and screw in a new E26 base bulb (max 60W).
- Inspection: Periodically check the power cord for any signs of damage. Ensure all connections remain tight.
6. Troubleshooting
If you encounter any issues, refer to the following troubleshooting guide:
- Light does not turn on:
- Check if the lamp is properly plugged into a working outlet.
- Ensure the bulb is securely screwed into the socket.
- Replace the bulb with a new one to rule out a faulty bulb.
- Verify the rotary switch for the specific light head is in the 'ON' position.
- Lamp is unstable:
- Ensure all lamp pole sections are securely tightened.
- Check that the lamp base is on a flat, level surface.
- Flickering light:
- Tighten the bulb in the socket.
- Try a different bulb.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | DINGLILIGHTING |
| Model Number | WS-MNF15-60B |
| Product Dimensions | 9"D x 9"W x 64"H |
| Item Weight | 7 Pounds |
| Material | Metal, Plastic |
| Finish Type | Matte |
| Base Material | Metal |
| Bulb Base | E26 |
| Max Wattage per Bulb | 60 watts |
| Number of Light Sources | 3 |
| Switch Type | Rotary (individual per head) |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Shade Material | Acrylic |
| Shade Color | White |
| Special Features | Adjustable Arm, Energy Efficient, Flexible, Lightweight |
8. Warranty & Support
Your DINGLILIGHTING DLLT Floor Lamp comes with a 12-month assurance and a 30-day refund policy for quality-related issues.
If you are not satisfied with our products or have any questions, please feel free to contact us. Our customer support team is available 24 hours online to assist you promptly.
For support, please visit our official website or contact us through the retailer where you purchased the product.
