Introduction
This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your Osprey Global SS-OSP-15-45X 60mm Spotting Scope. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
What's Included
Upon unboxing, verify that all components are present:
- Osprey Global SS-OSP-15-45X 60mm Spotting Scope
- Adjustable Tabletop Tripod

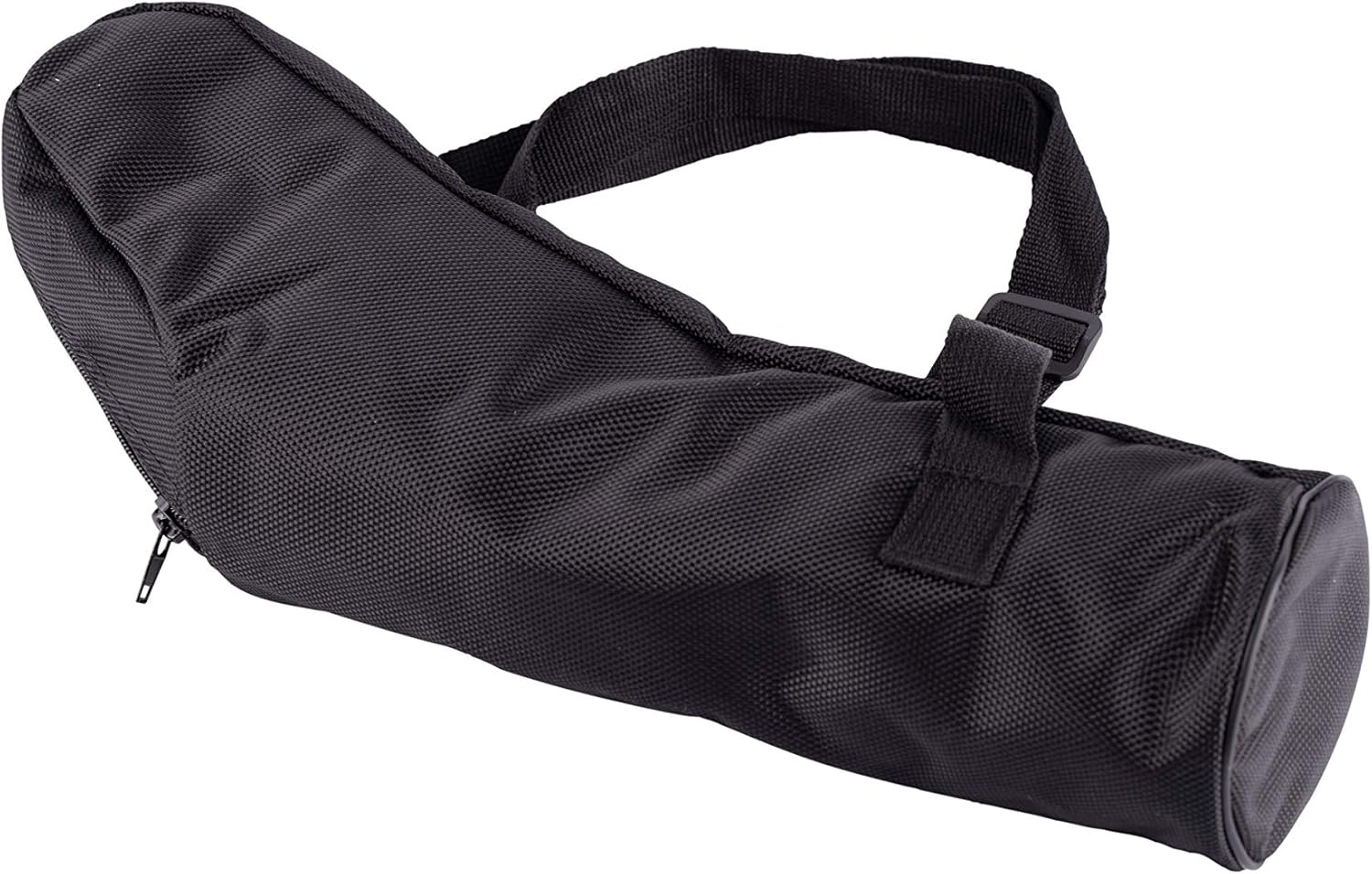

- Soft Carrying Case
- Lens Caps (Objective and Eyepiece)
- Lens Cleaning Cloth
- User Manual
Image: All components included with the Osprey Global SS-OSP-15-45X Spotting Scope.
Setup Instructions
- Attach the Tripod: Carefully screw the spotting scope onto the tripod's mounting plate. Ensure it is securely fastened to prevent accidental drops.
- Adjust Tripod Legs: Extend the tripod legs to a stable height on a flat surface. Adjust the angle for comfortable viewing.
- Remove Lens Caps: Remove the protective caps from both the objective lens (front) and the eyepiece (rear).
Image: The spotting scope securely mounted on its included tabletop tripod.
Operating Instructions
- Aiming the Scope: Point the spotting scope towards your desired viewing target.
- Adjusting Magnification: Rotate the magnification ring on the eyepiece to select your desired power, ranging from 15x to 45x. Start with the lowest magnification (15x) for easier target acquisition.
- Focusing: Use the large focus knob located on the side of the scope to bring the image into sharp focus. Turn it slowly until the image is clear and crisp.
- Eyepiece Adjustment: The eyepiece can be rotated for comfortable viewing angles. Adjust it to suit your preference.
Image: Detail of the eyepiece and focus knob for adjusting magnification and clarity.
Maintenance and Care
- Lens Cleaning: Use the provided lens cleaning cloth or a soft, lint-free cloth specifically designed for optics. Gently wipe the lens surfaces to remove dust or smudges. For stubborn marks, a small amount of lens cleaning fluid can be applied to the cloth, not directly to the lens.
- Body Cleaning: Wipe the body of the scope with a soft, damp cloth. Avoid harsh chemicals or abrasive materials.
- Storage: When not in use, always replace the lens caps to protect the optics. Store the spotting scope in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
Image: Lens caps and cleaning cloth for proper scope maintenance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Image is blurry or out of focus. | Improper focus adjustment. | Rotate the focus knob slowly until the image becomes sharp. |
| Dark spots visible in the image. | Dust or debris on the lens. | Gently clean the objective and eyepiece lenses with the provided cleaning cloth. |
| Difficulty finding the target. | High magnification setting. | Start with the lowest magnification (15x) to locate the target, then increase magnification as needed. |
Specifications
| Magnification | 15-45X |
| Objective Lens Diameter | 60mm |
| Prism Glass | BAK-4 |
| Lens Coating | Fully Multi-Coated Hoya |
| Optical Tube Length | 11 Inches |
| Item Weight | 1.7 Pounds |
| Package Dimensions | 15 x 7 x 4 inches |
| Focus Type | Manual Focus |
| Compatible Devices | Tripod |
Warranty and Support
Osprey Global is committed to providing excellent customer service and stands behind its products with a comprehensive warranty. For specific warranty details, service inquiries, or technical support, please visit the official Osprey Global website or contact their customer service department directly.
You can find more information and support at the Osprey Global Store on Amazon.
