1. Introduction
The Olideauto DSW120 Electric Swing Door Opener provides automated, touchless access for swing doors, enhancing safety and convenience. This low-energy ADA compliant system is designed for various applications, including offices, hospitals, and commercial locations. It features adjustable manual push force, automatic re-opening if an obstruction is detected, and wide voltage compatibility (AC100V to AC240V).
Key features include:
- Touchless hand sensor for activation.
- Adjustable manual push force.
- Automatic re-open safety feature.
- Wide voltage technique (AC100V to AC240V).
2. Setup & Installation
Proper installation is crucial for the safe and efficient operation of your DSW120 door opener. This section guides you through the mounting, wiring, and initial programming steps.
2.1 Mounting the Door Opener
The DSW120 is suitable for both inswing and outswing doors. Ensure the mounting surface is stable and level. The unit should be securely fastened above the door frame.
Figure 1: Olideauto DSW120 Electric Swing Door Opener with included touchless sensors and handheld programmer.
Figure 2: Illustration of inswing push open and outswing pull open configurations for the door opener.
2.2 Wiring the Components
Connect the power supply and sensor wires to the controller unit. Ensure all connections are secure and follow local electrical codes. Use solid core 18-gauge wire for sensor connections if possible, as it simplifies installation.
2.3 Initial Programming
Use the handheld programmer to set initial parameters such as opening/closing speeds, opening direction, and hold-open time. The manual provides detailed instructions for navigating the programmer's functions (F-1, F-2, etc.).

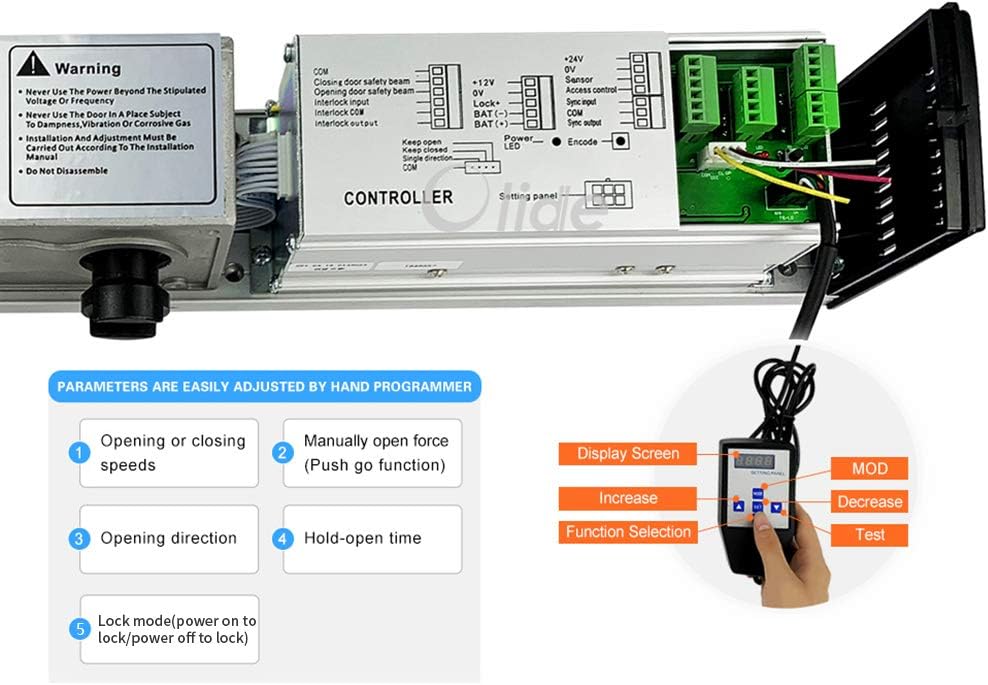

Figure 3: Handheld programmer used to adjust various operational parameters of the door opener.
3. Operating Instructions
The Olideauto DSW120 offers multiple modes of operation for user convenience.
3.1 Touchless Hand Sensor Operation
Wave your hand in front of the sensor to activate the door. This touchless method provides a hygienic and convenient way to open the door.
Figure 4: A person activating the touchless hand sensor for automatic door opening in a commercial setting.
3.2 Manual Push Operation
In manual mode, the door opens with minimal pressure and closes slowly, providing easy operation for pedestrians or individuals with disabilities.
3.3 Remote Control Operation
The door opener can also be controlled using a wireless remote. This allows for convenient activation from a distance.
3.4 Automatic Re-open Safety
The system is designed to automatically re-open the door if it detects an object in its closing path, preventing accidents and ensuring user safety.
4. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Olideauto DSW120 door opener. Keep the unit clean and free from obstructions. Periodically check all connections and moving parts for wear or damage. For any complex issues, it is recommended to contact professional service.
5. Troubleshooting
If you encounter issues with your door opener, perform basic checks:
- Ensure the power supply is connected and active.
- Check all wiring connections for looseness or damage.
- Verify that sensors are clean and unobstructed.
- If using a remote, ensure batteries are functional.
For persistent problems, refer to the detailed troubleshooting section in the full product manual or contact technical support.
6. Specifications
Below are the technical specifications for the Olideauto DSW120 Electric Swing Door Opener:
Figure 5: Dimensions of the Olideauto DSW120 Electric Swing Door Opener.
- Specification Met: ADA
- Voltage: 110-220 VAC +/-10%
- Motor: DC 24V brushless motor
- Power Consumption: 50W
- Opening Time: 3-7 sec. @ 90 degrees
- Hold Open Time: 1-30 sec. Adjustable
- Max. Door Frame Depth: 200mm / 7.87" (with push arm)
- Door Width: Max. 1200mm / 47.2", Min. 660mm / 26"
- Max. Opening Angle: 120 degrees
- Environment Temperature: -20C to 50C (-4F to 122F)
- Operation Noise: Less than 55db
- Opener Size: 21.45''(L) x 3.35''(W) x 3.74''(H)
- Item Weight: 21.3 pounds
- Material: Metal
- Color: Silver
- Batteries: 2 12V batteries required (included)
7. Warranty & Support
Olideauto provides USA Technical phone support for any questions or assistance you may need during installation or operation. Please refer to the product packaging or official Olideauto website for specific warranty details.
