1. Introduction
This user manual provides essential information for the safe and effective installation, operation, and maintenance of your CLY 30W LED Floodlight with Motion Sensor (Model FLB035). This floodlight is designed for outdoor use, providing bright and efficient illumination for areas such as garages, gardens, courtyards, and pathways. Please read this manual thoroughly before installation and retain it for future reference.
2. Safety Instructions
Always adhere to the following safety precautions to prevent injury or damage to the product:
- Ensure the power supply is disconnected before installation, maintenance, or cleaning.
- Installation should be performed by a qualified electrician or in accordance with local electrical codes.
- Do not look directly into the LED light source when it is illuminated, as this may cause eye strain or damage.
- Do not modify or disassemble the product. Unauthorized modifications may void the warranty and pose safety risks.
- Ensure the mounting surface is stable and can support the weight of the floodlight.
- Keep the product away from flammable materials.
- This product is designed for outdoor use and is rated IP66 waterproof. However, avoid submerging it in water.
3. Package Contents
Verify that all components are present and undamaged upon opening the package:
- CLY 30W LED Floodlight with Motion Sensor
- User Manual
- Mounting Screws
- Wall Plugs
Image: Contents of the CLY LED floodlight package, showing the floodlight unit, user manual, wall plugs, and screws.
4. Product Features
- High Brightness: 30W LED provides powerful illumination.
- Motion Sensor: Integrated PIR motion sensor for automatic light activation.
- Waterproof (IP66): Designed for outdoor use, resistant to dust and strong jets of water.
- Excellent Heat Dissipation: Robust aluminum housing with finned design ensures efficient heat dissipation and extended lifespan.
- Shatterproof Design: Durable construction for enhanced resilience.
- Adjustable Settings: Customizable lighting time and sensitivity for the motion sensor.
Image: CLY LED floodlight installed outdoors on a brick wall during rain, demonstrating its IP66 waterproof rating.
Image: Rear view of the CLY LED floodlight, highlighting the finned design for excellent heat dissipation.
Image: Demonstration of the floodlight's shatterproof design.

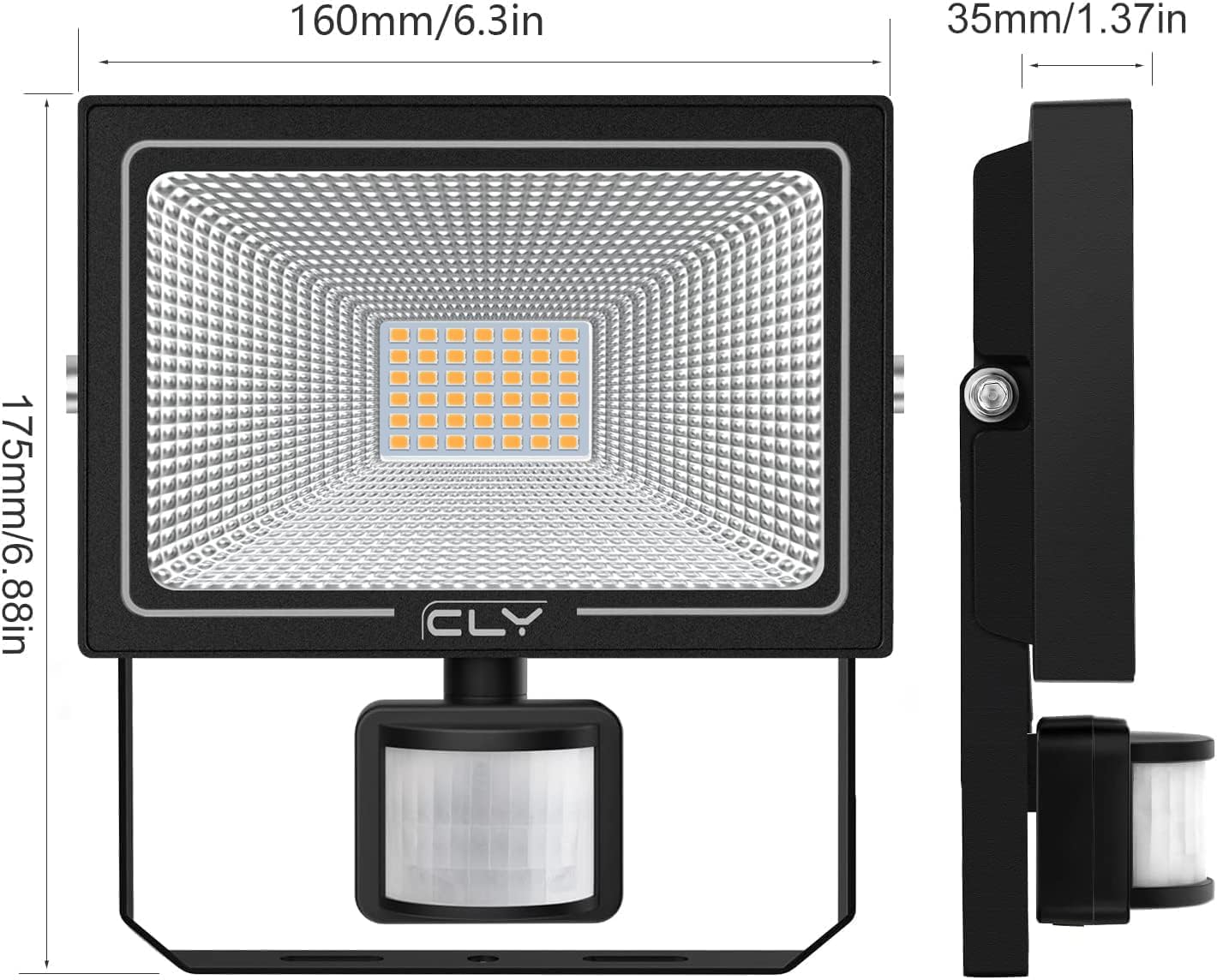

Image: Technical drawing showing the dimensions of the CLY LED floodlight.
5. Setup and Installation
5.1 Mounting
The floodlight comes with an adjustable mounting bracket for flexible installation. Ensure the mounting surface is sturdy.
- Mark the drilling points on the desired mounting surface using the bracket as a template.
- Drill holes and insert the provided wall plugs (if necessary).
- Secure the bracket to the surface using the provided screws.
- Attach the floodlight to the bracket and adjust the angle as needed.
Ideal Mounting Height: 3m - 5m (9.84ft - 16.40ft) for optimal motion sensor performance and light coverage.

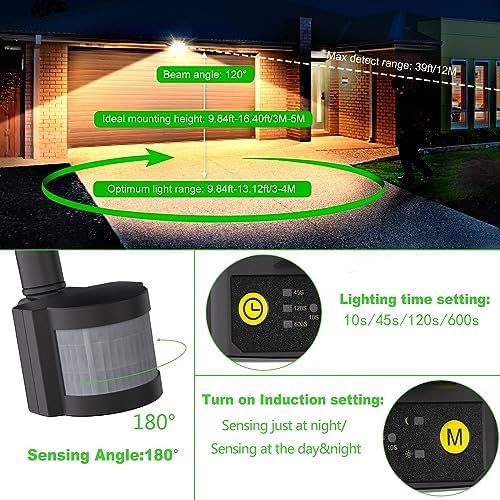

Image: Diagram illustrating ideal mounting height, beam angle, and motion sensor range.
5.2 Electrical Connection
The floodlight is equipped with a power cable and a standard plug for easy connection. Ensure the power source matches the product's voltage requirements (230V).
- Connect the plug to a suitable outdoor power outlet.
- Ensure all connections are secure and protected from moisture.
5.3 Motion Sensor Adjustment
The motion sensor has two adjustable dials:
- Time (L) Dial: Controls the duration the light stays on after motion is detected. Settings typically range from 10 seconds to 600 seconds (10s, 45s, 120s, 600s).
- Sensitivity (M) Dial: Controls the ambient light level at which the sensor becomes active.
- Moon Icon: Sensor activates only at night (low ambient light).
- Sun Icon: Sensor activates both day and night (high ambient light).
Image: Close-up of the motion sensor's control dials for time and sensitivity.
6. Operating Instructions
Once installed and powered, the CLY LED Floodlight will operate based on the motion sensor settings.
- Automatic Operation: When the motion sensor detects movement within its range (up to 12 meters / 39 feet) and the ambient light conditions match the 'Sensitivity' setting, the light will turn on.
- Light Duration: The light will remain on for the duration set by the 'Time' dial. After this period, if no further motion is detected, the light will turn off.
- Continuous Motion: If motion is continuously detected, the light will remain on until motion ceases and the set time duration expires.
Image: Examples of the CLY LED floodlight in various outdoor applications.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your floodlight:
- Cleaning: Periodically clean the light's surface and the motion sensor lens with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the power is off before cleaning.
- Inspection: Regularly check the power cable for any signs of damage. Inspect mounting screws for tightness.
- No User-Serviceable Parts: The LED light source is not replaceable. Do not attempt to open the sealed unit.
8. Troubleshooting
If you encounter issues with your CLY LED Floodlight, refer to the following table:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. | Check power connection, circuit breaker, and outlet. |
| Sensitivity (M) dial set to 'Moon' during daytime. | Adjust 'M' dial to 'Sun' icon for day/night operation, or wait until night. | |
| No motion detected. | Ensure motion is within sensor range and angle. Clear any obstructions. | |
| Light stays on continuously. | Continuous motion detected. | Check for moving objects (e.g., tree branches, pets) in the sensor's field of view. |
| Sensor malfunction. | Disconnect power for a few minutes, then reconnect. If issue persists, contact support. | |
| Light flashes or flickers. | Unstable power supply. | Check power source stability. |
| Sensor interference. | Ensure no strong electromagnetic fields or rapid temperature changes near the sensor. |
9. Specifications
Detailed technical specifications for the CLY 30W LED Floodlight:
| Specification | Value |
|---|---|
| Brand | CLY |
| Model Number | FLB035 |
| Product Dimensions | 16 x 2 x 17.2 cm |
| Weight | 690 g |
| Wattage | 35 Watt |
| Voltage | 230 Volt |
| Light Source Type | LED |
| Number of Light Sources | 1 |
| Special Features | Waterproof (IP66) |
| Switch Installation Type | Ceiling Mount (referring to general mounting) |
| Room Type | Garden |
| Batteries Required? | No |
| First Available Date | November 8, 2020 |
Image: Energy efficiency label for the CLY LED floodlight.
For more detailed product information, you can refer to the EPREL database:
View Product Information Sheet (EPREL Database)
Image: Product information sheet with QR code for EPREL database.
10. Warranty and Support
CLY offers a 2-year replacement service for this product. If you experience any issues or require assistance, please contact CLY customer support through your Amazon purchase platform or the service email address provided in your product documentation. Please have your model number (FLB035) and purchase details ready when contacting support.
