Introduction
This manual provides essential information for the proper use, installation, and maintenance of the Sumitomo ST909 225/70R19.5 128N G Commercial Tire. Adhering to these guidelines will ensure optimal performance, safety, and longevity of your tire.
The Sumitomo ST909 is a robust commercial tire designed for heavy-duty applications, featuring advanced tread compounds and construction for enhanced durability and stability, making it suitable for various commercial vehicle needs.
Safety Information
Always prioritize safety when handling and installing tires. Consult a professional for installation if you are not experienced. Improper installation can lead to serious injury or tire failure.
- Ensure tires are installed by qualified personnel using appropriate equipment.
- Never exceed the maximum inflation pressure or load capacity specified on the tire sidewall.
- Regularly inspect tires for damage, wear, and proper inflation.
- Do not mix tire types (radial with bias-ply) on the same axle.
- Always use appropriate personal protective equipment (PPE) during tire handling and installation.
Product Overview
Figure 1: Main view of the Sumitomo ST909 commercial tire, showcasing its robust tread pattern and sidewall markings.

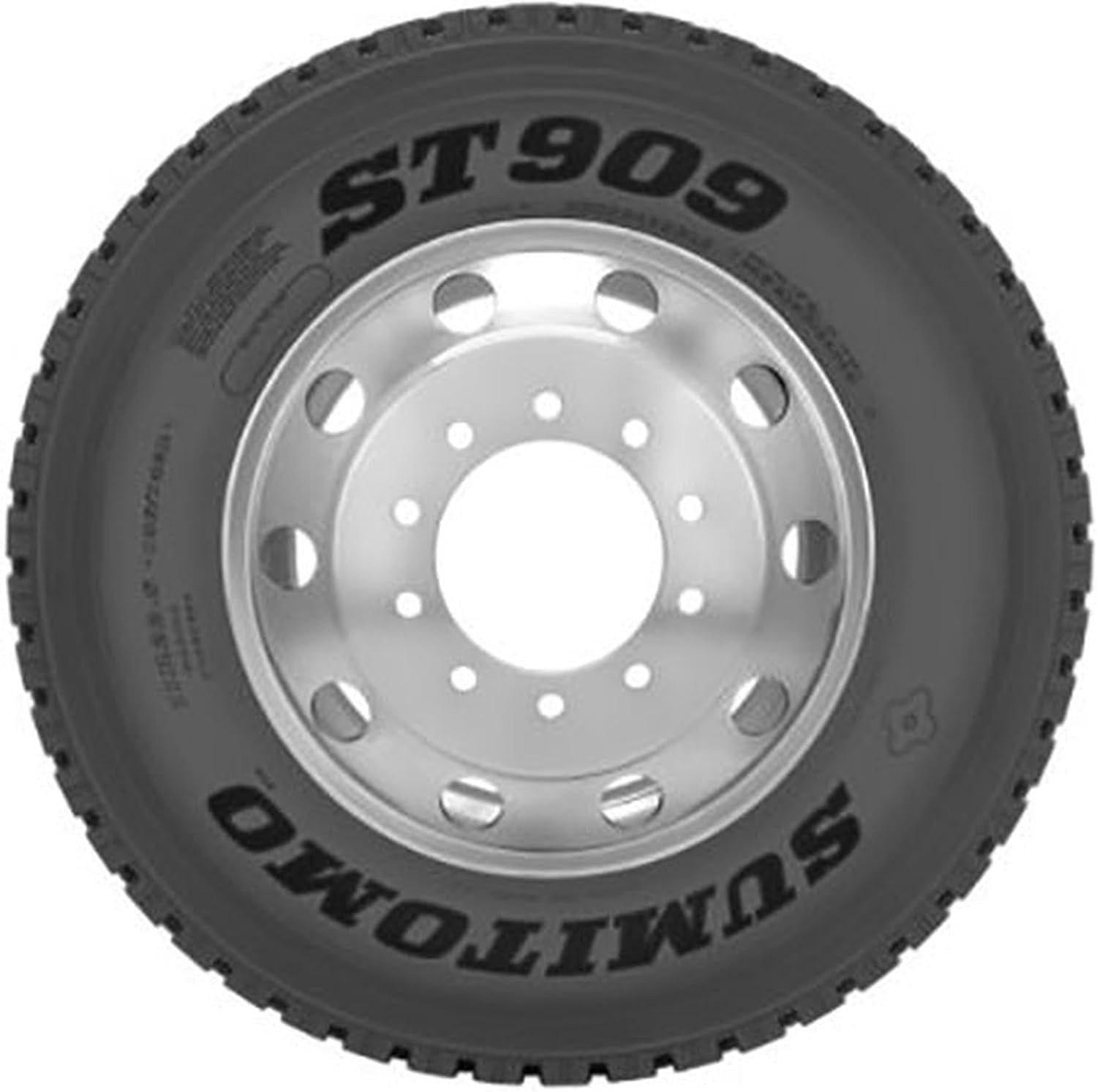

Figure 2: Front view of the Sumitomo ST909 tire, highlighting the symmetrical tread design and central rib.
Figure 3: Side profile of the Sumitomo ST909 tire, showing the sidewall details and overall construction.
Figure 4: Rear view of the Sumitomo ST909 tire, emphasizing the tread pattern from a different angle.
Key Features:
- Cut and chip resistant tread compound enhances durability, extending tire life in demanding conditions.
- Stone ejectors built into grooves to protect casing from damage caused by trapped debris.
- Four steel belts in casing boosts strength and provides excellent puncture resistance.
- Wide, stable footprint enhances stability and promotes even wear for consistent performance.
Setup and Installation
Proper installation is crucial for tire performance and safety. It is highly recommended that installation be performed by a certified tire professional using appropriate tools and safety procedures.
Pre-Installation Checks:
- Verify that the tire size (225/70R19.5) and load/speed ratings (128N) match the vehicle's requirements as specified by the vehicle manufacturer.
- Inspect the tire thoroughly for any manufacturing defects, shipping damage, or foreign objects embedded in the tread or sidewall.
- Ensure the wheel rim is clean, free of rust, corrosion, cracks, or any other damage. Replace damaged rims.
- Confirm that the valve stem is new and compatible with the tire and rim assembly.
Mounting Instructions:
- Lubricate the tire beads and rim flanges with an approved, non-petroleum-based tire mounting lubricant.
- Mount the tire onto the rim, ensuring proper seating of both beads. Use caution to avoid damaging the beads.
- Inflate the tire slowly to the recommended bead seating pressure, ensuring the beads seat correctly. Do not exceed 40 PSI (2.75 bar) to seat beads. Listen for distinct seating sounds.
- Once beads are seated, adjust inflation pressure to the vehicle manufacturer's recommendation or the tire's maximum cold inflation pressure (110 PSI), whichever is lower.
- Install the tire and wheel assembly onto the vehicle, tightening lug nuts to the vehicle manufacturer's specified torque using a torque wrench.
Operating Guidelines
To maximize the lifespan, performance, and safety of your Sumitomo ST909 tires, adhere to the following operating guidelines:
- Inflation Pressure: Maintain correct inflation pressure as specified by the vehicle manufacturer. Check pressure when tires are cold (before driving or after being stationary for at least three hours). Under-inflation or over-inflation can lead to premature wear and reduced safety.
- Load Capacity: Never exceed the maximum load capacity (3970 Pounds) indicated on the tire sidewall. Overloading can lead to excessive heat buildup, tire failure, and compromised vehicle handling.
- Speed Rating: Operate within the tire's speed rating (N, typically indicating up to 87 mph or 140 km/h). Exceeding the speed rating can cause tire damage and failure.
- Driving Habits: Avoid sudden acceleration, harsh braking, and sharp turns, which can accelerate tread wear and stress the tire structure. Drive smoothly and anticipate road conditions.
- Road Hazards: Be vigilant for potholes, curbs, and other road hazards that can cause impact damage to tires and rims.
Maintenance
Regular and diligent maintenance is essential for tire longevity, optimal performance, and safe operation of your commercial vehicle.
Routine Checks:
- Tire Pressure: Check tire pressure weekly using a reliable, calibrated gauge. Adjust pressure to the vehicle manufacturer's recommendations for cold tires.
- Tread Depth: Monitor tread depth regularly across the entire tread surface. The ST909 has a new tread depth of 22/32nds. Replace tires when tread depth reaches legal limits (typically 2/32nds of an inch for commercial tires in most regions).
- Visual Inspection: Inspect tires for cuts, punctures, bulges, cracks, separation, or uneven wear patterns. Remove any embedded stones, glass, or other debris from the tread grooves. Check for signs of sidewall damage.
- Valve Stems: Ensure valve caps are present and tight to prevent dirt and moisture from entering the valve stem.
Rotation and Alignment:
- Tire Rotation: Rotate tires according to vehicle manufacturer recommendations or every 5,000-8,000 miles (8,000-13,000 km) to promote even wear across all tires and extend their lifespan.
- Wheel Alignment: Ensure proper wheel alignment to prevent uneven tread wear, which can be caused by worn steering or suspension components. Misalignment can significantly reduce tire life and affect vehicle handling.
- Wheel Balancing: Have wheels balanced periodically, especially if you notice vibrations. Unbalanced wheels can lead to uneven wear, reduced ride comfort, and stress on vehicle components.
Troubleshooting
This section addresses common issues you might encounter with your Sumitomo ST909 commercial tires and provides potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven Tread Wear | Improper inflation (under/over), wheel misalignment, unbalanced wheels, worn suspension components, aggressive driving. | Check and adjust tire pressure to recommended levels. Perform wheel alignment and balancing. Inspect and replace worn suspension parts. Rotate tires regularly. |
| Rapid Tread Wear | Consistent underinflation, overloading, aggressive driving habits, incorrect tire for application, excessive heat. | Maintain correct inflation pressure. Do not exceed load capacity. Adjust driving habits. Consult a tire professional to ensure tire suitability. |
| Vibrations or Shaking | Unbalanced wheels, bent rim, tire damage (e.g., separation, bulge), worn suspension components, loose lug nuts. | Have wheels balanced. Inspect rims and tires for damage; replace if necessary. Check suspension components and lug nut torque. |
| Tire Losing Air (Slow Leak) | Puncture (nail, screw), leaky valve stem, damaged rim (corrosion, crack), improper bead seating, porous tire. | Inspect for punctures and repair professionally. Replace faulty valve stem. Check rim for damage. Re-seat tire bead. Consult a tire professional for diagnosis. |
Specifications
Detailed technical specifications for the Sumitomo ST909 225/70R19.5 128N G Commercial Tire.
- Brand: Sumitomo
- Model: ST909
- Size: 225/70R19.5
- Section Width: 225 Millimeters
- Load Capacity: 3970 Pounds (Load Index 128)
- Speed Rating: N (up to 87 mph / 140 km/h)
- Tread Depth (New): 22 32nds
- Tread Type: Symmetrical
- Maximum Cold Inflation Pressure: 110 Pound per Square Inch
- Rim Width: 6.75 Inches
- Tire Diameter: 32.3 Inches
- Item Weight: 43.89 Pounds
- Construction Type: Radial
- UPC: 826825377055
- Manufacturer Part Number: 5533082
Warranty and Support
For detailed warranty information and customer support regarding your Sumitomo ST909 commercial tire, please refer to the official Sumitomo website or contact your authorized Sumitomo tire dealer. Warranty terms and conditions may vary based on region and purchase location.
It is recommended to retain your proof of purchase and installation records for any warranty claims. For technical assistance or specific inquiries, please reach out to Sumitomo's customer service channels.
