1. Important Safety Information
Please read these instructions carefully before installation and use. Retain this manual for future reference.
- For a safe and secure installation, ensure that the electrical box to which this fixture will be mounted is properly attached to a structural member of the building.
- All wires are connected. When unpacking, be careful not to pull with wires as a bad connection may result.
- Do not connect electricity until your fixture is fully assembled.
- To reduce the risk of fire, electrical shock, or personal injury, always turn off and unplug the fixture and allow it to cool prior to replacing the light bulb.
- Do not touch the bulb when the fixture is turned on or look directly at a lit bulb. Keep flammable materials away from a lit bulb.
- Consult a qualified electrician if you are unsure about any part of the installation process.
2. Product Overview

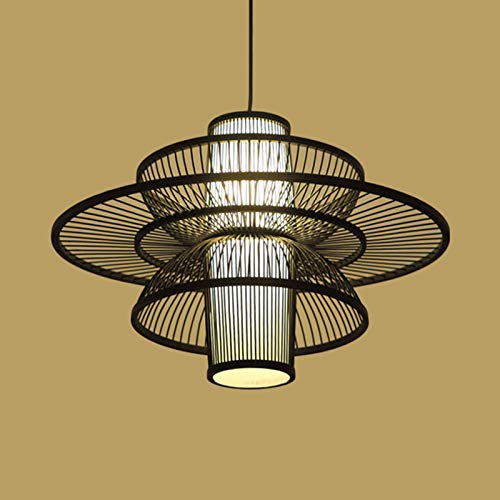

The LITFAD Multi Tiers Ceiling Pendant Light is a modern, handmade bamboo hanging light designed for indoor use. It features a multi-tiered design crafted from bamboo and metal, providing a unique aesthetic for various room types.
3. Package Contents
Please check that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer support.
- Pendant Light Fixture (1)
- Mounting Hardware Kit (1)
- Instruction Manual (1)
- Bulb (Not Included)
4. Installation Instructions
4.1 Pre-Installation
- Turn off the main power at the circuit breaker before starting any electrical work.
- Unpack all components and lay them out on a clean, flat surface.
- Review the safety information in Section 1.
4.2 Mounting the Fixture
- Attach the mounting bracket to the electrical box in the ceiling using the provided screws. Ensure the electrical box is securely fastened to a structural member.
- Connect the fixture's wires to the house wires according to standard electrical codes (usually black to black, white to white, and ground to ground). Use wire nuts to secure connections.
- Carefully tuck the wires into the electrical box.
- Secure the canopy to the mounting bracket, ensuring it covers the electrical box completely.
- Adjust the chain/cord length as desired. The chain/cord length is 59 inches (150 cm) and is adjustable.
4.3 Bulb Installation
- Insert one E26/E27 base bulb (not included, max 40W) into the lamp holder.
- Ensure the bulb is securely screwed in.
5. Operating Instructions
Once installed and the power is restored, the pendant light can be operated using a standard wall switch (not included). This fixture does not have an integrated switch.
- Ensure the light bulb is correctly installed.
- Turn on the power at the circuit breaker.
- Use the wall switch connected to the fixture to turn the light on or off.
6. Maintenance
6.1 Cleaning
- Always turn off the power and allow the fixture to cool before cleaning.
- Wipe the fixture with a soft, dry cloth.
- Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
6.2 Bulb Replacement
- Turn off the power at the circuit breaker and allow the bulb to cool completely.
- Carefully unscrew the old bulb.
- Screw in a new E26/E27 base bulb (max 40W).
- Restore power at the circuit breaker.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | 1. Power is off 2. Loose wire connection 3. Faulty bulb 4. Faulty wall switch | 1. Check circuit breaker and wall switch. 2. Turn off power, check wire connections. 3. Replace bulb. 4. Consult an electrician to check/replace the switch. |
| Light flickers | 1. Loose bulb 2. Loose wire connection 3. Incompatible bulb | 1. Tighten bulb. 2. Turn off power, check wire connections. 3. Ensure bulb wattage and type are compatible. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | LITFAD |
| Model | B086YSHRD4 |
| Fixture Width | 16 inches (40 cm) |
| Fixture Height | 16 inches (40 cm) |
| Canopy Width | 4 inches (10 cm) |
| Chain/Cord Length | 59 inches (150 cm), Adjustable |
| Material | Metal + Bamboo |
| Color | Black |
| Bulb Type | LED/Incandescent/Fluorescent (Bulb Not Included) |
| Bulb Base | E26/E27 |
| Number of Lights | 1 |
| Max Wattage Per Bulb | 40W |
| Voltage | AC110-120V |
| Indoor/Outdoor Usage | Indoor |
9. Warranty
This product comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
10. Customer Support
If you have any questions, concerns, or require assistance with your LITFAD Multi Tiers Ceiling Pendant Light, please do not hesitate to contact our customer support team. We are committed to providing prompt and helpful service.
For support, please refer to the contact information provided at the point of purchase or visit the official LITFAD store online.
