Globber Master Scooter Instruction Manual (Model 660-120)

1. Safety Information

Before operating the Globber Master Scooter, please read and understand all safety instructions. Failure to follow these instructions may result in injury.

• Always wear a helmet and appropriate protective gear (knee pads, elbow pads, wrist guards) when riding.
• Ensure all clamps and fasteners are securely tightened before each use.
• Do not exceed the maximum weight capacity of 50 kg (110 lbs).
• This scooter is designed for children aged 4 to 14 years.
• Ride on smooth, paved surfaces away from traffic. Avoid uneven terrain, sand, gravel, or wet surfaces.
• Adult supervision is recommended, especially for younger riders.
• Use the rear brake for controlled stopping.
• Do not ride at night or in low visibility conditions.
• Regularly inspect the scooter for wear and tear, especially wheels, bearings, and brake components.

2. Product Overview

The Globber Master Scooter is a three-wheeled scooter designed for stability and adaptability, suitable for children aged 4 to 14 years. It features a robust construction with user-friendly adjustments for a comfortable and secure riding experience.

Figure 1: Globber Master Scooter, showcasing its three-wheel design and adjustable T-bar.

Key Features:

• Extra-Wide, Anti-Slip Deck: Features comfortable EVA foam and a reinforced metal platform for stability and support up to 50 kg.
• 5-Height Adjustable T-Bar: A super wide, curved handlebar that can be adjusted to five different heights, accommodating riders from 4 to 14 years old.
• Patented Folding System: Allows for easy folding with a side push button, converting the scooter into trolley mode for convenient transport and storage.
• High-Quality Wheels and Bearings: Equipped with PU cast wheels and ABEC 5 bearings for a smooth ride.
• Patented Steering Lock Button: Enhances stability for beginners by locking the steering mechanism.
• Extra-Long Composite Rear Brake: Provides efficient stopping power and contributes to the longevity of the wheels.
• Soft TPR Handles: Dual-color handles designed for comfort during extended use.

Figure 2: Visual overview highlighting the adjustable T-bar, secure deck, folding mechanism, rear brake, and adjustable steering.

3. Setup and Assembly

The Globber Master Scooter comes largely pre-assembled. Follow these steps for initial setup:

1. Unpack: Carefully remove all components from the packaging.
2. Unfold the Scooter:
   • Locate the patented folding system button on the side of the scooter's base.
   • Press the button and gently pull the T-bar upwards until it locks into its upright position. Ensure it clicks securely.
3. Adjust T-Bar Height:
   • Loosen the quick-release clamp located on the T-bar stem.
   • Adjust the T-bar to one of the five available height settings. The ideal height is typically around the rider's waist level.
   • Once the desired height is selected, securely tighten the quick-release clamp to prevent the T-bar from slipping during use.


   Figure 3: Illustration of the 5-height adjustable T-bar, showing various height settings from 29.1" to 37.0".

4. Check All Connections: Before the first ride, ensure all screws, bolts, and clamps are tight and secure.

4. Operating Instructions

4.1 Riding the Scooter

1. Place one foot firmly on the scooter deck.
2. Use the other foot to push off the ground, generating momentum.
3. To steer, lean your body in the desired direction. The scooter's lean-to-steer mechanism will guide the front wheels.
4. To stop, gently press your foot down on the rear brake located above the back wheel. Apply pressure gradually for a controlled stop.

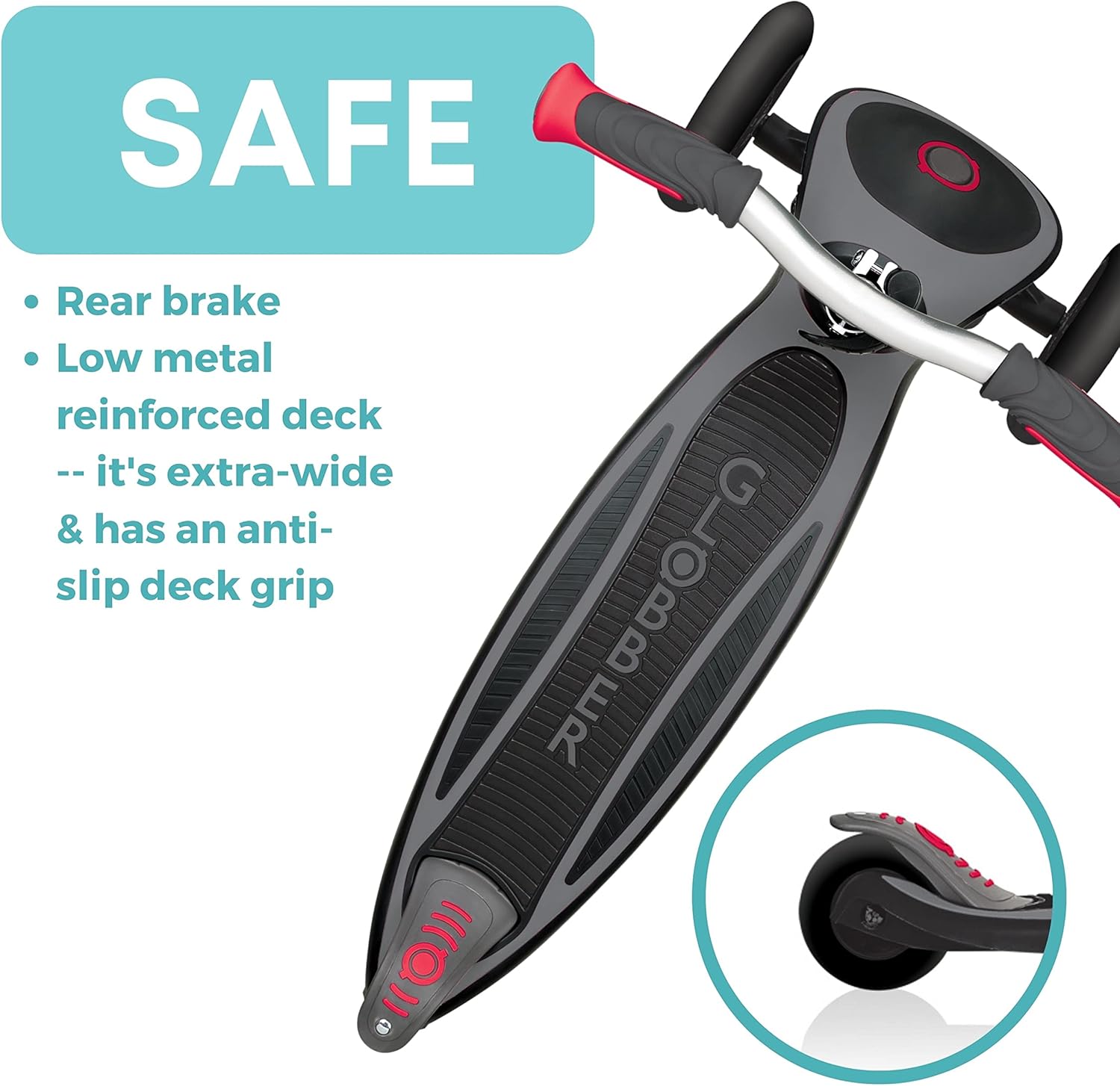

Figure 4: Close-up of the extra-wide, anti-slip deck and the rear brake mechanism, emphasizing safe features.

4.2 Using the Steering Lock

For beginners, the patented steering lock button can be engaged to keep the front wheels straight, providing extra stability and making it easier to learn balance. To engage or disengage, locate the button on the front of the scooter's base and press it.

4.3 Folding and Transporting

The Globber Master Scooter features a patented folding system for easy storage and transport:

1. Ensure the scooter is stationary and the rider has dismounted.
2. Locate the side push button on the base of the scooter.
3. Press the button firmly and fold the T-bar downwards until it locks into the folded position.
4. In the folded position, the scooter can be easily pulled along in "trolley mode" using the T-bar.

Figure 5: The scooter in its compact, folded configuration, highlighting its portability.

Figure 6: A child riding the scooter and another demonstrating the trolley mode for easy portability and storage.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your Globber Master Scooter.

• Cleaning: Wipe the scooter clean with a damp cloth after use. Avoid harsh chemicals or abrasive cleaners. Do not use high-pressure water.
• Wheel Inspection: Regularly check the wheels for wear, cracks, or damage. The PU cast wheels are durable, but extreme use can cause wear.
• Bearing Care: The ABEC 5 bearings are designed for smooth operation. If wheels become stiff or noisy, they may need cleaning or replacement. Avoid riding through water or sand, as this can damage bearings.
• Brake Check: Ensure the rear brake is functioning correctly and provides adequate stopping power. Check for wear on the brake pad.
• Fastener Check: Periodically inspect all screws, bolts, and clamps to ensure they are tight. Re-tighten as necessary.
• Storage: Store the scooter in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.

6. Troubleshooting

This section addresses common issues you might encounter with your Globber Master Scooter.

7. Specifications

8. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please contact Globber customer service directly. Details can typically be found on the official Globber website or through your retailer.

Always refer to the manufacturer's official channels for the most accurate and up-to-date support information.
