1. Introduction
This manual provides essential information for the safe and effective use of your TORCHSTAR 3-Way LED Bulb A21. Please read these instructions carefully before installation and operation. Keep this manual for future reference.
2. Product Features
- Energy Saving: This LED bulb consumes 5W, 10W, or 16W to deliver 450lm, 800lm, or 1600lm brightness, respectively, offering significant energy savings compared to traditional incandescent bulbs.
- 3-Level Brightness: Features three distinct brightness levels (450lm, 800lm, 1600lm) to suit various lighting needs, from a night light to task lighting.
- Wide Application: Designed with a 270-degree beam angle for even light distribution, suitable for desk lamps, floor lamps, bedside lamps, harp lamps, and other fixtures with E26 standard bases.
- Safety and Durability: UL-listed for quality and safe operation. Contains no mercury, UV, or infrared radiation. Offers a long lifespan of approximately 15,000 hours.
- Flicker-Free: Engineered to provide stable, flicker-free illumination.
Image: TORCHSTAR 3-Way LED Bulb A21 highlighting its 5W/10W/16W power consumption, 270-degree beam angle, 13.7-year lifespan, and 3-year warranty.
Image: Visual comparison demonstrating the difference between 2700K Soft White and 5000K Daylight color temperatures, showcasing the bulb's ability to provide distinct lighting atmospheres.
3. Safety Information
- Ensure power is turned off before installing or removing the bulb.
- Do not use with standard dimmers. This bulb is non-dimmable and requires a 3-way lamp socket for its multi-level brightness function. Using it with a conventional dimmer may cause damage or improper operation.
- Suitable for indoor use only.
- Do not disassemble the bulb.
- Avoid direct exposure to water or excessive humidity.
4. Setup and Installation
- Verify Compatibility: Ensure your lamp fixture has an E26 standard base and is equipped with a 3-way socket to utilize all three brightness levels. If used in a standard (non-3-way) socket, the bulb will operate at a single brightness level (approximately 10W equivalent).
- Power Off: Before installation, turn off the power to the lamp fixture at the switch or circuit breaker.
- Insert Bulb: Carefully screw the TORCHSTAR 3-Way LED Bulb into the E26 socket until it is snug. Do not overtighten.
- Restore Power: Turn the power back on.
Image: The TORCHSTAR 3-Way LED Bulb A21 demonstrating its three brightness levels (40W, 60W, 100W equivalent) and its E26 standard base.
5. Operating Instructions
To operate the 3-way functionality, ensure the bulb is installed in a compatible 3-way lamp socket. Each click of the lamp's switch will cycle through the brightness levels:
- First Click: Activates the lowest brightness level (5W, 450lm), suitable for a relaxing atmosphere or night light.
- Second Click: Activates the medium brightness level (10W, 800lm), ideal for general lighting.
- Third Click: Activates the highest brightness level (16W, 1600lm), perfect for reading or task lighting.
- Fourth Click: Turns the bulb off.
Image: Illustrates how the three brightness levels (450lm, 800lm, 1600lm) can be used for different scenarios such as sleep lighting, entertainment lighting, and work lighting.
Image: A bedroom setting showcasing the visual effect of the three brightness levels: 5W (450lm) for relaxing, 10W (800lm) for general lighting, and 16W (1600lm) for task lighting.
Video: An official TORCHSTAR video demonstrating the 3-Way A21 LED Bulb's functionality, showcasing the different brightness levels (5W, 10W, 16W) and their applications in various settings like bedside, pendant, and floor lamps.
6. Maintenance
TORCHSTAR LED bulbs require minimal maintenance. Follow these guidelines:
- Cleaning: Ensure the bulb is cool and the power is off before cleaning. Wipe with a soft, dry cloth. Do not use liquid or abrasive cleaners.
- Replacement: Due to the long lifespan of LED bulbs, frequent replacement is not expected. Replace the bulb when its light output significantly diminishes or it ceases to function.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up. | No power to the fixture; Bulb not screwed in properly; Bulb is faulty. | Check power supply and wall switch. Ensure bulb is securely screwed into the socket. Test bulb in another working fixture. |
| Only one brightness level works. | Bulb is installed in a standard (non-3-way) lamp socket. | This bulb requires a 3-way lamp socket to utilize all three brightness levels. If used in a standard socket, it will function at a single brightness (approximately 10W equivalent). |
| Bulb flickers or buzzes. | Incompatibility with a dimmer switch; Loose connection. | This bulb is non-dimmable and should not be used with conventional LED dimmers. Ensure the bulb is tightly screwed into the socket. |
8. Specifications
| Specification | Detail |
|---|---|
| Brand | TORCHSTAR |
| Model Number | R1-ZD1A21-3WD50-4 |
| Light Type | LED |
| Wattage | 16 Watts (5W/10W/16W selectable) |
| Bulb Shape Size | A21 |
| Bulb Base | E26 Standard Base |
| Light Color | Daylight (5000K) |
| Brightness | 1600 Lumens (450lm/800lm/1600lm selectable) |
| Voltage | 120 Volts |
| Beam Angle | 270 degrees |
| Average Life | 15,000 Hours |
| Material | Metal, Plastic |
| Indoor/Outdoor Usage | Indoor |
| Product Dimensions | 2.75 x 2.75 x 5.15 inches |
| Item Weight | 1.17 pounds |

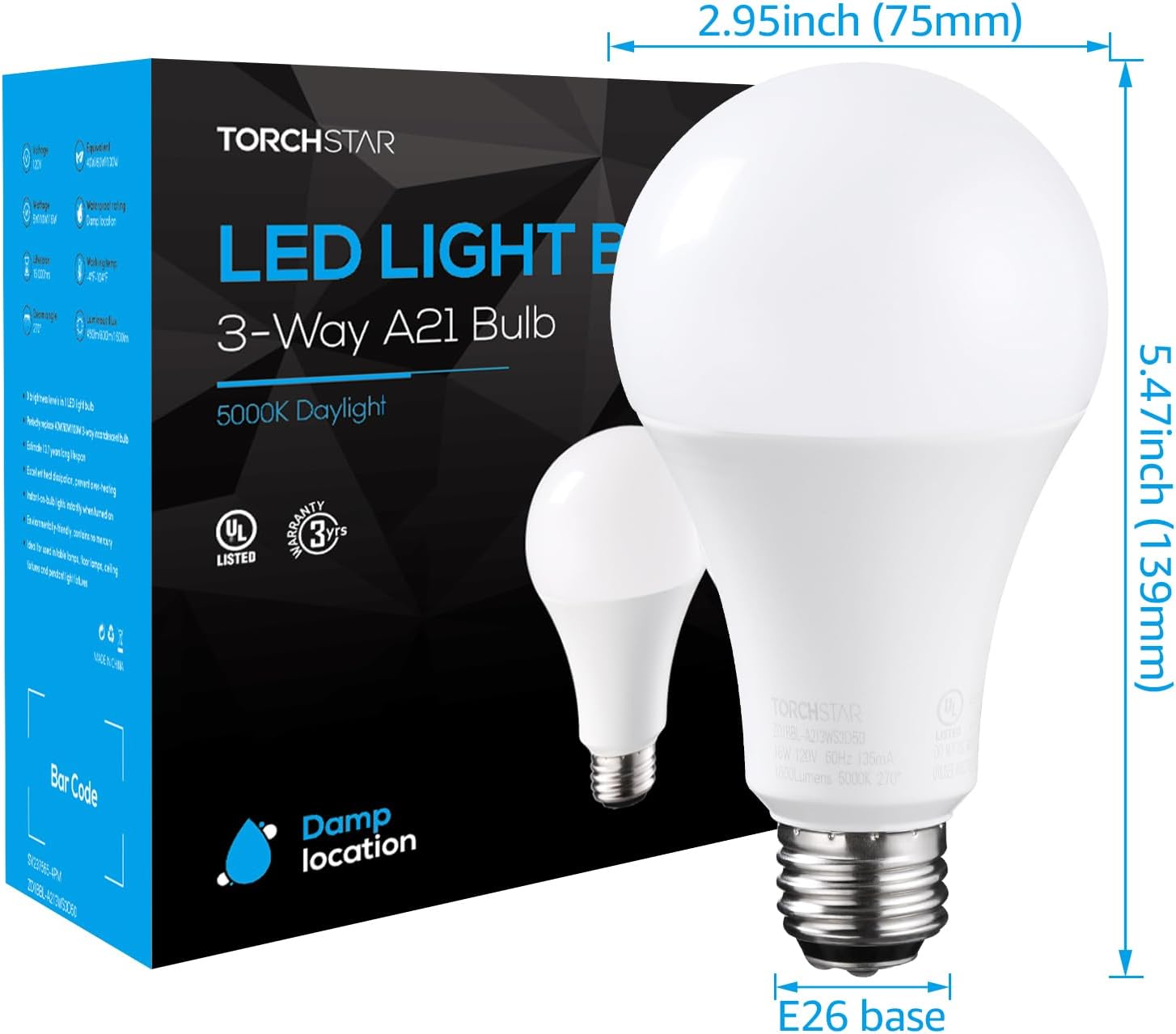

Image: Technical drawing showing the dimensions of the TORCHSTAR 3-Way LED Bulb A21, with a diameter of 2.95 inches (75mm) and a height of 5.47 inches (139mm), featuring an E26 base.
9. Warranty and Support
This TORCHSTAR 3-Way LED Bulb A21 comes with a 3-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims or technical support, please contact TORCHSTAR customer service through their official website or the retailer where the product was purchased. Please have your proof of purchase and product model number (R1-ZD1A21-3WD50-4) available when contacting support.
