Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Cornat TECBE3302 "Noir" Shower System. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
Safety Information
- Ensure all water supply lines are turned off before beginning installation.
- If you are unsure about any installation steps, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the product, as this may damage the finish.
- Check all connections for leaks after installation and before regular use.
- This product is designed for domestic use.
Package Contents
Verify that all components are present before starting the installation:
- 1 x Shower Head (Round, Ø 225 mm)
- 1 x Hand Shower (Ø 125 mm)
- 1 x Shower Hose (150 cm)
- 1 x Connection Hose (50 cm)
- 1 x Riser Pipe (96 cm length, 340 mm projection)
- Mounting Material and Seals
Figure 1: Overview of the Cornat TECBE3302 "Noir" Shower System components.
Setup and Installation
Follow these steps for proper installation of your shower system. Ensure you have the necessary tools (e.g., wrench, drill, level) before beginning.
- Prepare the Installation Area: Turn off the main water supply. Remove any existing shower fixtures.
- Mount the Riser Pipe: The riser pipe features adjustable wall brackets for flexible mounting. Position the riser pipe on the wall, mark the drilling points for the wall brackets, and drill holes. Insert wall plugs and secure the brackets.
- Connect the Riser Pipe: Attach the 50 cm connection hose to the shower mixer outlet and to the diverter on the riser pipe. Ensure all connections are sealed properly.
- Install the Shower Head: Screw the round shower head onto the top arm of the riser pipe. The connection thread is 1/2 inch. The ball joint allows for individual tilt adjustment.
- Attach the Hand Shower and Hose: Connect the 150 cm shower hose to the hand shower and to the diverter outlet on the riser pipe. Place the hand shower into the shower slide, which can be adjusted for height and angle using the rotary knob.
- Final Checks: Turn on the main water supply and check all connections for leaks. Test both the shower head and hand shower functions.
Figure 2: Product dimensions for installation planning. Total height 960 mm, shower head diameter 225 mm, hand shower length 125 mm.

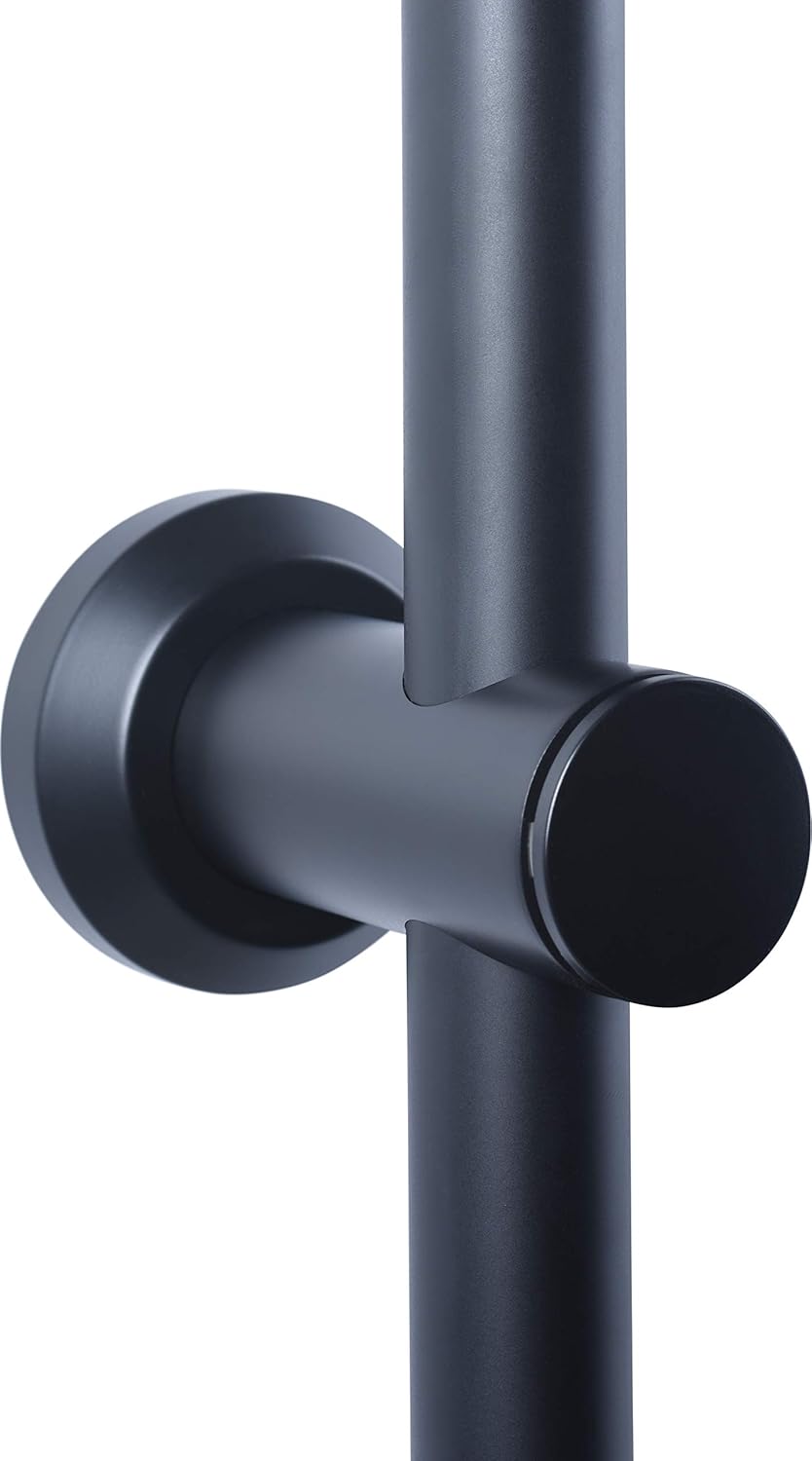

Figure 3: Detail of the wall mount bracket, designed for adjustable positioning.
Operating Instructions
Your Cornat TECBE3302 shower system offers versatile showering options:
Diverter Function
The diverter allows you to switch the water flow between the overhead shower head and the hand shower. Rotate the diverter knob located on the riser pipe to select your desired water outlet.
Figure 4: The diverter allows switching between the overhead and hand shower.
Overhead Shower Head
- Jet Type: Provides a uniform and rich normal jet.
- Adjustable Tilt: The shower head can be tilted to your preferred angle using the smooth-running ball joint.
Figure 5: The round overhead shower head delivers a consistent normal spray.
Hand Shower
The hand shower offers three distinct jet types, easily changed with a one-handed push button:
- Normal Jet: Uniform and rich water flow.
- Spray Jet: Dynamic water jets from individual nozzles.
- Normal/Spray Jet: A combination of both jet types.
Figure 6: The hand shower features a button for selecting different spray patterns.
Maintenance
Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your shower system.
- Cleaning the Nozzles: Both the overhead shower head and hand shower feature anti-limescale silicone nozzles. To remove limescale deposits, simply rub the nozzles with your fingers. This helps maintain an even jet pattern.
- Surface Cleaning: Clean the black matte finish with a soft cloth and mild soap solution. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surface.
- Hose Care: Periodically check the shower hose and connection hose for any signs of wear or damage.
Troubleshooting
If you encounter issues with your shower system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water pressure from shower head/hand shower |
|
|
| Water leaking from connections |
|
|
| Diverter not switching properly |
|
|
Specifications
| Feature | Detail |
|---|---|
| Model Number | TECBE3302 |
| Brand | Cornat |
| Color | Black (Matte Finish) |
| Material | Plastic (ABS), Stainless Steel |
| Installation Type | Wall Mounted |
| Overall Product Dimensions (L x W) | Approx. 59.06"L x 8.86"W (150 cm L x 22.5 cm W) |
| Riser Pipe Length | 96 cm |
| Riser Pipe Projection | 340 mm |
| Overhead Shower Head Diameter | 225 mm |
| Overhead Shower Head Jet Types | 1 (Normal Jet) |
| Hand Shower Head Diameter | 125 mm |
| Hand Shower Jet Types | 3 (Normal, Spray, Normal/Spray) |
| Shower Hose Length | 150 cm |
| Connection Hose Length | 50 cm |
| Flow Rate (Overhead Shower) | 13.9 l/min (3 bar) / 3.69 GPM |
| Flow Rate (Hand Shower) | 5.1 l/min (3 bar) / 1.35 GPM (with water-saving insert: 3.7 l/min) |
| Connection Thread | 1/2 inch |
| Item Weight | 5.52 pounds |
Warranty and Support
For warranty information or technical support, please refer to the purchase documentation or contact Cornat customer service. Keep your proof of purchase for any warranty claims.
Manufacturer: Conmetall
