UpStart Components LM-144959-DL63
UpStart Components 532144959 Deck Belt Replacement Manual
For Craftsman 917.271061 Tractor
Introduction
This manual provides essential information for the proper installation and maintenance of the UpStart Components 532144959 Deck Belt. This replacement belt is designed for use with Craftsman 917.271061 Tractors and is compatible with original part numbers 144959 and 532144959. Adhering to these instructions will help ensure optimal performance and longevity of the belt.
Safety Information
Always prioritize safety when performing maintenance on machinery. Failure to follow safety precautions can result in injury or damage to equipment.
- Disconnect Power: Before beginning any work, ensure the tractor's engine is off, the spark plug wire is disconnected, and the parking brake is engaged to prevent accidental starting.
- Wear Protective Gear: Always wear appropriate personal protective equipment, including sturdy work gloves to protect your hands from sharp edges and pinch points during installation.
- Secure the Tractor: If lifting the tractor for access, ensure it is securely supported on jack stands or ramps. Never rely solely on a jack.
- Read Tractor Manual: Consult your Craftsman 917.271061 Tractor's original owner's manual for specific safety procedures and deck removal instructions.
Product Overview
The UpStart Components 532144959 Deck Belt is a high-quality replacement part engineered to meet the operational demands of your Craftsman tractor's mowing deck. It is designed for durability and reliable power transmission.

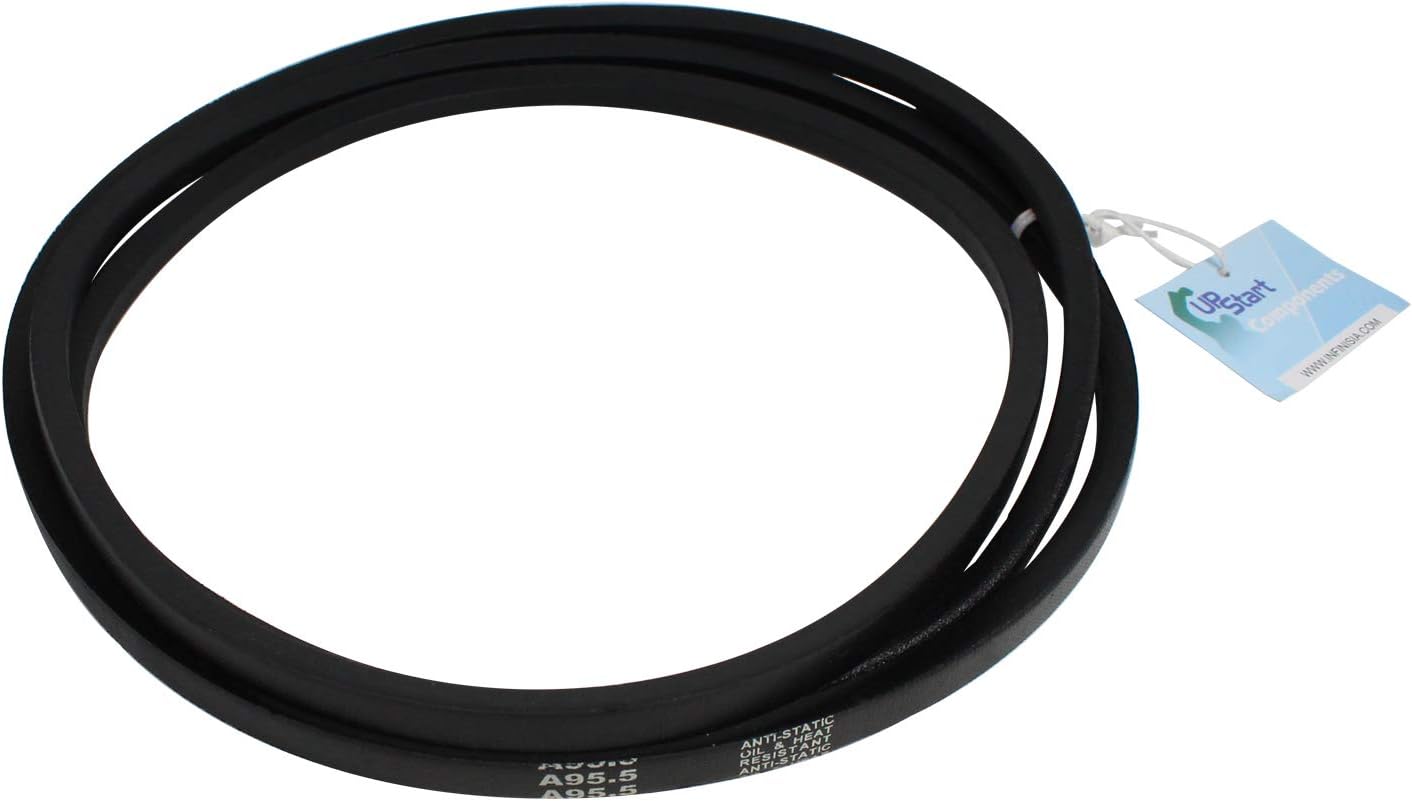

Image 1: The UpStart Components 532144959 Deck Belt, coiled for packaging.
Compatibility: This deck belt is compatible with the following models and part numbers:
- Craftsman 917.271061 Tractor
- Replaces AYP Part Number: 144959, 532144959
- Replaces Husqvarna Part Number: 532144959
- Replaces Laser Part Number: 95520
- Replaces Prime Line Part Number: 7-07982
- Replaces Rotary Part Number: 9697
- Replaces Ryobi Part Number: 532144959
- Replaces Stens Part Number: 265-938
Installation Instructions
Follow these general steps for replacing your deck belt. Specific procedures may vary slightly depending on your tractor model. Always refer to your tractor's service manual for detailed instructions.
- Prepare the Tractor: Park the tractor on a flat, level surface. Turn off the engine, remove the ignition key, disconnect the spark plug wire, and engage the parking brake.
- Remove Mower Deck: Carefully detach the mower deck from the tractor frame. This usually involves disconnecting lift arms, anti-sway bars, and the PTO (Power Take-Off) cable or belt. Consult your tractor's manual for precise steps.
- Inspect Old Belt: Before removing the old belt, observe its routing path around all pulleys. Taking a photo can be helpful for reassembly.
- Remove Old Belt: Release any tensioners or idler pulleys as needed to remove the worn or broken deck belt.
- Verify Replacement Belt: Compare the new UpStart Components 532144959 belt with the old belt to ensure they match in length and width (1/2" x 95-1/2").
- Install New Belt: Carefully route the new belt around all pulleys, following the path of the old belt. Ensure the belt is seated correctly in all pulley grooves.
- Tension the Belt: Re-engage any tensioners or idler pulleys to apply proper tension to the belt. The belt should be snug but not overly tight.
- Reattach Mower Deck: Reinstall the mower deck onto the tractor, reconnecting all components in reverse order of removal.
- Test Operation: Reconnect the spark plug wire. Start the tractor and engage the PTO at a low setting to ensure the belt operates smoothly without slipping or unusual noises. Disengage the PTO and turn off the engine before making any adjustments.
Image 2: The replacement deck belt showing its identification tag.
Image 3: Close-up view of the belt's durable material and construction.
Operating Considerations
Once installed, the deck belt should operate smoothly, transmitting power from the engine to the mower blades. Listen for any unusual sounds, such as squealing or grinding, which could indicate improper installation or a problem with other deck components.
Avoid engaging the mower deck at high engine RPMs, as this can put excessive stress on the belt and other components. Engage the PTO smoothly and gradually.
Maintenance
Regular inspection and maintenance can extend the life of your deck belt and ensure consistent mowing performance.
- Regular Inspection: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or stretching. Replace the belt if any significant damage is observed.
- Keep Clean: Keep the belt and pulleys free from grass clippings, dirt, and debris. Accumulations can cause the belt to slip or wear prematurely.
- Check Pulleys: Ensure all pulleys are clean, spin freely, and are not bent or damaged. Worn or seized pulleys can quickly damage a new belt.
- Proper Tension: Verify that the belt tension remains correct. An overly loose belt will slip, while an overly tight belt will cause excessive wear on both the belt and pulley bearings.
Troubleshooting
If you encounter issues after replacing the deck belt, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt slips or squeals | Incorrect tension, worn pulleys, debris on belt/pulleys, incorrect belt size. | Adjust tension, inspect/clean pulleys, verify belt size. |
| Belt comes off pulleys | Incorrect routing, bent or damaged pulleys, missing belt guides, incorrect tension. | Re-route belt, inspect/replace pulleys/guides, adjust tension. |
| Belt wears quickly | Misaligned pulleys, excessive tension, rough pulley surfaces, incorrect belt type. | Check pulley alignment, adjust tension, inspect pulleys for damage, ensure correct belt type. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician or refer to your tractor's comprehensive service manual.
Specifications
- Product Type: Replacement Deck Belt
- Brand: UpStart Components
- Model Number: LM-144959-DL63
- Part Number: 532144959
- Dimensions: 1/2 inch (width) x 95-1/2 inches (length)
- Compatible Devices: Craftsman 917.271061 Tractor, and other models using AYP 144959, AYP 532144959, Husqvarna 532144959, Laser 95520, Prime Line 7-07982, Rotary 9697, Ryobi 532144959, Stens 265-938.
Warranty and Support
This product is an UpStart Components Brand replacement part. It is not an OEM (Original Equipment Manufacturer) product. All mentions of brand names or model descriptions are made strictly to illustrate compatibility. All brand names and logos are registered trademarks of their respective owners. This product is not affiliated with any brands and is not covered under any warranties offered by the original manufacturers.
Any warranties for this product are offered solely by UpStart Components. For specific warranty details or support inquiries, please contact UpStart Components directly through their official channels.
