Cash Acme HG135 Thermostatic Mixing Valve User Manual

Introduction and Overview

The Cash Acme HG135 Thermostatic Mixing Valve is engineered to simplify plumbing and home improvement projects by providing a consistent and safe water temperature. This compact under-sink valve is designed to prevent scalding by precisely mixing hot and cold water to deliver tempered water at a controlled temperature.

It is compatible with various piping materials including SharkBite copper tubing, CTS, CPVC, SDR-9 HDPE, and PEX fittings, offering versatile application in both residential and commercial settings. The durable lead-free brass construction ensures long-lasting reliability.

Safety Information

This thermostatic mixing valve is designed with a rapid response thermostatic element for superior control and protection. In the event of a cold water supply failure, the valve provides anti-scald protection by automatically shutting off the hot water flow.

• Always shut off both hot and cold water supply valves before beginning installation or maintenance.
• Ensure all connections are properly tightened to prevent leaks.
• Verify the outlet temperature setting after installation to ensure it meets safety requirements and user comfort.
• Consult local plumbing codes and regulations for proper installation and usage.

Product Features

• Anti-Scald Protection: Designed to prevent scalding by mixing hot and cold water to a safe, consistent temperature.
• Wide Compatibility: Works with SharkBite copper tubing, CTS, CPVC, SDR-9 HDPE, and PEX fittings.
• Durable Construction: Made from lead-free brass for long-lasting reliability.
• Easy Installation: Innovative design allows for quick installation without the need for specialized tools, crimping, glue, or soldering.
• Adjustable Temperature: Factory set at 120°F, with an adjustable range from 85°F to 130°F.
• Compact Design: Sleek and compact, ideal for under-sink installations or in tight spaces.

Specifications

Note: Specifications are subject to change without notice.

Setup and Installation

The Cash Acme HG135 Thermostatic Mixing Valve is designed for quick and easy installation. Follow these steps for proper setup:

Pre-Installation Steps:

1. Shut off both the hot and cold water supply stop valves at the source.
2. Remove any existing supply lines connected to your faucet.

Mounting the Valve:

Mount the valve bracket in a location that allows easy access to all connection points. The valve is compact and suitable for under-sink mounting.

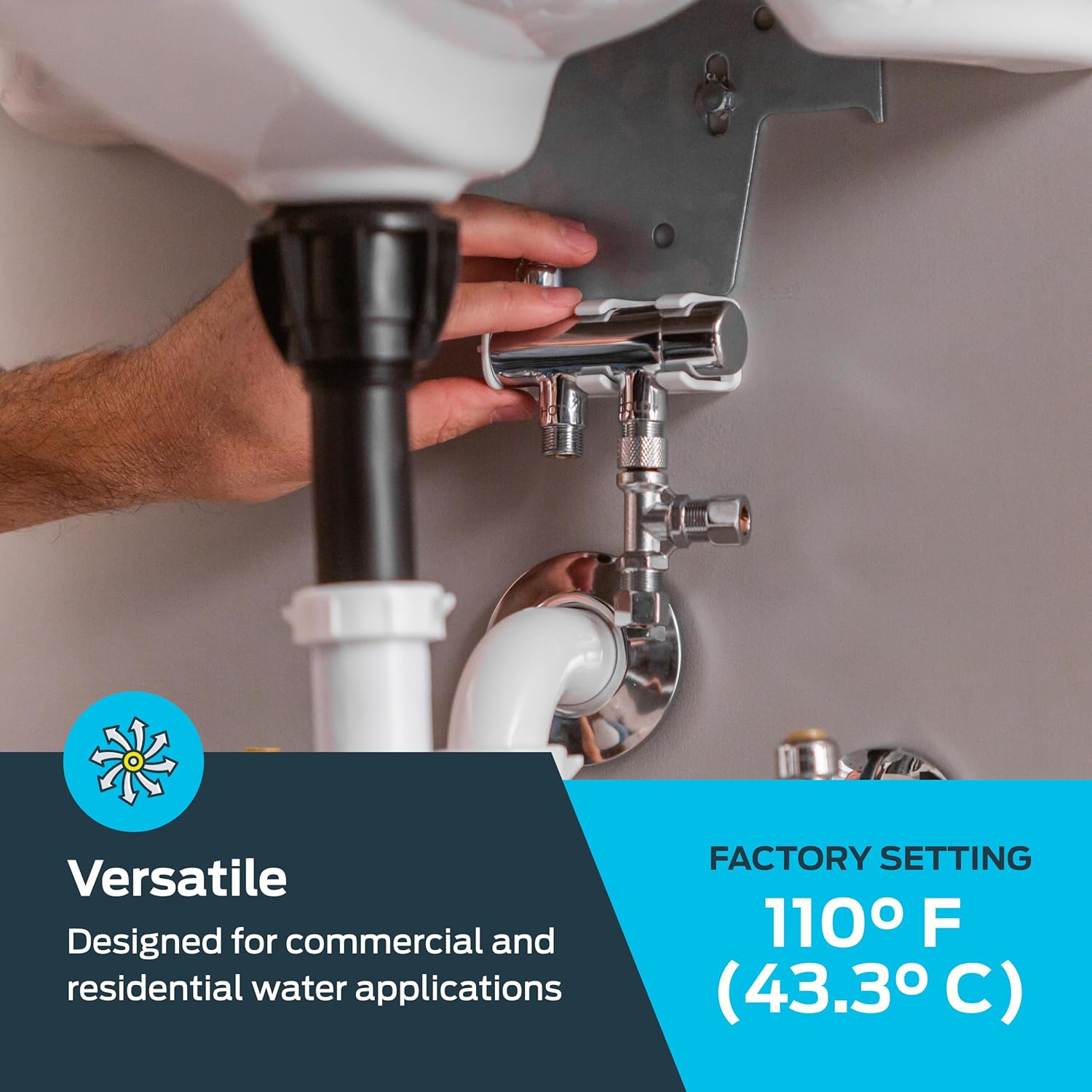

Image: The HG135 valve installed under a sink, demonstrating its compact size and typical placement.

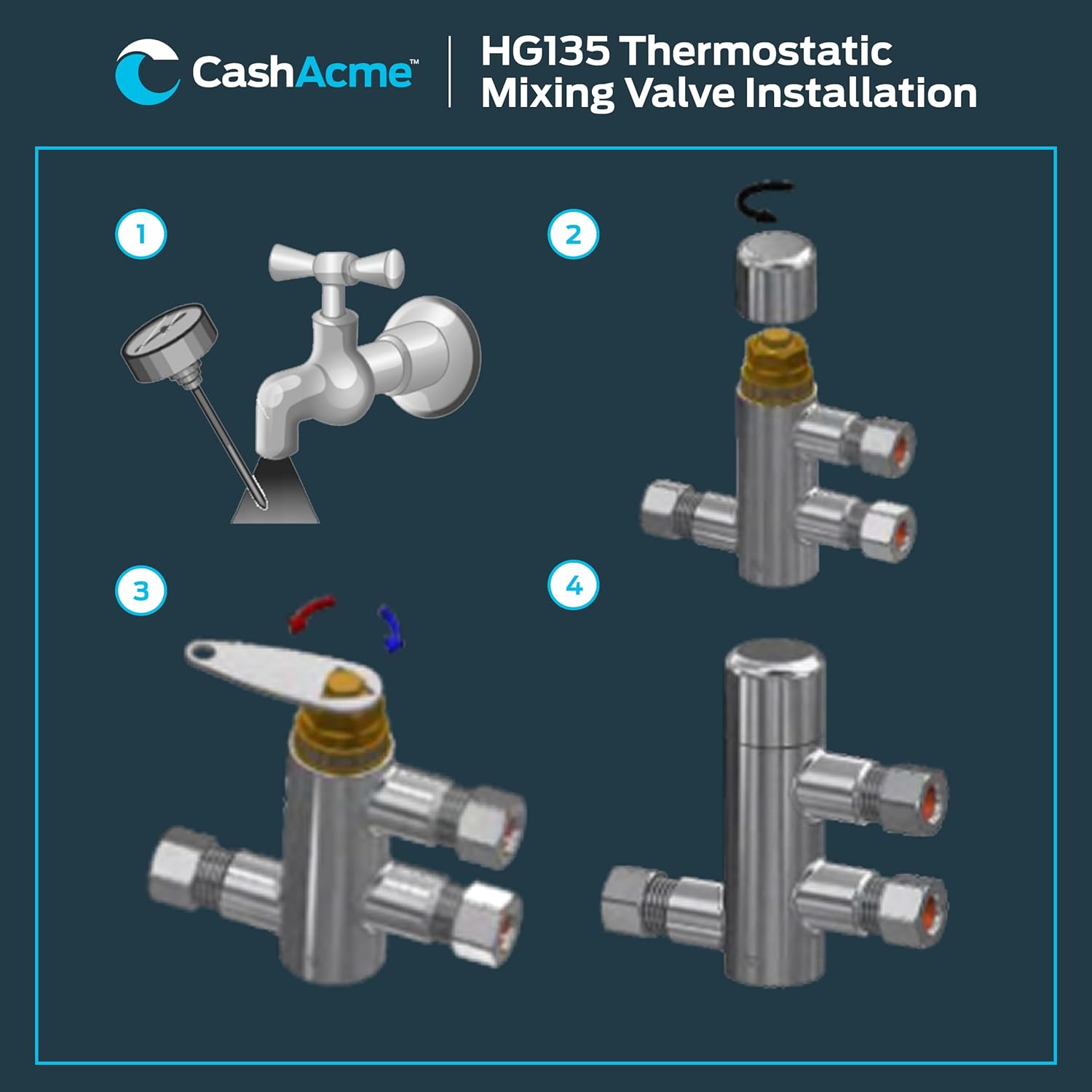

Image: A step-by-step diagram illustrating the installation process of the HG135 Thermostatic Mixing Valve.

Connecting Water Lines:

1. Connect the hot and cold lines from your water supply to the mixing valve using either 3/8-inch flexible hose connectors or 3/8-inch tube compression fittings. Ensure all fittings are threaded correctly and tightened securely.
2. Connect a supply line from the cold water bypass tee on the mixing valve to the cold water inlet of your faucet.
3. Connect a supply line from the mixed water outlet of the mixing valve to the hot water inlet of your faucet.

Image: Detailed view of the HG135 valve's connection points, highlighting the 3/8 inch compression compatibility for inlet and outlet lines.

Post-Installation Check:

1. Once all connections are made, slowly turn on the hot and cold supply stops.
2. Carefully check all connections for any possible leaks. Tighten any loose fittings as necessary.

Installation Video Guide:

Operation

The HG135 Thermostatic Mixing Valve automatically mixes hot and cold water to deliver a consistent, tempered water temperature at the faucet. The factory preset temperature is 120°F, which is a common safe temperature for household use.

Temperature Adjustment:

The outlet temperature can be adjusted anywhere from 85°F to 130°F. To adjust the temperature, locate the adjustment knob on the valve. Refer to the product diagram for its exact location. Use a suitable tool (if required) to turn the knob to increase or decrease the mixed water temperature. Always test the water temperature with a thermometer after adjustment to ensure it is within a safe and desired range.

Image: Front view of the Cash Acme HG135 Thermostatic Mixing Valve, showing its main body and the cap covering the temperature adjustment mechanism.

Image: Diagram illustrating the FVMX Temperature & Pressure Relief Valve, which is similar in function to the HG135, highlighting its role in controlling and maintaining consistent water pressure.

Maintenance

The Cash Acme HG135 Thermostatic Mixing Valve is designed for long-lasting reliability with minimal maintenance. Regular checks can help ensure optimal performance.

• Leak Inspection: Periodically inspect all connections for any signs of leaks. Address any leaks immediately by tightening fittings or replacing worn components.
• Temperature Verification: Occasionally verify the mixed water temperature with a thermometer to ensure it remains within your desired and safe range. Recalibrate if necessary.
• Cleaning: Keep the exterior of the valve clean. Avoid using harsh chemicals that could damage the brass finish.

Troubleshooting

Warranty and Support

For warranty information and technical support regarding your Cash Acme HG135 Thermostatic Mixing Valve, please refer to the official Cash Acme website or contact their customer service directly. Keep your purchase receipt for warranty claims.
