1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Hunter 50881 Swanson 44-inch Ceiling Fan. Please read all instructions carefully before beginning installation or use to ensure proper function and safety.
Figure 1: Hunter 50881 Swanson 44-inch Ceiling Fan
2. Important Safety Information
Always follow basic safety precautions when installing and operating this ceiling fan to reduce the risk of fire, electric shock, or personal injury.
- Read all instructions before installing the fan.
- Consult a qualified electrician if you are unfamiliar with electrical wiring.
- Ensure the installation site can support the fan's weight (approximately 15.2 pounds).
- Disconnect power at the circuit breaker before installation or servicing.
- Do not operate the fan with damaged parts.
- Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Package Contents
Verify that all components are present before beginning installation:
- Motor Housing
- 5 Fan Blades
- Light Kit
- Bulb (LED)
- Pull Chains
- 2-inch Downrod
- Mounting Hardware
4. Setup and Installation
Installation of the Hunter Swanson ceiling fan requires basic electrical knowledge. If you are unsure about any steps, it is recommended to consult a professional electrician.
4.1 Interactive Installation Guide
For an interactive, step-by-step installation experience, scan the QR code below or visit the provided link:
Figure 2: Scan for 3D Interactive Guide
4.2 Detailed Manuals
For comprehensive written instructions, please refer to the official PDF documents:
4.3 Fan Dimensions and Downrod
The fan includes a 2-inch downrod for standard installation. For angled ceilings, a 36-inch downrod (not included) may be required. Refer to the diagram below for detailed dimensions.

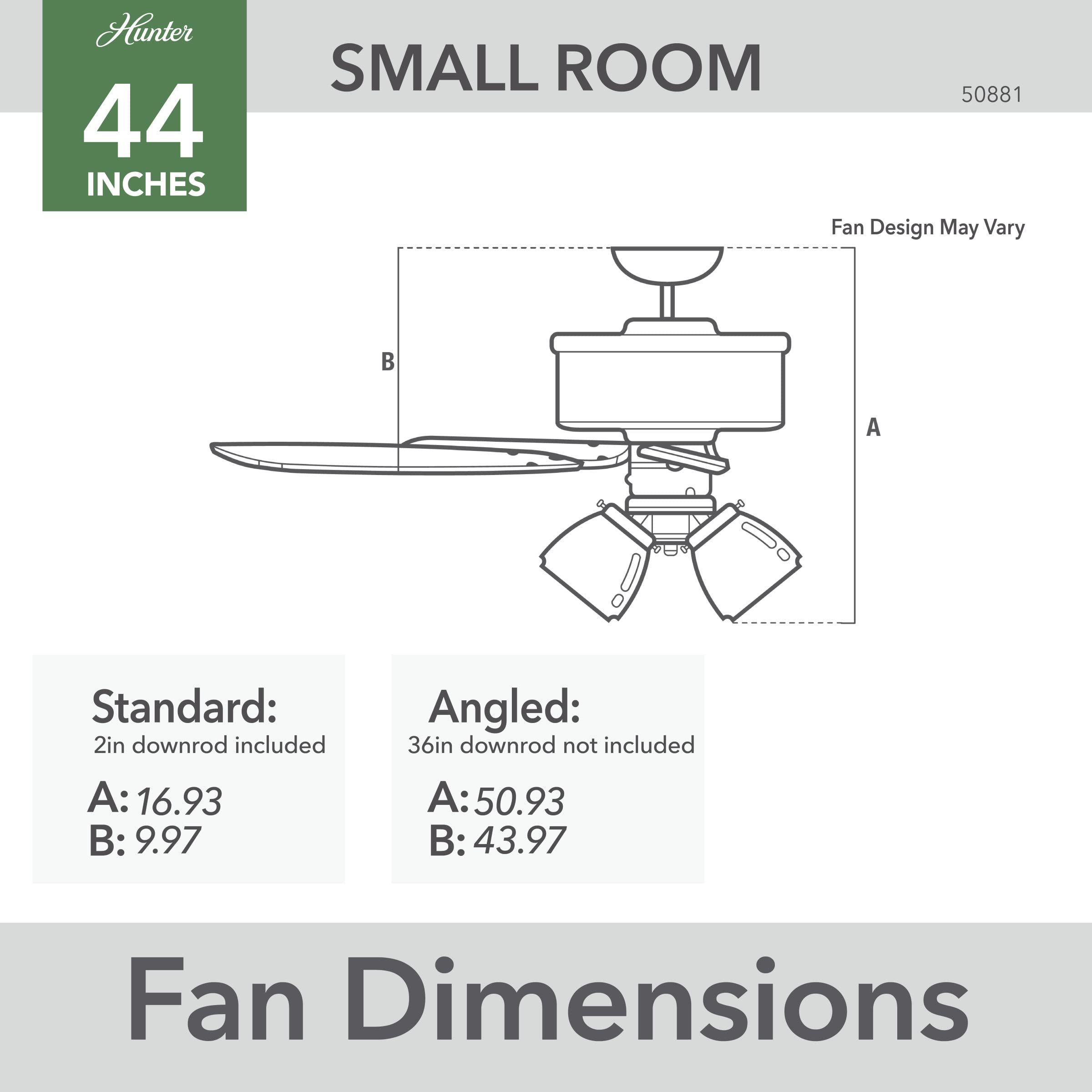

Figure 3: Fan Dimensions
Figure 4: Motor Housing Detail
Figure 5: Blade Attachment Detail
5. Operating Instructions
The Hunter Swanson ceiling fan is controlled via pull chains for both fan speed and light operation.
5.1 Fan Speed Control
The fan features a multi-speed reversible motor with 3 power levels. Pull the fan chain to cycle through the speeds (High, Medium, Low, Off).
5.2 Light Control
The integrated LED light kit is controlled by a separate pull chain. Pull the light chain to turn the light On or Off.
Figure 6: Light Kit and Pull Chains
5.3 Reversible Motor Function
The fan motor is reversible, allowing for seasonal use. A switch on the motor housing changes the blade direction:
- Summer Mode (Downdraft): Blades rotate counter-clockwise, creating a cooling breeze.
- Winter Mode (Updraft): Blades rotate clockwise, circulating warm air trapped near the ceiling.
Figure 7: Fan with Reversible Blades (Light Wood Grain)
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Dust the fan blades and motor housing periodically with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Blade Screws: Check and tighten all blade screws at least twice a year.
- Light Bulbs: The fan uses energy-efficient LED bulbs designed for long life. Replacement bulbs should match the specifications (600 lm, 3000 Kelvin, 6.5 watts, 125 volts).
7. Troubleshooting
If you experience issues with your Hunter Swanson ceiling fan, refer to the following common troubleshooting steps:
- Fan Does Not Start: Check that the circuit breaker is on and the wall switch is in the ON position. Ensure all wire connections are secure.
- Fan Wobbles: Verify that all blade screws are tightened. Check that the mounting bracket is securely fastened to the ceiling junction box. Ensure blades are balanced.
- Noisy Operation: Confirm all screws are tight. Check for any loose parts or obstructions. Allow a 24-hour break-in period for new fans.
- Light Does Not Work: Check the light pull chain. Ensure the LED bulb is properly seated. Verify electrical connections to the light kit.
8. Product Specifications
| Feature | Specification |
|---|---|
| Brand | Hunter |
| Model Number | 50881 |
| Product Dimensions | 44"D x 16.93"W x 44"H |
| Item Weight | 15.21 pounds |
| Color | New Bronze |
| Number of Blades | 5 |
| Voltage | 125 Volts |
| Wattage (Light) | 6.5 watts |
| Type of Bulb | LED |
| Luminous Flux | 600 Lumen |
| Control Method | Pull Chain |
| Room Type | Bedroom, Classroom, Conference Room, Dining Room, Home Office, Kitchen, Library, Living Room, Study Room |
| Special Feature | Corded, Reversible Motor |
| Indoor/Outdoor Usage | Indoor |
9. Warranty and Support
Hunter provides a limited lifetime motor warranty for the Swanson 44-inch Ceiling Fan, reflecting over 130 years of experience in the fan business.
For further assistance, technical support, or warranty claims, please visit the official Hunter website or contact their customer service department. Refer to the user manual PDF for specific contact details.
