Leifheit Regulus Aqua PowerVac Accessory Set 11918 Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper use and maintenance of your Leifheit Regulus Aqua PowerVac Accessory Set, Model 11918. This set is designed to enhance the performance and longevity of your Leifheit Regulus Aqua PowerVac cordless vacuum cleaner. Please read this manual thoroughly before installation and use.

2. Product Overview

The Leifheit Regulus Aqua PowerVac Accessory Set 11918 includes the following components:

• Cleaning Roller: A microfibre roller with a 2-fibre system for effective dirt removal.
• Sponge Filter: Designed to protect the vacuum cleaner's motor from dirt and water.
• Two Cleaning Brushes: For hygienic cleaning of the water tank and suction channel.

Figure 1: Overview of the Leifheit Regulus Aqua PowerVac Accessory Set, showing the cleaning roller, sponge filter, and two cleaning brushes.

Figure 2: The microfibre cleaning roller, featuring a 2-fibre system with slightly protruding special bristles for enhanced cleaning.

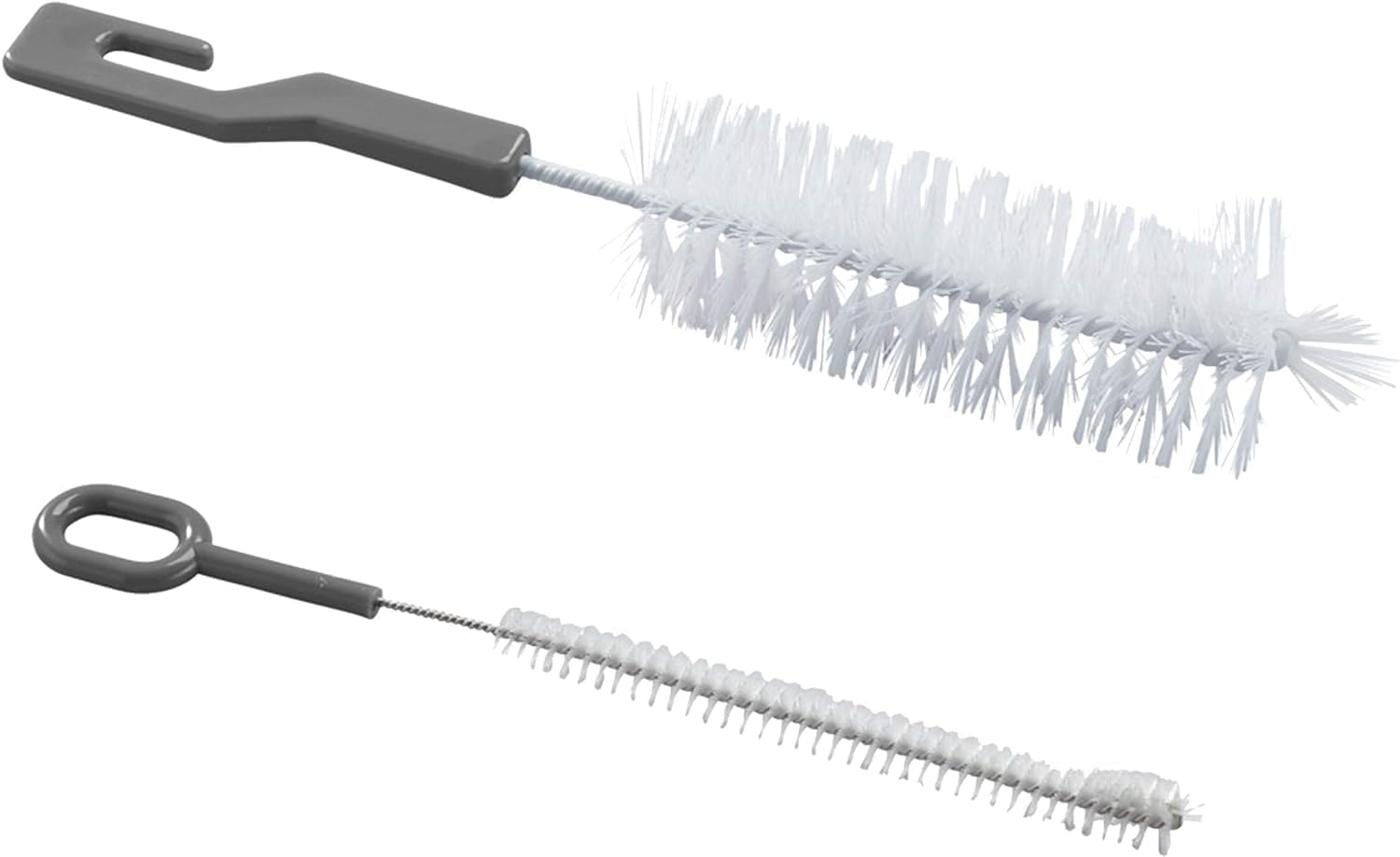

Figure 3: The two cleaning brushes included in the set, designed for cleaning the water tank and suction channel.

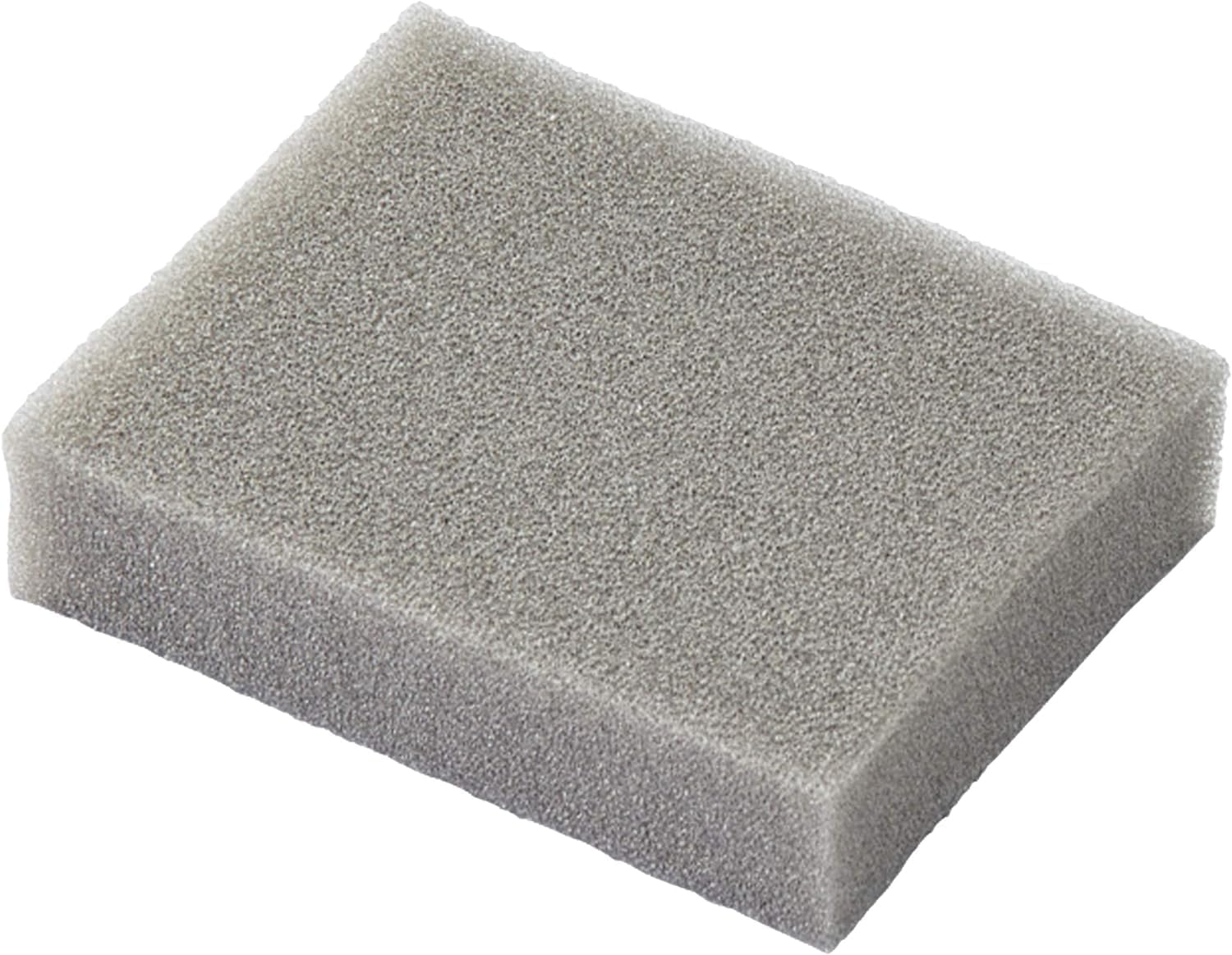

Figure 4: The sponge filter, crucial for protecting the vacuum cleaner's motor from debris and water.

3. Setup and Installation

Before installing any accessories, ensure your Leifheit Regulus Aqua PowerVac is turned off and unplugged from its charging station.

3.1. Installing the Cleaning Roller

1. Locate the roller compartment on the underside of your Regulus Aqua PowerVac.
2. Open the roller cover according to your vacuum cleaner's main instruction manual.
3. Carefully remove the old cleaning roller, if present.
4. Insert the new cleaning roller, ensuring it clicks securely into place. The ends of the roller should align with the designated slots.
5. Close the roller cover until it locks.

3.2. Installing the Sponge Filter

1. Access the filter compartment of your Regulus Aqua PowerVac. Refer to your vacuum cleaner's main manual for exact location and opening instructions.
2. Remove the used sponge filter.
3. Place the new sponge filter into the compartment, ensuring it fits snugly to provide optimal motor protection.
4. Close the filter compartment cover.

4. Operating with Accessories

Once the cleaning roller and sponge filter are installed, your Leifheit Regulus Aqua PowerVac is ready for operation. The accessories work in conjunction with the main unit to provide efficient cleaning.

• The cleaning roller actively scrubs and absorbs dirt from hard floors. Its 2-fibre system is designed to tackle various types of dirt, including stubborn residues.
• The sponge filter continuously protects the vacuum cleaner's motor by preventing dirt particles and water from entering the motor housing during operation.
• The cleaning brushes are used for post-operation maintenance, as detailed in the Maintenance section.

5. Maintenance

Regular maintenance of your accessories ensures optimal performance and extends the lifespan of your Leifheit Regulus Aqua PowerVac.

5.1. Cleaning the Cleaning Roller

1. After each use, remove the cleaning roller from the vacuum cleaner.
2. Rinse the roller thoroughly under running water until all dirt and debris are removed.
3. For deeper cleaning, the roller can be washed with mild soap and water.
4. Allow the cleaning roller to air dry completely before re-installing it or storing it. Ensure it is fully dry to prevent mildew or odors.

5.2. Cleaning the Sponge Filter

1. Remove the sponge filter from its compartment.
2. Rinse the filter under running water to remove accumulated dirt. Gently squeeze the filter to release trapped particles.
3. Allow the filter to air dry completely before re-inserting it. A damp filter can damage the motor.
4. Replacement: The sponge filter should be replaced regularly, typically every 3-6 months, or sooner if visible wear or reduced suction is observed. Regular replacement protects the motor and maintains cleaning efficiency.

5.3. Using the Cleaning Brushes

1. Use the larger cleaning brush to clean the water tank and other accessible internal parts of the vacuum cleaner.
2. The smaller, narrower brush is ideal for cleaning the suction channel and other tight spaces where dirt might accumulate.
3. Rinse the brushes after use and allow them to air dry.

6. Troubleshooting

This section addresses common issues related to the accessory set. For problems with the main vacuum cleaner unit, refer to its dedicated instruction manual.

6.1. Cleaning Roller Not Spinning Effectively

• Check for Obstructions: Remove the roller and inspect for tangled hair, threads, or debris that might be preventing it from spinning freely. Clean as necessary.
• Improper Installation: Ensure the roller is correctly seated and locked into its compartment. Refer to Section 3.1.
• Wear and Tear: If the roller is old and worn, its cleaning effectiveness may diminish. Consider replacing it.

6.2. Reduced Suction Power

• Clogged Sponge Filter: A dirty or clogged sponge filter can severely reduce suction. Clean or replace the filter as described in Section 5.2.
• Blocked Suction Channel: Use the provided cleaning brushes to clear any blockages in the suction channel of the vacuum cleaner.

7. Specifications

8. Warranty and Support

This accessory set is designed for use with the Leifheit Regulus Aqua PowerVac. For specific warranty information regarding this accessory set, please refer to the warranty documentation provided with your original Leifheit Regulus Aqua PowerVac cordless vacuum cleaner or visit the official Leifheit website.

For further assistance, technical support, or to purchase replacement parts, please contact Leifheit customer service:

• Leifheit Official Website: www.leifheit.com
• Refer to your product packaging or the main vacuum cleaner manual for regional contact information.
