Introduction
This manual provides detailed instructions for the safe and efficient use of your VARTA LED Rechargeable Headlamp H30R. Please read this manual thoroughly before operating the device and retain it for future reference.
The VARTA H30R is an ultralight, splashproof headlamp designed for outdoor activities such as camping, jogging, and hiking. It features a swivel head for optimal illumination and a dimming function for adjustable brightness.
Safety Instructions
- Do not look directly into the LED light.
- Keep out of reach of children.
- Do not attempt to disassemble or modify the headlamp.
- Use only the provided or a certified Micro USB cable for charging.
- Avoid exposing the headlamp to extreme temperatures or direct sunlight for prolonged periods.
- Dispose of the product and its battery responsibly according to local regulations.
Package Contents
- VARTA LED Rechargeable Headlamp H30R
- Micro USB Charging Cable
- Adjustable Headband
Image 1: Packaging of the VARTA H30R Headlamp, showing the product, its features, and included Micro USB cable.
Product Overview
Familiarize yourself with the components of your VARTA H30R Headlamp.
Image 2: The VARTA H30R Headlamp assembly, showing the light unit attached to the adjustable headband.

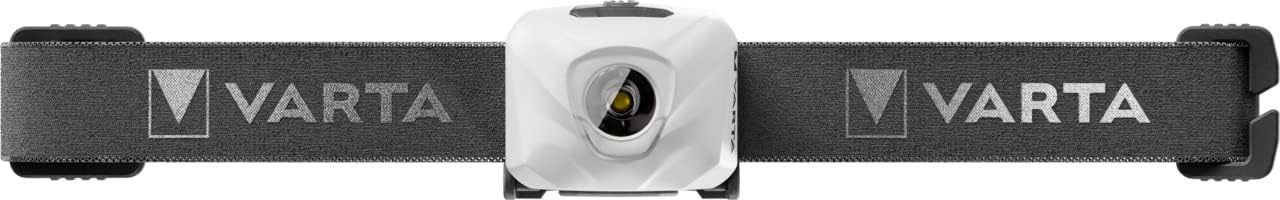

Image 3: Front view of the VARTA H30R Headlamp, highlighting the LED light source and power button.
Image 4: A person wearing the VARTA H30R Headlamp during an outdoor activity, demonstrating its practical use.
Key Components:
- LED Light Unit: Main light source.
- Power Button: Controls power and light modes.
- Swivel Head: Allows adjustment of light direction.
- Adjustable Headband: For comfortable and secure fit.
- Micro USB Port: For charging the internal battery.
- Battery Indicator: Shows charging status and battery level.
Setup
1. Charging the Battery
- Locate the Micro USB port on the headlamp.
- Connect the provided Micro USB cable to the headlamp and to a suitable USB power source (e.g., computer, USB wall adapter).
- The battery indicator will show the charging status. A full charge typically takes approximately 3.5 hours.
- Disconnect the cable once fully charged.
Image 5: The VARTA H30R Headlamp shown with the included Micro USB cable, illustrating the charging connection.
2. Adjusting the Headband
The elastic headband is adjustable to fit various head sizes. Slide the buckles on the strap to achieve a comfortable and secure fit. The headband is washable for hygiene.
Operating Instructions
1. Power On/Off and Light Modes
- Press the power button once to turn the headlamp on.
- Subsequent presses of the power button will cycle through different light modes (e.g., High, Medium, Low, Strobe, etc., depending on the model's specific programming).
- Press and hold the power button to turn the headlamp off.
2. Dimming Function
The headlamp features a dimming function to adjust brightness. While the light is on, press and hold the power button to gradually increase or decrease the brightness. Release the button when the desired brightness level is reached.
Image 6: The VARTA H30R Headlamp illustrating the adjustable light intensity feature.
3. Swivel Head
The light unit can be swiveled vertically to direct the beam precisely where needed, optimizing illumination of your environment.
Image 7: The VARTA H30R Headlamp demonstrating its swivel head feature for directional lighting.
4. Memory Function
The headlamp features a memory function that recalls the last used light setting (mode and brightness) when turned back on.
5. Button Lock
To prevent accidental activation during transport or storage, the headlamp includes a button lock function. Consult the specific product packaging or manufacturer's website for instructions on activating and deactivating this feature, as it can vary by model.
6. Battery Indicator
The integrated battery indicator provides visual feedback on the remaining battery charge (e.g., green for full, yellow for medium, red for low). This helps you monitor power levels and recharge as needed.
Maintenance
Cleaning
- The headband is washable. Remove it from the light unit before washing.
- Wipe the light unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Ensure the Micro USB port cover is securely closed to maintain splashproof integrity.
Storage
Store the headlamp in a cool, dry place away from direct sunlight when not in use. For long-term storage, ensure the battery is partially charged (around 50%) to prolong its lifespan.
Troubleshooting
- Headlamp does not turn on:
- Ensure the battery is charged. Connect to a power source using the USB cable.
- Check if the button lock function is activated.
- Light is dim or flickers:
- The battery may be low. Recharge the headlamp.
- Headlamp does not charge:
- Verify the USB cable is properly connected to both the headlamp and the power source.
- Try a different USB cable or power adapter.
If you encounter issues not covered here, please refer to the support section.
Specifications
| Model | H30R |
| Light Source Type | LED |
| White Brightness | 300 Lumens (Maximum) |
| Power Source | Battery Powered (Lithium-ion rechargeable) |
| Charging Time | Approx. 3.5 hours |
| Water Resistance Level | Water Resistant (Splashproof) |
| Item Weight | 47 Grams (1.66 ounces) |
| Product Dimensions | 9.06"D x 3.94"W x 2.36"H (Approximate) |
| Manufacturer Part Number | 18631101401 |
Warranty and Support
Warranty Information
VARTA products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or consult your retailer. The EU spare part availability duration is 1 year.
Customer Support
For technical assistance, troubleshooting, or further inquiries, please visit the official VARTA website or contact your local VARTA distributor. Contact information can typically be found on the product packaging or the VARTA website.
Please have your product model (H30R) and purchase information ready when contacting support.
