Summit CRS5B14W 27-Inch White Electric Radiant Cooktop User Manual

1. Important Safety Information

Please read all instructions carefully before using this appliance to ensure safe operation and to prevent injury or damage. Keep this manual for future reference.

• Electrical Safety: This cooktop requires a 230V AC/60Hz power supply and professional hardwired installation. Do not attempt to install this unit yourself unless you are a qualified electrician. Ensure the power supply is disconnected before any installation or servicing.
• Hot Surface Warning: The ceramic glass surface and cooking elements will become hot during use. Avoid touching hot surfaces. Use pot holders or oven mitts when handling cookware. Indicator lights will illuminate when elements are active.
• Burner Controls: The push-to-turn knobs are designed to prevent accidental activation. Always push down on the knob before turning to select a heat setting.
• Proper Cookware: Use flat-bottomed cookware that matches the size of the heating element for efficient and safe cooking.
• Ventilation: Ensure adequate ventilation in the kitchen area when using the cooktop.
• Children and Pets: Keep children and pets away from the cooktop during operation and while it is cooling down.

2. Product Overview

The Summit CRS5B14W is a 27-inch wide electric radiant cooktop featuring a smooth white ceramic glass surface and five heating elements, designed for efficient and versatile cooking.

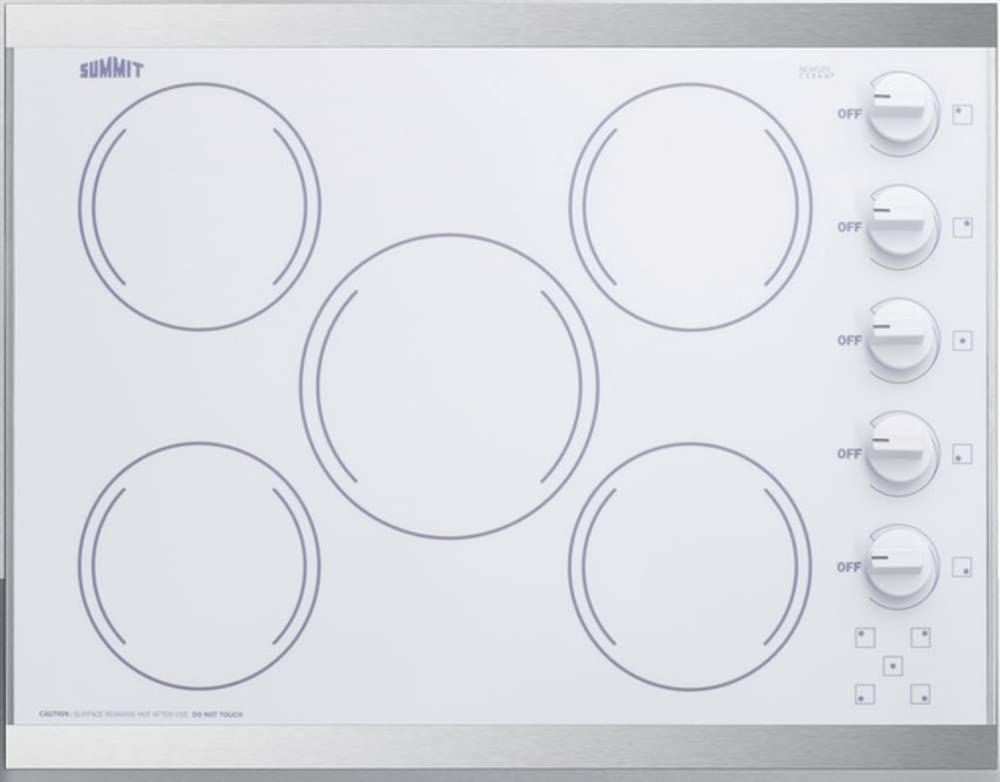

Figure 2.1: Top view of the Summit CRS5B14W cooktop, showing the five radiant heating elements and control knobs on the right side.

Key Features:

• Five Radiant Elements: Includes one large 8-inch 1800W element for larger pots and pans, and four standard 6.5-inch 1200W elements for everyday cooking.
• Schott Ceran Surface: Durable and easy-to-clean white ceramic glass cooking surface.
• E.G.O. Burners: High-quality heating elements manufactured by E.G.O. in Germany.
• Push-to-Turn Knobs: Safety feature requiring a gentle push before turning to activate elements.
• Indicator Lights: Each burner has an indicator light to show when it is active, enhancing safety.
• Stainless Steel Trim: Thick stainless steel border for a modern aesthetic and added durability.

3. Setup and Installation

This cooktop is designed for built-in countertop installation. Proper installation is crucial for safety and optimal performance.

Installation Requirements:

• Countertop Cutout: The required cutout dimensions are 25.25 inches (W) x 18.75 inches (D).
• Electrical Connection: The unit operates on 230V AC/60Hz and requires a dedicated 25 Amp circuit. It must be hardwired by a qualified electrician. A power cord is not included.
• Clearance: Ensure adequate clearance around the cooktop as per local building codes and manufacturer guidelines.
• Level Surface: Install the cooktop on a level and stable surface.

Note: Incorrect installation can void the warranty and create safety hazards. Always consult a professional for installation.

4. Operating Instructions

The Summit CRS5B14W cooktop is equipped with user-friendly controls for precise heat management.

Figure 4.1: Detail of the push-to-turn control knobs and individual burner indicator lights.

Using the Burners:

1. Select Cookware: Choose appropriate cookware for the desired heating element size. The large 8-inch element is ideal for larger pots, while the 6.5-inch elements suit standard cooking needs.
2. Activate Burner: To turn on a burner, push down on the corresponding control knob and rotate it clockwise to the desired heat setting. The knob will click into place at various heat levels.
3. Indicator Lights: An indicator light next to each knob will illuminate when the respective burner is active, serving as a visual safety reminder.
4. Adjust Heat: Rotate the knob to increase or decrease the heat intensity as needed.
5. Turn Off Burner: To turn off a burner, rotate the knob counter-clockwise until it clicks into the 'OFF' position. The indicator light will extinguish.
6. Cool Down: After turning off, the ceramic glass surface will remain hot for some time. The indicator lights will turn off, but exercise caution until the surface has cooled completely.

5. Cleaning and Maintenance

Regular cleaning and maintenance will help preserve the appearance and functionality of your cooktop.

• Before Cleaning: Always ensure the cooktop is turned off and has completely cooled down before cleaning. Disconnect power if performing deep cleaning or maintenance.
• Ceramic Glass Surface: For light spills, wipe with a damp cloth and mild dish soap. For stubborn stains or burnt-on food, use a ceramic cooktop cleaner and a non-abrasive pad. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can scratch or damage the surface.
• Stainless Steel Trim: Clean with a soft cloth and a stainless steel cleaner, wiping in the direction of the grain to prevent streaks.
• Control Knobs: The knobs can be pulled off for easier cleaning. Wash them with warm, soapy water, rinse, and dry thoroughly before reattaching.
• Spills: Clean spills immediately, especially sugary spills, as they can pit the glass surface if left to cool.

6. Troubleshooting

If you encounter issues with your cooktop, refer to the following common troubleshooting steps. For problems not listed here, contact a qualified service technician.

7. Specifications

Detailed technical specifications for the Summit CRS5B14W electric radiant cooktop.

8. Warranty and Customer Support

For warranty information, service, or technical assistance, please contact Summit Appliance customer support. Keep your purchase receipt and model number handy when contacting support.

Contact Information: Refer to the official Summit Appliance website or your purchase documentation for the most current contact details.

Online Resources: Visit the Summit Appliance Store for additional product information and support.
