EDISION PROTON S2 Full HD Satellite Receiver Instruction Manual

1. Introduction

This manual provides detailed instructions for the EDISION PROTON S2 Full HD Satellite Receiver, model 01-07-0024. This device is designed for receiving free-to-air (FTA) satellite television and radio programs in Full HD quality via DVB-S2. It is compatible with Unicable systems and includes a 2-in-1 remote control for convenient operation of both the receiver and your television. The receiver is also suitable for regions affected by ARD & ZDF SD signal discontinuation.

Image 1.1: EDISION PROTON S2 Receiver packaging.

Image 1.2: The EDISION PROTON S2 Receiver integrated into a home entertainment setup.

2. Package Contents

Please check the box for the following items:

• EDISION PROTON S2 Receiver
• 2-in-1 Remote Control
• 12V Power Adapter
• Quick User Guide (English/German/Greek)
• 2 x LR03 AAA Batteries
• 2 x Self-adhesive pads

Image 2.1: All items included in the EDISION PROTON S2 product package.

3. Product Overview

3.1 Front & Side Panel

Image 3.1: Front and side panel features of the receiver.

1. IR IN: Infrared connection port for an external IR eye.
2. USB: Port for connecting storage devices (e.g., USB flash drives) or an optional USB WiFi antenna.
3. LED Display: Shows the current time or program number.
4. CH+/CH- Buttons: Buttons for navigating through program lists.
5. POWER Button: To turn the receiver on or off.

3.2 Connections on the Back

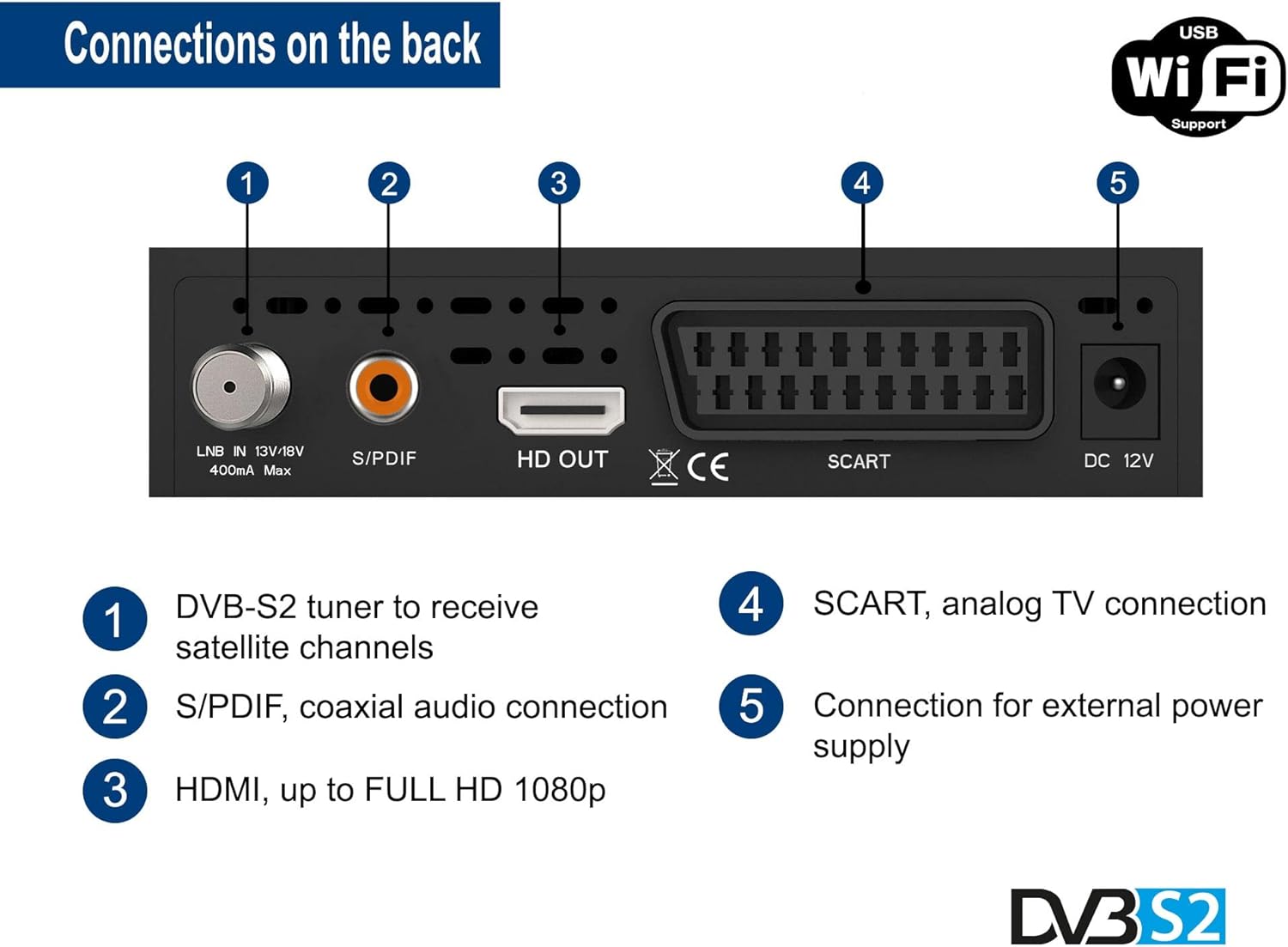

Image 3.2: Rear panel connections of the receiver.

1. LNB IN (DVB-S2 Tuner): Input for the satellite antenna cable to receive satellite channels. Supports 13V/18V, 400mA Max.
2. S/PDIF: Coaxial audio output for digital audio connection.
3. HD OUT (HDMI): High-Definition Multimedia Interface output, supporting up to Full HD 1080p.
4. SCART: Analog TV connection for older televisions.
5. DC 12V: Connection for the external power supply.

4. Remote Control

The EDISION PROTON S2 comes with a 2-in-1 universal remote control (EDI-RCU 1 Learn) that can operate both the receiver and essential functions of your television. It is pre-programmed for the four most important functions of Samsung and LG TVs, but you can program these four buttons to control any TV as desired.

Image 4.1: The 2-in-1 universal remote control for the EDISION PROTON S2.

4.1 Programming TV Functions

Refer to the Quick User Guide for detailed instructions on how to program the TV control buttons on your remote control.

5. Setup

Follow these steps to set up your EDISION PROTON S2 receiver:

1. Connect Satellite Cable: Connect the satellite antenna cable from your LNB to the LNB IN port on the back of the receiver.
2. Connect to TV:
   • For High-Definition (HD) display, connect an HDMI cable from the receiver's HD OUT port to an available HDMI input on your TV.
   • For Standard-Definition (SD) display or older TVs, connect a SCART cable from the receiver's SCART port to the SCART input on your TV.
3. Connect Power: Connect the 12V power adapter to the DC 12V port on the receiver and then plug it into a power outlet.
4. Insert Batteries: Open the battery compartment of the remote control and insert the two LR03 AAA batteries, observing polarity.
5. Power On: Turn on your TV and select the correct HDMI or SCART input source. Then, press the POWER button on the receiver or remote control to turn on the receiver.
6. Initial Setup: The receiver comes with a pre-programmed channel list for Astra 19.2°. If you are using a different satellite or need to perform a new scan, follow the on-screen instructions for initial setup or refer to the Quick User Guide for detailed menu navigation.

Image 5.1: Connection diagram for the EDISION PROTON S2 receiver.

6. Operating Instructions

Once your receiver is set up, you can begin using its various functions:

• Channel Selection: Use the CH+/CH- buttons on the remote control or the front panel to change channels. You can also enter channel numbers directly using the numeric keypad.
• Volume Control: Adjust the volume using the VOL+/VOL- buttons on the remote control.
• Electronic Program Guide (EPG): Press the EPG button on the remote control to view program information for current and upcoming broadcasts.
• Multimedia Player: Connect a USB storage device to the USB port. Navigate to the multimedia menu to play compatible files such as MP3 audio, JPEG/BMP images, and AVI/DivX/VOB/MKV videos.
• Time Shift (PVR): With a connected USB storage device, you can pause live TV and resume watching later. Refer to the Quick User Guide for specific instructions on activating and using Time Shift.
• YouTube (Optional): If an optional WiFi stick is connected to the USB port and configured for network access, you can access YouTube content through the receiver's menu.
• Subtitles: Activate or deactivate subtitles for supported programs using the dedicated subtitle button on the remote control.

7. Maintenance

To ensure optimal performance and longevity of your EDISION PROTON S2 receiver, follow these maintenance guidelines:

• Cleaning: Disconnect the receiver from the power supply before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
• Ventilation: Ensure the receiver has adequate ventilation. Do not block the ventilation openings on the top and sides of the device. Avoid placing it in enclosed spaces or on soft surfaces that could obstruct airflow.
• Software Updates: Periodically check the manufacturer's website for available software updates. Updates can improve performance, add features, or resolve issues. Follow the instructions provided with the update carefully.
• Storage: If storing the receiver for an extended period, disconnect it from power and store it in a cool, dry place.

8. Troubleshooting

If you encounter issues with your EDISION PROTON S2 receiver, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please consult the full user manual or contact EDISION customer support.

9. Specifications

10. Warranty and Support

For warranty information, please refer to the documentation included with your product or visit the official EDISION website. For technical support or further assistance, please contact EDISION customer service through their official channels.
