1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your FTVOGUE 12V High Torque Dual M8 Shaft Worm Gear Motor. Please read these instructions thoroughly before use and retain them for future reference.
2. Product Overview
The FTVOGUE 12V High Torque Dual M8 Shaft Worm Gear Motor is designed for applications requiring precise and durable rotational movement. Key features include:
- Dual M8 Screw Shafts: Equipped with both right and left threads, suitable for relative and opposing flange movements, ensuring long service life and high precision.
- Precision Steel Gears: All gears are constructed from steel, offering accuracy, durability, and minimal power loss.
- Quiet Operation: Features a robust body and silent structure, resulting in low noise levels, making it suitable for various environments.
- Copper Wire Coil: Utilizes a copper wire coil for strong transmission and enhanced durability, resisting damage.

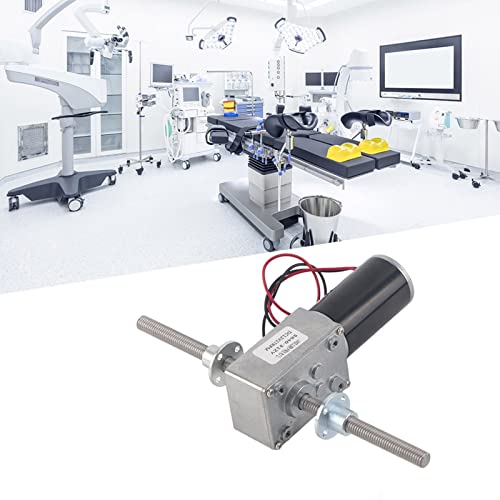

Image 1: FTVOGUE 12V High Torque Dual M8 Shaft Worm Gear Motor.
3. Safety Information
Observe the following safety precautions to prevent injury or damage to the motor:
- Ensure the power supply matches the motor's voltage (12V DC). Incorrect voltage can cause damage.
- Disconnect power before making any connections or performing maintenance.
- Avoid touching moving parts during operation.
- Do not expose the motor to excessive moisture, dust, or extreme temperatures.
- Mount the motor securely to prevent vibration and ensure stable operation.
- If unusual noises or smells occur, immediately disconnect power and inspect the motor.
4. Setup
Follow these steps for initial setup:
- Mounting: Securely attach the motor to a stable surface using appropriate fasteners through the mounting holes on the gearbox. Ensure proper alignment to prevent strain on the shafts.
- Electrical Connection: Connect the motor's red wire to the positive (+) terminal of a 12V DC power supply and the black wire to the negative (-) terminal. Ensure connections are firm and insulated. Reversing polarity will reverse the direction of rotation.
- Load Attachment: Attach the desired load to the M8 threaded shafts. Ensure the load is balanced and does not exceed the motor's torque capacity. The dual threaded shafts allow for flexible attachment options.

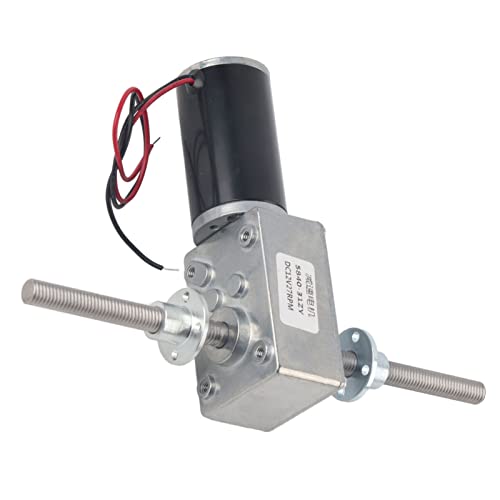

Image 2: Motor with electrical connections visible.
5. Operating Instructions
To operate the motor:
- Power On: Once all connections are secure and verified, apply 12V DC power to the motor.
- Direction Control: The motor's rotation direction can be changed by reversing the polarity of the DC power supply.
- Speed Control: The motor operates at a fixed speed (290 RPM at 12V). External speed controllers (not included) may be used if variable speed is required.
- Monitoring: Observe the motor during initial operation for any unusual sounds, vibrations, or overheating.
Image 3: Top view of the motor, showing the dual M8 shafts.
6. Maintenance
Regular maintenance ensures optimal performance and longevity:
- Cleaning: Keep the motor free from dust and debris. Use a soft, dry cloth for cleaning. Avoid using solvents or abrasive cleaners.
- Inspection: Periodically check all electrical connections for tightness and signs of wear. Inspect the shafts and gears for any damage or excessive play.
- Lubrication: The gearbox is typically pre-lubricated. Consult a professional if lubrication is required, as improper lubricants can cause damage.
- Storage: If storing the motor for an extended period, keep it in a dry, cool environment, protected from dust and direct sunlight.
7. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power, incorrect wiring, faulty power supply | Check power connections, verify power supply, ensure correct polarity. |
| Motor runs slowly or with reduced torque | Insufficient voltage, excessive load, internal friction | Verify 12V DC supply, reduce load, inspect for obstructions. |
| Unusual noise or vibration | Loose mounting, damaged gears, foreign object | Tighten mounting, inspect gears for damage, remove any obstructions. |
| Motor overheats | Excessive load, continuous operation, insufficient ventilation | Reduce load, allow for cooling periods, ensure adequate airflow around the motor. |
8. Specifications
| Specification | Value |
|---|---|
| Brand | FTVOGUE |
| Model Name | M8 |
| Voltage | 12 Volts DC |
| Speed | 290 RPM |
| Material | Copper (Coil) |
| Shaft Type | Dual M8 Screw Shaft (Right and Left Thread) |
| GTIN / UPC | 738603272714 |
| ASIN | B083ZDK2Z3 |
| Manufacturer Reference | FTVOGUEa9ftb5pd7o-06 |
9. Warranty and Support
FTVOGUE products are manufactured to high-quality standards. For warranty information or technical support, please refer to the retailer where the product was purchased or visit the official FTVOGUE brand store online. Keep your purchase receipt for warranty claims.
For additional assistance, you may contact customer service through the platform of purchase.
