Greenworks Pro 60V 610-CFM GEN2 Brushless Cordless Electric Leaf Blower Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Greenworks Pro 60V 610-CFM GEN2 Brushless Cordless Electric Leaf Blower. Please read thoroughly before use to ensure proper handling, maintenance, and to maximize the lifespan of your tool.

A Greenworks Pro 60V cordless leaf blower, featuring a black and green design with a long nozzle.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Always wear appropriate personal protective equipment, including eye protection (safety glasses or goggles) and hearing protection.
• Keep children, bystanders, and pets at a safe distance (at least 15 meters/50 feet) from the operating area.
• Do not operate the blower in wet conditions, such as rain or on wet surfaces.
• Ensure the battery pack is securely installed before operating the blower.
• Inspect the blower for any damage before each use. Do not operate if damaged.
• Never point the blower nozzle at people or animals.
• Use only Greenworks recommended replacement parts and accessories.

3. Product Features

• 60-Volt Brushless Motor: This advanced motor technology provides increased power, longer runtime, and an extended motor life compared to brushed motors.
• High Airflow Performance: Delivers up to 610 CFM (Cubic Feet per Minute) and 130 MPH (Miles Per Hour) for efficient clearing of dry and wet debris.
• Variable Speed Trigger with Turbo Button: Offers precise control over airflow for various tasks. The dedicated Turbo button provides an instant boost of power for stubborn debris.
• Concentrator Nozzle: Included to increase air speed for tackling more challenging debris.
• Lightweight and Ergonomic Design: Engineered for comfortable operation and reduced user fatigue during prolonged use.

Diagram illustrating the internal structure of a Greenworks TRUBRUSHLESS™ motor, emphasizing its benefits of more power, efficient operation, and extended motor life.

Detailed view of the Greenworks Pro leaf blower's handle, featuring a variable speed trigger, a cruise control dial, and a turbo boost button for enhanced control.

4. Setup

4.1. Assembly

1. Align the blower tube with the main unit's air outlet.
2. Push the tube firmly onto the unit until it clicks securely into place.
3. If using the concentrator nozzle, attach it to the end of the blower tube by twisting it until it locks.

4.2. Battery Installation and Removal

This Greenworks Pro 60V leaf blower is sold as a bare tool. The battery and charger are not included and must be purchased separately.

1. To Install Battery: Align the grooves on the battery pack with the ribs in the battery port on the blower. Slide the battery into the port until it locks securely with an audible click.
2. To Remove Battery: Press and hold the battery release button (typically located on the battery pack itself) and slide the battery out of the tool.

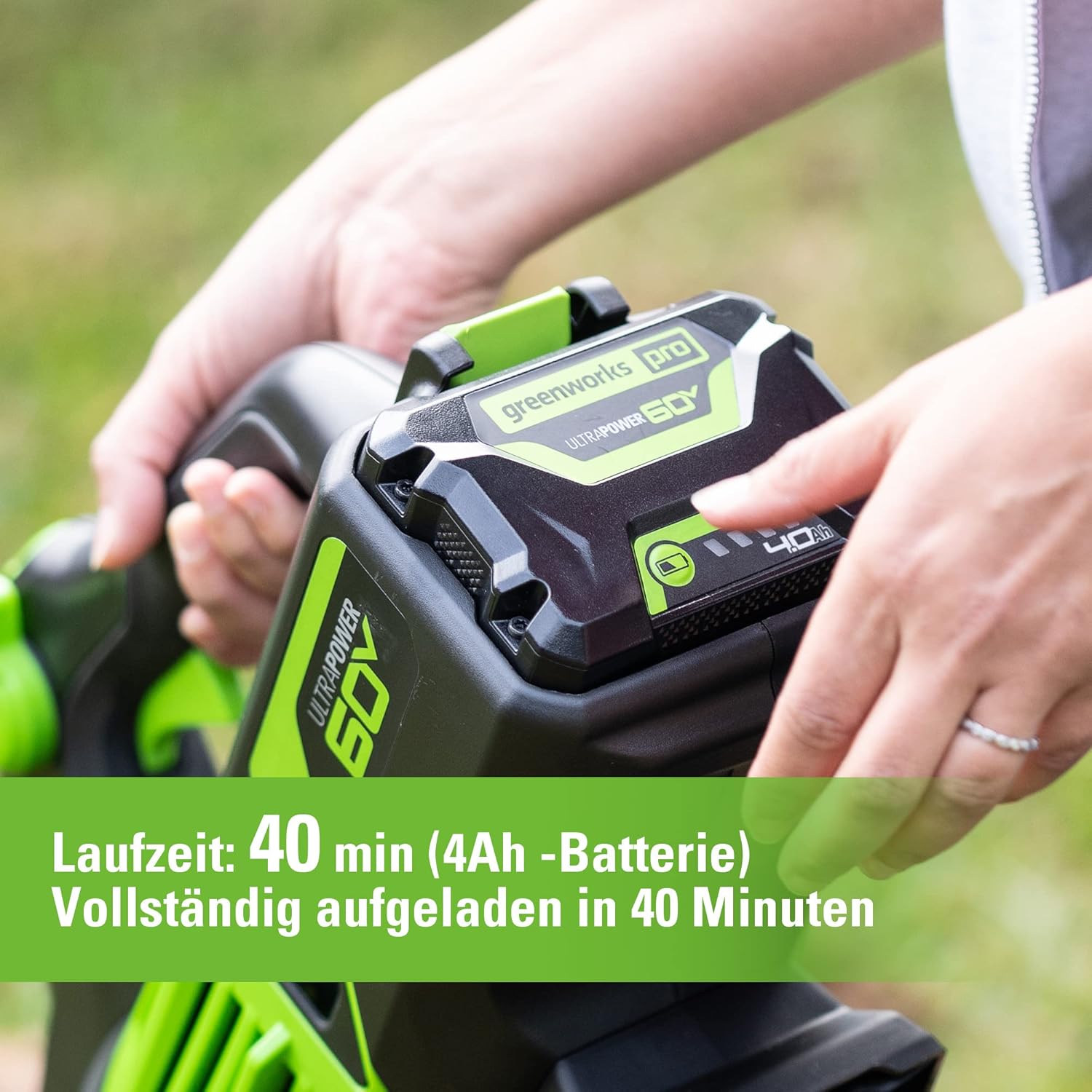

Close-up of a Greenworks 60V 4Ah battery being inserted into the leaf blower, showing battery indicator lights and highlighting 40-minute runtime and charge time.

5. Operating Instructions

5.1. Powering On/Off

1. Ensure the battery is fully charged and securely installed in the blower.
2. To start the blower, squeeze the variable speed trigger. The airflow will increase as you press the trigger further.
3. To stop the blower, release the variable speed trigger.

5.2. Variable Speed Control and Cruise Control

The variable speed trigger allows you to adjust the airflow from low to high. For continuous operation at a desired speed, use the cruise control dial. Rotate the dial to set the speed, and the blower will maintain that speed without needing to hold the trigger.

5.3. Turbo Mode

For an extra burst of power to clear heavy or wet debris, press the Turbo button located on the handle while operating the blower. Release the button to return to the previously set speed.

5.4. Usage Tips

• Start with lower speeds for light debris and delicate areas, then increase as needed.
• Use the concentrator nozzle for focused blowing in tight spaces or for dislodging stubborn debris.
• Work in a systematic pattern to efficiently gather leaves and debris.

A person demonstrating the Greenworks Pro 60V leaf blower in an outdoor setting, effectively moving a pile of leaves with its powerful airflow.

6. Maintenance

6.1. Cleaning

• Always remove the battery pack before performing any cleaning or maintenance.
• Keep the air vents free of debris to prevent overheating. Use a soft brush or compressed air to clear vents.
• Wipe the exterior of the blower with a clean, damp cloth. Do not use strong detergents, solvents, or abrasive cleaners, as these can damage the plastic parts.

6.2. Storage

• Store the blower in a dry, well-ventilated area, inaccessible to children.
• Remove the battery pack from the blower before storing for extended periods. Store the battery in a cool, dry place.

7. Technical Specifications

8. Warranty and Support

For detailed warranty information, product registration, or technical support, please visit the official Greenworks website or contact their customer service department. It is recommended to keep your purchase receipt as proof of purchase for any warranty claims.

You can find more information and contact details on the Greenworks Store on Amazon.
