1. Introduction
Thank you for choosing the tectake Set of 2 Adjustable Sun Loungers. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor furniture. Please read these instructions carefully before use and retain them for future reference.
Image 1: tectake Adjustable Sun Lounger
2. Safety Information
To ensure your safety and prevent damage to the product, please observe the following:
- Observe the maximum load capacity of 120 kg (264 lbs) per lounger. Exceeding this limit can cause damage or injury.
- Ensure the lounger is placed on a stable, level, and non-slip surface before use. Uneven surfaces can lead to instability.
- Keep hands and fingers clear of moving parts, especially when adjusting the backrest, to prevent pinching.
- Do not allow children to play unsupervised on or around the loungers.
- Inspect the loungers regularly for any signs of wear, damage, or loose components. Do not use if damaged.
3. Package Contents
Before assembly, verify that all components are present and undamaged. The package should contain:
- 2 x Sun Loungers (frame and fabric)
- 2 x Head Cushions
- Assembly Hardware (screws, washers, nuts, tools if included)
- Assembly Instructions (this manual)
Image 2: Product Dimensions and Components Overview
4. Setup and Assembly
The sun loungers are designed for straightforward assembly. Follow these steps for quick setup. It is recommended to have two people for assembly to ensure stability and ease of handling.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches.
- Identify Parts: Refer to the included parts list and diagrams to identify each component (frame sections, fabric, hardware).
- Assemble Frame: Connect the main frame sections using the provided screws, washers, and nuts. Do not fully tighten screws until all sections are loosely assembled.
- Attach Fabric: Secure the fabric seating and backrest to the frame according to the diagrams. Ensure the fabric is taut and evenly distributed.
- Install Adjustment Mechanism: Attach the backrest adjustment mechanism, ensuring it moves freely and locks securely into positions.
- Final Tightening: Once all parts are in place and aligned, fully tighten all screws and nuts. Do not overtighten.
- Attach Headrest: Place the removable head cushion onto the top of the lounger.
After assembly, gently test the lounger's stability before full use.
5. Operating Instructions
Your tectake sun lounger offers adjustable comfort for optimal relaxation.
Adjusting the Backrest
The backrest can be adjusted to 5 different positions to suit your preference, from upright seating to a fully reclined position.
- To adjust, slightly lift the backrest to disengage the locking mechanism.
- Move the backrest to your desired angle.
- Gently lower the backrest until the mechanism clicks into place, securing the position.
Image 3: Backrest Adjustment Mechanism
Using the Headrest
The included head cushion provides additional comfort and support. It is removable and can be positioned as desired along the top of the backrest.

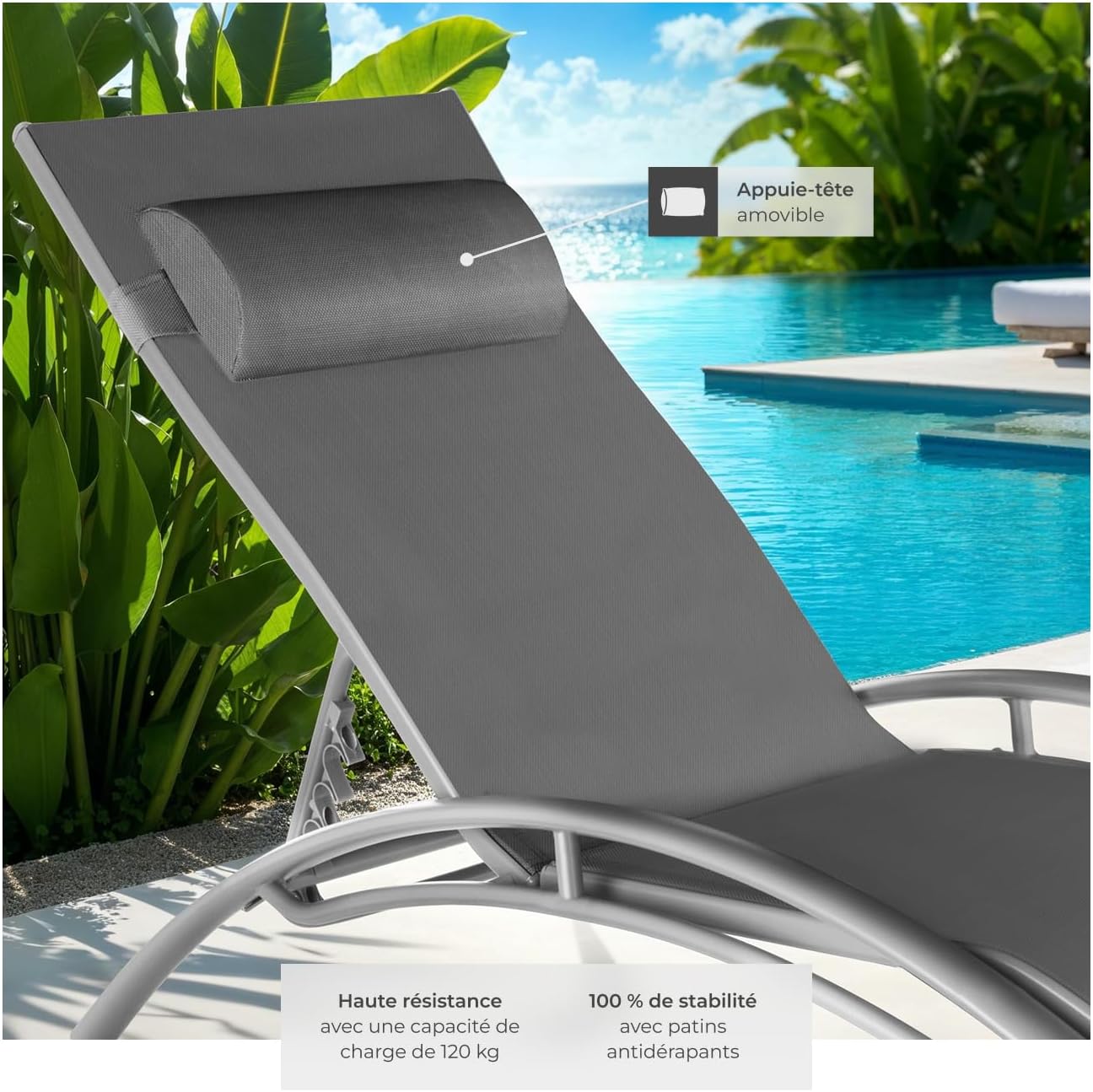

Image 4: Removable Headrest and Stability Features
6. Maintenance
Proper care will extend the life and appearance of your sun loungers.
Cleaning
- Frame: Clean the aluminum frame with a soft cloth, mild soap, and water. Rinse thoroughly and dry completely to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
- Fabric: The weather-resistant fabric can be cleaned with a soft brush or sponge, mild soap, and water. Rinse well and allow to air dry completely before storing or covering.
- Headrest: The head cushion can be spot cleaned with mild soap and water.
Weather Resistance and Storage
The loungers feature a powder-coated aluminum frame and durable fabric designed to withstand outdoor conditions. However, to maximize longevity:
- During periods of heavy rain, strong winds, or winter months, it is recommended to store the loungers indoors or cover them with a protective outdoor furniture cover.
- Ensure the loungers are dry before covering or storing to prevent mold or mildew.
Image 5: Outdoor Use and Weather Resistance
7. Troubleshooting
If you encounter issues with your sun loungers, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty during assembly | Incorrect part orientation; screws not aligned; instructions misunderstood. | Review the assembly diagrams carefully. Ensure parts are oriented correctly before tightening. Do not fully tighten screws until all components are in place. Seek assistance if needed. |
| Lounger feels unstable or wobbly | Loose connections; uneven surface. | Check and tighten all screws and bolts. Ensure the lounger is placed on a flat, stable surface. |
| Backrest adjustment mechanism not working smoothly | Mechanism obstructed; dirt or debris; damaged part. | Ensure no fabric or foreign objects are obstructing the mechanism. Clean any dirt or debris. If damaged, contact customer support. |
| Screw covers detach easily | Loose fit. | These are primarily decorative. If they consistently detach, a small amount of adhesive can be used to secure them, ensuring it does not interfere with future disassembly if required. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | tectake |
| Model Number | 403063-4 |
| Color | Grey |
| Materials | Powder-coated aluminum frame, polyethylene, polyvinyl chloride (fabric) |
| Overall Dimensions (L x W x H) | 180 cm x 59 cm x 81.5 cm (max height) |
| Item Weight | 12 Kilograms |
| Maximum Load Capacity | 120 Kilograms |
| Number of Recline Positions | 5 |
| Components Included | 2 sun loungers with head cushions, assembly hardware, assembly instructions |
| Recommended Use | Outdoor relaxation |
9. Warranty
This product is covered by the standard legal warranty in accordance with applicable consumer protection laws. Please retain your proof of purchase for any warranty claims. For specific warranty details, refer to the terms and conditions provided at the point of purchase or contact your retailer.
10. Support
If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact the retailer or manufacturer's customer service. Have your model number (403063-4) and proof of purchase ready when contacting support.
For further information, you may visit the tectake brand store online.
