Introduction
This manual provides essential instructions for the safe and effective use, maintenance, and care of your Wera 117681#0 x 60mm Kraftform Plus Square Screwdriver. Please read this manual thoroughly before using the tool to ensure proper operation and to prevent injury or damage.
Safety Instructions
- Always wear appropriate personal protective equipment, such as safety glasses, when using hand tools.
- Ensure the screwdriver tip matches the fastener head precisely to prevent stripping the fastener or damaging the tool.
- Do not use the screwdriver as a pry bar, chisel, or punch.
- Keep the tool clean and free from grease or oil to maintain a secure grip.
- Store the screwdriver in a dry place, away from children.
- Inspect the tool for any signs of wear or damage before each use. Do not use a damaged tool.
Product Overview

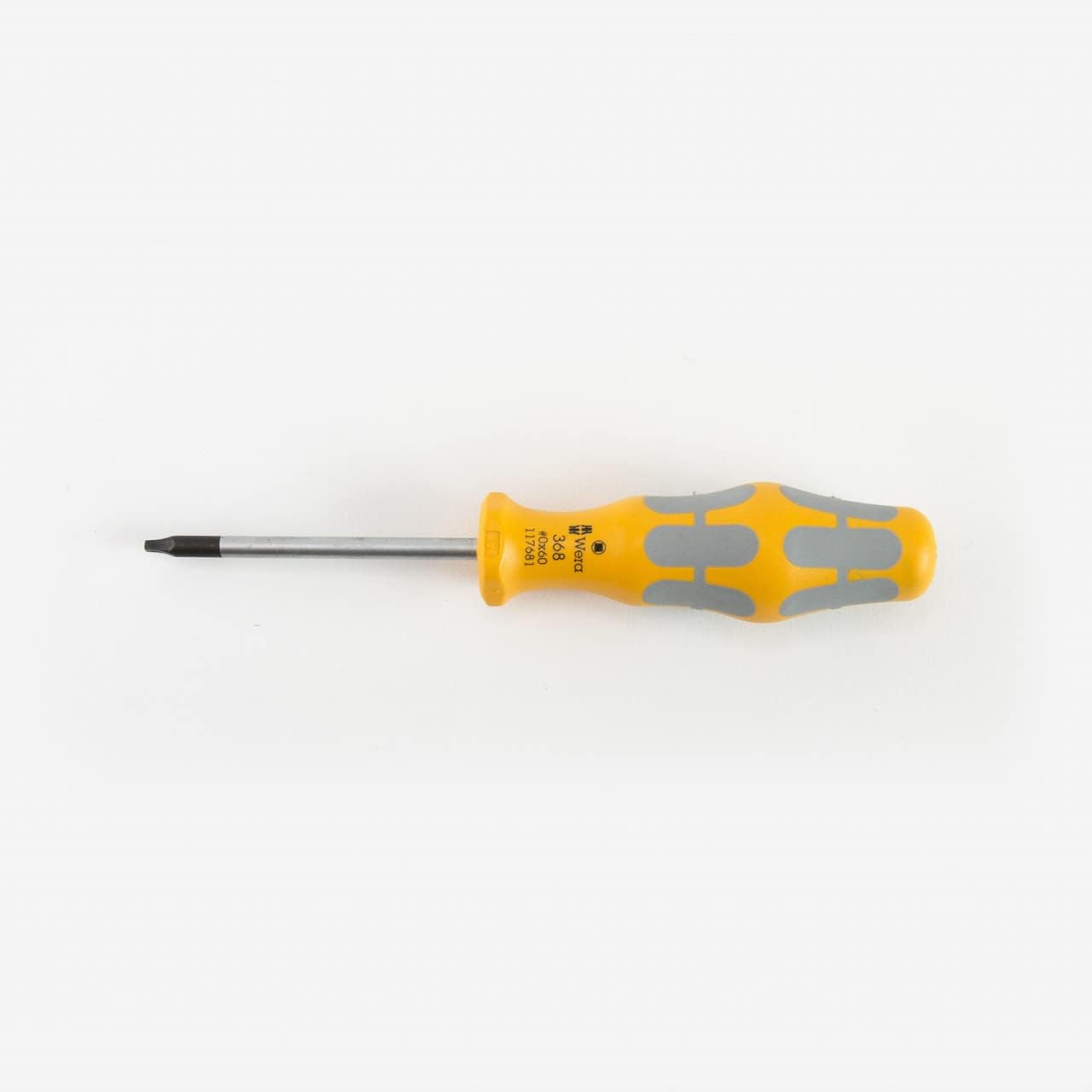

An image showing the Wera Kraftform Plus Square Screwdriver, featuring its yellow and grey Kraftform handle and a square drive tip. The handle is ergonomically designed for comfortable and efficient use.
The Wera Kraftform Plus Square Screwdriver is designed for professional and DIY applications, offering a comfortable grip and efficient power transfer. Its square drive tip is suitable for square recess screws, commonly found in electrical and woodworking applications.
Setup
- Unpacking: Carefully remove the screwdriver from its packaging.
- Inspection: Before first use, visually inspect the screwdriver for any manufacturing defects or shipping damage. Ensure the shaft is straight and the tip is intact.
- Familiarization: Hold the screwdriver to familiarize yourself with the Kraftform handle's ergonomic design.
Operating Instructions
- Select Correct Size: Ensure the square drive tip (#0 in this case) perfectly fits the square recess of the fastener. A proper fit prevents cam-out and damage to both the fastener and the tool.
- Positioning: Place the tip of the screwdriver into the fastener head, ensuring it is fully seated.
- Apply Pressure: Apply firm, steady downward pressure on the handle to keep the tip engaged with the fastener.
- Turn: Rotate the handle clockwise to tighten the fastener or counter-clockwise to loosen it. Use a smooth, controlled motion.
- Avoid Overtightening: Tighten fasteners only until snug. Overtightening can strip threads or damage the material.
Maintenance
- Cleaning: Wipe the screwdriver clean with a dry or slightly damp cloth after each use. Avoid harsh chemicals that could damage the handle material.
- Storage: Store the screwdriver in a tool box, rack, or drawer where it is protected from moisture and extreme temperatures.
- Inspection: Periodically check the tip for wear or deformation. While Wera tips are designed for durability, excessive force or improper use can cause damage.
Troubleshooting
- Screwdriver slips from fastener: Ensure the tip size is correct for the fastener. Apply more downward pressure while turning. The fastener head might be stripped; consider using a screw extractor.
- Difficulty turning fastener: The fastener might be seized or overtightened. Apply penetrating oil if appropriate for the material. Ensure you are turning in the correct direction (lefty-loosey, righty-tighty).
- Tip appears worn: If the tip shows significant wear, it may need replacement. Continued use of a worn tip can damage fasteners.
Specifications
| Feature | Detail |
|---|---|
| Brand | Wera |
| Model Number | 05117681003 |
| Part Number | WR117681 |
| Head Style | Square |
| Tip Size | #0 |
| Shaft Length | 60mm |
| Handle Type | Kraftform Plus (Ergonomic Multi-component) |
| Color | Black (Handle: Yellow/Grey) |
Warranty and Support
Wera products are manufactured to high-quality standards. For information regarding warranty coverage or technical support, please refer to the official Wera website or contact your authorized Wera dealer. Keep your purchase receipt as proof of purchase.
