Introduction
The BlueHills Premium 4000ml XL Essential Oil Diffuser is a versatile aromatherapy device designed to enhance your home environment. It functions as both an essential oil diffuser and a humidifier, featuring a large water tank, adjustable mist output, and multi-color LED lighting. This manual provides essential information for safe and effective use of your device.
Safety Information
- Avoid direct skin contact with undiluted essential oils.
- Keep out of reach of children and pets.
- Ensure proper ventilation during use.
- Always turn off the device when not in use or when the water level is low.
- Place the device on a stable, flat surface with adequate space around it.
- Do not allow water to enter the air-pipe when filling the tank, as this can prevent proper function.
Package Contents
Upon unpacking, please ensure all items are present:
- BlueHills Premium 4000ml XL Essential Oil Diffuser (Model E401)
- Power Cord
- User Manual
Product Overview
The BlueHills E401 diffuser features a large capacity water tank and user-friendly controls. Its design allows for extended operation and customizable ambiance.
Image: BlueHills Premium 4000ml XL Essential Oil Diffuser, showcasing its design and mist output.
Key Features:
- Large Capacity: 4000ml (4 Liter) water tank for extended operation up to 70 hours on low mist.
- Adjustable Mist Output: Dial knob for precise control from very low to very high mist levels.
- 7 LED Light Colors: Customizable ambient lighting with a choice of 7 colors or a cycling mode.
- Auto Shut-Off: Safety feature automatically turns off the device when water runs out.
- Easy to Clean: Designed for convenient maintenance.
- BPA-Free Material: Constructed from safe, non-toxic polypropylene (PP).

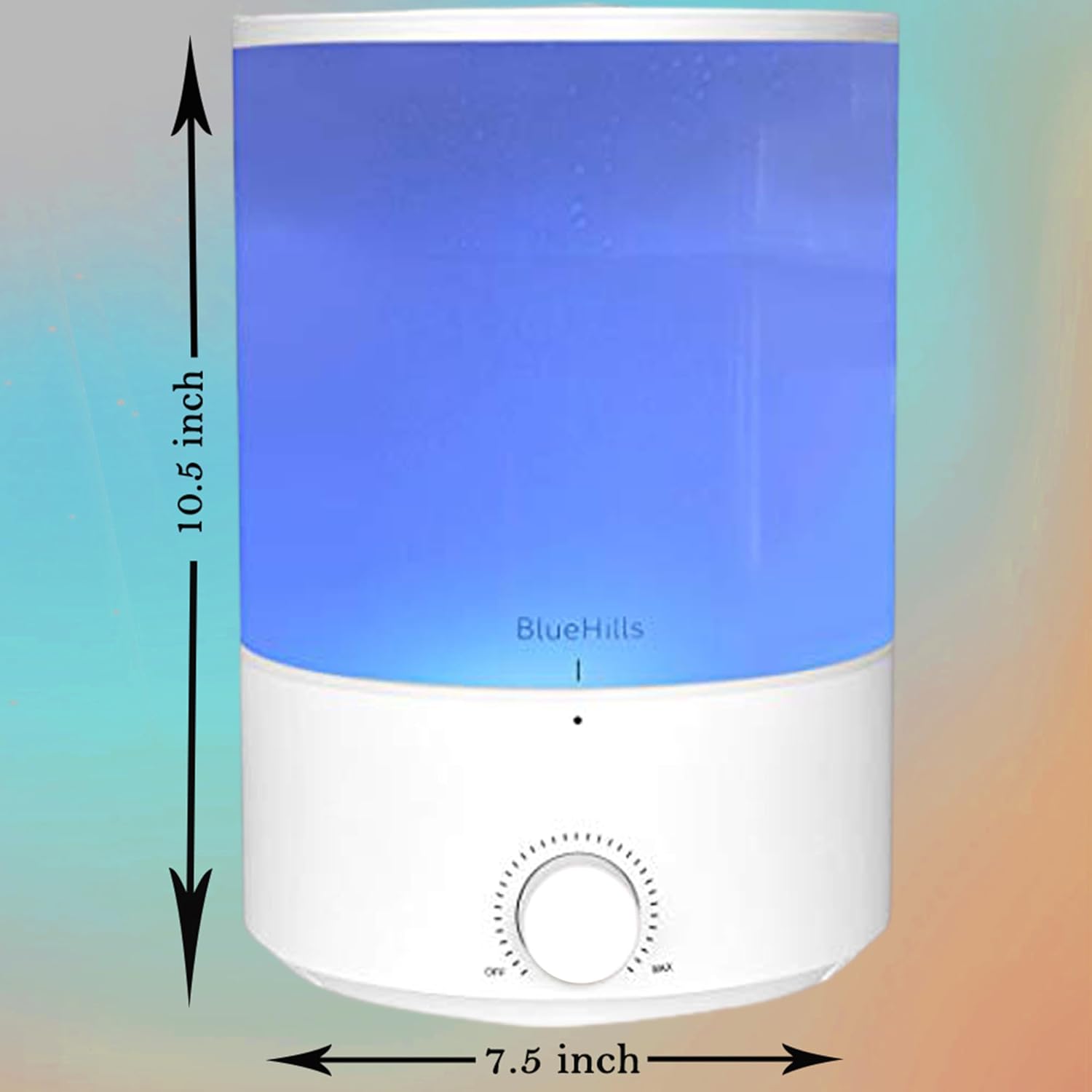

Image: Dimensions of the BlueHills E401 diffuser, showing its height of 10.5 inches and diameter of 7.5 inches.
Setup
Follow these steps to set up your BlueHills diffuser for first use:
- Remove Packaging: Carefully remove all packaging materials, especially any covering the floater inside the water tank. Failure to do so may cause leaks.
- Place on Stable Surface: Position the diffuser on a flat, stable surface, ensuring it has enough space around it for optimal mist dispersion.
- Connect Power: Plug the power cord into the diffuser's base and then into a suitable power outlet.
Image: Visual guide for initial setup, including removing internal packaging and proper water filling technique.
Operating Instructions
Operating your diffuser is simple and allows for customization of mist and light settings.
- Fill Water Tank: Remove the top cover. Fill the 4000ml water tank with clean water. Important: Ensure water does not enter the central air-pipe to prevent malfunction.
- Add Essential Oils (Optional): Add your desired amount of essential oil directly into the water tank.
- Adjust Mist Output: Twist the dial knob on the front of the diffuser towards the right to turn it on and adjust the mist intensity. Turn it further right for higher mist output, or left for lower mist.
- Control LED Lights: Press the light button (usually indicated by a lightbulb icon) to cycle through the 7 different LED light colors. Press again to set a specific color, or press and hold to turn the lights off.
Image: Demonstrates filling the water tank, adjusting mist, and handling the diffuser.

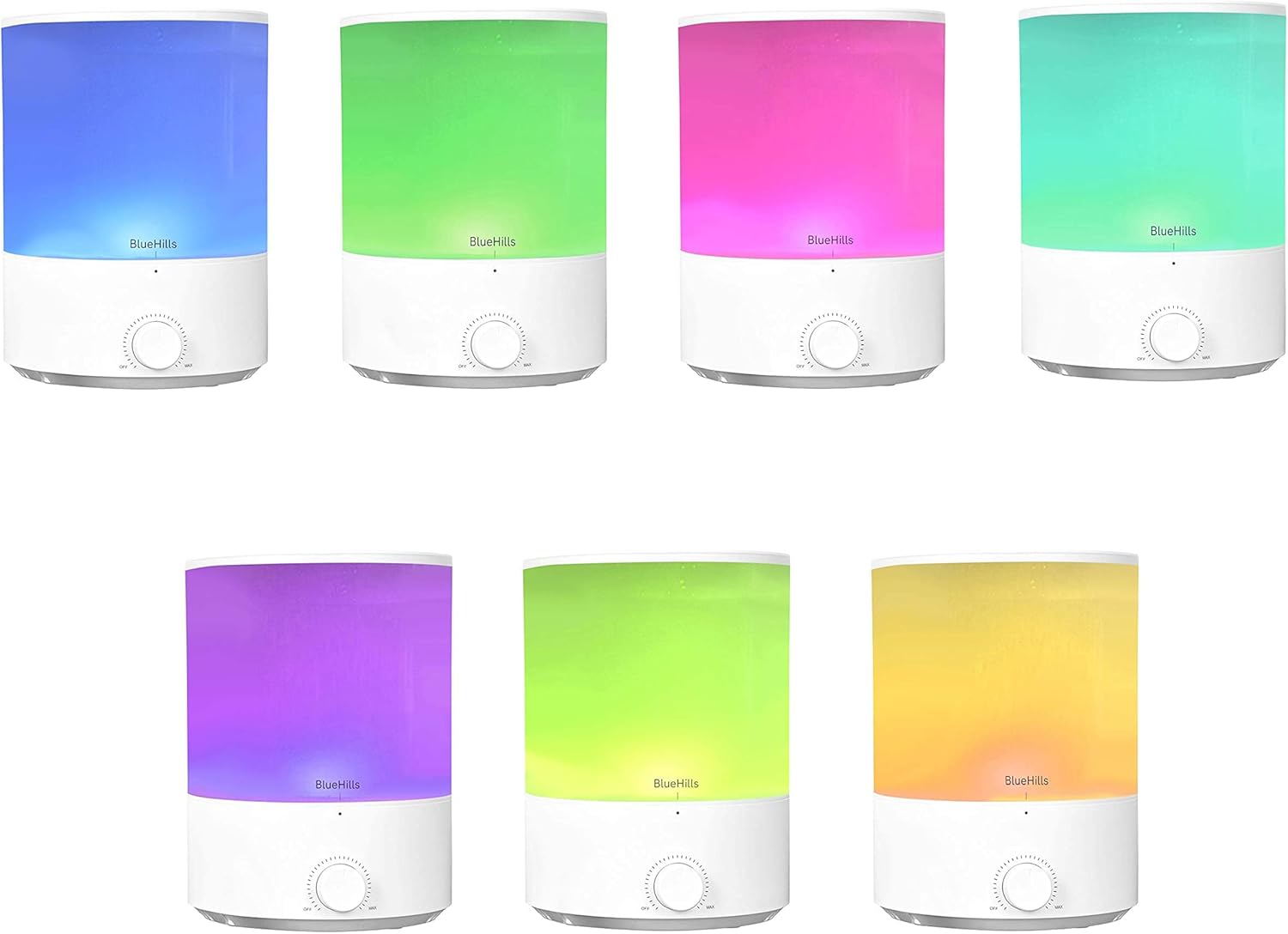

Image: Illustrates the 7 available LED light colors for ambient lighting.
Official Product Video: Setup and Features
Video: An official product video from Blue Hills Corp demonstrating the setup, features, and operation of the 4000ml Essential Oil Diffuser Humidifier.
Maintenance
Regular cleaning is essential to ensure optimal performance and longevity of your diffuser.
- Empty and Rinse: After each use, or regularly, empty any remaining water from the tank. Rinse the tank thoroughly with clean water.
- Clean the Base: Gently wipe the inside of the base and the ultrasonic plate with a soft cloth or brush. For stubborn mineral deposits, use a cotton swab dipped in white vinegar.
- Avoid Harsh Chemicals: Do not use corrosive cleaners or abrasive materials, as these can damage the diffuser.
- Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the diffuser.
Troubleshooting
If you encounter issues with your diffuser, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No mist or low mist output |
|
|
| Red light flashing / Device not turning on |
|
|
| Leaking |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | BlueHills |
| Model Number | E401 |
| Color | White |
| Material | Polypropylene (PP), BPA Free |
| Capacity | 4000 Milliliters (4 Liters) |
| Run Time | Up to 70 hours (low mist) |
| Mist Output | Adjustable (dial knob) |
| Light Source | 7-Color LED |
| Automatic Shutoff | Yes (when water is low) |
| Power Source | Corded Electric |
| Item Weight | 2.6 Pounds |
| Item Dimensions (L x W x H) | 7.8"L x 7.8"W x 10"H |
| Coverage Area | Up to 484 square feet |
Warranty and Support
BlueHills is committed to customer satisfaction. For any concerns or support needs regarding your product, please contact us directly.
- Customer Support: For assistance, please contact support@bluehills.io.
- Return Policy: The product is typically eligible for a 30-day refund/replacement policy. Please refer to your purchase platform for specific details.
BlueHills is a family-owned business dedicated to producing high-quality home and travel accessories. Your complete satisfaction is our top priority.
