CAMRY CR2172 Oral Irrigator User Manual

Introduction

Thank you for choosing the CAMRY CR2172 Oral Irrigator. This device is designed to provide effective and thorough oral hygiene, complementing your regular brushing routine. It uses pulsed water to clean between teeth and below the gumline, helping to remove plaque and food debris. Please read this manual carefully before use to ensure proper operation and maintenance.

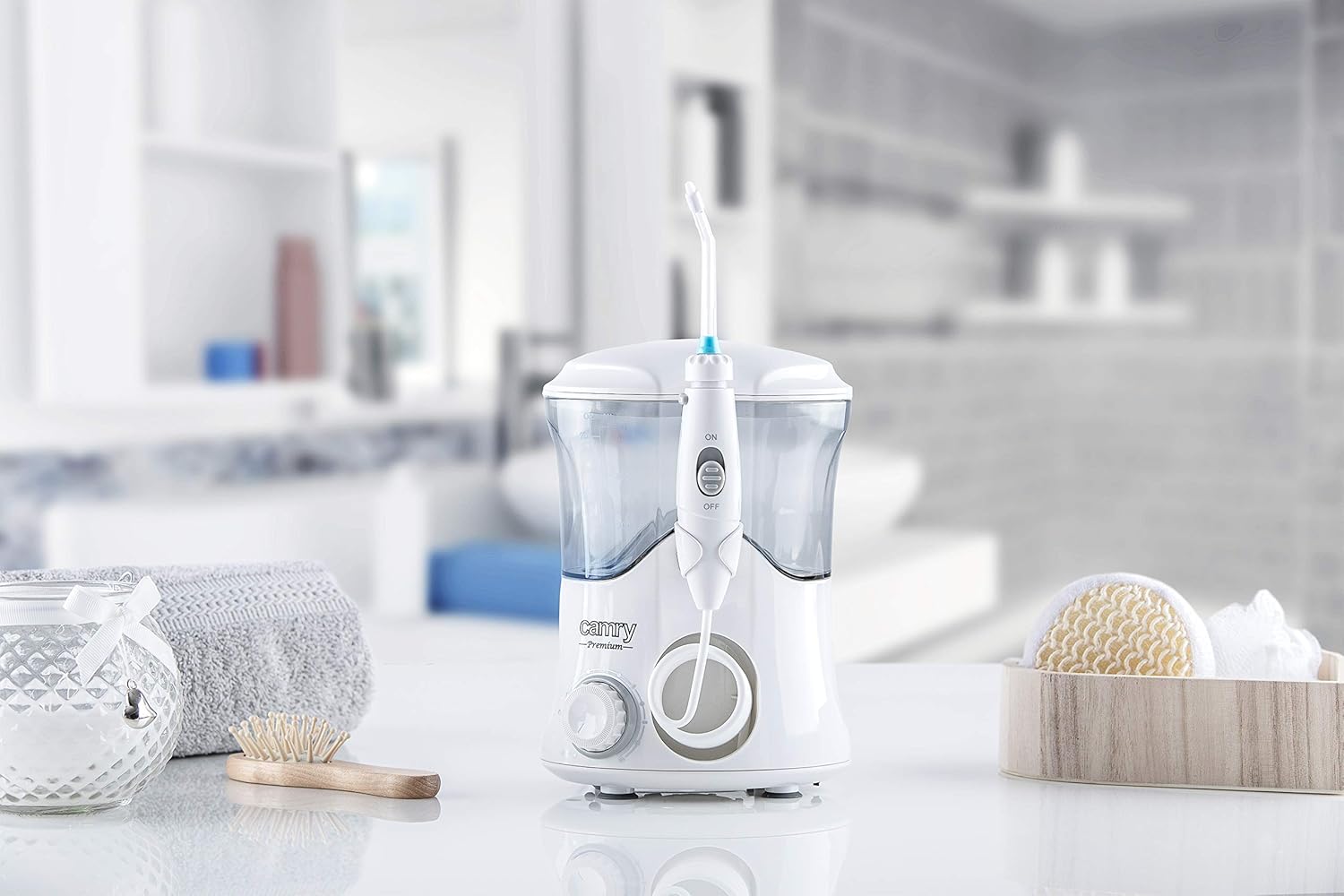

Image: The CAMRY CR2172 Oral Irrigator positioned on a bathroom countertop, demonstrating its compact design and suitability for home use.

Important Safety Warnings

• Do not use near water or in humid environments. This device is electrical and poses a risk of electric shock if exposed to water.
• Always unplug the device when not in use or before cleaning.
• Keep out of reach of children.
• Do not operate if the power cord or plug is damaged.
• Use only as directed in this manual.
• Consult a dentist before use if you have any oral health concerns.

Product Components

The CAMRY CR2172 Oral Irrigator package includes the following components:

• Main Irrigator Unit with 600ml Water Tank
• Handle with ON/OFF Switch and Pressure Control
• 7 Interchangeable Nozzles:
  • 3 Standard Jet Tips
  • 1 Tongue Cleaner Tip
  • 1 High-Pressure Tip
  • 1 Periodontal Tip
  • 1 Orthodontic Tip
• Nozzle Storage Case (integrated into the lid)
• Power Cord

Image: A comprehensive view of all included components: the main irrigator unit, the handle, a selection of 7 different nozzles, and the transparent nozzle storage case.

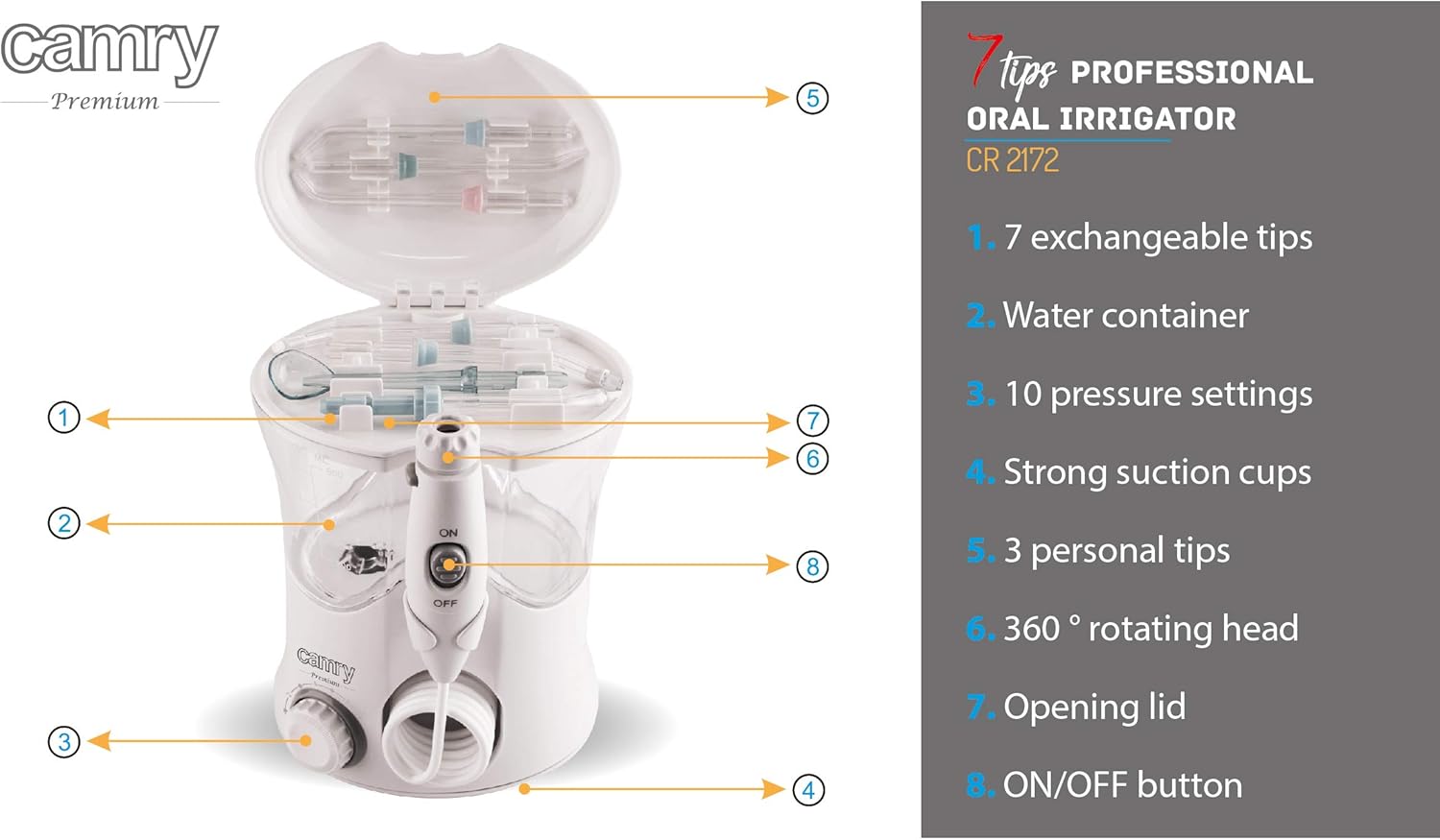

Image: A labeled diagram highlighting key features of the irrigator, including the water tank, pressure settings, nozzle storage, and power controls.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Position: Place the irrigator unit on a flat, stable surface near a power outlet and a sink.
3. Fill Water Tank: Open the lid (7) and remove the water tank (2). Fill the tank with lukewarm water. You may add mouthwash if desired, but ensure it is non-alcoholic and diluted as per mouthwash instructions. Place the tank back onto the base and close the lid.
4. Attach Nozzle: Select the desired nozzle (1) and insert it firmly into the handle until it clicks into place.
5. Connect Power: Plug the power cord into a suitable electrical outlet.

Image: A detailed view of the irrigator's top, illustrating the open lid with nozzles neatly stored in their compartments and the water tank ready for filling.

Operating Instructions

1. Select Pressure: Rotate the pressure setting dial (3) on the base to your desired water pressure level. Start with a low setting and gradually increase as you become accustomed to the irrigator. The device offers 10 adjustable pressure levels.
2. Prepare for Use: Lean over the sink and place the nozzle tip into your mouth, aiming it at your gumline.
3. Start Irrigation: Slide the ON/OFF button (8) on the handle to the "ON" position to start the water flow.
4. Guide the Nozzle: Guide the water jet along your gumline, pausing briefly between teeth. Allow the water to flow into the sink. The nozzle head can rotate 360 degrees (6) for easy access to all areas of your mouth.
5. Complete Cleaning: Continue until you have cleaned all areas of your mouth or the water tank is empty.
6. Stop Irrigation: Slide the ON/OFF button (8) on the handle to the "OFF" position.
7. Empty Tank: If any water remains, empty the tank.

Nozzle Types and Usage

The CAMRY CR2172 includes 7 specialized nozzles for various oral care needs:

• Standard Jet Tips (3 included): For general cleaning, removing plaque and food debris between teeth and below the gumline.
• Tongue Cleaner Tip: Designed to remove bacteria and freshen breath. Glide the tip over your tongue from back to front.
• High-Pressure Tip: Provides a stronger, more focused stream for targeted cleaning of specific areas.
• Periodontal Tip: Features a soft rubber tip for gentle delivery of water or therapeutic rinses into periodontal pockets. Use on the lowest pressure setting.
• Orthodontic Tip: Designed with a brush at the end to effectively clean around braces and orthodontic appliances.

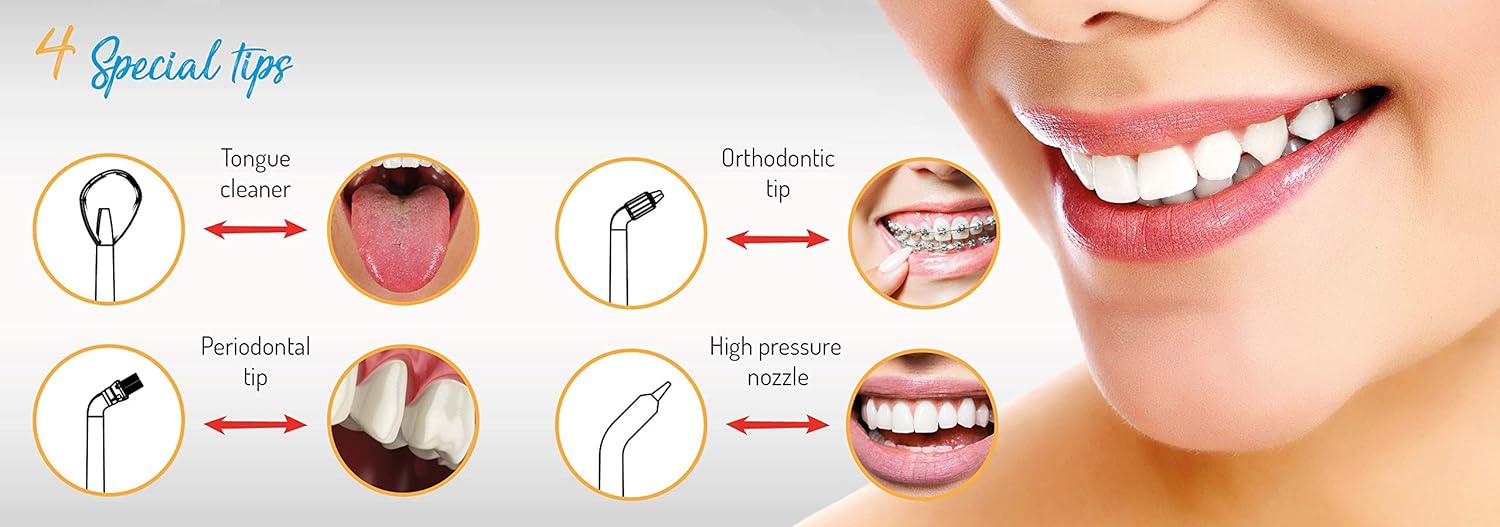

Image: Visual guide demonstrating the specific applications of the tongue cleaner, orthodontic tip, periodontal tip, and high-pressure nozzle for comprehensive oral care.

Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your oral irrigator.

1. After Each Use:
   • Turn off the device and unplug it.
   • Remove the nozzle and rinse it under running water.
   • Empty any remaining water from the tank.
   • Wipe the exterior of the unit with a soft, damp cloth.
2. Cleaning the Water Tank: The 600ml water tank can be removed and washed with mild soap and water. Rinse thoroughly.
3. Cleaning the Handle and Hose: If mineral deposits build up, you can run a solution of 2 parts water to 1 part white vinegar through the unit. Fill the tank with the solution, run half of it through the unit into the sink, then turn off and let it sit for 20 minutes. Run the remaining solution through, then rinse by running a full tank of clean water through the unit.
4. Nozzle Storage: The integrated lid provides a convenient and hygienic storage space for your nozzles.

Troubleshooting

If you encounter issues with your CAMRY CR2172 Oral Irrigator, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Camry customer support.

Specifications

• Model: CR2172
• Brand: Camry
• Water Tank Capacity: 600 ml
• Pressure Settings: 10 adjustable levels
• Nozzles Included: 7 (3 Standard, 1 Tongue Cleaner, 1 High-Pressure, 1 Periodontal, 1 Orthodontic)
• Power Source: AC Powered (Mains)
• Special Features: Integrated nozzle storage in lid, 360° rotating nozzle head.
• Material: Polycarbonate, Acrylonitrile Butadiene Styrene, Polyvinyl Chloride, Plastic, Silicone
• Color: White

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Camry website. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: Camry

Product Model Number: 5902934834025
