Important Safety Instructions
Please read and understand all instructions before using this heater. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.
- Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
- This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles when moving this heater.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
- Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
- Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for examination and/or repair.
- Do not use outdoors.
- To disconnect heater, turn controls to off, then remove plug from outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
- This heater has internal tip-over protection and dual overheat sensors for enhanced safety. If the heater tips over or overheats, it will automatically shut off.
Product Overview

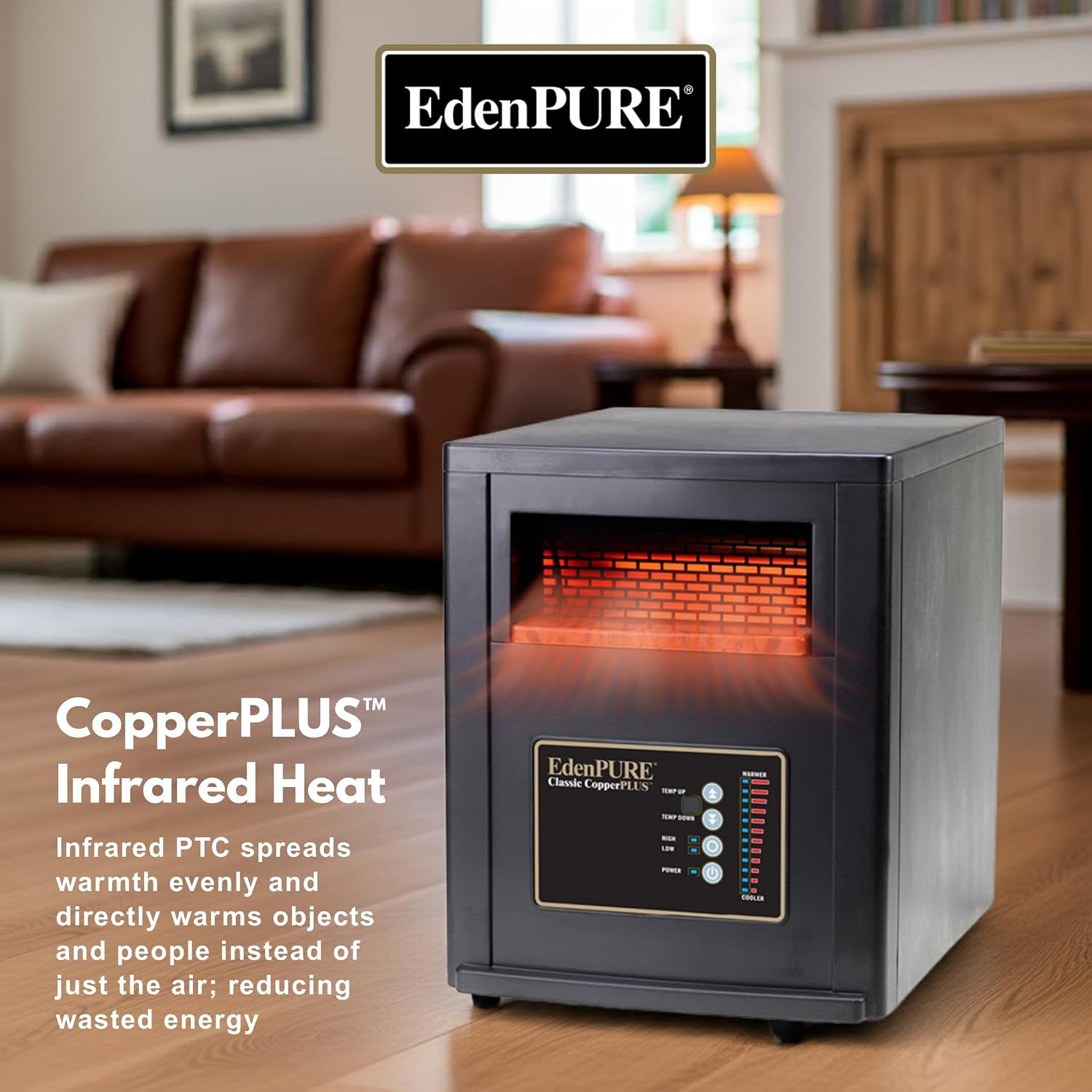

The EdenPURE Classic CopperPLUS Infrared Space Heater provides efficient zone heating for areas up to 1000 square feet. It features a 1500W infrared heating system with copper core technology, a digital thermostat, and a remote control for convenient operation.
Setup
- Unpacking: Carefully remove the heater from its packaging. Retain packaging for storage or if return is necessary.
- Placement: Place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 m) of clear space around the heater from any combustible materials. Do not block air intake or exhaust vents. This heater is designed for indoor use only.
- Power Connection: Ensure the heater is switched off. Plug the power cord directly into a 120V AC, 60Hz grounded wall outlet. Do not use extension cords or power strips.
Operating Instructions
The heater can be operated using the control panel on the unit or the included remote control.
Control Panel
- Power On/Off: Press the POWER button to turn the heater on or off.
- Temperature Adjustment: Use the TEMP UP and TEMP DOWN buttons to set your desired temperature between 40°F and 90°F. The digital display will show the selected temperature.
- Heat Settings: Press the HIGH/LOW button to toggle between high (1500W) and low (750W) heat output modes.
Remote Control
- The remote control duplicates the functions of the control panel for convenience.
- Ensure the remote has working batteries and is pointed towards the heater's receiver.
Maintenance
Regular maintenance ensures optimal performance and longevity of your heater.
- Cleaning the Filter: The heater is equipped with a washable lifetime filter. Regularly check and clean the filter to maintain airflow and efficiency. To clean, remove the filter from the back of the unit, rinse with warm water, and allow it to air dry completely before reinserting.
- Exterior Cleaning: Unplug the heater and allow it to cool. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: If storing the heater for an extended period, unplug it, clean it thoroughly, and store it in a cool, dry place, preferably in its original packaging.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power to the unit; Power switch off; Tip-over switch activated; Overheat sensor activated. | Check power cord connection; Ensure power switch is ON; Place heater on a flat, stable surface; Allow heater to cool down for 10-15 minutes. |
| Heater not producing heat. | Temperature setting too low; Air filter blocked. | Increase desired temperature setting; Clean the air filter. |
| Remote control not working. | Dead batteries; Obstruction between remote and heater. | Replace remote control batteries; Ensure clear line of sight to heater's receiver. |
| Unusual noise or odor. | New unit odor (temporary); Blocked fan/vents. | Initial use may produce a slight odor, which will dissipate; Unplug and check for obstructions in fan/vents. If problem persists, discontinue use and contact support. |
Specifications
| Feature | Specification |
|---|---|
| Brand | EdenPURE |
| Model Number | 903G |
| Power Output | 1500 Watts (High), 750 Watts (Low) |
| Heating Coverage | Up to 1000 square feet |
| Voltage | 120V AC |
| Amperage | 12.5 Amps |
| Temperature Range | 40°F to 90°F (24 settings) |
| Dimensions (D x W x H) | 16.5" x 13" x 16.75" |
| Item Weight | 24 pounds |
| Special Features | Portable, Remote Control, Copper Core Heating Technology, Digital Thermostat, Tip-over Protection, Dual Overheat Sensors, Washable Lifetime Filter |
Warranty and Support
The EdenPURE Classic CopperPLUS Heater is designed for durable and long-lasting performance, with components tested for over 80,000 hours of operation.
For customer service or support, please contact EdenPURE directly.
Customer Service: 1-800-225-6595
