Arrow 854 Heavy Duty Wide Crown Staples User Manual

Product Overview

The Arrow 854 Heavy Duty Wide Crown Staples are designed for robust stapling applications. These galvanized steel staples provide consistent durability and strong holding power for various materials.

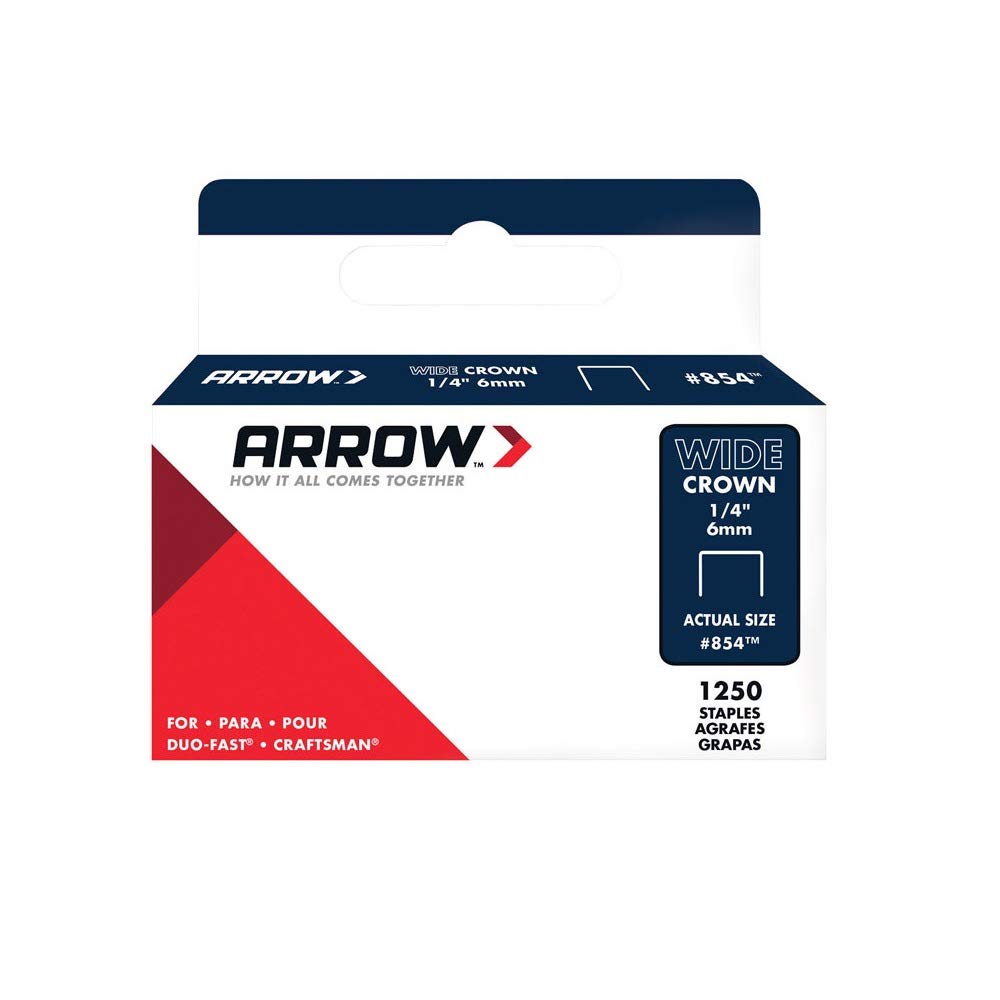

Image: A box containing 1250 Arrow 854 Heavy Duty Wide Crown Staples, showing the brand logo, staple dimensions (1/4 inch / 6mm wide crown), and compatibility with Duo-Fast and Craftsman staple guns.

Key Features:

• Heavy Duty Application: Suitable for installing insulation, housewraps, and roofing underlayment.
• Compatibility: Specifically designed to fit Craftsman and Duo-Fast manual and electric staplers.
• Durable Construction: Made from galvanized steel for long-lasting performance.
• Strong Hold: Engineered to drive deep into materials like wood, fabric, and carpet for a firm, lasting hold.
• Dimensions: Leg length 1/4-inch, Crown width 1/2-inch.
• Quantity: Each pack contains 1250 staples.

Setup and Compatibility

These staples are designed for use with specific stapler models. Ensure your stapler is compatible with 1/4-inch wide crown staples (Arrow #854 series).

Loading Staples:

1. Refer to your stapler's instruction manual for specific loading procedures.
2. Ensure the stapler is unloaded and disengaged from any power source (if electric).
3. Insert the strip of Arrow 854 staples into the magazine of your compatible stapler, ensuring the crown (flat top) faces upwards.
4. Close the magazine securely.

Image: A person's hand operating a manual staple gun, demonstrating the use of staples in a typical application. This image illustrates the general method of using a staple gun with compatible staples.

Arrow T50 staples, which include the 854 series, are compatible with a variety of Arrow Tools including manual, electric, and pneumatic staple guns. They also fit various hammer tackers and several models of combination staple guns and nail guns.

Operating Instructions

Once loaded, the staples are ready for use with your compatible stapler. Always follow the safety guidelines provided with your stapler.

Application Guidelines:

• Position the stapler firmly against the material you intend to fasten.
• Apply even pressure to ensure the staples drive fully and securely.
• These staples are ideal for heavy-duty tasks such as securing insulation, housewraps, roofing underlayment, and for upholstery projects.
• Ensure the material being stapled is appropriate for the staple length to prevent over-penetration or insufficient hold.

Maintenance and Storage

Proper maintenance and storage of your staples will ensure their longevity and performance.

• Store staples in a dry environment to prevent rust and corrosion, especially since they are galvanized steel.
• Keep staples in their original packaging until ready for use to protect them from moisture and damage.
• Avoid storing staples in extreme temperatures or direct sunlight.
• Inspect staples for any damage or corrosion before loading them into your stapler. Do not use damaged staples.

Troubleshooting

If you encounter issues while using Arrow 854 staples, consider the following:

• Staples not feeding: Ensure staples are loaded correctly and are not bent or damaged. Check your stapler's magazine for obstructions.
• Staples not driving fully: Verify that your stapler is compatible with the 854 series staples and that it is functioning correctly. Apply firm, even pressure when operating the stapler. The material might be too dense for the staple length or stapler power.
• Staples jamming: Remove the staple strip and inspect for any deformed staples. Clean the stapler's firing mechanism according to its manual.
• Rust or corrosion: Ensure staples are stored in a dry environment. Discard any rusted staples as they may compromise performance and damage your tool.

For persistent issues, consult the user manual of your specific stapler model or contact Arrow Fastener customer support.

Specifications

Warranty and Support

Arrow Fastener products are manufactured to high standards. For specific warranty information regarding the staples or compatible tools, please refer to the documentation provided with your stapler or visit the official Arrow Fastener website.

Customer Support:

For further assistance or inquiries, please visit the Arrow Fastener Store on Amazon or their official company website. Always provide the model number (854SP) when seeking support.
