Baseus Super Energy Car Jump Starter (8000mAh, 5V-2.4A) User Manual

1. Introduction

The Baseus Super Energy Car Jump Starter is a portable and powerful device designed to jump-start vehicles with dead batteries. It also functions as a power bank, allowing you to charge various electronic devices on the go. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your jump starter.

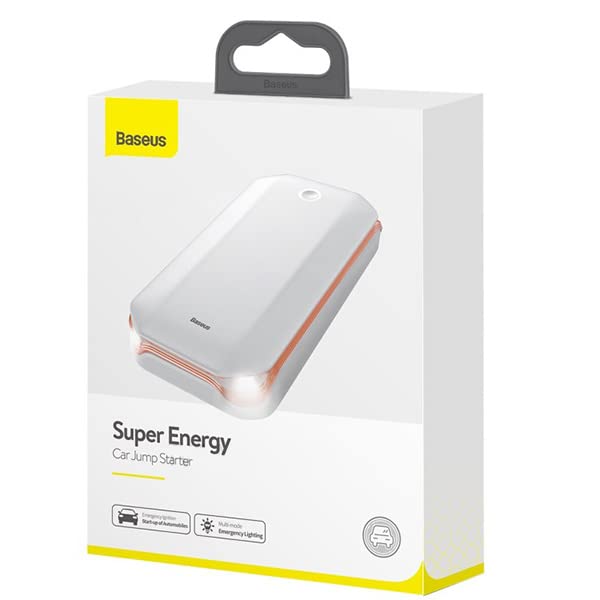

Image: The Baseus Super Energy Car Jump Starter, a compact device in white with orange accents, designed for portability and ease of use.

2. Safety Instructions

Please read and understand all safety information before using this product. Failure to follow these instructions may result in electric shock, explosion, fire, or serious injury.

• Always wear eye protection when working with batteries.
• Do not short-circuit the jump starter terminals.
• Keep the device away from children.
• Do not expose the jump starter to extreme temperatures (above 60°C or below -20°C), direct sunlight, or water.
• Ensure proper polarity when connecting to a vehicle battery (red clamp to positive, black clamp to negative).
• Do not attempt to jump-start a frozen battery.
• If the battery fluid comes into contact with skin or eyes, rinse immediately with plenty of water and seek medical attention.
• Do not disassemble, modify, or repair the unit yourself. Contact qualified service personnel.

3. Package Contents

Verify that all items are present in your package:

• Baseus Super Energy Car Jump Starter
• Smart Jump Cables with Clamps
• USB Charging Cable
• User Manual

4. Setup and Initial Charging

Before first use, fully charge the Baseus Super Energy Car Jump Starter. It is recommended to keep the device charged above 50% for optimal performance and longevity.

1. Connect the provided USB charging cable to the jump starter's input port.
2. Connect the other end of the USB cable to a suitable USB power adapter (not included) or a powered USB port.
3. The indicator lights on the jump starter will show the charging status. Charge until all indicator lights are solid, indicating a full charge.
4. Disconnect the charging cable once fully charged.

5. Operating Instructions: Jump Starting a Vehicle

Follow these steps carefully to jump-start your vehicle:

Image: This image illustrates common scenarios where a car jump starter is essential, such as a vehicle with a dead battery requiring a push, the process of connecting a jump starter to a car battery, and the alternative of needing a tow truck. The Baseus Super Energy Car Jump Starter is an ideal device for reviving a dead battery.

1. Step 1: Prepare the Jump Starter. Ensure the jump starter is sufficiently charged (at least 50%). Turn off the vehicle's ignition and all accessories.
2. Step 2: Connect the Smart Jump Cables. Plug the smart jump cable connector into the jump starter's output port. Then, connect the red (+) clamp to the positive terminal of the car battery and the black (-) clamp to the negative terminal of the car battery. Ensure the connections are secure and there is no corrosion.
3. Step 3: Start the Vehicle. Once the cables are correctly connected, start your vehicle's engine. If the vehicle does not start immediately, wait 30 seconds and try again. Do not crank the engine for more than 3 seconds per attempt.
4. Step 4: Disconnect the Cables. As soon as the vehicle starts, immediately remove the black (-) clamp from the car battery, followed by the red (+) clamp. Then, disconnect the smart jump cable from the jump starter.

Image: This image visually guides the user through the jump-starting process. Step 1 shows the jump starter being prepared. Step 2 demonstrates connecting the red (+) and black (-) clamps to the corresponding battery terminals. Step 3 illustrates pressing the car's start button after connections are made.

6. Operating Instructions: Using as a Power Bank

The Baseus Super Energy Car Jump Starter can also be used to charge your electronic devices.

1. Connect your device's USB charging cable to the USB output port on the jump starter.
2. The jump starter will automatically begin charging your device.
3. Disconnect your device once charging is complete.

7. Maintenance

Proper maintenance ensures the longevity and reliability of your jump starter:

• Recharge After Use: Always recharge the jump starter after each use to maintain its battery health.
• Storage: Store the device in a cool, dry place, away from direct sunlight and moisture.
• Regular Charging: If the jump starter is not used for extended periods, charge it every 3-6 months to prevent deep discharge and prolong battery life.
• Cleaning: Clean the exterior of the device with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.

8. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official Baseus website or contact your authorized retailer. Keep your purchase receipt as proof of purchase.
