Introduction
This manual provides instructions for the proper installation, operation, and maintenance of your Everbilt Easy Touch Bath Waste and Overflow Drain. This product is designed to provide a reliable and aesthetically pleasing drainage solution for your bathtub. Please read all instructions carefully before beginning installation.
The Everbilt Easy Touch bath drain features a 1-1/2 inch black ABS pipe system with a chrome-plated Easy Touch style trim, designed for standard bathtubs with a 12-inch to 15-inch tub ledge to floor measurement.
Safety Information
- Always wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Turn off the main water supply to the bathtub area before starting any plumbing work.
- Ensure all connections are secure and watertight to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Keep small parts away from children.
Package Contents
Verify that all components are present before beginning installation. The typical package includes:
- Overflow pipe assembly (black ABS)
- Drain shoe assembly (black ABS)
- Chrome overflow plate with screw
- Chrome drain stopper (Easy Touch mechanism)
- Rubber gaskets and washers
- Lock nuts
Image: Components of the Everbilt Easy Touch Bath Waste and Overflow Drain, including the black ABS pipes, chrome overflow plate, and drain stopper.
Tools Required
- Adjustable wrench or channel lock pliers
- Screwdriver (Phillips head)
- Plumber's putty or silicone sealant
- Safety glasses
- Rag or towel
Setup and Installation
Follow these steps for proper installation:
- Preparation: Ensure the bathtub is clean and free of debris around the drain and overflow openings. Turn off the water supply.
- Install Drain Shoe: Apply a bead of plumber's putty or silicone sealant around the underside of the drain flange (the part that goes into the tub drain hole). Insert the drain flange into the tub drain opening from the inside of the tub. From underneath the tub, thread the drain shoe assembly onto the drain flange. Hand-tighten, then use an adjustable wrench to secure, ensuring the putty creates a watertight seal. Wipe away excess putty.
- Install Overflow Assembly: Attach the overflow pipe to the overflow opening on the tub. Ensure the rubber gasket is properly seated between the tub and the overflow pipe. Secure the overflow plate to the tub using the provided screw, threading it into the overflow pipe assembly.
- Connect Drain and Overflow Pipes: Connect the overflow pipe assembly to the drain shoe assembly. Ensure all connections are tight and gaskets are properly seated to prevent leaks. The ABS pipes are designed to be adjustable for standard tub dimensions.
- Connect to House Plumbing: Connect the assembled bath waste and overflow unit to your existing house drain plumbing. This typically involves solvent welding for ABS pipes or using appropriate transition fittings if connecting to different pipe materials.
- Test for Leaks: Fill the bathtub with water up to the overflow opening. Allow the water to drain completely. Carefully inspect all connections for any signs of leaks. If leaks are detected, tighten connections or reapply sealant as necessary.

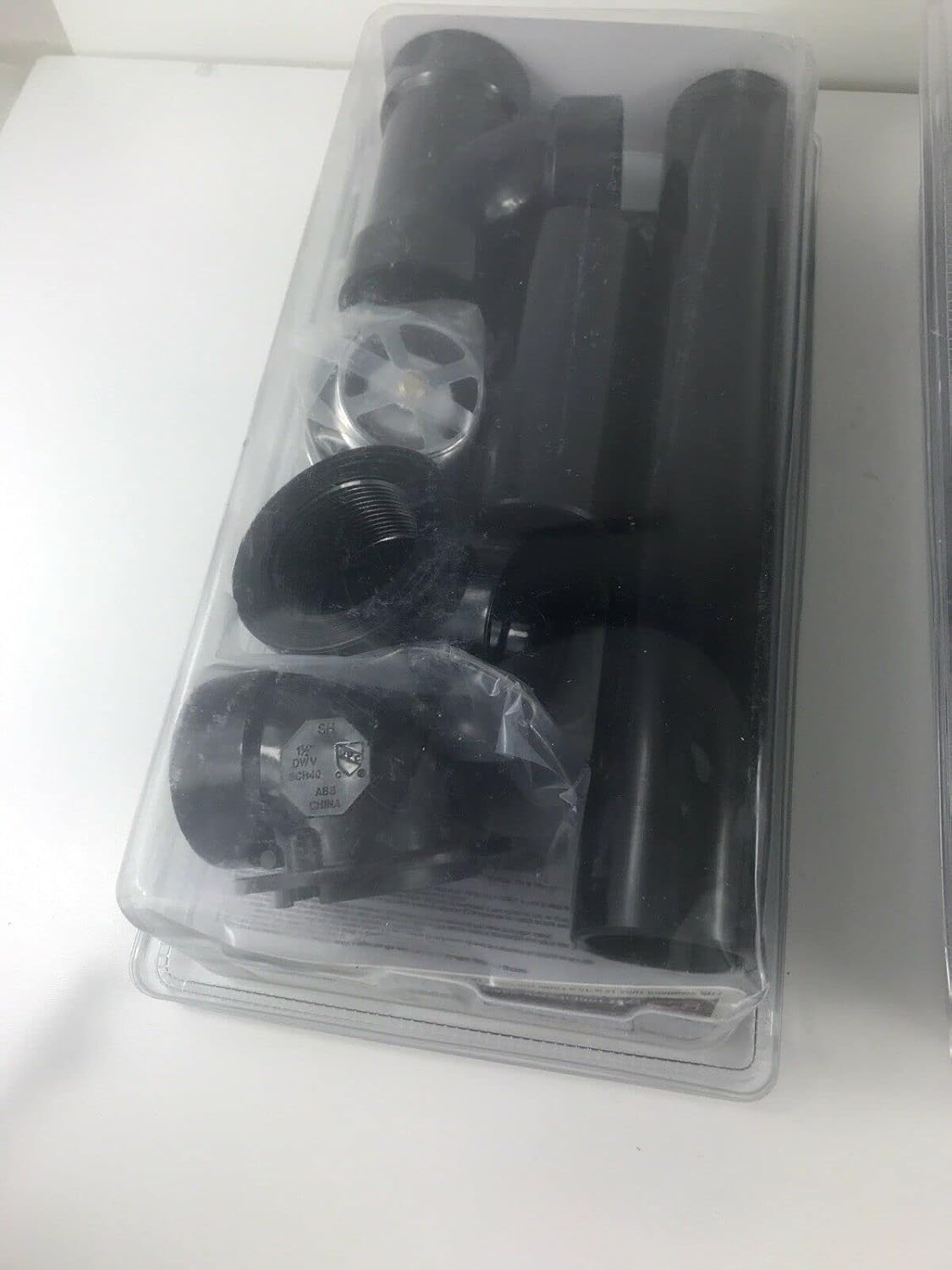

Image: The Everbilt Easy Touch Bath Waste and Overflow Drain as packaged, showing the chrome trim and black ABS pipe system.
Operating Instructions
The Everbilt Easy Touch drain features a simple push-pop mechanism for opening and closing the drain.
- To Close the Drain: Press down firmly on the chrome drain stopper. It will click into the closed position, sealing the tub.
- To Open the Drain: Press down firmly on the chrome drain stopper again. It will click and pop up, allowing water to drain from the tub.
Maintenance
- Cleaning: Clean the chrome trim regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, which can damage the finish.
- Drain Clogs: If the drain becomes slow, remove the stopper and clear any hair or debris. For persistent clogs, use a plastic drain snake or a chemical drain cleaner safe for plastic pipes, following the product's instructions carefully.
- Leak Checks: Periodically check under the tub for any signs of leaks around the drain and overflow connections. Address any leaks promptly to prevent water damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water drains slowly | Clog in the drain pipe (hair, soap scum) | Remove drain stopper and clear debris. Use a drain snake or appropriate chemical cleaner. |
| Leak around drain or overflow | Loose connection or improperly seated gasket/sealant | Tighten connections. If necessary, disassemble, clean, reapply plumber's putty/sealant, and reassemble. |
| Drain stopper does not seal | Debris under stopper or faulty mechanism | Remove stopper and clean thoroughly. Inspect for damage. If mechanism is faulty, replacement may be needed. |
| Drain stopper does not pop up | Debris or mechanism stuck | Clean around the stopper. Gently try to free the mechanism. If persistent, inspect for damage. |
Specifications
- Brand: Everbilt
- Model Number: SH-7103-A-01-03-1
- Manufacturer Part Number: 224433
- Material: ABS Plastic (Pipes), Chrome (Trim)
- Pipe Size: 1-1/2 inches
- Color: Black (Pipes), Chrome (Trim)
- Item Weight: 1.3 Pounds
- Tub Ledge to Floor Compatibility: 12 in. - 15 in.
Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact Everbilt customer service directly. Keep your purchase receipt for warranty claims.
