BH LK7510 Recumbent Bike User Manual

1. Introduction

Thank you for choosing the BH LK7510 Recumbent Bike. This manual provides essential information for the safe and efficient use of your new fitness equipment. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper function and to prevent injury. Keep this manual in a safe place for future reference.

2. Safety Information

Important Safety Precautions:

• Consult your physician before starting any exercise program.
• Always warm up before exercising and cool down afterwards.
• Ensure all parts are securely fastened before each use.
• Keep children and pets away from the equipment during operation.
• Place the recumbent bike on a flat, stable surface.
• Wear appropriate exercise clothing and footwear.
• Stop exercising immediately if you feel faint, dizzy, or experience pain.
• The maximum user weight for this equipment is 150 kg.

3. Product Features

The BH LK7510 Recumbent Bike is designed for intensive use, offering a comfortable and effective workout experience. Key features include:

• Electromagnetic Braking System (EMS): Provides precise and quiet resistance control.
• Poli-V Belt Drive: Ensures smooth, silent, and maintenance-free operation.
• 12 Pre-programmed Training Programs: Offers a variety of workout routines.
• 32 Intensity Levels: Allows for fine-tuning of workout difficulty.
• Hand Pulse Grip Heart Rate Monitoring: Integrated sensors for tracking heart rate.
• Ergonomic Seat with Adjustable Backrest: Provides superior comfort and lumbar support.
• LED Monitor: Displays essential workout data clearly.
• Transport Wheels: For easy relocation of the equipment.
• Robust Frame: Machine-welded steel construction for durability.

4. Setup and Assembly

The BH LK7510 Recumbent Bike requires assembly. Please follow the instructions provided in the separate assembly guide that accompanies your product. Ensure all components are present before beginning assembly.

4.1 Unpacking

Carefully remove all components from the packaging. Check against the parts list in the assembly guide to ensure nothing is missing or damaged. Keep packaging materials until assembly is complete.

4.2 Assembly Steps (General)

While detailed steps are in the assembly guide, general steps include:

1. Attach the front and rear stabilizers to the main frame.
2. Mount the pedals to the crank arms, ensuring correct left (L) and right (R) orientation.
3. Install the seat and backrest onto the seat rail.
4. Connect the console mast and attach the monitor.
5. Connect all necessary cables as per the assembly diagram.
6. Tighten all bolts and nuts securely.

After assembly, ensure the bike is stable and all connections are firm.

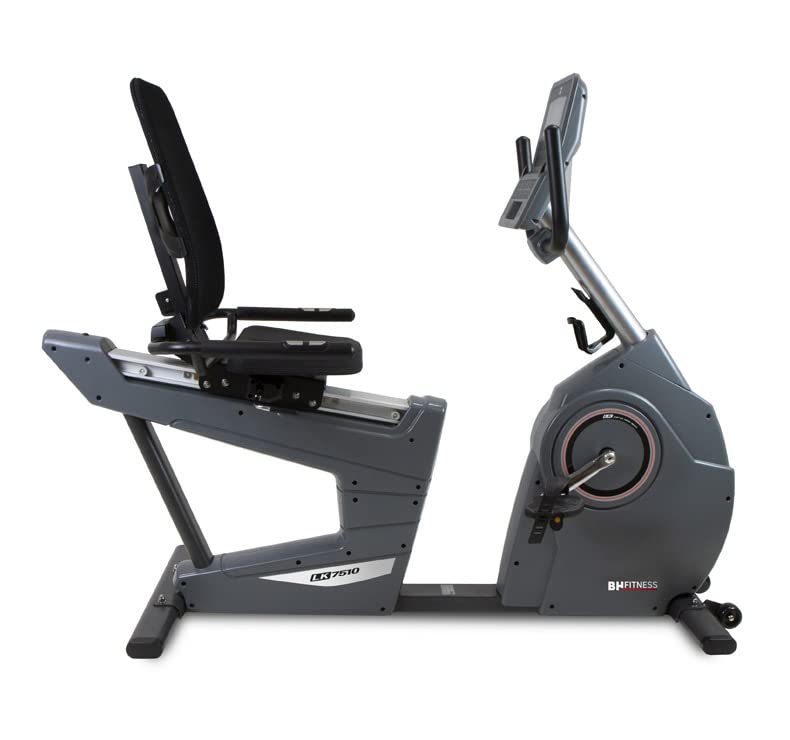

Image 1: Full view of the BH LK7510 Recumbent Bike, showing the main frame, seat, pedals, and console.

5. Operating Instructions

5.1 Powering On

The BH LK7510 features a self-powered generator. Begin pedaling to activate the console. No external power source is typically required.

5.2 Console Overview

Image 2: Close-up of the BH LK7510 console, displaying the LED screen and control buttons.

The LED monitor displays various workout metrics such as time, distance, speed, calories burned, and heart rate. Familiarize yourself with the buttons for program selection, intensity adjustment, and data display.

5.3 Adjusting the Seat and Backrest

Image 3: Detailed view of the ergonomic seat and adjustable backrest on the BH LK7510 Recumbent Bike.

To adjust the seat position, locate the adjustment lever or knob beneath the seat. Slide the seat forward or backward until your legs have a slight bend at the knee when the pedal is at its furthest point. The backrest can also be adjusted for optimal lumbar support and comfort.

5.4 Selecting a Program

Use the program selection buttons on the console to choose from the 12 pre-programmed training routines. Each program is designed to target different fitness goals. Refer to the console manual for detailed descriptions of each program.

5.5 Adjusting Intensity

The BH LK7510 offers 32 intensity levels. Use the '+' and '-' buttons on the console to increase or decrease the resistance during your workout. Start with a lower intensity and gradually increase as your fitness improves.

5.6 Heart Rate Monitoring

Grasp the hand pulse grips on the handlebars to display your heart rate on the console. Ensure a firm, consistent grip for accurate readings. This feature helps you stay within your target heart rate zone.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your BH LK7510 Recumbent Bike.

6.1 Cleaning

Wipe down the equipment with a damp cloth after each use to remove sweat and dust. Avoid using abrasive cleaners or solvents that could damage the finish or electronic components.

6.2 Belt System

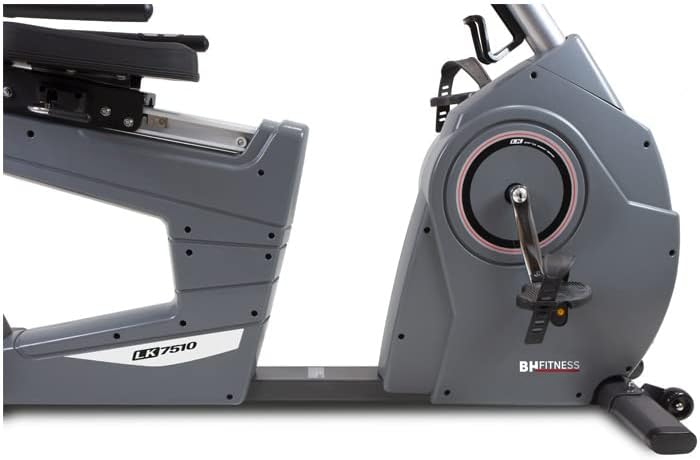

Image 4: View of the drive system and pedals on the BH LK7510 Recumbent Bike, highlighting the robust construction.

The Poli-V belt drive system is designed to be maintenance-free. No lubrication or tension adjustments are typically required. If you notice any unusual noises or performance issues, contact customer support.

6.3 Fasteners

Periodically check all bolts, nuts, and other fasteners to ensure they are tight. Loose components can affect stability and safety.

7. Troubleshooting

If you encounter issues with your BH LK7510 Recumbent Bike, refer to the following common problems and solutions:

• Console Not Displaying: Ensure the self-powered generator is active by pedaling. Check all cable connections to the console.
• Inaccurate Heart Rate Reading: Ensure your hands are firmly and consistently gripping the pulse sensors. Moisture or movement can affect accuracy.
• Unusual Noises: Check for any loose parts and tighten them. If the noise persists, it may indicate an internal issue; contact customer support.
• Resistance Not Changing: Verify that the console is powered on and the intensity buttons are functioning. If the issue persists, there may be a problem with the electromagnetic braking system; contact support.
• Bike Feels Unstable: Ensure the bike is on a level surface and all stabilizer feet are properly adjusted and tightened.

For problems not listed here or if solutions do not resolve the issue, please contact BH FITNESS customer support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact the retailer from whom you purchased the BH LK7510 Recumbent Bike. Warranty terms and conditions may vary by region and retailer.

For technical support, spare parts, or any inquiries not covered in this manual, please contact BH FITNESS customer service. You can typically find contact information on the manufacturer's official website or through your retailer.
