VEEAPE AP2 Portable Tire Inflator User Manual

1. Introduction and Overview

Thank you for choosing the VEEAPE AP2 Portable Tire Inflator. This compact and versatile electric air pump is designed for convenient inflation of various items, including car, motorcycle, and bicycle tires, as well as sports balls. Equipped with a digital display, auto shut-off, and multiple preset modes, it ensures accurate and efficient inflation. Its portable design and built-in power bank functionality make it an essential tool for travel and everyday use.

2. Product Features

• Multiple Inflation Modes: Features five distinct modes for cars, motorcycles, bicycles, balls, and a custom mode (0-120 PSI), catering to diverse inflation needs.
• Auto Shut-Off Function: Automatically stops inflating once the preset pressure is reached, preventing over-inflation and ensuring safety. Supports PSI, BAR, KPA, and Kg/cm² units.
• High Capacity & Efficient Heat Dissipation: Built-in 2000mAh lithium battery provides up to 40 minutes of continuous operation. An integrated fan ensures effective heat dissipation for prolonged use.
• Power Bank Functionality: Doubles as a power bank, allowing you to charge Android or iOS devices via its USB port.
• LED Light & Digital Display: Equipped with an HD LCD digital screen with backlight for clear pressure readings in any lighting condition. A super bright LED light provides emergency illumination.
• Memory Function: Recalls the last used pressure value upon startup, eliminating the need for frequent resets.
• Compact and Portable: Mini-sized, cordless, and lightweight design for easy carrying and storage.

Image: The VEEAPE AP2 Portable Tire Inflator with its digital display and various adapters for different inflation needs.

Image: An internal view of the VEEAPE AP2 highlighting its powerful fan for efficient heat dissipation during operation.

3. Package Contents

The VEEAPE AP2 Portable Tire Inflator package typically includes:

• VEEAPE AP2 Portable Tire Inflator Unit
• Air Hose with Presta Valve Adapter
• Ball Needle Adapter
• Swimming Ring Nozzle Adapter
• USB Charging Cable
• Storage Pouch
• User Manual

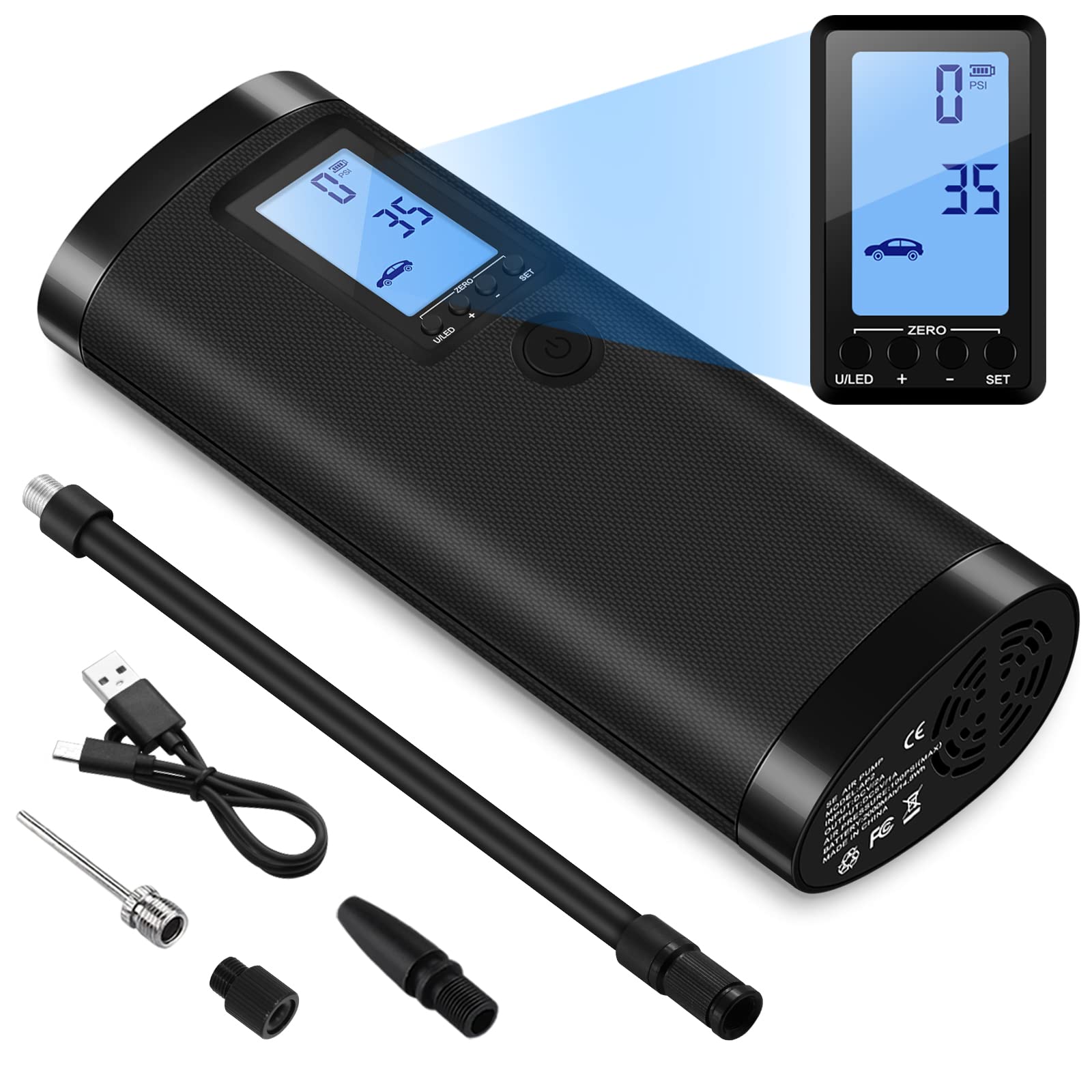

Image: The VEEAPE AP2 Portable Tire Inflator displayed with its complete set of accessories, including various adapters and charging cable.

4. Safety Information & Warnings

• This mini electric portable air compressor is ideal for bicycle tires, small tires, small swimming rings, basketballs, footballs, and rugby balls.
• Do NOT use for big truck tires, large motorcycle tires, travel pillows, inflatable toys, or large pool inflatable devices (e.g., pool floats, boats).
• The air pump contains only 30% to 60% electricity upon arrival. Fully charge it before first use.
• All air pumps on the market produce noise. This unit is optimized for a noise reduction of 80 decibels (measured at one meter distance). This is considered normal operating noise.
• This product is designed as portable emergency equipment for car tires, not a professional tire pump for continuous heavy-duty use.
• Do not connect items to be inflated when clearing readings to ensure measurement accuracy.
• The built-in battery protection device automatically cuts off power when voltage is too low, preventing over-discharge.

5. Setup

1. Charge the Device: Before initial use, fully charge the inflator using the provided USB charging cable. The battery indicator on the digital display will show charging status.
2. Attach Air Hose: Screw the air hose securely into the air outlet port on the inflator.
3. Select Appropriate Adapter: Choose the correct adapter for the item you wish to inflate (e.g., Presta valve adapter for bicycles, ball needle for sports balls). Screw it onto the end of the air hose.

Image: The VEEAPE AP2 connected to a bicycle tire, demonstrating proper setup for inflation.

6. Operating Instructions

1. Power On: Long press the power button for 3 seconds until the display illuminates and the progress bar completes.
2. Select Mode: Short press the "SET" button to cycle through the five available inflation modes: Car, Motorcycle, Bike, Ball, and Custom.
3. Switch Units: Short press the "U/LED" button to switch between air pressure units (PSI, BAR, KPA, Kg/cm²).
4. Adjust Preset Pressure: Use the "+" and "-" buttons to adjust the desired target pressure. Long press these buttons for quick value adjustment.
5. Connect to Item: Securely attach the air hose with the appropriate adapter to the valve of the item you wish to inflate.
6. Start Inflation: Short press the power button to begin inflation. The device will automatically stop when the preset pressure is reached.
7. Stop Inflation (Manual): To manually stop inflation before the preset pressure is reached, short press the power button again.

Making Readings Accurate

After turning on the device, if the measured pressure value is not 0, press the "U/LED" and "SET" buttons simultaneously for 3 seconds. The device will enter the automatic reading clearing process, and the display will flash rapidly. This process increases measurement accuracy. Ensure no items are connected to the inflator during this clearing process.

7. Modes and Pressure Settings

Each mode has a set maximum safety PSI to prevent over-inflation and potential damage.

8. Troubleshooting

• Device not turning on: Ensure the battery is fully charged. Long press the power button for 3 seconds.
• No air coming out: Check that the air hose is securely attached to both the inflator and the item. Verify that the correct adapter is used and properly connected. Ensure the device is powered on and inflation has been initiated.
• Inaccurate pressure readings: Perform the "Making Readings Accurate" procedure (Section 6) to recalibrate the sensor.
• Device overheating: The built-in fan provides heat dissipation. If the device feels excessively hot, allow it to cool down before continuing use. Avoid continuous operation beyond recommended limits.
• Battery draining quickly: Ensure the device is fully charged before use. Battery life can vary based on inflation task intensity and duration.

9. Maintenance

• Cleaning: Wipe the device with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the inflator and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided storage pouch to protect the device.
• Battery Care: For optimal battery longevity, charge the device regularly, even if not in frequent use. Avoid completely draining the battery for extended periods.
• Hose and Adapters: Inspect the air hose and adapters periodically for any signs of wear or damage. Replace if necessary to ensure efficient and safe operation.

10. Specifications

11. Warranty and Support

The VEEAPE AP2 Portable Tire Inflator comes with a 1-Year Warranty from the date of purchase. For any product issues or support inquiries, please contact VEEAPE customer service directly.
