HSH L-Shaped Computer Desk Instruction Manual

1. Introduction

Thank you for choosing the HSH L-Shaped Computer Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read these instructions carefully before beginning assembly and retain them for future reference.

Safety Warnings

• Always follow the assembly instructions provided.
• Ensure the desk is fully assembled and stable before placing any items on it or using it.
• Do not exceed the maximum weight capacity of 158 kg (approximately 350 lbs). Overloading can cause damage or injury.
• Keep small parts and packaging materials away from children to prevent choking hazards.

2. Setup and Assembly

The HSH L-Shaped Computer Desk is designed for straightforward assembly. All necessary tools and instructions are included in the package. It is recommended to assemble the desk with two people for ease and safety.

Assembly Steps Overview

1. Unpack all components and verify against the included parts list.
2. Identify the main desk sections and the cabinet unit.
3. Assemble the metal frame components according to the diagrams.
4. Attach the desktop panels to the assembled frame.
5. Assemble and attach the cabinet and drawer storage unit.
6. Ensure all screws and fasteners are securely tightened.

Note: Pay close attention to the specific bolt sizes and component orientation during assembly to prevent damage, as incorrect parts can affect stability and appearance.

Configurable Design

The L-shaped design offers flexibility, allowing the cabinet and shorter desk section to be configured on either the left or right side to best suit your space and needs.

Figure 2.1: The desk can be assembled with the cabinet on either the right-hand or left-hand side.

Dimensions

Figure 2.2: Detailed dimensions of the HSH L-Shaped Computer Desk.

3. Operating and Usage

Your HSH L-Shaped Computer Desk provides ample surface area and integrated storage for an efficient workspace.

Workspace Utilization

• The L-shape design maximizes corner space, offering distinct areas for computer work, writing, or other tasks.
• The main desk surface (approximately 19.7 inches deep) provides sufficient room for monitors, keyboards, and other peripherals.
• The shorter desk section (approximately 15.7 inches deep) allows for flexible movement and additional workspace.

Figure 3.1: The HSH L-Shaped Computer Desk in a typical home office setup.

Storage Features

The integrated cabinet and open shelf provide convenient storage solutions:

• Open Shelf: Ideal for frequently accessed items like stationery, books, or small decorative pieces.
• Cabinet with Door: Offers concealed storage for files, supplies, or other items you wish to keep out of sight.

Figure 3.2: Detail of the cabinet and open shelf storage.

Weight Capacity

The desk is designed to support a total weight of up to 158 kg (350 lbs). Distribute weight evenly across the desk surface to maintain stability and prevent damage.

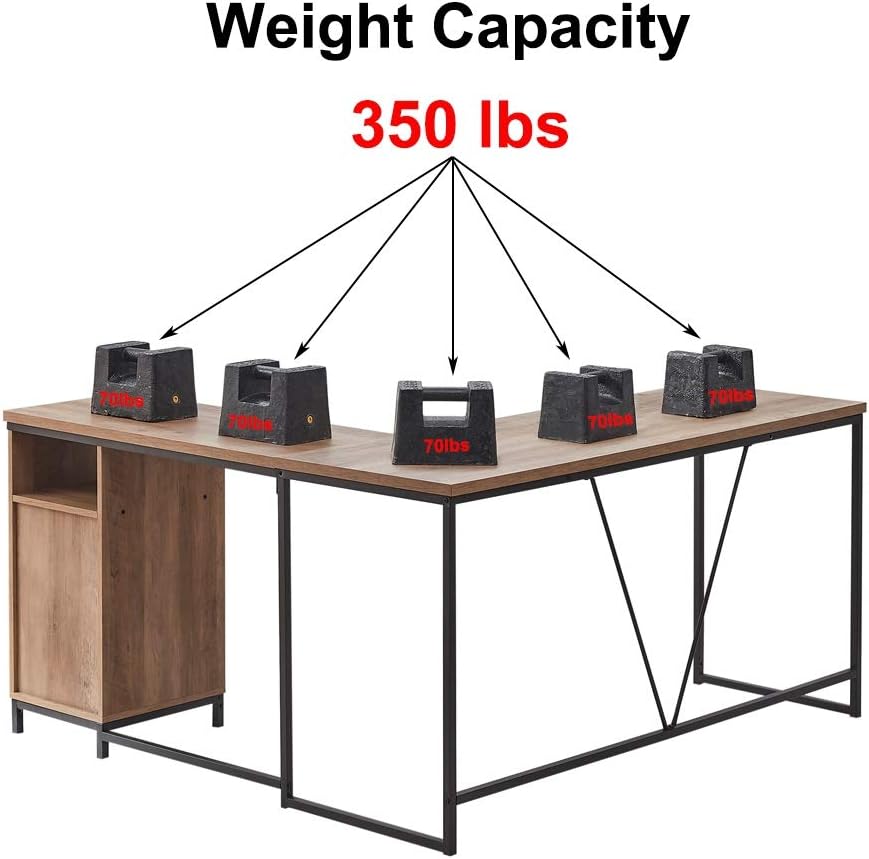

Figure 3.3: Illustration of the desk's weight capacity.

4. Maintenance

Proper care will ensure the longevity and appearance of your HSH L-Shaped Computer Desk.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Spills: Clean up spills immediately to prevent staining or damage to the wood-fiberboard surface.
• Inspection: Periodically check all screws and fasteners to ensure they remain tight. Retighten if necessary.
• Protection: Use coasters for drinks and protective pads under hot items to prevent marks on the desktop.

5. Troubleshooting

Assembly Issues

• Parts don't align: Double-check the orientation of each component against the assembly diagrams. Ensure you are using the correct screws for each step.
• Desk feels wobbly: Verify that all fasteners are fully tightened. Ensure the desk is on a level surface. If not, use shims under the feet to stabilize.
• Missing or damaged parts: Contact customer service immediately for assistance.

6. Specifications

7. Warranty and Support

HSH is committed to providing high-quality products and customer satisfaction.

• Quality Assurance: This product comes with a 3-year quality assurance.
• Returns: We offer a 30-day free return policy.
• Customer Service: For any questions, concerns, or assistance, please contact our customer service team. We strive to provide the best possible solution within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official HSH website.
