HOOBRO EBF22LY01 Clothes Rack User Manual

Introduction

Thank you for choosing the HOOBRO EBF22LY01 Clothes Rack. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your new clothes rack. Please read these instructions carefully before assembly and retain them for future reference.

Image: The HOOBRO EBF22LY01 Clothes Rack, featuring its double hanging rails, storage shelf, and wheels, displayed in a contemporary living space.

Safety Information

• Read all instructions: Ensure you understand all assembly steps and safety warnings before proceeding.
• Keep children away: During assembly, keep small children and pets away from the work area. Small parts can be a choking hazard.
• Assemble on a soft surface: To prevent scratches, assemble the unit on a clean, soft surface like a carpet.
• Do not overtighten: Tighten screws firmly but do not overtighten to avoid damaging the components.
• Weight capacity: Do not exceed the maximum weight capacity of 100 kg (220 lbs) for the entire rack. Distribute weight evenly.
• Lock wheels: Always engage the locking mechanism on the wheels when the rack is stationary to prevent accidental movement.
• Regular checks: Periodically check all connections and fasteners to ensure they remain tight and secure.

Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged:

• 1 x HOOBRO EBF22LY01 Clothes Rack (disassembled components)
• 1 x Accessory Bag (containing screws, nuts, and assembly tools)
• 1 x Instruction Manual (available in German, English, Spanish, French, Italian)

Specifications

Image: Detailed diagram illustrating the dimensions (84cm width, 156cm height, 45.5cm depth) and individual weight capacities for the hanging rails (35kg each) and shelves (15kg each) of the clothes rack.

Setup and Assembly

Assembly is required for this product. Follow the steps below carefully. An installation tool is included in the accessory bag.

Step 1: Unpack and Identify Parts

• Carefully unpack all components from the packaging.
• Lay out all parts on a clean, soft surface to prevent scratches.
• Refer to the included parts list in your manual to identify each component and ensure nothing is missing.

Step 2: Assemble the Base Frame and Wheels

• Attach the four universal wheels to the bottom of the base frame using the provided screws and tools. Ensure two of the wheels are lockable and positioned for easy access.
• Connect the vertical support bars to the base frame.

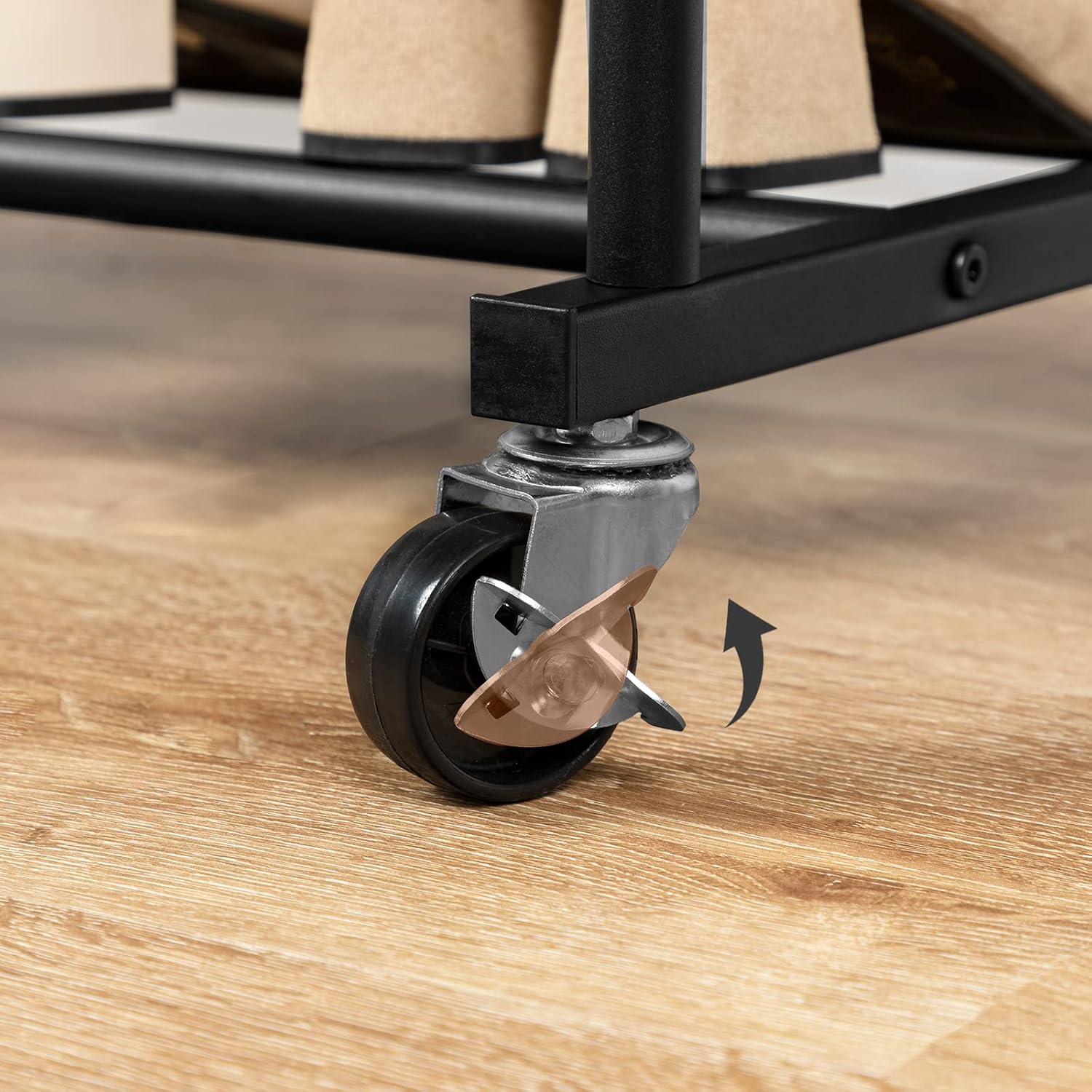

Image: A close-up view of one of the universal wheels, highlighting its 360-degree rotation and the locking mechanism that secures the rack in place.

Step 3: Attach Storage Shelves

• Secure the two engineered wood shelves to the designated positions on the vertical support bars using the appropriate fasteners. Ensure they are level and stable.

Step 4: Install Hanging Rails

• Attach the two double hanging rails to the upper section of the vertical support bars. Ensure they are securely fastened and capable of holding weight.
• Install the side hooks onto the frame as shown in the diagrams.

Image: A detailed view showcasing the double hanging rails for clothes, the integrated storage shelf for accessories, and the convenient side hooks for items like headphones or bags.

Step 5: Final Checks

• Once assembled, gently shake the rack to ensure all connections are secure and the unit is stable.
• Verify that the wheels roll smoothly and the locking mechanisms engage correctly.

Operating Instructions

Using the Hanging Rails

• The rack features two main hanging rails for organizing clothes. Hang garments evenly to distribute weight and prevent tipping.
• Utilize the side hooks for hanging smaller items such as hats, scarves, or bags.

Image: A close-up of the side hook, demonstrating its utility for hanging items like a baseball cap, providing additional storage options.

Utilizing the Storage Shelves

• The two lower shelves are designed for storing shoes, folded clothing, storage boxes, or other accessories.
• Ensure items placed on the shelves do not exceed the individual shelf weight capacity (15 kg per shelf).

Moving the Rack

• To move the rack, unlock the two lockable wheels.
• Push or pull the rack gently to its desired location.
• Once in position, engage the locking mechanism on the wheels to secure the rack and prevent unintended movement.

Maintenance

• Cleaning: Wipe the metal frame and engineered wood shelves with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Dusting: Regularly dust the rack to maintain its appearance.
• Inspection: Periodically check all screws and connections to ensure they are tight. Retighten if necessary to maintain stability.
• Avoid excessive moisture: Do not expose the rack to excessive moisture or direct sunlight for prolonged periods, as this may cause damage to the materials.

Troubleshooting

• Rack is wobbly: Ensure all screws are fully tightened. Check that the rack is on a level surface. If on an uneven surface, adjust items or reposition the rack.
• Wheels not rolling smoothly: Check for any debris or hair caught in the wheels. Clean them if necessary. Ensure the locking mechanisms are fully disengaged.
• Difficulty with assembly: Review the assembly instructions carefully. Ensure you are using the correct parts for each step. Do not force components together; if parts do not fit, re-examine the instructions.
• Rack tipping: This usually indicates uneven weight distribution or exceeding the maximum load capacity. Redistribute items evenly across both hanging rails and shelves, and ensure the total weight does not exceed 100 kg. Lock the wheels when stationary.

Warranty and Support

HOOBRO products are designed for quality and durability. For any questions, concerns, or issues regarding your HOOBRO EBF22LY01 Clothes Rack, please contact the retailer or manufacturer's customer support. Please have your model number (EBF22LY01) and purchase information ready when contacting support.
