Product Overview
The Mando 10A1539 AC Compressor with Clutch is an original equipment (OE) component designed for automotive air conditioning systems. This unit comes pre-filled with the correct amount of oil, ensuring it is ready for direct replacement and installation. Mando is a leading original equipment manufacturer known for its state-of-the-art technology and rigorous quality testing, providing reliable and safe automotive parts.

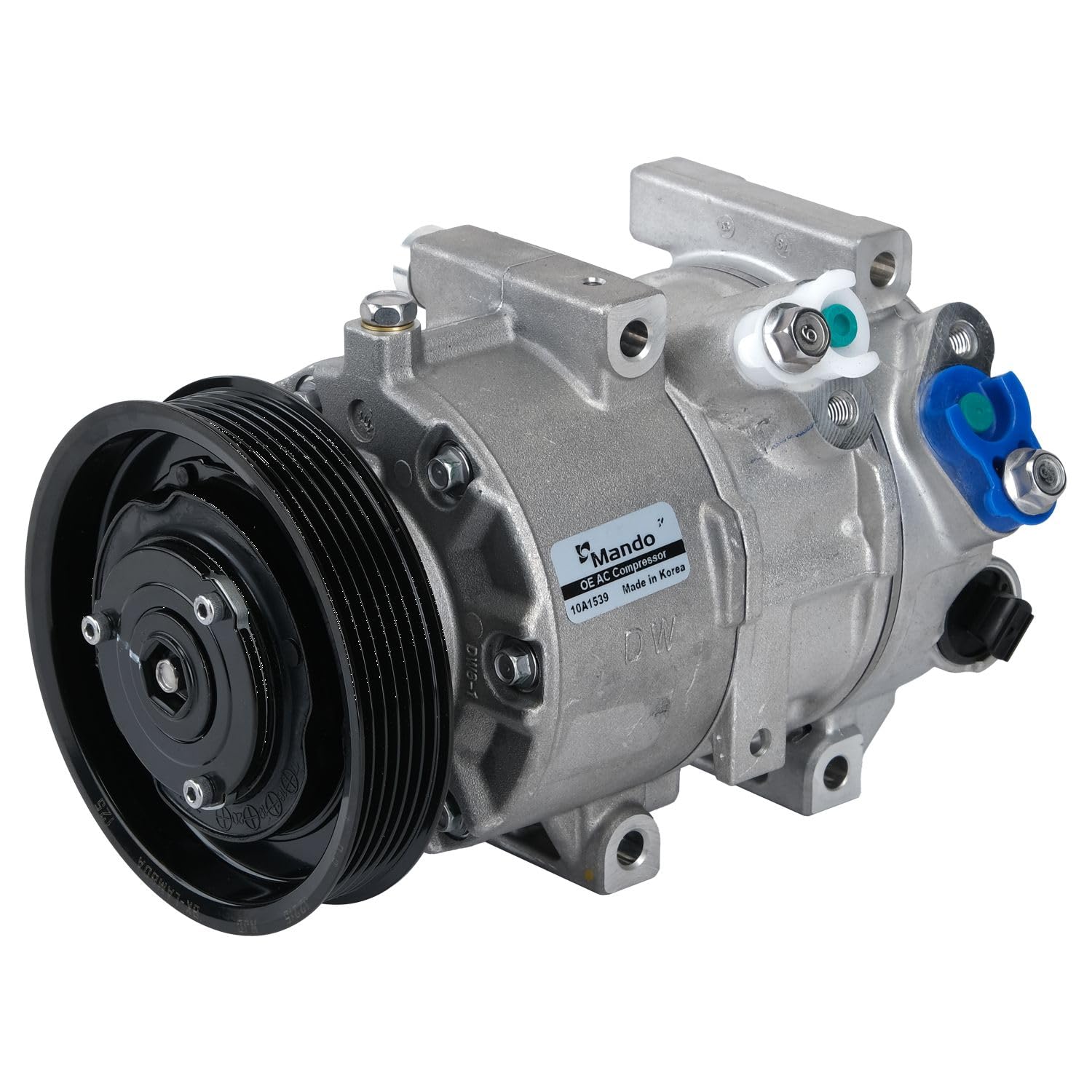

Image: The Mando 10A1539 AC Compressor with Clutch, a direct replacement part for automotive air conditioning systems. It features a robust design and comes pre-filled with oil.
Image: The Mando AC Compressor shown alongside its original equipment packaging, highlighting its authenticity and quality.
Key Features
- New Mando OE A/C Compressor with Clutch: Ensures original equipment quality and performance.
- Pre-filled Oil: Comes with the correct amount of oil, simplifying installation.
- 100% Direct Replacement: Engineered for a perfect fit and easy installation.
- OEM Interchanges: Compatible with OEM part number 97701D9001.
- Manufacturer Warranty: Backed by a 2-year manufacturer warranty.
Installation Guide
Installation of an AC compressor requires specialized tools and knowledge of automotive air conditioning systems. It is highly recommended that this component be installed by a certified professional to ensure proper function, system integrity, and safety.
General Installation Steps (Professional Installation Recommended):
- Safety First: Disconnect the vehicle's battery and ensure the engine is cool.
- Refrigerant Recovery: Properly recover all refrigerant from the AC system using an approved recovery machine. Do not vent refrigerant into the atmosphere.
- Remove Old Compressor: Disconnect electrical connectors, refrigerant lines, and mounting bolts from the old compressor.
- Inspect System: Check for any signs of contamination (e.g., metal shavings) in the system. If contamination is present, the system must be flushed, and other components (condenser, evaporator, expansion valve/orifice tube, receiver/drier) may need replacement.
- Install New Compressor: Mount the new Mando compressor, connect refrigerant lines with new O-rings, and secure electrical connections.
- Vacuum System: Evacuate the AC system to remove air and moisture. Maintain a vacuum for at least 30 minutes to ensure thorough dehydration.
- Recharge System: Recharge the system with the correct type and amount of refrigerant as specified by the vehicle manufacturer.
- Leak Test: Perform a leak test to ensure all connections are sealed.
- Test Operation: Start the vehicle and test the AC system for proper cooling and pressure readings.
Note: This compressor comes pre-filled with the correct amount of oil. Do not add additional oil unless specifically instructed by a professional or vehicle manufacturer's guidelines for specific system requirements.
Operation
The Mando AC Compressor operates as an integral part of your vehicle's air conditioning system. Once properly installed and the system is charged, the compressor engages automatically when the vehicle's AC system is activated (e.g., by turning on the air conditioning or defrost function). It circulates refrigerant through the system, compressing it to facilitate the cooling process.
To operate your vehicle's AC system, refer to your vehicle's owner's manual for specific instructions on climate control settings.
Maintenance
Proper maintenance of your vehicle's AC system can extend the life of your Mando AC compressor and ensure optimal performance. While the compressor itself requires minimal direct maintenance, regular checks of the overall AC system are recommended.
Recommended Maintenance Practices:
- Regular System Checks: Have your vehicle's AC system inspected annually by a qualified technician. This includes checking refrigerant levels, pressure, and overall system integrity.
- Belt Inspection: Periodically inspect the serpentine belt that drives the compressor for cracks, fraying, or excessive wear. Replace if necessary.
- Condenser Cleaning: Ensure the condenser (located in front of the radiator) is free of debris (leaves, dirt, bugs) to allow for efficient heat exchange.
- Cabin Air Filter: Replace your cabin air filter regularly to maintain good airflow and prevent strain on the system.
- Run AC Periodically: Even in colder weather, run your AC system for a few minutes once a month to keep seals lubricated and prevent refrigerant leaks.
Troubleshooting Common Issues
If you experience issues with your vehicle's air conditioning system after installing the Mando AC compressor, consider the following common problems and potential solutions. For complex issues, consult a certified automotive technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Cold Air | Low refrigerant charge, faulty electrical connection, compressor clutch not engaging, system leak. | Check refrigerant levels and for leaks. Verify electrical connections to the compressor. Inspect compressor clutch for engagement. Professional diagnosis recommended. |
| Weak Airflow | Clogged cabin air filter, blocked evaporator or condenser, faulty blower motor. | Replace cabin air filter. Clean condenser fins. Consult technician for evaporator or blower motor issues. |
| Unusual Noises from AC | Worn compressor bearings, low refrigerant (causing compressor strain), loose mounting bolts, worn serpentine belt. | Check refrigerant levels. Inspect serpentine belt and tensioner. Ensure compressor is securely mounted. Professional inspection for internal compressor issues. |
| AC Cycles On/Off Frequently | Low or overcharged refrigerant, faulty pressure switch, restricted airflow to condenser. | Verify correct refrigerant charge. Check condenser for obstructions. Test pressure switches. |
Warning: Working with automotive AC systems involves high pressures and refrigerants that can be harmful. Always wear appropriate personal protective equipment and consult a professional for repairs beyond basic checks.
Product Specifications
| Brand | Mando |
| Model Number | 10A1539 |
| OEM Part Number | 97701-D9001 |
| Included Components | A/C Compressor w/ Clutch |
| Pre-filled Oil | Yes (Correct amount) |
| Item Weight | 16.26 pounds |
| Product Dimensions | 10 x 7 x 7.75 inches |
| Country of Origin | Korea, Republic of |
| UPC | 843209111296 |
Warranty and Support
The Mando 10A1539 AC Compressor with Clutch is covered by a 2-year manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims, technical support, or further inquiries, please contact Mando customer service or the authorized dealer from whom the product was purchased. Please have your proof of purchase and product model number ready when contacting support.
Image: The official HL Mando logo, representing the manufacturer of this AC compressor.
