Introduction
Thank you for choosing the Klarstein Mirage 90cm Wall-Mounted Extractor Hood. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and keep them for future reference.
Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Ensure the power supply matches the voltage specified on the rating plate.
- Do not operate the appliance with a damaged cord or plug.
- Installation must be performed by a qualified person in accordance with local regulations.
- Always disconnect the appliance from the power supply before cleaning or maintenance.
- Do not flambé under the range hood.
- Ensure adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
Setup and Installation
The Klarstein Mirage extractor hood is designed for wall mounting. For optimal performance and safety, careful installation is crucial. It can be configured for both recirculation and exhaust air operation.
Included Components:
- 1 x Extractor Hood Unit
- 2 x Mantelpiece (Chimney sections)
- 1 x Drain Hose
- 1 x Assembly Material (screws, wall plugs, brackets)
- Instruction Manual (refer to this document for English instructions)
Installation Steps:
- Preparation: Unpack all components and ensure they are intact. Choose a suitable location on the wall above your cooking surface. The recommended height for installation is critical for both safety and performance. Avoid hanging it too high.
- Mounting: Secure the mounting bracket to the wall using the provided assembly material. It is highly recommended that two people perform the installation to ensure proper alignment and safety. Basic manual skills are required. If unsure, seek professional assistance.
- Ducting (Exhaust Air Mode): Connect the drain hose to the hood's air outlet and route it to the outside. Ensure the ducting is free from sharp bends or obstructions. Important: If using a reducing piece for the air outlet, ensure it is not placed too close to the hood's air outlet. Incorrect placement can prevent the internal flaps from opening properly, significantly reducing suction power and potentially causing the hood to regulate down as a protective measure.
- Recirculation Mode: If operating in recirculation mode, install activated carbon filters (sold separately) as per their instructions. The air will be filtered and returned to the kitchen.
- Electrical Connection: Connect the hood to a 220 Volt power supply. Ensure all connections are secure and comply with local electrical codes.
- Final Assembly: Attach the mantelpiece sections to cover the ducting and complete the aesthetic installation.
Image: The ergonomic design of the Klarstein extractor hood provides ample head clearance for comfortable cooking.
Image: Diagram illustrating the airflow and the easy conversion to recirculation mode with activated carbon filters.
Operating Instructions
The Klarstein Mirage extractor hood features intuitive touch controls for easy operation.
Control Panel:
The transparent ClearTouch control panel is located on the front of the hood. It allows you to manage all functions, including fan speed and lighting.
Image: The simple and responsive ClearTouch control panel for managing all hood functions.
Fan Speed Settings:
The hood offers 3 fan speed settings to effectively remove fumes, smoke, and odors from your kitchen. Select the appropriate speed based on your cooking intensity.
- Speed 1: For light cooking and simmering.
- Speed 2: For general cooking.
- Speed 3: For heavy frying, grilling, or when strong odors are present.
Image: Illustrates the powerful extraction capability of the hood against cooking fumes.
LED Lighting:
The integrated LED lighting illuminates your cooking area without dazzling. The hood features a Balanced Light Concept with nine selectable colors to create a pleasant ambiance in your kitchen.
- Turning Lights On/Off: Press the light icon on the control panel.
- Changing LED Color: With the lights on, press and hold the light icon or cycle through the options as indicated by the control panel interface to select your desired color.
Image: The hood features a Balanced Light Concept with nine selectable LED colors for ambient lighting.

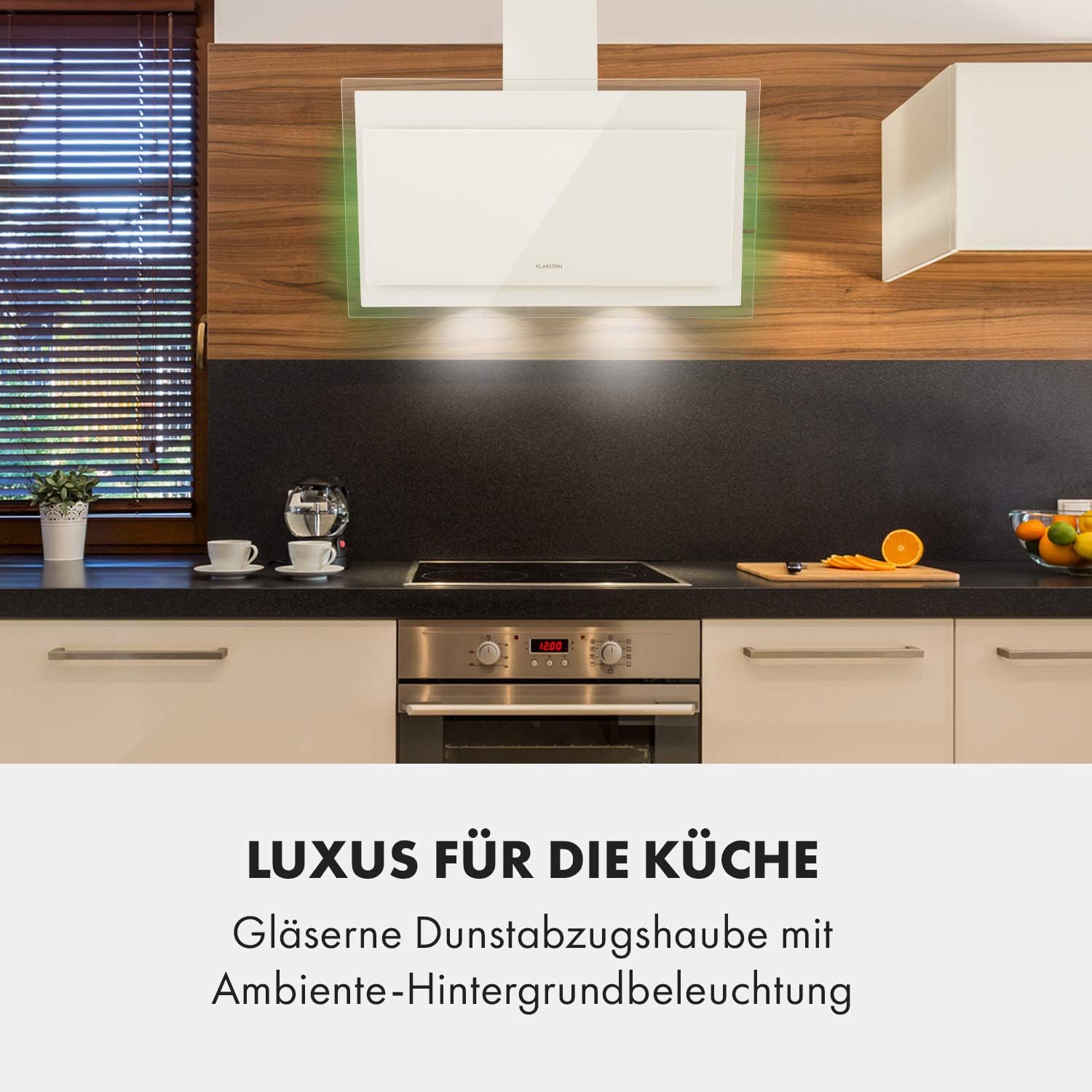

Image: The Klarstein extractor hood with its elegant design and ambient backlighting, enhancing the kitchen's aesthetic.
Maintenance and Cleaning
Regular cleaning and maintenance ensure the longevity and efficient operation of your extractor hood.
Cleaning the Grease Filter:
The aluminum grease filter is dishwasher-safe for easy cleaning. It is recommended to clean the filter regularly, depending on usage, to maintain optimal degreasing capacity.
- Disconnect Power: Always ensure the hood is disconnected from the main power supply before attempting any cleaning or maintenance.
- Remove Filter: Carefully unlatch and remove the aluminum grease filter from the hood.
- Clean Filter: Wash the filter in a dishwasher or by hand using hot water and a mild detergent. Ensure all grease residues are removed.
- Dry and Reinstall: Allow the filter to dry completely before reinstalling it into the hood.
Cleaning the Exterior:
Wipe the exterior surfaces of the hood with a soft cloth dampened with a mild, non-abrasive cleaning solution. Avoid using harsh chemicals or abrasive pads that could damage the glass or finish.
Replacing Activated Carbon Filters (Recirculation Mode Only):
If operating in recirculation mode, the activated carbon filters need to be replaced periodically (typically every 3-6 months, depending on usage). Refer to the specific instructions provided with your activated carbon filters for replacement procedures.
Troubleshooting
If you encounter issues with your Klarstein extractor hood, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on | No power supply; Faulty plug/cable; Control panel issue | Check power connection and circuit breaker. Inspect cable for damage. Contact support if problem persists. |
| Low suction power | Grease filter clogged; Incorrect ducting (exhaust mode); Activated carbon filter saturated (recirculation mode); Flaps not opening correctly | Clean grease filter. Ensure ducting is clear and reducing pieces are not obstructing airflow. Replace activated carbon filters. Verify internal flaps open freely. |
| Excessive noise | Loose components; Obstruction in fan; Incorrect installation | Check for loose screws or parts. Remove any obstructions. Ensure proper installation and secure mounting. |
| Lights not working | LED bulb failure; Electrical connection issue | Check electrical connections. If individual LEDs fail, contact support for replacement options. |
If you are unable to resolve an issue using this guide, please contact customer support or a qualified technician.
Specifications
Detailed technical specifications for the Klarstein Mirage 90cm Wall-Mounted Extractor Hood.
| Feature | Specification |
|---|---|
| Model Number | CGCH3-Mirage90-WH |
| Brand | KLARSTEIN |
| Product Dimensions (D x W x H) | 23.23 x 38.58 x 15.35 inches (59 x 98 x 39 cm) |
| Item Weight | 21 Kilograms (46.2 pounds) |
| Material | Glass |
| Color | White |
| Finish Type | Shiny |
| Mounting Type | Wall Mount |
| Ventilation Type | Convection/Exhaust Air |
| Air Flow Capacity | 601 Cubic Meters Per Hour |
| Number of Speeds | 3 |
| Noise Level | 59 Decibels |
| Controls Type | Touch |
| Light Source Type | LED |
| Wattage | 116 watts |
| Voltage | 220 Volts |
| Filter Type | Aluminum Grease Filter |
| Efficiency | A++ (Efficiency class A+++ to D) |
| Special Features | Easy to use |
| Specification Met | Energy Star |
Image: The EcoExcellence System ensures energy-efficient operation with an A++ energy efficiency class.
Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact your retailer. Klarstein products typically come with a standard manufacturer's warranty.
Customer Support:
If you require assistance with installation, operation, or troubleshooting beyond the scope of this manual, please contact the retailer from whom you purchased the product. They can provide guidance or direct you to the appropriate Klarstein customer service channels.
Please have your model number (CGCH3-Mirage90-WH) and purchase details ready when contacting support.
