PARI BOY Pro Inhaler: User Manual

1. Introduction

The PARI BOY Pro is a high-quality inhaler system designed for effective therapy of severe respiratory diseases in both adults and children. This device is engineered for high efficiency and reliability, producing a fine aerosol mist that penetrates deep into the respiratory tract for targeted medication delivery. It supports the treatment of chronic respiratory conditions and offers optional interval nebulization for combined physiotherapy. The integrated PIF Control (Peak Inspiratory Flow) system provides respiratory feedback, facilitating slow and controlled inhalation for optimal lung deposition. This manual provides essential information for the safe and effective use of your PARI BOY Pro Inhaler.

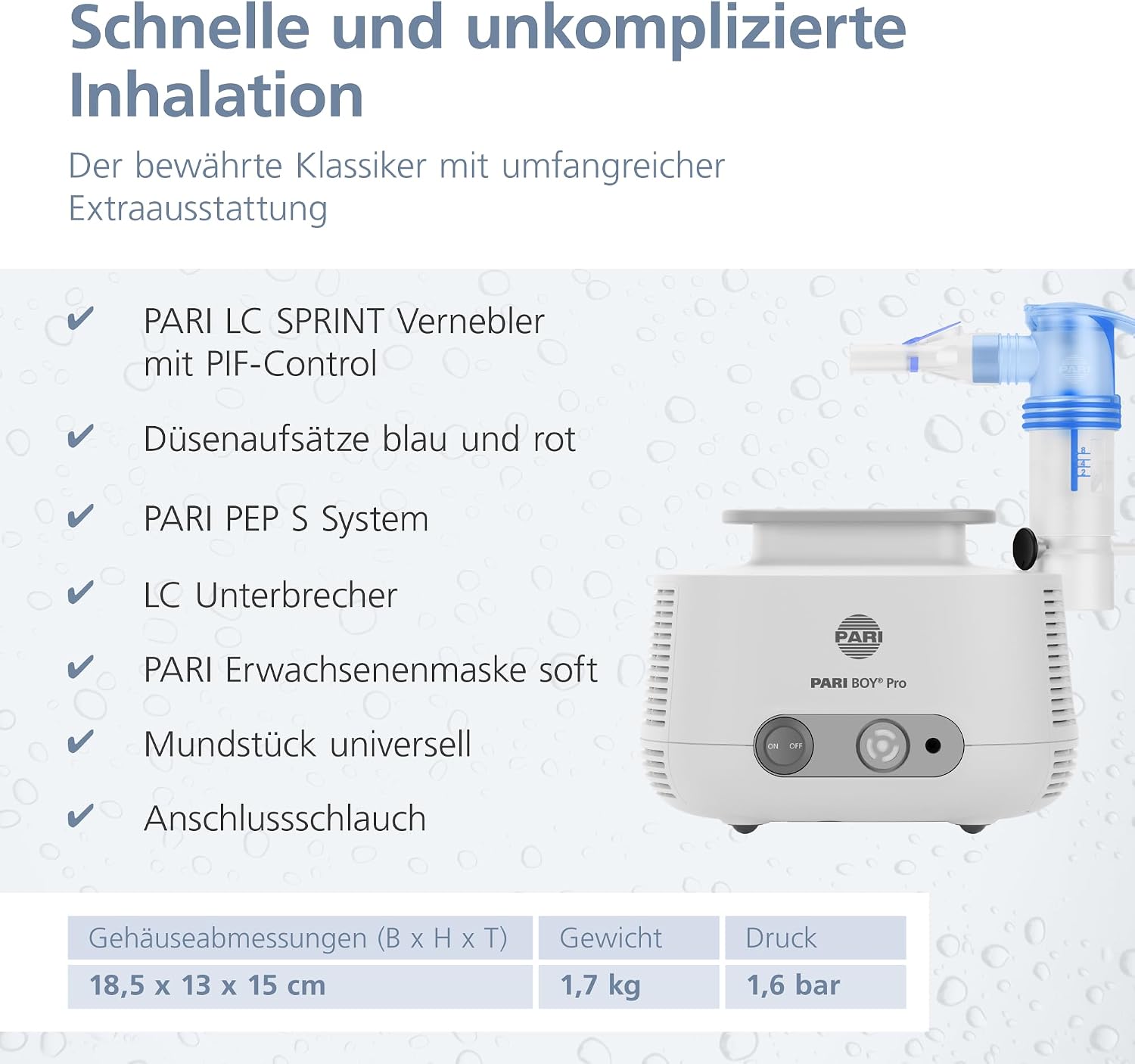

Image 1: The PARI BOY Pro Inhaler system.

2. Safety Information

Please read all safety instructions carefully before using the PARI BOY Pro Inhaler. Failure to follow these instructions may result in injury or damage to the device.

• Medical Device: This device is a medical product. Use it only as directed by a healthcare professional.
• Supervision: Children should only use the device under adult supervision.
• Medication: Use only medications prescribed by your doctor and approved for nebulization. Do not use essential oils or other non-approved substances.
• Power Supply: Ensure the device is connected to a power source with the correct voltage as indicated on the device label.
• Cleaning: Always disconnect the device from the power supply before cleaning. Follow the cleaning instructions carefully to prevent contamination.
• Storage: Store the device and accessories in a clean, dry place, away from direct sunlight and extreme temperatures.
• Maintenance: Do not attempt to repair the device yourself. Contact authorized service personnel for any repairs.

3. Package Contents

The PARI BOY Pro package includes the following components:

• PARI BOY Pro Compressor (Type 130)
• PARI LC SPRINT Nebulizer (Type 023)
  • Upper nebulizer part
  • Blue nozzle attachment
  • Red nozzle attachment
  • Lower nebulizer part
  • LC Interrupter
• Mouthpiece with exhalation valve
• Connection tube
• PARI Soft Mask (Type 041)
• Rubber band
• PARI PEP S System
  • PEP S adjustment ring
  • PEP S valve
  • Mouthpiece without exhalation valve

Image 2: Components of the PARI BOY Pro system.

4. Setup

Follow these steps to set up your PARI BOY Pro Inhaler:

1. Place the Compressor: Position the PARI BOY Pro compressor on a stable, flat surface, ensuring adequate ventilation.
2. Connect the Air Tube: Connect one end of the connection tube to the air outlet on the compressor and the other end to the air inlet on the nebulizer.
3. Assemble the Nebulizer: Assemble the PARI LC SPRINT nebulizer by attaching the lower part, then inserting the chosen nozzle attachment (blue for finer particles, red for coarser particles), and finally securing the upper nebulizer part.
4. Add Medication: Open the nebulizer cup and pour the prescribed medication into it. Do not overfill.
5. Attach Mouthpiece/Mask: Attach the mouthpiece with the exhalation valve or the PARI soft mask to the nebulizer outlet, depending on your therapy requirements. For children, the PARI soft mask is often preferred.
6. Power Connection: Plug the compressor's power cord into a suitable electrical outlet.

5. Operating Instructions

Using your PARI BOY Pro Inhaler for effective respiratory therapy:

1. Preparation: Ensure the device is correctly assembled and the medication is in the nebulizer cup.
2. Start Inhalation: Press the ON/OFF switch on the compressor to start the nebulization process. A fine mist should begin to emerge from the mouthpiece or mask.
3. Inhalation Technique:
   • If using the mouthpiece, place it firmly between your teeth and seal your lips around it.
   • Breathe in slowly and deeply through your mouth, then exhale normally.
   • The PIF Control system provides feedback if you inhale too quickly, helping you maintain an optimal inhalation speed for maximum lung deposition. Aim for a slow, controlled breath.
4. Duration: Continue inhalation until the nebulizer cup is empty or the mist stops forming. This typically takes less than 5 minutes for 2.5 ml of inhalation solution.
5. End of Therapy: Once the therapy is complete, switch off the compressor and disconnect it from the power supply.
6. PARI Kinder App: For children aged 4 and up, the PARI Kinder App (available on App Store and Google Play Store) offers engaging games and educational videos to make inhalation more enjoyable and motivating.

Image 3: Adult using the PARI BOY Pro Inhaler for effective respiratory therapy.

Image 4: Demonstrating the use of the PARI LC SPRINT Nebulizer with PIF Control.

Image 5: The PARI Kinder App helps motivate children during inhalation therapy.

6. Maintenance and Cleaning

Proper cleaning and maintenance are crucial for the hygiene and longevity of your PARI BOY Pro Inhaler. Always clean the nebulizer and accessories after each use.

1. Disassemble: Disconnect the nebulizer from the compressor and disassemble all parts (nebulizer cup, nozzle attachment, mouthpiece/mask, LC interrupter).
2. Rinse: Rinse all disassembled parts thoroughly under warm running water.
3. Clean: Wash the parts with a mild dishwashing detergent or a disinfectant solution recommended by PARI. Ensure all medication residue is removed.
4. Disinfect (Weekly): For weekly disinfection, boil the parts in distilled water for 5 minutes or use a chemical disinfectant solution as per manufacturer instructions.
5. Dry: Shake off excess water and allow all parts to air dry completely on a clean cloth or paper towel. Do not use a towel to dry, as this may introduce lint.
6. Storage: Once dry, reassemble the nebulizer and store it in a clean, dry place until the next use.
7. Compressor Cleaning: Wipe the exterior of the compressor with a damp cloth. Do not immerse the compressor in water or spray liquids directly onto it.
8. Filter Replacement: Regularly check the air filter on the compressor. Replace it when it appears discolored or every 6-12 months, or as recommended by the manufacturer.

7. Troubleshooting

If you encounter issues with your PARI BOY Pro Inhaler, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact PARI customer support or your local dealer.

8. Specifications

Key technical specifications for the PARI BOY Pro Inhaler (Model 130G1000):

• Model Number: 130G1000
• Product Dimensions (L x W x H): 29 x 21 x 16 cm (11.4 x 8.3 x 6.3 inches)
• Item Weight: 2.1 Kilograms (4.6 lbs)
• Manufacturer: PARI
• Target Audience: Unisex Adults, Unisex Children
• Special Features: Targeted therapy, PIF Control
• Nebulizer Type: PARI LC SPRINT (Type 023) with variable droplet spectrum
• Inhalation Time: Short (e.g., less than 5 minutes for 2.5 ml solution)
• International Article Code (EAN/UPC): 04260020437439

9. Warranty and Support

PARI stands behind the quality of its products. For specific warranty information, please refer to the warranty card included with your product or visit the official PARI website. In case of technical issues, questions about usage, or replacement parts, please contact PARI customer support.

Manufacturer: PARI

For further assistance, please visit the official PARI website or contact their customer service department directly. Contact details can typically be found in the product packaging or on the manufacturer's website.
