Product Overview
The Mando 10A1498 AC Compressor with Clutch is an original equipment (OE) component designed for vehicle air conditioning systems. This unit comes pre-filled with the correct amount of oil, ensuring readiness for installation and optimal performance. Mando, as a leading original equipment manufacturer, utilizes advanced technology and rigorous quality tests to deliver reliable and safe automotive parts.

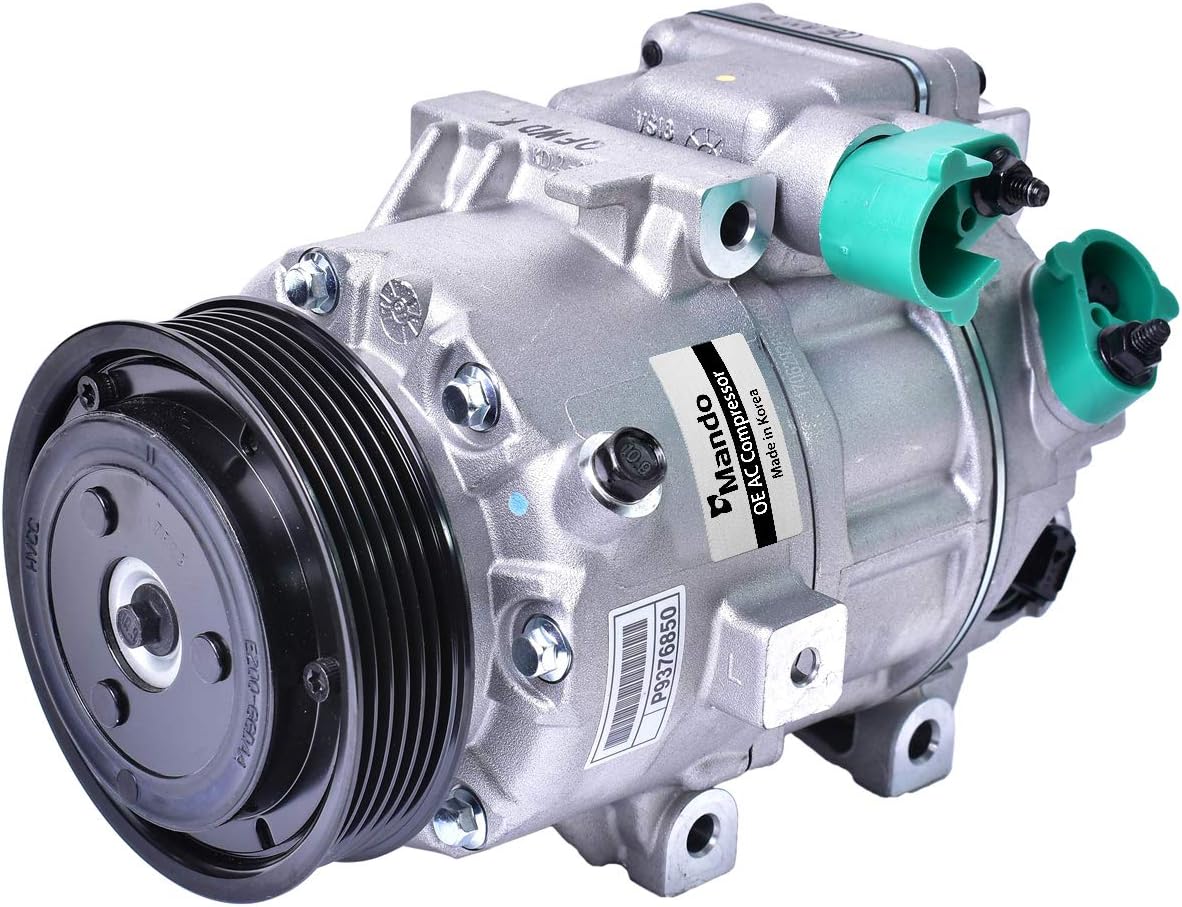

Image: Front view of the Mando 10A1498 AC Compressor with Clutch, showing the main body and the clutch assembly. The unit is silver-grey with green connectors.
Package Contents
Upon opening the package, verify that all components are present and undamaged. The standard package for the Mando 10A1498 includes:
- One (1) Mando 10A1498 AC Compressor with Clutch (Pre-filled with oil)
Image: The Mando 10A1498 AC Compressor packaged inside its blue Mando branded box, indicating original equipment packaging.
Setup and Installation
The Mando 10A1498 AC Compressor is designed for direct replacement and is ready to install. Professional installation is highly recommended due to the complexity of automotive AC systems and the handling of refrigerants.
Pre-Installation Checks:
- Ensure the vehicle's AC system is fully discharged by a certified technician.
- Verify that the new compressor matches the specifications and fitment for your vehicle, especially if your vehicle has rear AC. This model is compatible with OEM Interchanges with 97701C6850.
- Inspect the new compressor for any shipping damage.
- Confirm the compressor is pre-filled with the correct amount of oil. Do not add additional oil unless specified by a professional for your specific vehicle's requirements.
Installation Steps (General Guidance):
Note: These are general steps. Always refer to your vehicle's specific service manual for detailed instructions.
- Disconnect the vehicle's battery.
- Carefully remove the old AC compressor, ensuring proper disposal of any remaining refrigerant or oil.
- Install new O-rings on the refrigerant lines.
- Mount the new Mando 10A1498 AC Compressor securely in place.
- Reconnect the refrigerant lines and electrical connectors.
- Evacuate the AC system to remove air and moisture.
- Recharge the AC system with the appropriate type and amount of refrigerant as specified by your vehicle manufacturer.
- Reconnect the vehicle's battery and test the AC system for proper operation and leaks.
Image: Side view of the Mando 10A1498 AC Compressor, highlighting the various ports and mounting points for installation.
Operating Instructions
Once installed and the AC system is properly charged, the Mando 10A1498 AC Compressor operates automatically as part of your vehicle's climate control system.
Normal Operation:
- Turn on your vehicle's air conditioning system using the dashboard controls.
- The compressor clutch will engage, allowing the compressor to circulate refrigerant and cool the cabin.
- The compressor will cycle on and off as needed to maintain the desired temperature. This cycling is normal.
Tips for Optimal Performance:
- Regularly check your vehicle's AC system for proper cooling performance.
- Ensure the condenser is free from debris to allow for efficient heat exchange.
- Avoid running the AC system with low refrigerant levels, as this can damage the compressor.
Maintenance
Proper maintenance of your vehicle's AC system is crucial for the longevity of the Mando 10A1498 AC Compressor.
Recommended Maintenance Schedule:
- Annual Inspection: Have your vehicle's AC system inspected annually by a qualified technician. This includes checking refrigerant levels, system pressure, and overall component health.
- Refrigerant Check: If cooling performance diminishes, have the refrigerant level checked. Low refrigerant can indicate a leak and lead to compressor failure.
- Condenser Cleaning: Periodically clean the vehicle's condenser (located in front of the radiator) to remove leaves, bugs, and other debris that can impede airflow and reduce cooling efficiency.
- Belt Inspection: Check the serpentine belt that drives the compressor for cracks, fraying, or excessive wear. Replace as necessary.
The compressor is pre-filled with oil and typically does not require additional oil unless the system has been opened for repairs or component replacement, in which case the correct type and amount of PAG oil must be added according to vehicle specifications.
Troubleshooting
If you experience issues with your vehicle's air conditioning system after installing the Mando 10A1498 AC Compressor, consider the following common problems and solutions. For complex issues, consult a professional automotive technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| AC not blowing cold air | Low refrigerant level; Clogged condenser; Electrical issue; Faulty pressure switch. | Check for leaks and recharge refrigerant; Clean condenser; Inspect wiring and fuses; Test/replace pressure switch. |
| Compressor clutch not engaging | Low refrigerant; Electrical issue (fuse, relay, wiring); Faulty clutch coil. | Check refrigerant; Inspect electrical components; Test clutch coil for resistance. |
| Unusual noises from compressor | Insufficient lubrication; Internal compressor damage; Loose mounting bolts; Worn clutch bearing. | Verify proper oil level; Professional inspection for internal damage; Tighten mounting bolts; Replace clutch bearing or compressor. |
| AC system cycles too frequently | Low refrigerant; Overcharged system; Faulty pressure switch. | Check refrigerant levels; Verify correct charge amount; Test/replace pressure switch. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | Mando |
| Model Number | 10A1498 |
| OEM Part Number | 97701-C6850 |
| Recommended Use | Vehicle Air Conditioning |
| Included Components | A/C Compressor w/ Clutch |
| Item Weight | 13.13 pounds (5.95 kg) |
| Product Dimensions | 10 x 7 x 7.75 inches (25.4 x 17.78 x 19.68 cm) |
| Oil Pre-filled | Yes, with correct amount |
| Fit Position | With Rear AC |
Warranty and Support
The Mando 10A1498 AC Compressor comes with a 2 Years Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use and service.
Warranty Claims:
For warranty claims or technical support, please contact Mando customer service or the authorized dealer from whom the product was purchased. Keep your proof of purchase (receipt or invoice) as it will be required for any warranty service.
Important Notes:
- Warranty may be voided if the product is improperly installed, modified, or used in applications for which it was not designed.
- Damage due to improper refrigerant levels, incorrect oil type, or contamination of the AC system is typically not covered under warranty.
- Always ensure installation is performed by a qualified professional to maintain warranty validity and ensure proper system function.
