Introduction
Thank you for choosing the Kidzlane Kids Karaoke Machine. This device is designed to provide an engaging and interactive musical experience for children, featuring pre-loaded songs, Bluetooth connectivity, dual microphones, voice changing effects, and colorful LED lights. This manual provides essential information for the safe and proper use of your karaoke machine.
Safety Information
- Always supervise children during use.
- Do not expose the device to water or excessive moisture.
- Use only the recommended battery type (3 AA batteries). Ensure correct polarity when installing batteries.
- Do not mix old and new batteries, or different types of batteries.
- Remove batteries if the device will not be used for an extended period.
- Keep small parts, such as microphones, away from very young children to prevent choking hazards.
- Do not attempt to disassemble or modify the device.
Package Contents
- Kidzlane Kids Karaoke Machine Unit
- 2 x Wired Microphones
- User Manual (this document)
Product Overview
Familiarize yourself with the main components and controls of your karaoke machine.
Image: Front view of the Kidzlane Kids Karaoke Machine, showcasing its blue oval body, orange handle, multicolored LED lights, and two attached orange microphones. Various control buttons are visible on the front panel.

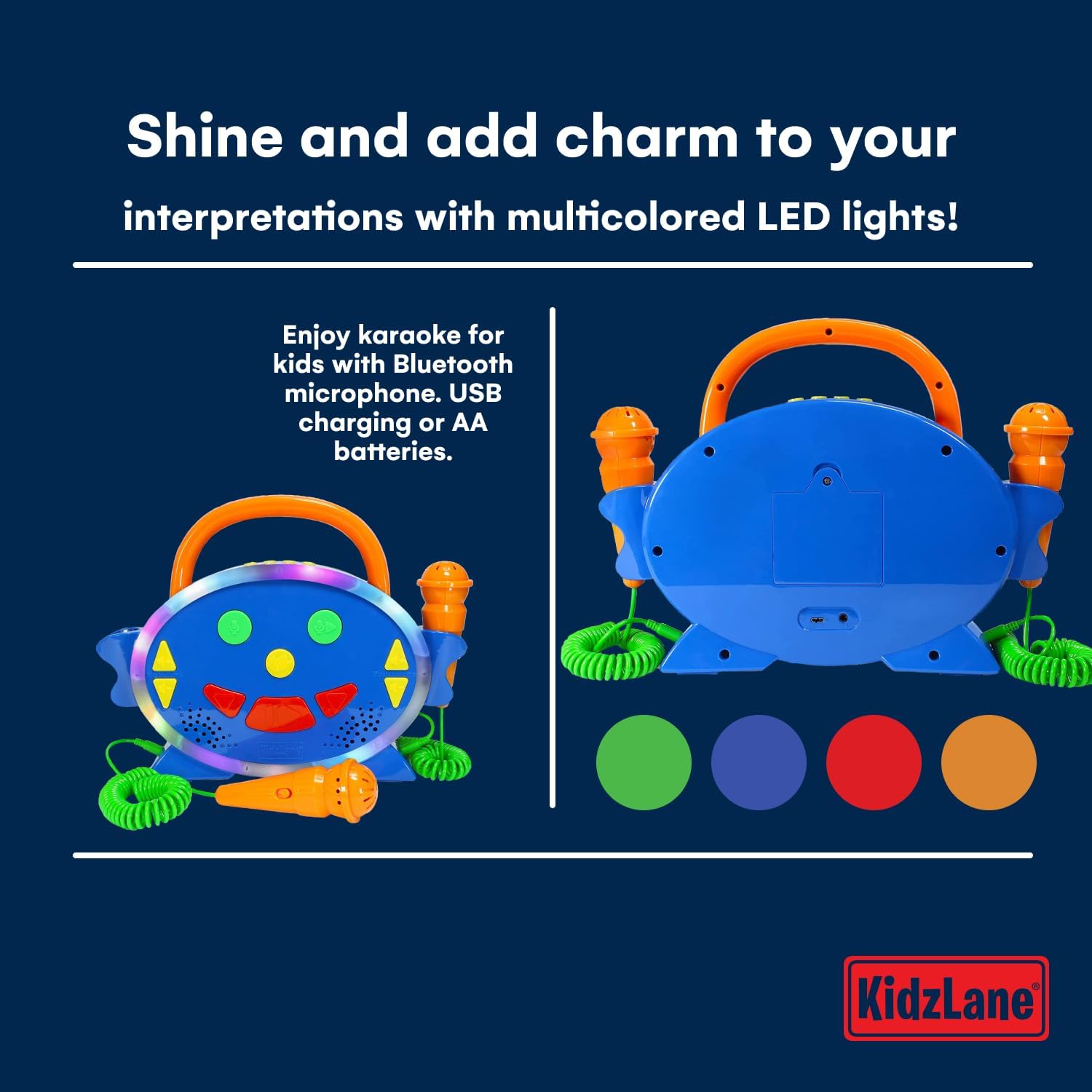

Image: A split image showing the front and back of the Kidzlane Kids Karaoke Machine. The front displays the controls and microphones, while the back shows the battery compartment and a USB charging port.
Controls and Ports:
- Power/Mode Button: Turns the unit on/off and switches between modes (Pre-loaded Songs, Bluetooth).
- Microphone Volume Controls (Up/Down Arrows): Adjusts the volume of the microphones.
- Music Volume Controls (Up/Down Arrows): Adjusts the volume of the background music.
- Voice Changer Button: Activates and cycles through different voice effects.
- Record Button: Initiates recording.
- Playback Button: Plays back recorded audio.
- Pre-loaded Song Navigation Buttons: Skips to the next or previous pre-loaded song.
- Microphone Input Jacks: Ports for connecting the wired microphones.
- Battery Compartment: Located on the back of the unit.
- USB Charging Port: For power supply (cable not always included, check packaging).
Setup
1. Battery Installation
- Locate the battery compartment on the back of the karaoke machine.
- Using a screwdriver, open the battery compartment cover.
- Insert 3 AA batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
- Replace the battery compartment cover and secure it with the screw.
2. Connecting Microphones
Plug the wired microphones into the designated microphone input jacks on the side of the karaoke machine.
Operating Instructions
1. Power On/Off
Press and hold the Power/Mode Button to turn the karaoke machine on or off.
2. Playing Pre-loaded Songs
Image: Two young children, a boy and a girl, are seated on the floor, each holding an orange microphone and singing. The Kidzlane Kids Karaoke Machine is positioned between them, displaying its colorful lights. Text overlay indicates "Endless fun for kids: 100 preloaded songs for karaoke and radio."
Upon powering on, the machine typically defaults to the pre-loaded song mode. Use the Pre-loaded Song Navigation Buttons to cycle through the 100 built-in songs and nursery rhymes.
3. Bluetooth Connectivity
- Press the Power/Mode Button repeatedly until the machine enters Bluetooth pairing mode. An audible prompt or indicator light may signal this mode.
- On your external device (e.g., smartphone, tablet), enable Bluetooth and search for available devices.
- Select "Kidzlane Karaoke" (or similar name) from the list to pair.
- Once paired, you can stream audio from your device to the karaoke machine.
4. Microphone Usage
Speak or sing into the connected microphones. Adjust the microphone volume using the Microphone Volume Controls. Adjust the music volume using the Music Volume Controls.
5. Voice Changer
Image: A young girl with curly hair is standing and singing into an orange microphone, holding the Kidzlane Kids Karaoke Machine. The machine's LED lights are active. Text overlay highlights the voice changer feature: "Change your voice and have a good time with your family."
Press the Voice Changer Button to cycle through various voice effects. Each press will activate a different effect, altering the sound of your voice through the microphones.
6. Recording and Playback

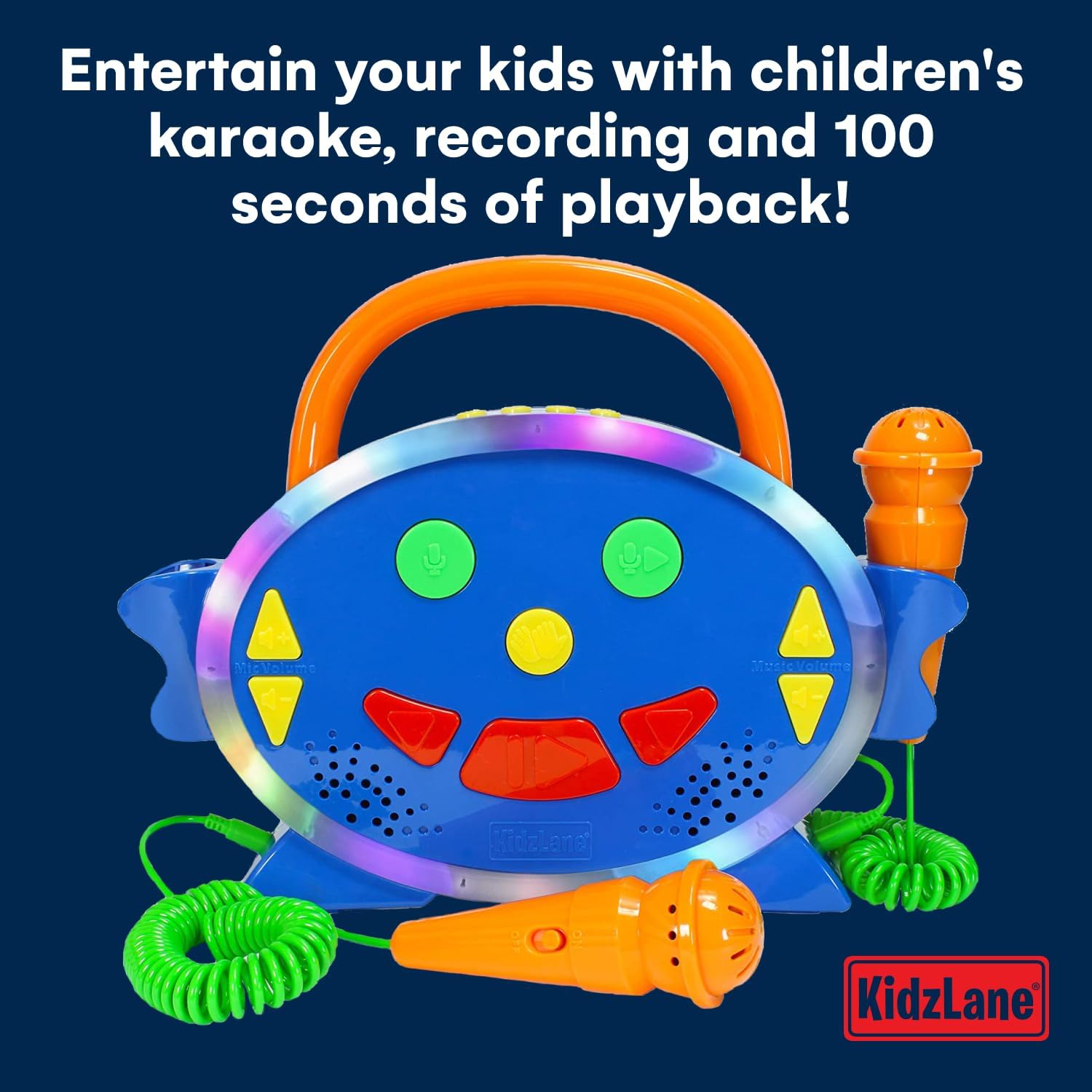

Image: A close-up front view of the Kidzlane Kids Karaoke Machine with its LED lights glowing. Two orange microphones are connected. Text overlay states: "Entertain your kids with children's karaoke, recording and 100 seconds of playback!"
To record your singing, press the Record Button. The machine allows for up to 100 seconds of recording time. To listen to your recording, press the Playback Button.
7. Multicolored LED Lights
Image: A front view of the Kidzlane Kids Karaoke Machine, highlighting its active multicolored LED lights around the central panel. Text overlay reads: "Shine and add charm to your interpretations with multicolored LED lights!"
The karaoke machine features built-in multicolored LED lights that illuminate during operation, adding a visual element to the musical experience.
Maintenance
Cleaning
Wipe the surface of the karaoke machine with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.
Storage
Store the device in a cool, dry place away from direct sunlight when not in use. Remove batteries if storing for extended periods.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on. | Batteries are dead or incorrectly installed. | Replace batteries with new AA batteries, ensuring correct polarity. |
| No sound from microphones. | Microphones not properly connected or microphone volume is too low. | Ensure microphones are fully plugged in. Increase microphone volume using the dedicated controls. |
| Bluetooth device not pairing. | Machine not in pairing mode or too far from the device. | Ensure the karaoke machine is in Bluetooth pairing mode. Move the external device closer to the karaoke machine. Try restarting both devices. |
| Music volume is too low or too high. | Music volume controls need adjustment. | Adjust the music volume using the dedicated controls on the machine or on your connected Bluetooth device. |
Specifications
- Model Number: KL-0517
- Product Dimensions: 11 x 6 x 12.5 inches
- Item Weight: 12.3 ounces
- Power Source: 3 AA batteries (not included)
- Recommended Age: 3 years and up
- Special Features: Voice Changer, 100 Pre-loaded Songs, Recording & Playback (100 seconds), Multicolored LED Lights, Bluetooth Connectivity
- Included Components: Karaoke Machine Unit, 2 Microphones
Warranty and Support
For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official Kidzlane website. Keep your purchase receipt for warranty claims.
