LOFTEK Submersible LED Lights User Manual

1. Introduction

Thank you for choosing LOFTEK Submersible LED Lights. These versatile, waterproof lights are designed to enhance various environments, from pools and ponds to bathtubs and decorative displays. Featuring 13 bright LEDs, RF remote control, and multiple attachment options (magnets and suction cups), these lights offer vibrant illumination and ease of use. This manual provides detailed instructions for proper setup, operation, and maintenance to ensure optimal performance and longevity of your lights.

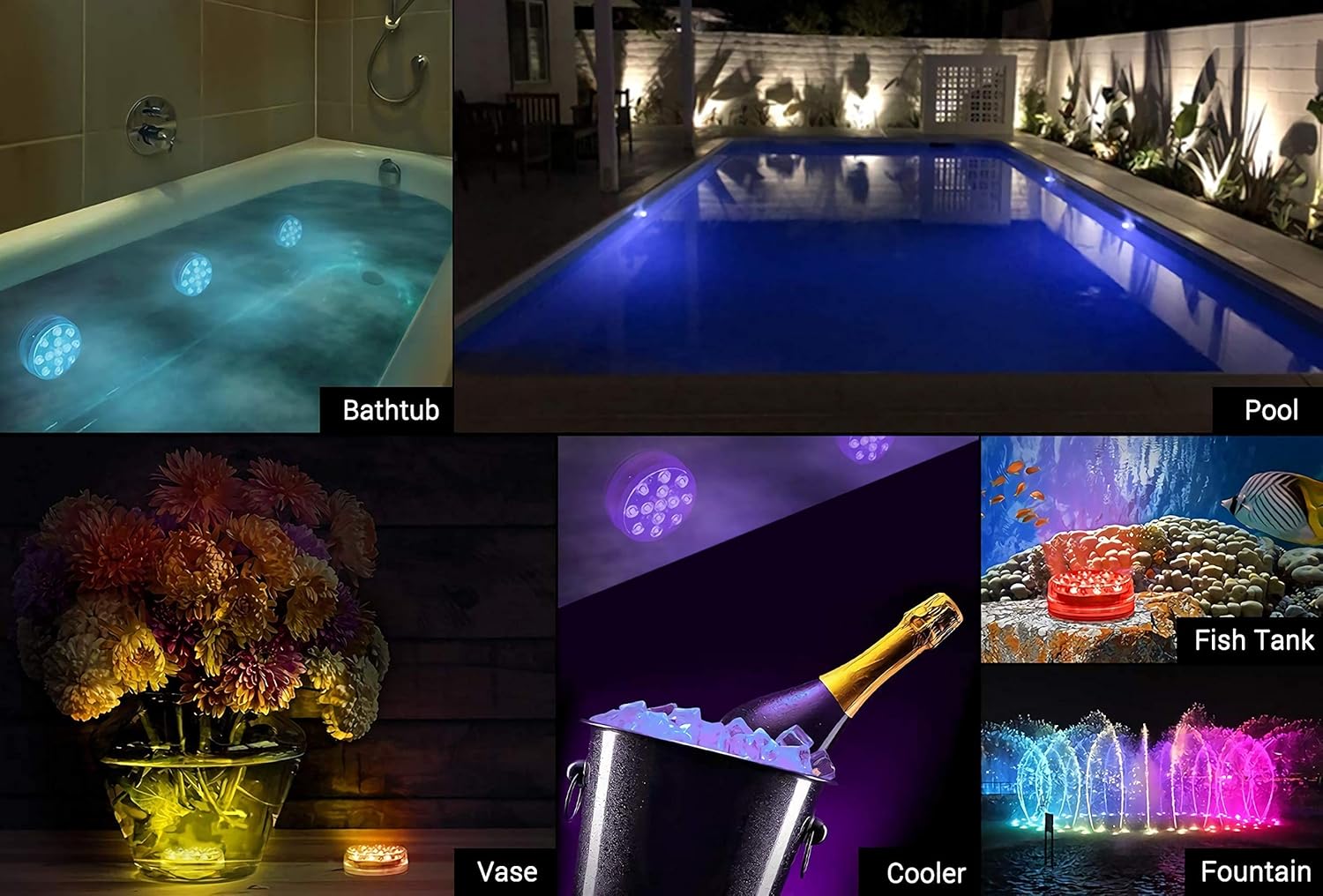

Figure 1.1: LOFTEK Submersible LED Lights in various application settings, including a pool, bathtub, vase, and fountain, demonstrating their versatility.

2. Safety Information

• Ensure the sealing ring is undamaged and properly seated in its groove before closing the light to maintain waterproofing.
• Twist the light cover until it cannot be twisted any further to ensure a complete waterproof seal. Failure to do so will result in water leakage and damage to the unit.
• Always dry the lights thoroughly before replacing batteries to prevent water from entering the battery compartment and damaging internal components.
• Keep the remote control dry, as it is not waterproof. Exposure to water will cause it to malfunction.
• Use only AA batteries for the lights. Do not mix old and new batteries, or different types of batteries.

3. Package Contents

Please check the package to ensure all items are present and in good condition:

• 4 x LOFTEK Submersible LED Lights (batteries not included)
• 2 x RF Remote Controllers (battery included)
• 10 x Suction Cups
• 1 x User Manual

4. Product Overview

The LOFTEK Submersible LED Lights are designed for durability and ease of use, featuring a robust waterproof structure and versatile control options.

4.1 Light Unit Features

• 13 LED Beads: Provides brighter and more vivid illumination compared to standard 10-LED lights.
• IP68 Waterproof Rating: Ensures full protection against dust and water immersion.
• Integrated Magnet: Allows for secure attachment to iron surfaces.
• Suction Cups: Provides attachment to smooth, non-porous surfaces.
• Diving Iron: Helps the light stay steadily submerged without floating.
• Power Source: Requires 3 x AA batteries (not included) for extended operation up to 40 hours.

4.2 Remote Control Features

• RF (Radio Frequency) Technology: Offers a wider control range (up to 200ft/61m in air, 16.4ft/5m underwater) and does not require direct line-of-sight.
• Multi-Light Control: One remote can control multiple lights simultaneously.
• 16 Colors: Access a wide spectrum of static colors.
• Brightness Adjustment: Dimmable function with 10 levels of brightness.
• Dynamic Modes: Flash, Fade, and Smooth modes for dynamic lighting effects.
• Timer Options: Set lights to turn off automatically after 2, 4, or 6 hours, or remain on for 24 hours.
• Memory Function: Remembers the last setting used.

Figure 4.1: The LOFTEK Submersible LED Lights and their accompanying RF remote controls, showcasing the compact design of the lights and the full functionality of the remote.

Figure 4.2: A detailed view of the LOFTEK light's IP68 waterproof structure, highlighting the thick sealing ring within the cap and the internal diving iron for stability underwater.

5. Setup

5.1 Battery Installation (Lights)

1. Carefully twist open the light unit counter-clockwise to access the battery compartment.
2. Insert 3 x AA batteries (not included) into the compartment, ensuring correct polarity (+/-).
3. Ensure the black sealing ring is properly seated in its groove.
4. Twist the light unit clockwise until it is tightly sealed and cannot be twisted any further. This is crucial for waterproofing.

5.2 Battery Installation (Remote Control)

The remote control comes with a battery pre-installed. If replacement is needed, open the battery compartment on the back of the remote and insert a CR2025 coin cell battery, observing polarity.

5.3 Attaching the Lights

Your LOFTEK lights offer two primary attachment methods:

• Magnets: The lights have built-in magnets, ideal for attaching to iron surfaces.
• Suction Cups: For smooth, non-porous surfaces (like pool liners or tiles), attach the provided suction cups to the back of the lights. Ensure the surface is clean and dry before applying for best adhesion.

Figure 5.1: Illustration of the magnet for iron surfaces and the second-generation suction cup for smooth surfaces, demonstrating how to attach the LOFTEK light.

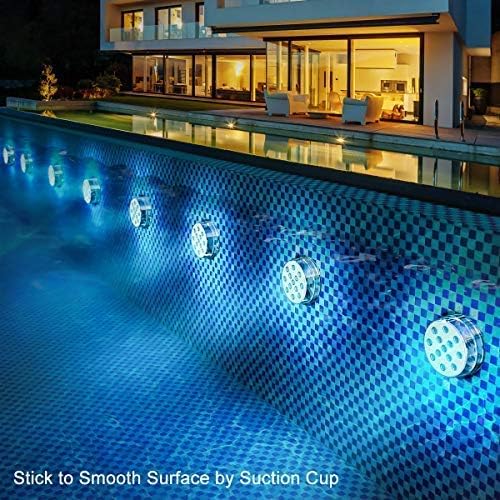

Figure 5.2: LOFTEK Submersible LED Lights attached to the side of a pool, illustrating their use with suction cups on a smooth surface.

6. Operating Instructions

Use the provided RF remote control to operate your LOFTEK Submersible LED Lights.

6.1 Remote Control Layout

Figure 6.1: The LOFTEK RF remote control, detailing buttons for power, timer, brightness, dynamic modes, and 16 color options.

6.2 Basic Functions

• Power ON/OFF: Press the ON button to turn the lights on, and the OFF button to turn them off.
• Color Selection: Press any of the 16 color buttons to select a static color.
• White Light: Press the W button for pure white light.
• Brightness Adjustment: Use the Brightness + and Brightness - buttons to increase or decrease the light intensity.

6.3 Dynamic Modes

• FLASH: Cycles through colors rapidly.
• FADE: Smoothly transitions between colors.
• SMOOTH: Provides a gentle, continuous color change.

6.4 Timer Functions

Set the lights to automatically turn off after a specified duration:

• 2H: Lights turn off after 2 hours.
• 4H: Lights turn off after 4 hours.
• 6H: Lights turn off after 6 hours.
• 24H: Lights remain on continuously (default setting if no timer is selected).

Figure 6.2: An infographic illustrating the 16 available colors, 5 brightness levels, 3 timing options (2H, 4H, 6H), and 3 dynamic modes (Flash, Fade, Smooth) of the LOFTEK Submersible LED Lights.

6.5 Remote Control Range

The RF remote offers an extended range:

• In Air: Up to 200 ft (61m)
• Underwater: Up to 10-16.4 ft (3-5m)

Note: Pool water can significantly absorb the RF signal. For best results, control lights within 16.4 ft (5m) when they are submerged.

Figure 6.3: This image illustrates the effective range of the RF remote control for LOFTEK lights, showing a maximum of 200ft/61m in air and 10-16.4ft/5m underwater. A note advises users to get closer for submerged lights due to water signal absorption.

7. Maintenance

7.1 Cleaning

Wipe the lights with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure lights are dry before opening for battery replacement.

7.2 Battery Replacement

When the lights dim or stop responding, it's time to replace the batteries. Follow the battery installation steps in Section 5.1, ensuring the lights are completely dry before opening.

7.3 Waterproofing Check

Periodically inspect the sealing ring for any signs of wear or damage. If the ring appears compromised, replace it to maintain the IP68 waterproof rating. Always ensure the light is twisted tightly closed before submerging.

7.4 Storage

When not in use for extended periods, remove the batteries from both the lights and the remote control to prevent leakage and corrosion. Store the lights in a cool, dry place away from direct sunlight.

8. Troubleshooting

9. Specifications

• Brand: LOFTEK
• Model Name: Pool lights
• Item Model Number: LK-001
• Color: RGB+White
• Material: Plastic
• Product Dimensions: 3"L x 3"W x 1.3"H
• Power Source: Battery Powered (3 x AA batteries per light, not included)
• Light Source Type: LED (13 LEDs)
• Voltage: 1.5 Volts
• Wattage: 2 watts
• Control Method: Remote (RF)
• Water Resistance Level: Waterproof (IP68)
• Item Weight: 1.3 Pounds (total for 4 lights)
• Number of Items: 4

10. Warranty and Support

LOFTEK provides an extended warranty for this product. If you encounter any issues or have questions regarding your LOFTEK Submersible LED Lights, please do not hesitate to contact our customer support team. We are committed to providing a satisfactory solution.

For support, please visit the LOFTEK Store on Amazon or refer to the contact information provided in your product packaging.

Online Store: LOFTEK Amazon Store
