Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your DAEWOO DWC-SD1232 Front Load Washing Machine. Please read this manual thoroughly before using the appliance and keep it for future reference.

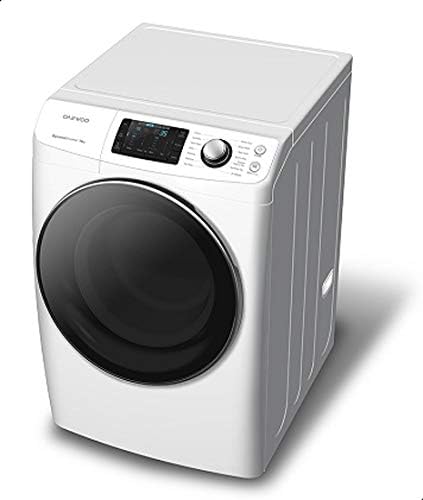

Image: DAEWOO DWC-SD1232 Front Load Washing Machine. This image displays the washing machine from a slight angle, showing its white exterior, the prominent dark circular door for front loading, and the control panel located on the top front with a display and rotary knob.
Safety Information
Always adhere to the following safety precautions to prevent injury or damage to the appliance.
- Ensure the washing machine is properly grounded to avoid electrical shock.
- Do not allow children to play with or operate the appliance.
- Unplug the machine before performing any maintenance or cleaning.
- Do not wash items that are soiled with flammable substances.
- Keep the area around the washing machine clear of obstructions.
Setup and Installation
Proper installation is crucial for the performance and longevity of your washing machine.
- Unpacking: Carefully remove all packaging materials, including the transport bolts at the rear of the machine.
- Location: Place the washing machine on a firm, level surface. Ensure there is adequate space for ventilation and door opening.
- Leveling: Adjust the leveling feet until the machine is stable and level. Use a spirit level to verify.
- Water Connection: Connect the inlet hoses to the hot and cold water taps and the corresponding inlets on the machine. Ensure connections are tight to prevent leaks.
- Drain Hose: Securely attach the drain hose to a standpipe or laundry tub, ensuring it is not kinked.
- Power Connection: Plug the power cord into a grounded electrical outlet.
Operating Instructions
Follow these steps to operate your DAEWOO washing machine.
- Loading Laundry: Open the door and load laundry into the drum. Do not overload the machine.
- Adding Detergent: Pull out the detergent dispenser drawer and add the appropriate amount of detergent and fabric softener to their respective compartments.
- Selecting a Program: Turn the program selector knob to choose the desired wash program (e.g., Cotton, Synthetics, Delicates). The display will show the default settings for the selected program.
- Adjusting Options: Use the option buttons to adjust temperature, spin speed, or add extra rinse cycles if desired.
- Starting the Wash: Press the Start/Pause button to begin the wash cycle. The door will lock, and the machine will start filling with water.
- End of Cycle: Once the cycle is complete, the machine will signal, and the door will unlock. Remove laundry promptly.
Available Wash Programs:
- Cotton
- Synthetics
- Delicates
- Wool
- Quick Wash
- Rinse + Spin
- Drain
- Spin
- Eco Wash
- Baby Care
Maintenance and Care
Regular maintenance ensures optimal performance and extends the life of your appliance.
- Cleaning the Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners.
- Cleaning the Detergent Dispenser: Periodically remove and clean the detergent dispenser drawer under running water to prevent residue buildup.
- Cleaning the Drum: Run a drum clean cycle (if available) or a hot wash with no laundry and a cup of white vinegar or a washing machine cleaner.
- Cleaning the Drain Filter: Locate and clean the drain pump filter regularly to remove lint and small objects. Refer to the diagram in your physical manual for exact location.
- Door Seal: Wipe the rubber door seal after each wash to prevent mold and mildew growth. Leave the door ajar after use to allow the drum to air dry.
Troubleshooting
Before contacting service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Door not closed properly; Program not selected. | Check power connection; Ensure door is securely latched; Select a wash program and press Start. |
| No water filling | Water taps closed; Water inlet hose kinked; Water supply pressure too low. | Open water taps; Straighten hose; Check household water pressure. |
| Excessive vibration/noise | Machine not level; Transport bolts not removed; Overloaded drum. | Adjust leveling feet; Remove transport bolts (if not already); Reduce laundry load. |
| Water leaking | Hose connections loose; Detergent overdose; Drain filter clogged. | Tighten hose connections; Use less detergent; Clean drain filter. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Daewoo |
| Model Number | DWC-SD1232 |
| Loading Type | Front Load |
| Capacity | 11 Kilograms |
| Color | White |
| Material | Metal |
| Control Type | Buttons, Rotary Knob |
| Cycle Options | Drain, Rinse, Spin (and various wash programs) |
Warranty and Support
For warranty information and technical support, please refer to the warranty card included with your purchase or visit the official Daewoo website. Keep your proof of purchase for warranty claims.
For service inquiries, please contact Daewoo customer service through the contact details provided in your product documentation.
