Introduction
Thank you for choosing the COLZER 15-Inch 30-Bottle Wine Cooler Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.
Image: The COLZER 15-Inch 30-Bottle Wine Cooler Refrigerator, showcasing its sleek stainless steel and glass design, suitable for both built-in and freestanding installations.
Safety Information
Your safety and the safety of others are paramount. Please adhere to all safety precautions outlined in this manual to minimize the risk of fire, electric shock, or injury.
- Read all instructions before using the appliance.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Ensure proper grounding for electrical safety.
- Keep ventilation openings clear of obstruction.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the storage compartments unless they are of the type recommended by the manufacturer.
- Unplug the appliance before cleaning or maintenance.
- Supervise children to ensure they do not play with the appliance.
Product Features
The COLZER Wine Cooler is designed with advanced features to provide optimal conditions for your wine collection:
- Temperature Control: Wide adjustable temperature range (12-70°F) for various wine types.
- Capacity: Holds up to 30 standard size wine bottles (Bordeaux 750ml).
- Shelving: Sturdy, adjustable, and removable slotted beech wood shelves.
- Compressor: Upgraded professional compressor with a unique vibration absorption system for low noise and stable operation.
- Door: 2-layer tempered glass door with UV protection.
- Control: One-touch digital control panel for easy operation and temperature restoration after power interruptions.
- Installation: Suitable for both built-in and freestanding applications.
- Security: Integrated safety lock.
- Lighting: Interior blue LED lighting.
Image: Illustration of the 2-layer tempered glass door, highlighting its UV protection capabilities to safeguard wine from harmful light.
Image: Close-up view of the wine cooler's features, including the smart touch control panel, wooden slide-out shelves, adjustable feet, and the integrated safety lock.
Setup
1. Unpacking
Carefully remove all packaging materials, including the foam base and any tape. Inspect the wine cooler for any shipping damage. Keep packaging materials until you are satisfied with the product.
2. Placement
This wine cooler is designed for both freestanding and built-in installation. Ensure adequate ventilation around the unit, especially if built-in. Maintain a minimum of 1 inch (2.5 cm) clearance at the back and sides, and 2 inches (5 cm) at the top for proper air circulation.

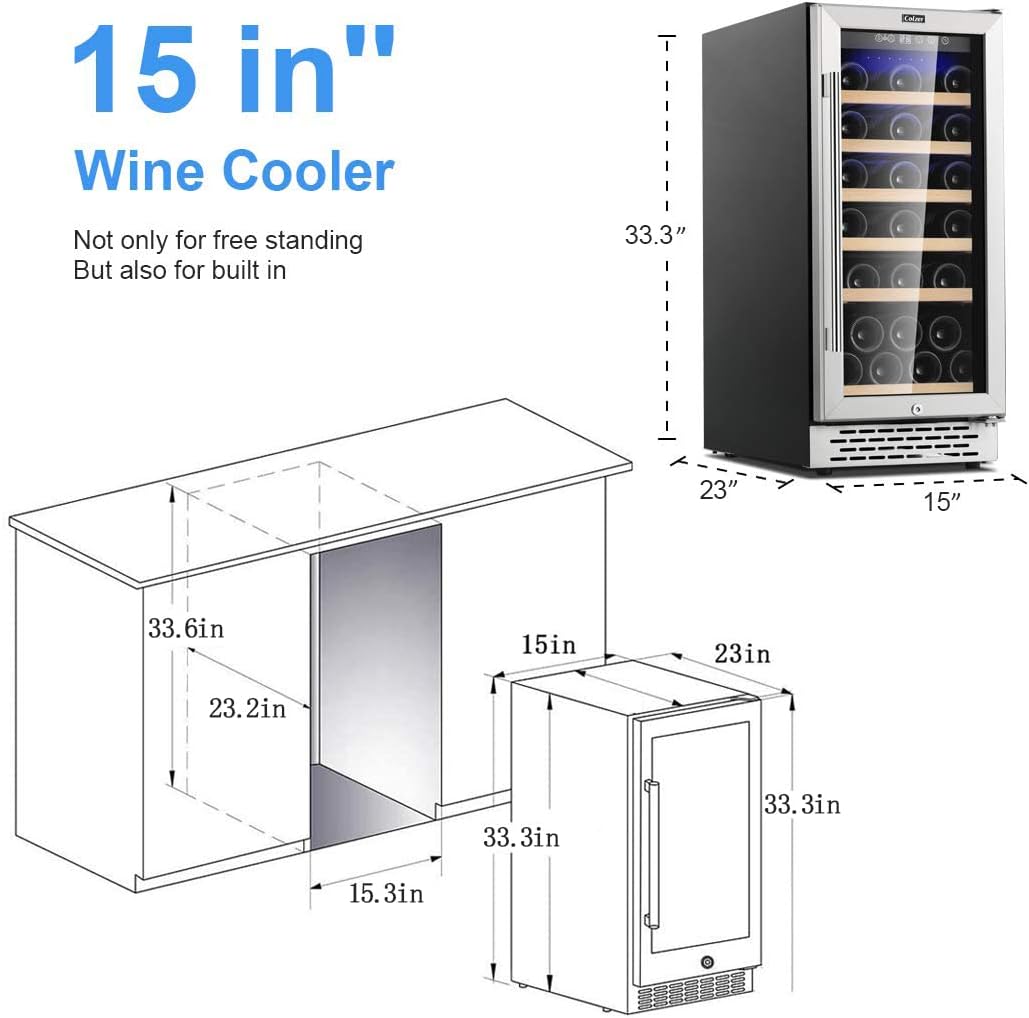

Image: Diagram illustrating the dimensions of the 15-inch wine cooler and examples of both freestanding and built-in installation within cabinetry.
3. Leveling
Adjust the leveling legs at the bottom of the unit to ensure it is stable and level. This is crucial for proper operation and door alignment.
4. Door Reversal (Optional)
The door hinge is reversible, allowing you to change the door swing direction to suit your space. Refer to the detailed instructions in the separate door reversal guide for this procedure.
Video: A demonstration of the EUHOMY 15 Inch Wine Cooler, showing its features including the reversible door, which allows for flexible placement and access.
5. Initial Power-On
After placement and leveling, plug the unit into a dedicated electrical outlet. Allow the wine cooler to stand for at least 24 hours before loading with bottles to allow the refrigerant to settle and the unit to reach its set temperature.
Operating Instructions
1. Digital Temperature Control
The wine cooler features a user-friendly digital control panel located inside the unit. Use the up and down arrows to adjust the desired temperature. The display shows the current internal temperature. The unit will automatically maintain the set temperature.
Video: A demonstration of the BODEGA 15 Inch Dual Zone Wine Cooler, highlighting its smart temperature control panel and how to adjust settings for different wine types.
2. Loading Bottles
The wine cooler is equipped with wooden shelves designed to hold standard 750ml Bordeaux bottles. For larger or irregularly shaped bottles, you may need to adjust or remove shelves. The shelves slide out for easy access.
Image: An illustration showing the dimensions of standard wine bottles and how they fit on the wooden shelves, indicating the capacity per shelf.
Video: A demonstration of the FoMup Removable Shelves, showing how the wooden shelves can be easily pulled out and removed to accommodate different bottle sizes or for cleaning.
3. Interior Lighting
The interior blue LED light can be turned on or off via the control panel. This light enhances visibility of your wine collection without emitting heat that could affect temperature.
4. Safety Lock
The wine cooler is equipped with a safety lock to secure your wine collection. Use the provided key to lock and unlock the door.
Maintenance
1. Cleaning
- Interior: Clean the interior with a soft cloth and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly.
- Exterior: Wipe the exterior with a soft cloth and a mild cleaner. For stainless steel surfaces, use a stainless steel cleaner.
- Shelves: Remove shelves and wash them with a mild soap solution. Dry completely before returning them to the unit.
- Door Gasket: Clean the door gasket regularly to ensure a proper seal.
2. Automatic Defrosting
The wine cooler features an automatic defrost function. Frost will melt and drain into a drip tray at the back of the unit, where it evaporates. No manual defrosting is typically required.
3. Power Outage
In case of a power outage, the wine cooler will retain its temperature for several hours. Avoid opening the door unnecessarily to preserve the internal temperature. The digital control will restore the set temperature once power is resumed.
Troubleshooting
Before contacting customer service, please review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate. | Not plugged in; circuit breaker tripped; power switch off. | Ensure plug is secure; reset circuit breaker; turn power switch on. |
| Temperature is not cold enough. | Door not closed properly; excessive door openings; warm items added; poor ventilation; direct sunlight. | Check door seal; reduce door openings; allow new items to cool; ensure proper clearance; relocate unit away from direct sunlight. |
| Unit is making excessive noise. | Unit not level; loose parts; fan obstruction. | Adjust leveling legs; check for loose components; ensure fan is clear. |
| Vibration. | Unit not level; contact with wall or other appliances. | Adjust leveling legs; ensure unit is not touching anything. |
| Moisture buildup inside. | High humidity; frequent door openings; faulty door seal. | Ensure room humidity is not excessive; minimize door openings; check and clean door gasket. |
Specifications
| Feature | Detail |
|---|---|
| Brand | COLZER |
| Model Number | CZW30SS1 (also YC-100A) |
| Capacity | 30 Standard Wine Bottles (3.5 Cubic Feet) |
| Product Dimensions | 15"D x 23"W x 33.3"H (38.1 cm D x 58.4 cm W x 84.6 cm H) |
| Item Weight | 81.8 pounds (37.2 Kilograms) |
| Noise Level | 40 Decibels |
| Installation Type | Freestanding or Built-in |
| Voltage | 115 Volts |
| Wattage | 81 Watts |
| Defrost System | Automatic |
| Door Material Type | Stainless Steel |
| Shelf Type | Removable Beech Wood Shelves |
| Number of Shelves | 6 |
Warranty & Support
COLZER products are manufactured with quality materials and craftsmanship. This product is backed by a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included with your purchase or contact COLZER customer service directly. Our professional after-sales service team is available to assist you with any questions or concerns.
