1. Introduction and Safety Information
Thank you for choosing the Glem GFE933IX Electric Ventilated Oven. This manual provides essential information for the correct installation, safe operation, and proper maintenance of your appliance. Please read all instructions carefully before using the oven and keep this manual for future reference.
Important Safety Warnings:
- Electrical Safety: Ensure the oven is correctly installed by a qualified technician and connected to a properly grounded electrical outlet. Do not use adapters or extension cords.
- Hot Surfaces: The oven and its accessories become very hot during operation. Always use oven mitts when handling hot items. Keep children and pets away from the appliance.
- Ventilation: Ensure adequate ventilation around the oven as specified in the installation instructions. Do not block ventilation openings.
- Cleaning: Always disconnect the oven from the power supply before cleaning. Use only recommended cleaning agents and methods.
- Supervision: Never leave the oven unattended during operation, especially when cooking with oil or fat.
2. Product Overview
The Glem GFE933IX is a multifunction electric ventilated oven designed for built-in installation. It features an 'A' energy class rating, a stainless steel finish, and a convenient drop-down door. The oven offers 10 heating modes and is controlled via electromechanical knobs.

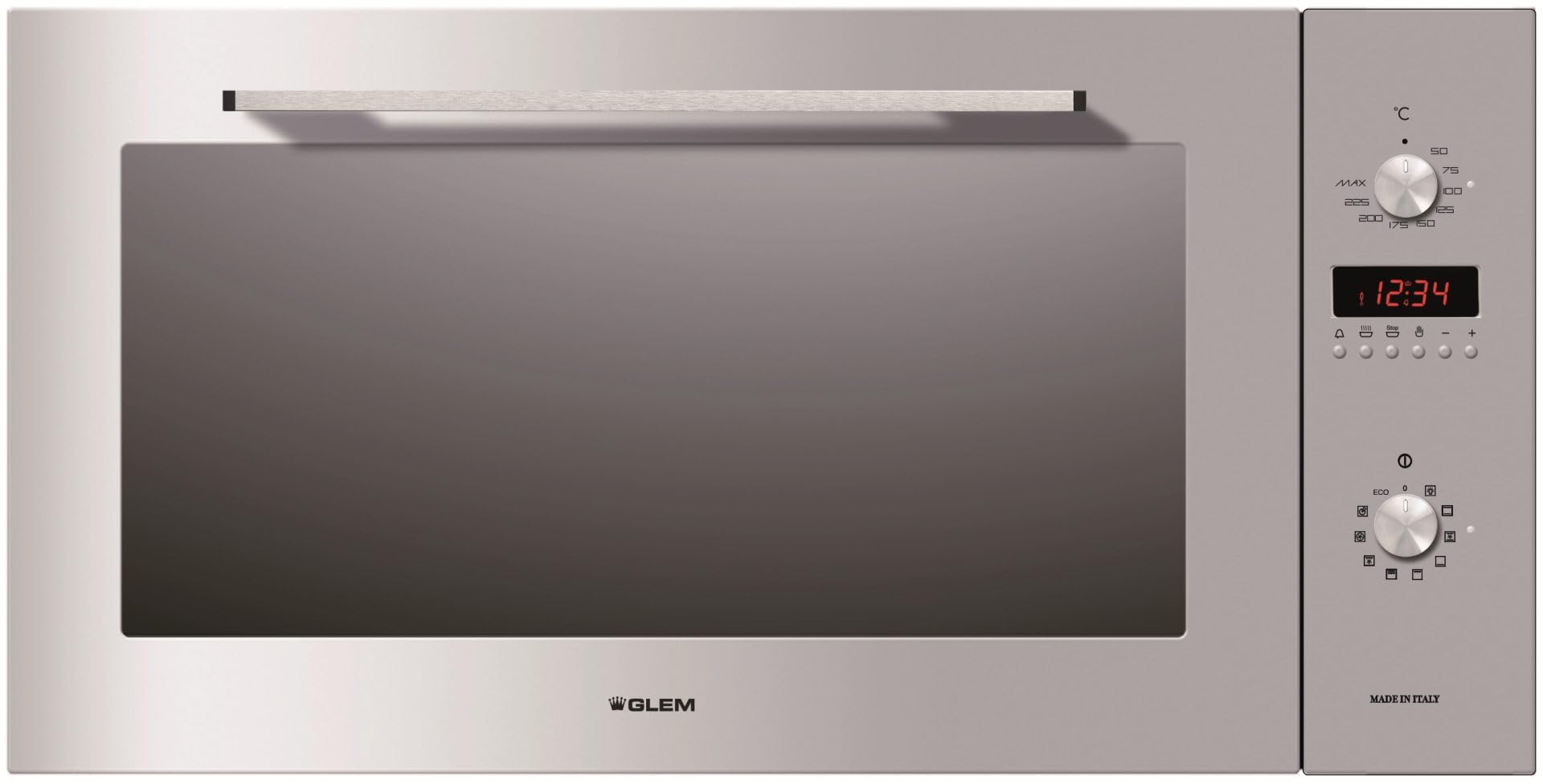

Figure 1: Front view of the Glem GFE933IX Electric Ventilated Oven. This image shows the stainless steel finish, control knobs, and the drop-down oven door.
Key Features:
- Multifunction Electric Oven
- Energy Class A
- Built-in Design
- Stainless Steel Finish
- Drop-down Door
- 10 Heating Modes
- Oven Light
- Electromechanical Controls
3. Installation
The Glem GFE933IX oven is designed for built-in installation. For safety and optimal performance, installation must be carried out by a qualified technician in accordance with local electrical and building regulations. Incorrect installation can lead to hazards and void the warranty.
Installation Guidelines:
- Cabinet Dimensions: Ensure the cabinet opening meets the required dimensions for a secure fit. The oven dimensions are approximately 89.3 cm (width) x 53.8 cm (depth) x 47.7 cm (height).
- Ventilation: Maintain adequate clearance around the oven for proper air circulation to prevent overheating.
- Electrical Connection: The oven requires a dedicated, grounded electrical circuit. Verify the voltage and current requirements match your household supply.
- Leveling: Ensure the oven is perfectly level after installation to ensure even cooking and proper door operation.
4. Initial Setup
Before using your new oven for the first time, follow these steps:
- Clean the Interior: Remove all packaging materials, accessories, and protective films from inside the oven. Wipe the interior with a damp cloth and mild detergent, then dry thoroughly.
- First Use Burn-Off: To eliminate any manufacturing odors, heat the empty oven for approximately 30-60 minutes at its maximum temperature (e.g., 250°C / 480°F) using a conventional heating mode. Ensure the kitchen is well-ventilated during this process. Some smoke or odor is normal during this initial burn-off.
- Familiarize with Controls: Review the control panel and knobs. One knob typically controls the heating mode, and another controls the temperature.
5. Operating Instructions
Your Glem GFE933IX oven features electromechanical controls for selecting heating modes and temperature. It offers 10 distinct heating functions to suit various cooking needs.
Basic Operation:
- Turn On: Rotate the function selector knob to the desired cooking mode.
- Set Temperature: Rotate the temperature selector knob to the desired temperature. The oven light will illuminate when a function is selected.
- Preheating: Allow the oven to preheat to the set temperature before placing food inside. The indicator light will typically turn off or change color when the desired temperature is reached.
- Oven Light: The oven light automatically turns on when a cooking function is selected.
Cooking Functions (Examples):
- Conventional Heating: Ideal for baking cakes, pastries, and roasting meats.
- Ventilated/Fan-Assisted: Ensures even heat distribution, suitable for cooking multiple dishes simultaneously or for faster cooking.
- Pizza Function: Specifically designed to achieve high temperatures and even heat from the bottom, perfect for crispy pizza bases.
- Grill: For browning, toasting, or grilling thinner cuts of meat.
- Defrosting: Uses the fan without heat to gently thaw frozen foods.
- Special Uses: The oven is also recommended for heating, melting, and cooking snacks.
Refer to the symbols next to the function selector knob for a detailed description of each of the 10 available heating modes.
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your oven. Always ensure the oven is cool and disconnected from the power supply before cleaning.
Exterior Cleaning:
- For the stainless steel surfaces, use a soft cloth dampened with warm water and a mild, non-abrasive detergent specifically designed for stainless steel.
- Wipe in the direction of the grain to avoid streaks. Dry thoroughly with a clean, soft cloth.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals that can damage the finish.
Interior Cleaning:
- Remove all racks and accessories. These can be washed in warm soapy water.
- Wipe the interior surfaces with a damp cloth and a mild oven cleaner (ensure it's safe for your oven type). Follow the cleaner's instructions carefully.
- For stubborn stains, a paste of baking soda and water can be applied, left for a short period, then wiped away.
- Ensure all cleaning residue is removed before using the oven again.
7. Troubleshooting
Before contacting customer service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not heat | No power supply; oven not switched on; fuse tripped. | Check power connection; ensure function and temperature knobs are set; check household fuse box. |
| Oven light not working | Light bulb is faulty. | Replace the oven light bulb (ensure oven is cool and disconnected from power). |
| Uneven cooking results | Oven not preheated; food placed incorrectly; ventilation blocked. | Always preheat the oven; ensure food is centered and not overcrowding; check for blocked vents. |
| Excessive smoke during first use | Manufacturing residues burning off. | This is normal during the initial burn-off. Ensure good ventilation. If smoke persists, contact service. |
If the problem persists after checking these points, please contact qualified service personnel.
8. Specifications
| Specification | Value |
|---|---|
| Manufacturer | GLEM GAS |
| Product Model Number | GFE933IX |
| Product Dimensions (D x W x H) | 53.8 x 89.3 x 47.7 cm |
| Brand | Glem |
| Color | Stainless Steel |
| Special Function | Multifunction |
| Recommended Product Uses | Heating, defrosting, melting, snack cooking |
| Installation Type | Built-in |
| Wattage | 2700 watts |
| Material | Stainless Steel |
| Human Interface Input | Buttons (Electromechanical Knobs) |
| Number of Power Levels / Heating Modes | 10 |
| Heating Method | Electric |
9. Warranty and Support
Your Glem GFE933IX oven comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details. For technical support, spare parts, or service inquiries, please contact your retailer or the official Glem customer service department. Ensure you have your model number (GFE933IX) and purchase date available when contacting support.
