Introduction
The RCA Portable Steam Iron, Model RC-929, is designed for efficient and convenient garment care. This compact and lightweight device offers constant steam to quickly remove wrinkles, disinfect fabrics, and eliminate odors. Its interchangeable accessories provide versatility for various fabric types, making it an ideal solution for both home use and travel.

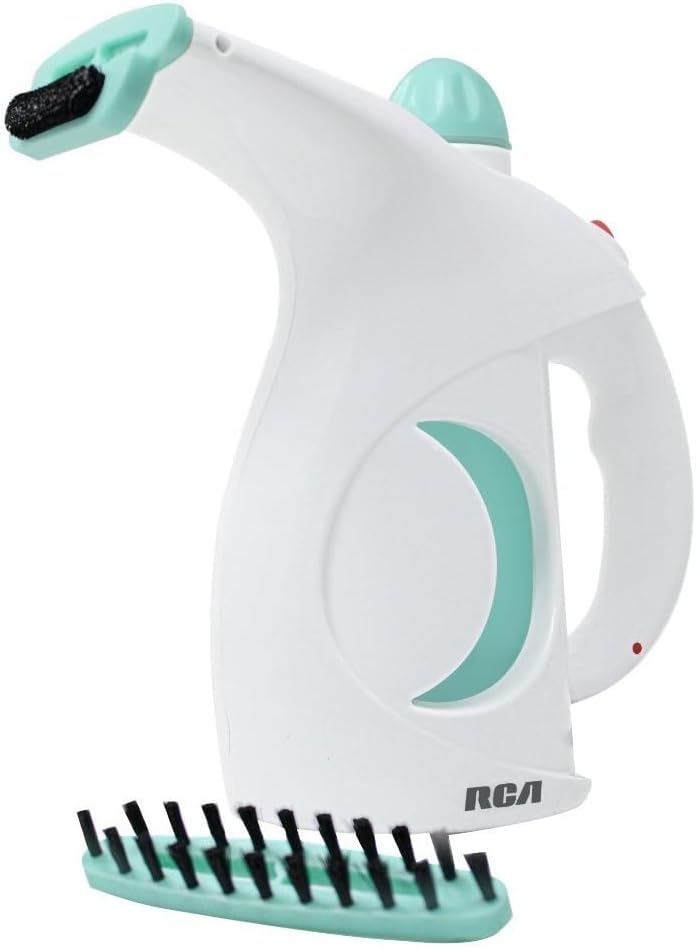

Figure 1: RCA Portable Steam Iron with brush attachment.
Product Components
Familiarize yourself with the different parts of your RCA Portable Steam Iron:
Figure 2: Labeled components of the steam iron.
- Steam Outlet Nozzle: Where steam is emitted.
- Container Lid: Covers the water reservoir.
- On/Off Switch: Activates and deactivates the device.
- Handle: For comfortable gripping during use.
- Water Container (200ml): Reservoir for water.
- Removable Lint Brush: For removing lint and debris from fabrics.
- Removable Electrostatic Brush: For eliminating static and smoothing fabrics.
Setup Guide
Follow these steps to prepare your steam iron for use:
- Fill Water Tank: Remove the container lid and fill the water tank with clean water up to the maximum fill line (200ml capacity). Securely close the lid. Using distilled water is recommended to prevent mineral buildup.
- Attach Accessory: Select the desired brush attachment (lint or electrostatic) and place it firmly over the steam outlet nozzle.
- Connect Power: Plug the power cable into a standard electrical outlet (120V~60Hz).
- Power On & Preheat: Press the On/Off switch to turn on the device. Allow approximately 50 seconds for the iron to preheat and generate steam.
Figure 3: Step-by-step guide for initial setup.
Operating Instructions
Once preheated, your RCA Portable Steam Iron is ready for use:
- Wrinkle Removal: Hold the steam iron vertically, about 1-2 inches away from the fabric. Move the iron slowly over the wrinkled area, allowing the constant steam (100°C to 140°C) to penetrate and relax the fibers.
- Odor Elimination & Disinfection: The powerful steam not only removes wrinkles but also helps to eliminate odors and disinfect fabrics. Pass the steamer over the garment as you would for wrinkle removal.
- Using Attachments:
- Lint Brush: Ideal for removing lint, pet hair, and debris from items like blankets, sheets, curtains, shirts, blouses, and pants.
- Electrostatic Brush: Use this brush to eliminate static cling and smooth out fabrics such as shirts, blouses, dresses, t-shirts, and pants.
- Fabric Compatibility: This steam iron is suitable for various fabric types including silk, polyester, viscose, velvet, and gauze. Always test on an inconspicuous area first.
Figure 4: Demonstrating the use of the portable steam iron.
Figure 5: Details on removable brush attachments and their functions.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your steam iron:
- Cleaning: The steam iron is designed for easy cleaning. After each use, ensure the device is unplugged and cooled down. Wipe the exterior with a damp cloth.
- Water Tank Care: Always empty any remaining water from the tank after use to prevent mineral buildup and keep the tank clean. The water tank is not removable for cleaning.
- Preventing Leaks: To minimize water spitting or leaking, avoid overfilling the water tank. Ensure the iron is fully preheated before use and do not hold it at extreme angles that might cause water to escape.
Troubleshooting
If you encounter issues with your RCA Portable Steam Iron, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No steam or low steam output. | Water tank empty; not fully preheated; mineral buildup. | Refill water tank; allow 50 seconds for preheating; regularly empty tank to prevent buildup. |
| Water spitting or leaking. | Overfilled water tank; not fully preheated; holding at incorrect angle. | Do not overfill; ensure full preheating; hold vertically during use. |
| Attachments do not fit or are difficult to attach. | Incorrect alignment; debris in attachment slot. | Ensure proper alignment with the nozzle; check for and remove any obstructions. |
Specifications
| Feature | Detail |
|---|---|
| Model | RC-929 |
| Brand | RCA |
| Power | 900 Watts |
| Voltage | 120V~60Hz |
| Water Tank Capacity | 200 ml |
| Steam Temperature | 100°C to 140°C |
| Dimensions (Approx.) | 19 cm (Length) x 21 cm (Height) x 10.2 cm (Width) |
| Weight (Approx.) | 501 Grams |
| Included Components | Portable Steam Iron, Removable Lint Brush, Removable Electrostatic Brush |
Figure 6: Key features and specifications.
Figure 7: Product dimensions.
Warranty Information
Your RCA Portable Steam Iron is covered by a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and damage incurred during shipping. Please retain your proof of purchase for warranty claims.
