MotoTec Fat Tire 60V 18Ah 2000W Lithium Electric Scooter User Manual

1. Product Overview

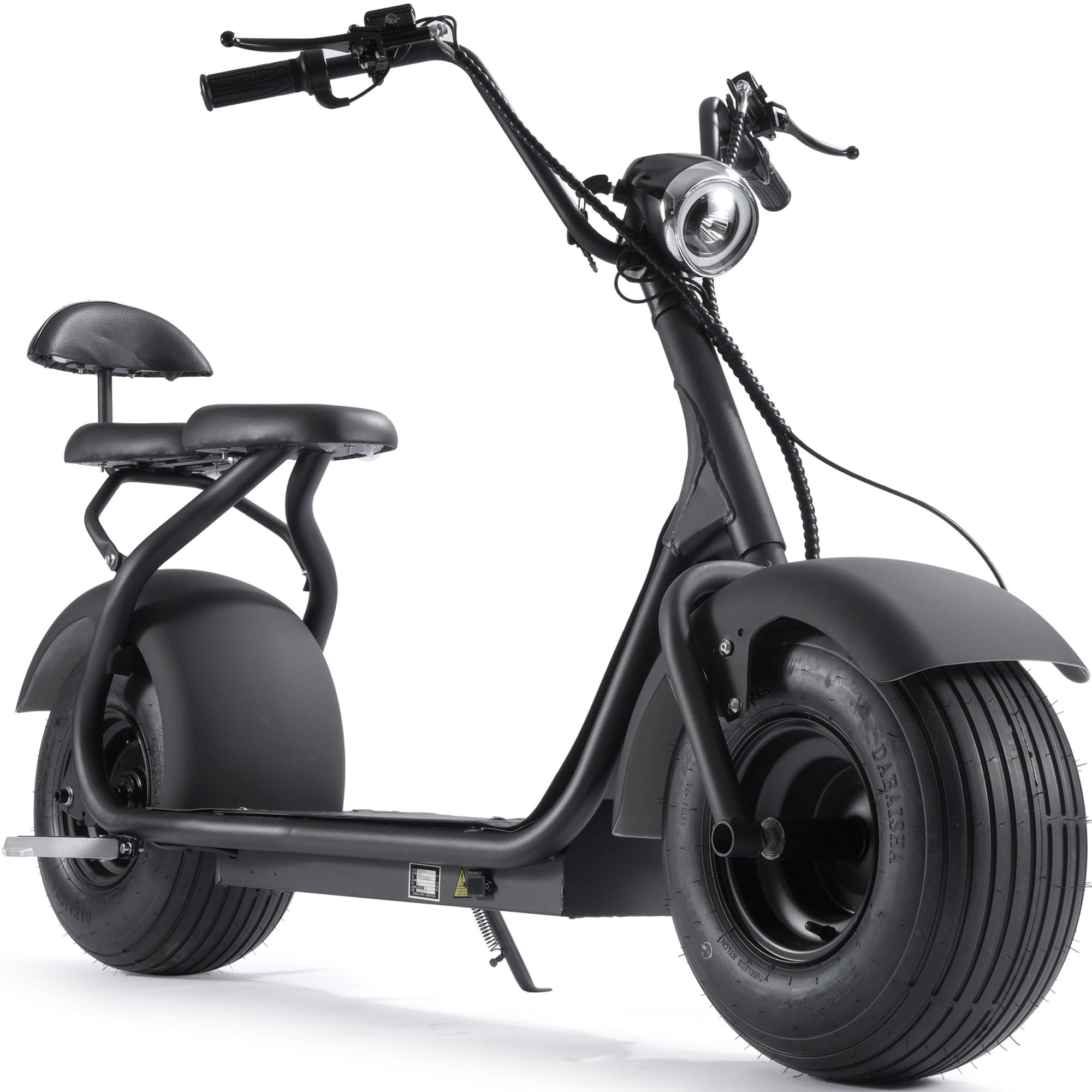

The MotoTec Fat Tire 60V 18Ah 2000W Lithium Electric Scooter is designed for robust performance and versatile use. Featuring a powerful 2000W rear hub motor and a 60V 18Ah lithium-ion battery, this scooter offers a top speed of up to 32 mph and a range of over 20 miles per charge under optimal conditions. Equipped with a front LED light and front and rear hydraulic brakes, it provides reliable operation across various terrains.

Key Features:

• Motor: 2000W Rear Hub Motor for powerful acceleration.
• Battery: 60V 18Ah Lithium Ion Battery for extended range.
• Speed: Achieves speeds up to 32 mph.
• Brakes: Hydraulic Front and Rear Disc Brakes for reliable stopping power.
• Tires: Large fat tires (225/55-8) for stability and comfort.
• Lighting: Integrated Front LED Headlight.

2. Important Safety Information

Read all instructions carefully before operating the scooter. Failure to follow safety guidelines may result in serious injury or property damage. Always prioritize your safety and the safety of others.

General Safety Guidelines:

• Age Restriction: Recommended for riders 13 years and older.
• Protective Gear: Always wear a helmet, knee pads, elbow pads, and appropriate footwear when riding.
• Rider Weight: Do not exceed the maximum rider weight of 300 lbs (136 kg).
• Local Laws: Be aware of and comply with all local laws and regulations regarding electric scooter use. This scooter is not street legal with the DMV.
• Environment: Ride in safe, open areas away from traffic, pedestrians, and obstacles. Avoid riding in wet conditions, on loose surfaces, or at night without proper visibility.
• Pre-Ride Check: Before each ride, inspect the brakes, tires, battery charge, and all fasteners to ensure they are secure and functioning correctly.
• No Stunts: Avoid aggressive riding, jumps, or stunts, as these can lead to loss of control and damage to the scooter.
• Passenger: This scooter is designed for a single rider. Do not carry passengers.

3. Package Contents

Upon unpacking your MotoTec Fat Tire Electric Scooter, please ensure all the following items are present and in good condition:

• MotoTec Fat Tire Electric Scooter (main unit)
• Battery Charger
• User Manual (this document)
• Assembly Tools (if applicable, check packaging)

If any items are missing or damaged, please contact customer support immediately.

4. Assembly and Initial Setup

4.1 Unpacking

Carefully remove the scooter and all components from the packaging. Retain the packaging for future storage or shipping if needed. Place the scooter on a stable, flat surface.

4.2 Handlebar Installation

The handlebars may need to be attached or adjusted. Loosen the handlebar clamp bolts, insert the handlebar stem into the fork tube, and align the handlebars straight with the front wheel. Tighten the bolts securely. Ensure all control cables are free from kinks or pinching.

4.3 Initial Battery Charging

Before your first ride, fully charge the scooter's 60V 18Ah Lithium Ion battery. Connect the charger to the scooter's charging port and then plug it into a standard electrical outlet. The charging indicator on the charger will typically change color (e.g., red to green) when charging is complete. This process can take 4-8 hours. Do not overcharge the battery.

4.4 Pre-Ride Inspection

Always perform a pre-ride inspection to ensure safe operation:

• Tires: Check tire pressure. The fat tires are crucial for ride comfort and stability.
• Brakes: Test both front and rear hydraulic brakes to ensure they engage smoothly and effectively.
• Throttle: Verify the throttle operates smoothly and returns to the off position when released.
• Lights: Confirm the front LED headlight is functional.
• Fasteners: Check all nuts, bolts, and quick-release levers for tightness.

5. Operating Your Scooter

5.1 Starting and Stopping

• To Start: Insert the key into the ignition and turn it to the 'ON' position. The display will illuminate.
• To Stop: Turn the key to the 'OFF' position. The display will turn off. Always ensure the scooter is powered off when not in use to conserve battery and prevent accidental activation.

5.2 Throttle Control

The scooter uses a variable twist throttle located on the right handlebar. Gently twist the throttle towards you to accelerate. Release the throttle to reduce speed or coast. Always apply throttle smoothly to maintain control.

5.3 Braking

The MotoTec scooter is equipped with front and rear hydraulic disc brakes. The brake levers are located on the handlebars (left for rear, right for front). Apply both brakes simultaneously and gently for controlled stopping. Avoid sudden, hard braking, especially at high speeds, as this can lead to skidding or loss of control.

5.4 Headlight Operation

The front LED headlight can be activated via a switch on the handlebars. Use the headlight when riding in low-light conditions or at night to improve visibility for yourself and others.

5.5 Riding Tips

• Start slowly and gradually increase speed as you become comfortable.
• Maintain a safe distance from other riders, pedestrians, and vehicles.
• Anticipate turns and stops, and signal your intentions when possible.
• Avoid sharp turns at high speeds.
• Be mindful of uneven surfaces, potholes, and obstacles.

6. Maintenance and Care

Regular maintenance ensures the longevity and safe operation of your MotoTec scooter.

6.1 Battery Maintenance

• Charging: Always use the provided charger. Charge the battery fully after each use, even if only for a short ride.
• Storage: If storing the scooter for an extended period, charge the battery to approximately 50-70% and recharge it every 1-2 months to prevent deep discharge. Store in a cool, dry place.
• Temperature: Avoid exposing the battery to extreme temperatures (hot or cold).

6.2 Tire Care

• Pressure: Regularly check and maintain the recommended tire pressure for optimal performance and to prevent punctures. Refer to the tire sidewall for specific pressure recommendations.
• Inspection: Inspect tires for wear, cuts, or embedded objects. Replace worn or damaged tires promptly.

6.3 Brake System Check

• Lever Feel: Ensure brake levers feel firm and responsive. If they feel spongy, the hydraulic system may need bleeding or adjustment by a qualified technician.
• Pads: Periodically check brake pads for wear. Replace them before they wear down to the metal backing.
• Discs: Keep brake discs clean and free from oil or grease.

6.4 General Cleaning

Clean the scooter with a damp cloth. Avoid using high-pressure water jets or harsh chemicals, as these can damage electrical components or paint. Dry thoroughly after cleaning.

7. Troubleshooting Guide

This section addresses common issues you might encounter with your MotoTec scooter. For problems not listed here, please contact customer support.

8. Technical Specifications

Below are the detailed specifications for the MotoTec Fat Tire 60V 18Ah 2000W Lithium Electric Scooter (Model: MT-FatTire-2000):

9. Warranty and Customer Support

9.1 Warranty Information

Specific warranty details for your MotoTec Fat Tire Electric Scooter are typically provided at the time of purchase or included with your product documentation. Please refer to your purchase receipt or the warranty card for information regarding coverage duration, terms, and conditions. Generally, warranties cover manufacturing defects and material flaws under normal use.

9.2 Customer Support

For technical assistance, parts inquiries, or warranty claims, please contact MotoTec customer support. You can often find contact information on the manufacturer's official website or through the retailer where you purchased the scooter.
