Kaff KMW HN6 Built-in Microwave Oven User Manual

1. Introduction

This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Kaff KMW HN6 Built-in Microwave Oven. Please read this manual thoroughly before using the appliance and retain it for future reference.

The Kaff KMW HN6 is a 28-litre built-in microwave oven featuring touch controls and multiple cooking functions including Microwave, Grill, Defrost, and Combination modes. Its design integrates seamlessly into modern kitchen environments.

Figure 1: Front view of the Kaff KMW HN6 Built-in Microwave Oven.

2. Safety Instructions

To reduce the risk of fire, electric shock, injury to persons, or exposure to excessive microwave energy when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Ensure the appliance is properly installed and grounded by a qualified technician.
• Do not operate the oven if the door or door seals are damaged. Contact service personnel.
• Do not heat liquids or other foods in sealed containers as they are liable to explode.
• Do not use corrosive chemicals or vapors in this appliance.
• Always supervise children when they are near the appliance. The oven features a child lock for safety.
• Only use utensils suitable for microwave ovens.
• Do not attempt to service or repair the appliance yourself. Refer all servicing to qualified service personnel.

Figure 2: Child Lock feature for enhanced safety.

3. Installation Instructions

The Kaff KMW HN6 is designed for built-in installation. It is crucial that installation is performed by a qualified professional to ensure proper functioning and safety. Refer to the following diagrams and dimensions for cabinet preparation.

3.1. Dimensions and Cabinet Requirements

Ensure the cabinet opening meets the specified dimensions for a secure fit and adequate ventilation.

• Appliance Dimensions (LxWxH): 56.4 x 58 x 38 Centimeters
• Cut-out Dimensions (approximate): 560mm (Width) x 380mm (Height) x 550mm (Depth)

Figure 3: Appliance front dimensions (Width 595mm, Height 380mm).

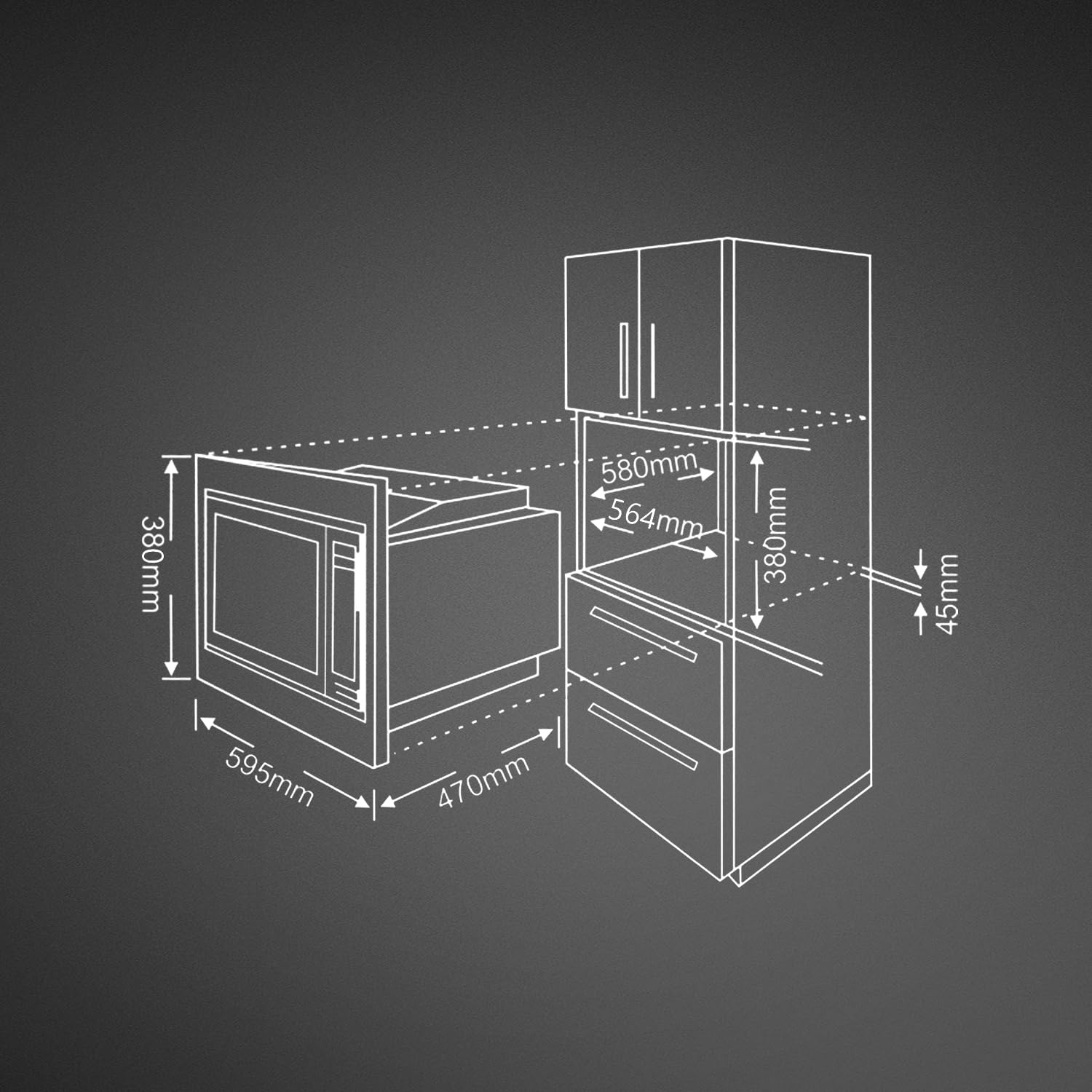

Figure 4: Installation diagram showing required cabinet cut-out dimensions (e.g., 564mm width, 380mm height, 580mm depth).

3.2. Electrical Connection

The appliance requires a 220 Volt (AC) power supply. Ensure the electrical outlet is properly grounded and capable of handling the appliance's wattage (1450 Watts). Do not use extension cords.

4. Operating Instructions

Your Kaff KMW HN6 microwave oven features intuitive touch controls and a digital display for easy operation across various cooking modes.

4.1. Control Panel Overview

The control panel consists of soft-touch buttons and a digital display. Refer to the appliance for specific button functions.

Figure 5: Digital display and soft touch controls for easy operation.

4.2. Cooking Modes

The oven offers six versatile cooking modes:

• Microwave: For rapid heating and cooking.
• Grill: Ideal for browning and crisping food.
• Convection: For baking and roasting, utilizing a fan to circulate hot air (up to 250°C).
• Defrost: Thaws frozen food by weight or time.
• Combination: Combines microwave power with grill or convection for faster, more even cooking results.
• Multi-Programming: Allows for sequential programming of different cooking stages.

Figure 6: Multi-programming mode for versatile cooking options.

Figure 7: Microwave, Grill, and Combination functions for diverse cooking needs.

4.3. Using the Defrost Function

The defrost function can be set by either weight or time. Place food in a microwave-safe container. Select the defrost mode and adjust the weight or time as required. The oven will automatically calculate the defrosting time.

4.4. Setting the Child Lock

To activate the child lock, press and hold the designated button (refer to your control panel for the specific icon) for a few seconds until the lock indicator appears on the display. Repeat the process to deactivate.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your microwave oven.

5.1. Interior Cleaning

• Wipe the interior cavity with a damp cloth after each use.
• For stubborn food spills, heat a cup of water with lemon juice in the microwave for a few minutes to loosen residue, then wipe clean.
• Clean the glass turntable and roller ring with warm, soapy water.

5.2. Exterior Cleaning

• Wipe the exterior surfaces, including the black tempered glass door and control panel, with a soft, damp cloth.
• Avoid abrasive cleaners or scouring pads, as they can scratch the surface.

5.3. Door Seal Maintenance

Regularly inspect the door seals for any signs of damage or wear. A clean and intact door seal is essential for safe operation.

6. Troubleshooting

If you encounter issues with your microwave oven, consult the following table before contacting service personnel.

7. Specifications

8. Warranty and Support

Your Kaff KMW HN6 Built-in Microwave Oven comes with a comprehensive warranty to ensure peace of mind.

• Product Warranty: 1 Year
• Magnetron Warranty: 5 Years

For warranty claims, technical assistance, or service requests, please contact KAFF customer support. Ensure you have your purchase receipt and product model number (KMW HN6) available when contacting support.

Manufacturer: Kaff Appliances (I) Pvt.Ltd, S.S. Plaza, 4th Floor, Sector -47, Gurgaon -122018 Haryana, India.
