1. Introduction

This instruction manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your Energizer EZ40VELPN 40V Cordless Pole Pruner. Please read this manual thoroughly before using the tool and keep it for future reference. Understanding and following these instructions will ensure optimal performance and extend the life of your product.

2. Safety Information

Always prioritize safety when operating power tools. Failure to follow safety instructions can result in serious injury or property damage.

2.1 General Safety Warnings

• Read all instructions: Familiarize yourself with the controls and proper use of the tool.
• Wear appropriate personal protective equipment (PPE): Always wear safety glasses, hearing protection, gloves, and sturdy footwear. A safety helmet is recommended when working overhead.
• Keep bystanders away: Do not allow children or untrained persons to operate or be near the tool.
• Maintain a safe working area: Ensure the area is clear of obstacles, well-lit, and free from slippery conditions.
• Avoid dangerous environments: Do not use the tool in wet or damp conditions, or where flammable liquids or gases are present.
• Stay alert: Do not operate the tool when tired, under the influence of drugs, alcohol, or medication.
• Dress properly: Avoid loose clothing, jewelry, or long hair that can get caught in moving parts.
• Secure the workpiece: Always ensure the branch or material being cut is stable.
• Inspect the tool before use: Check for damaged parts, loose connections, or any other condition that may affect safe operation.

2.2 Electrical Safety

• Battery compatibility: Use only Energizer 40V batteries and chargers specifically designed for this tool.
• Avoid accidental starting: Ensure the switch is in the OFF position before inserting the battery pack.
• Do not abuse the cord: Never carry the charger by its cord or yank it to disconnect from an outlet.
• Protect from moisture: Do not expose battery packs or chargers to rain or wet conditions.

2.3 Pole Pruner Specific Safety

• Maintain firm grip: Hold the tool firmly with both hands.
• Balance and footing: Ensure stable footing and balance, especially when working at height.
• Beware of kickback: Be aware of the potential for kickback and how to avoid it.
• Cutting overhead: Be cautious of falling branches and debris. Plan your cuts to avoid injury.
• Never cut near power lines: Maintain a safe distance from electrical wires.
• Automatic chain lubrication: Ensure the chain oil reservoir is filled before each use.

3. Package Contents

Carefully unpack all items and ensure you have received everything listed below. If any parts are missing or damaged, contact your retailer.

• Energizer EZ40VELPN 40V Cordless Pole Pruner (Main Unit)
• Guide Bar (20 cm)
• Saw Chain
• Extension Pole (76 cm)
• Shoulder Harness
• Blade Guard
• Instruction Manual
• Note: 40V battery and charger are sold separately.

Image 1: The Energizer EZ40VELPN 40V Cordless Pole Pruner, showing the full length of the tool with the attached shoulder harness.

4. Assembly

Follow these steps to assemble your pole pruner before first use.

4.1 Attaching the Guide Bar and Chain

1. Ensure the battery is removed from the tool.
2. Remove the chain cover by loosening the knob.
3. Place the saw chain around the drive sprocket and then around the guide bar.
4. Align the guide bar with the mounting studs on the pruner head.
5. Replace the chain cover and tighten the knob finger-tight.
6. Adjust chain tension using the tool-less tensioning system until the chain is snug but can still be pulled freely by hand.
7. Fully tighten the chain cover knob.

4.2 Assembling the Pole Sections

1. Connect the main pruner head section to the extension pole (if using). Ensure the quick-release system clicks securely into place.
2. Connect the handle/motor section to the other end of the extension pole. Verify all connections are firm.

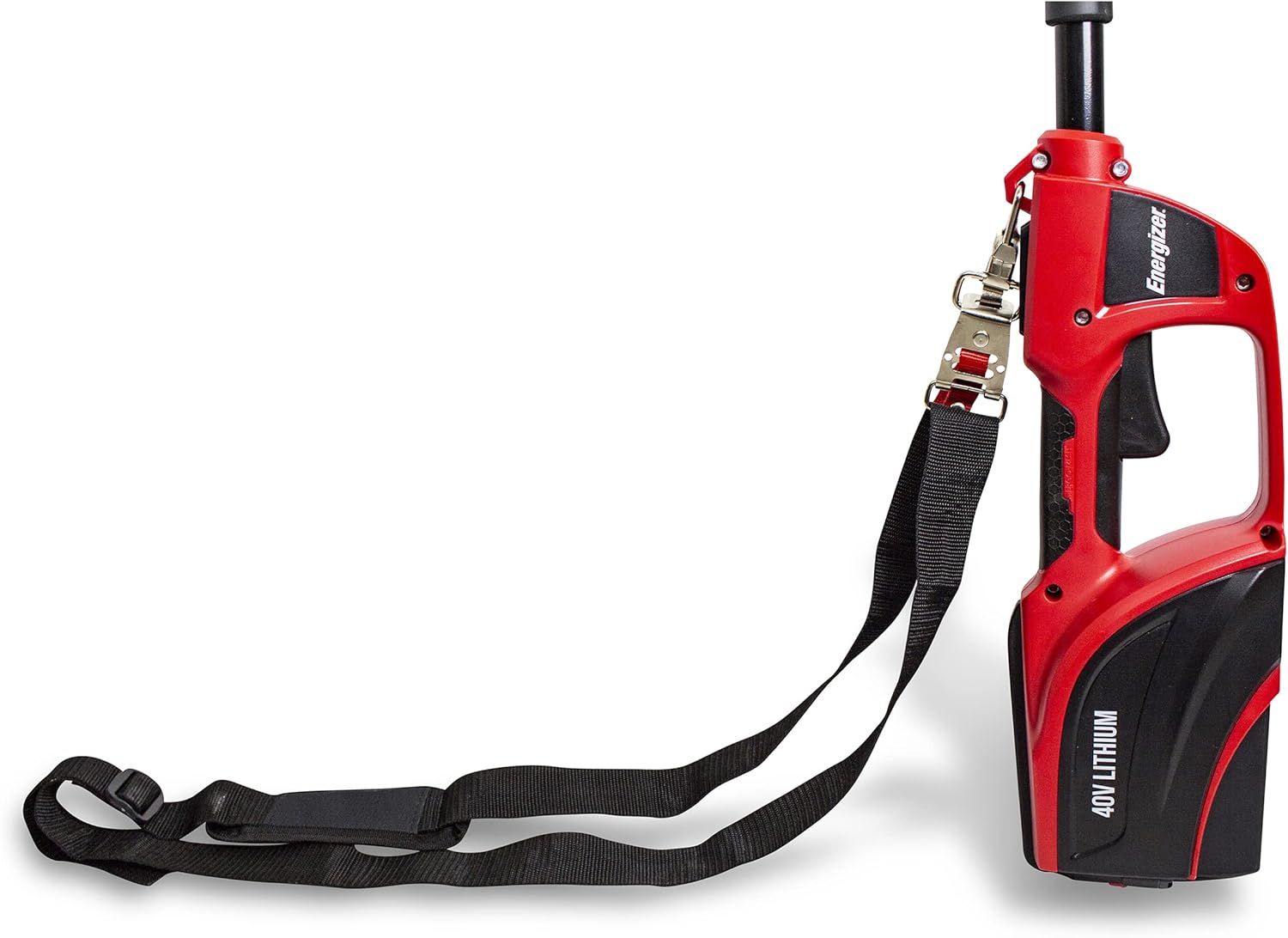

Image 2: Detail of the handle section, showing the battery compartment and the attachment point for the shoulder harness.

4.3 Installing the Battery

1. Ensure the tool is switched off.
2. Slide a fully charged Energizer 40V battery pack into the battery slot on the handle until it clicks into place.
3. To remove, press the battery release button and slide the battery out.

5. Operation

5.1 Pre-Operation Checks

• Verify all pole connections are secure.
• Check chain tension and adjust if necessary.
• Ensure the chain oil reservoir is full. The automatic lubrication system requires oil for proper function.
• Inspect the chain for sharpness and damage.
• Wear all required PPE.

5.2 Starting and Stopping

1. To start: Press the safety lock-off button and then squeeze the trigger switch.
2. To stop: Release the trigger switch. The electric brake will quickly stop the chain.
3. The variable speed feature allows you to control the chain speed by adjusting the pressure on the trigger.
4. Engage Eco Mode for lighter tasks to conserve battery life.

5.3 Cutting Techniques

• Planning cuts: Always plan your cuts to ensure the branch falls safely and does not cause injury or damage.
• Undercutting: For larger branches, make a small undercut on the underside of the branch first to prevent bark stripping.
• Top cut: Make the main cut from the top, slightly further out from the undercut.
• Final cut: Remove the stub with a final clean cut close to the main trunk or collar.
• Maintain control: Let the saw do the work. Do not force the tool.
• Working overhead: Use the shoulder harness to distribute weight and maintain control. Keep the tool at a comfortable angle.

Image 3: A user demonstrating the pole pruner in action, cutting a branch from a tree while wearing safety glasses.

Image 4: A detailed view of the pruner's cutting head, showing the chain and guide bar making a cut on a tree branch.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your pole pruner.

6.1 Cleaning

• Always remove the battery before cleaning.
• Clean the tool after each use. Remove sawdust, debris, and sap from the guide bar, chain, and motor housing.
• Use a soft brush or compressed air. Do not use solvents that could damage plastic parts.

6.2 Chain Maintenance

• Chain Tension: Check chain tension frequently during operation and adjust as needed. A properly tensioned chain should be snug but still able to be pulled around the guide bar by hand.
• Chain Lubrication: Regularly check the chain oil level and refill as necessary. The automatic oiler requires a constant supply of chain lubricant.
• Chain Sharpening/Replacement: A dull chain will not cut efficiently and can cause kickback. Sharpen the chain regularly or replace it when worn or damaged. Refer to a qualified service technician for chain sharpening if unsure.

6.3 Storage

• Remove the battery pack before storing.
• Clean the tool thoroughly.
• Apply a light coat of oil to the chain and guide bar to prevent rust.
• Store the tool in a dry, secure place, out of reach of children.
• Use the blade guard to protect the chain during storage.

7. Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, contact customer support.

8. Specifications

9. Warranty and Support

Your Energizer EZ40VELPN 40V Cordless Pole Pruner comes with a manufacturer's warranty and dedicated support.

• Manufacturer's Warranty: This product is covered by a 2-year manufacturer's warranty, covering all manufacturing defects.
• Spare Parts Availability: Energizer commits to stocking spare parts for 5 years, even beyond the warranty period, to ensure long-term usability and repairability of your tool.
• For warranty claims, technical assistance, or to order spare parts, please contact Energizer customer support or your authorized retailer.
