Orbit Heavy Duty Brass Impact Sprinkler on Tripod Base - Model 58308D User Manual

Introduction

This manual provides instructions for the proper setup, operation, maintenance, and troubleshooting of your Orbit Heavy Duty Brass Impact Sprinkler on Tripod Base, Model 58308D. Please read these instructions carefully before using the product to ensure safe and efficient operation.

Safety Information

Warning: This product contains lead, a chemical known to the State of California to cause cancer and reproductive toxicity. Wash hands thoroughly after handling.

Always ensure the sprinkler is placed on a stable, level surface to prevent tipping. Do not operate the sprinkler near electrical outlets or equipment. Keep children and pets away from the operating sprinkler.

Product Overview

The Orbit Heavy Duty Brass Impact Sprinkler on Tripod Base is designed for efficient and wide-area watering. It features a durable brass impact sprinkler head mounted on an adjustable tripod for versatile placement and coverage.

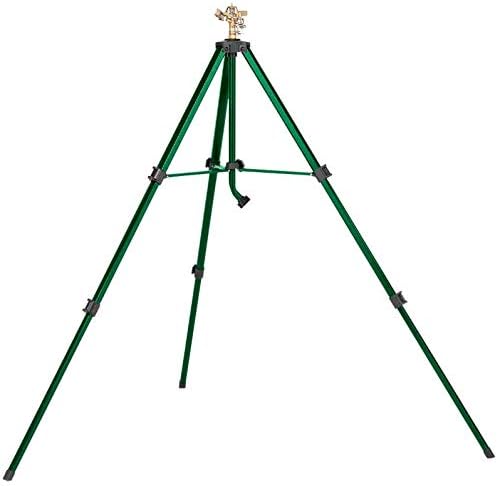

Figure 1: Full view of the Orbit Brass Impact Sprinkler on Tripod Base.

Setup

1. Unpack Components: Carefully remove all components from the packaging. Ensure you have the brass impact sprinkler head and the tripod base.
2. Assemble Tripod: Extend the legs of the tripod base to a stable position. The tripod is adjustable from 25 inches to 48 inches in height. Secure the legs using the locking mechanisms.


Figure 2: Close-up of the tripod leg adjustment and locking mechanism.

3. Attach Sprinkler Head: Screw the brass impact sprinkler head onto the threaded connection at the top of the tripod base. Hand-tighten until secure.
4. Connect Water Hose: Attach a standard garden hose to the inlet connection at the base of the tripod. Ensure a tight connection to prevent leaks.

Figure 3: Detail of the garden hose connection point on the tripod base.


Figure 4: The Orbit sprinkler fully assembled and connected to a hose on a lawn.

5. Position Sprinkler: Place the assembled sprinkler in the desired watering area. Ensure the tripod legs are fully extended and stable on the ground.

Operating Instructions

1. Turn on Water: Slowly turn on the water supply to the garden hose.
2. Adjust Water Pressure: Adjust the water pressure at the faucet to achieve the desired spray distance and pattern. The sprinkler is designed to operate effectively within typical residential water pressures.
3. Monitor Coverage: Observe the watering pattern to ensure adequate coverage of your desired area.

Adjustments

The brass impact sprinkler head allows for adjustments to both the spray pattern and distance:

• Spray Distance: The sprinkler can reach up to 100 feet in diameter. Adjust the diffuser screw on the sprinkler head to change the water stream's break-up and thus the spray distance. Tightening the screw will shorten the distance, while loosening it will increase it.
• Spray Pattern (Partial to Full Circle): The sprinkler can be set for a partial or full 360-degree circle. Adjust the trip collars on the base of the sprinkler head to set the desired arc. For continuous 360-degree rotation, lift the trip lever.
• Tripod Height: The tripod base can be adjusted from 25 inches to 48 inches in height to accommodate different watering needs and plant heights. Loosen the leg clamps, adjust the height, and re-tighten securely.

Maintenance

• Cleaning: Periodically check the sprinkler nozzle for debris or mineral buildup. Clean with a small brush or needle if necessary to maintain optimal spray performance.
• Winterization: Before freezing temperatures, disconnect the sprinkler from the hose and drain all water from the unit. Store the sprinkler in a dry, protected area to prevent damage from freezing.
• Storage: When not in use, store the sprinkler in a cool, dry place away from direct sunlight.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the official Orbit website or contact Orbit customer service. Keep your purchase receipt for warranty claims.
