EUGAD Tall Bathroom Cabinet Model 0024WY Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your EUGAD Tall Bathroom Cabinet, Model 0024WY. Please read this manual thoroughly before assembly and use to ensure safe and correct operation. Keep this manual for future reference.

The EUGAD Tall Bathroom Cabinet is a versatile storage unit featuring a white MDF construction, a drawer, and multiple storage compartments. Its design makes it suitable for various rooms, including bathrooms, living rooms, bedrooms, hallways, offices, and hotels.

2. Safety Information

Important Safety Instructions:

• Ensure adequate ventilation during and after the installation process.
• Do not exceed the maximum load capacity of 15 kg per shelf to prevent damage or injury.
• Carefully follow all assembly instructions provided. Use appropriate safety equipment during assembly.
• This cabinet includes a metal anti-tip safety device. It is crucial to install this device to prevent the cabinet from tipping over, especially in households with children or pets.
• Keep small parts and packaging materials away from children to avoid choking hazards.
• Regularly check all connections and fasteners to ensure they remain tight and secure.

3. Product Features

• Large Storage Capacity: Features 5 compartments and 1 drawer for extensive storage. One shelf is adjustable for versatile item organization.
• Reliable Material: Constructed from E1 grade MDF, ensuring moisture resistance, strength, and stability.
• Durable Hardware: Equipped with stainless steel hinges for smooth door operation and a magnetic door closure for secure storage.
• Anti-Tip Device: Includes a metal anti-tip safety device for enhanced stability and user safety.
• Versatile Design: Suitable for various rooms and purposes, offering both storage and decorative functions.

Image 3.1: Detailed view of cabinet handles, rustproof metal hinges, water-resistant material, and magnetic door mechanism.

4. Setup and Assembly Instructions

Assembly of the EUGAD Tall Bathroom Cabinet requires careful attention to detail. Please ensure all parts are present before beginning. A detailed assembly guide with diagrams is typically included in the product packaging. Refer to that guide for step-by-step instructions.

4.1. Before You Begin

• Unpack all components and verify against the parts list in your included assembly manual.
• Prepare a clean, flat, and spacious work area.
• Gather necessary tools (e.g., screwdriver, hammer if required).

4.2. Assembly Steps (General Guidance)

1. Attach cam locks and dowels to the designated panels.
2. Assemble the main frame of the cabinet, ensuring all connections are secure.
3. Install the back panel.
4. Assemble the drawer components and slide the drawer into its designated slot.
5. Attach hinges to the door and then to the cabinet frame.
6. Install the adjustable shelf supports and place the adjustable shelf.
7. Attach the anti-tip safety device to the top rear of the cabinet and secure it to a wall stud using appropriate hardware. This step is critical for safety.

Image 4.1: Dimensional overview of the cabinet, useful for planning placement and understanding component sizes during assembly.

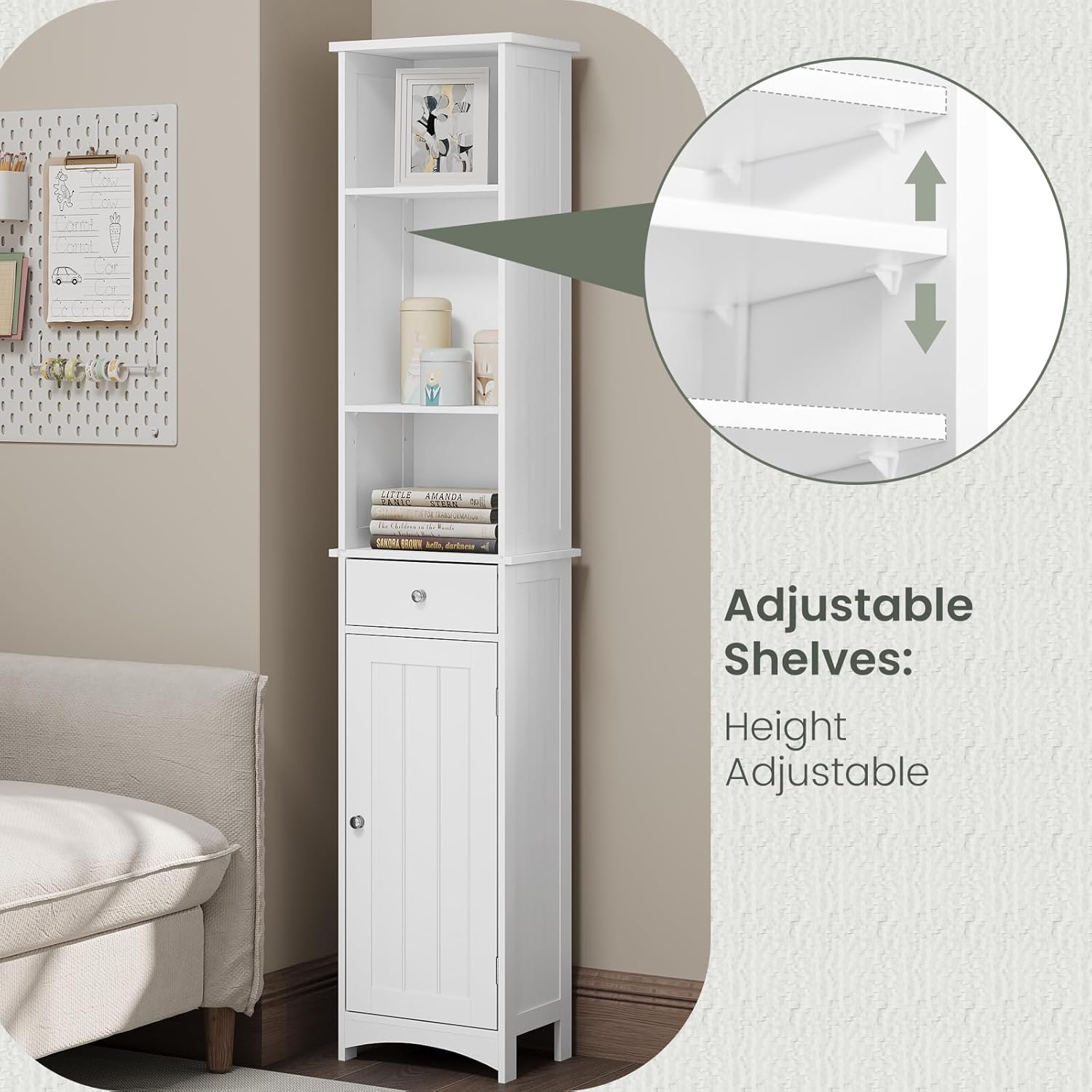

Image 4.2: Illustration of the adjustable shelf mechanism, highlighting flexibility in storage configuration.

5. Operating Instructions

The EUGAD Tall Bathroom Cabinet is designed for straightforward use. Follow these guidelines for optimal functionality:

• Opening/Closing Doors and Drawer: Use the provided handles to open and close the cabinet door and drawer. The magnetic closure ensures the door stays shut when not in use.
• Adjusting Shelves: To adjust the height of the movable shelf, remove all items from the shelf. Carefully lift the shelf and reposition the shelf pins to the desired height. Ensure all four pins are securely inserted before placing items back on the shelf.
• Loading Capacity: Distribute weight evenly across shelves. Do not exceed 15 kg per shelf. Place heavier items on lower shelves for better stability.

Image 5.1: View of the cabinet with the lower door open, demonstrating internal storage and the adjustable shelf.

6. Maintenance

Proper maintenance will extend the life and appearance of your cabinet.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish. Dry immediately with a clean cloth.
• Spills: Promptly clean any spills, especially liquids, to prevent moisture damage to the MDF material.
• Hardware: Periodically check all screws, bolts, and hinges to ensure they are tight. Tighten if necessary.
• Environment: Avoid placing the cabinet in direct sunlight or near heat sources to prevent warping or discoloration. Maintain a stable room temperature and humidity.

7. Troubleshooting

If you encounter issues with your EUGAD Tall Bathroom Cabinet, refer to the following common problems and solutions:

8. Specifications

9. Warranty Information

Specific warranty details for the EUGAD Tall Bathroom Cabinet Model 0024WY are not provided in the product information. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty terms and conditions.

10. Customer Support

For further assistance, missing parts, or inquiries not covered in this manual, please contact EUGAD customer support or the retailer from whom you purchased the product. Have your model number (0024WY) and purchase date ready when contacting support.

You can often find contact information on the EUGAD official website or through your purchase platform.
