Logitech G Astro A50 X Wireless Gaming Headset User Manual

Introduction

The Logitech G Astro A50 X is a premium wireless gaming headset designed for multi-platform use, offering advanced audio performance and seamless connectivity. This manual provides comprehensive instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your device.

The Astro A50 X headset resting on its white base station, showcasing its design and charging capabilities.

Setup Guide

Follow these steps to set up your Astro A50 X headset and base station for optimal performance across your gaming platforms.

Package Contents

• Astro A50 X Wireless Gaming Headset
• Astro A50 X HDMI Base Station
• AC Adapter + Plugs
• Dolby Atmos Activation Card
• USB-A to USB-C Cable
• HDMI Cable

Connecting the Base Station

The A50 X base station supports simultaneous connection to Xbox, PlayStation 5, and PC/Mac, allowing for seamless switching between platforms using PLAYSYNC technology.

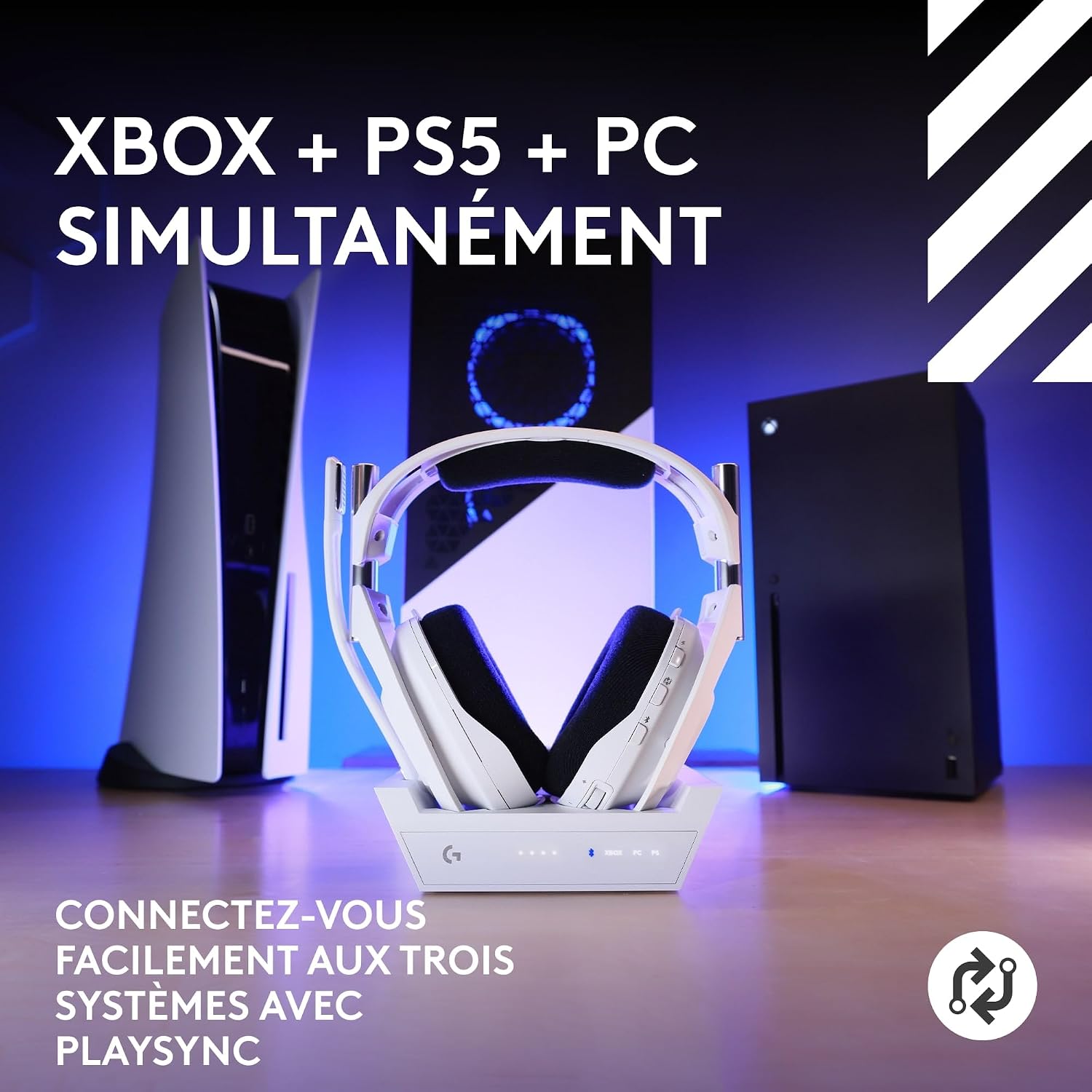

This image shows the Astro A50 X headset and base station set up between a PlayStation 5 and an Xbox Series X, highlighting its PLAYSYNC multi-system compatibility.

Xbox Series X|S Setup

1. Connect an HDMI 2.1 cable from your Xbox to the "HDMI IN" port on the A50 X base station.
2. Connect another HDMI 2.1 cable from the "HDMI OUT" port on the base station to your TV/monitor.
3. Connect the USB-C cable from your Xbox to the "USB" port on the base station.
4. Ensure the base station is powered via the 5V DC input using the provided AC adapter.

PlayStation 5 Setup

1. Connect an HDMI 2.1 cable from your PS5 to the "HDMI IN" port on the A50 X base station.
2. Connect another HDMI 2.1 cable from the "HDMI OUT" port on the base station to your TV/monitor.
3. Connect the USB-C cable from your PS5 to the "USB" port on the base station.
4. Ensure the base station is powered via the 5V DC input using the provided AC adapter.

PC/Mac Setup

1. Connect the USB-C cable from your PC/Mac to the "USB" port on the base station.
2. For optimal audio and video passthrough, connect HDMI cables as described for consoles if your PC/Mac setup utilizes HDMI 2.1.
3. Ensure the base station is powered via the 5V DC input using the provided AC adapter.

A detailed view of the Astro A50 X base station's rear panel, displaying the HDMI 2.1 input and output ports, USB ports for console/PC connection, and the 5V DC power input.

Operating Your Astro A50 X Headset

Headset Controls Overview

This image provides a visual guide to the main controls and features on the Astro A50 X headset and base station.

• Microphone with Flip-Up Mute: Flip the microphone boom up to mute, flip down to unmute.
• PRO-G Graphene Transducers: Experience clear and precise audio with exceptional clarity and response.
• PLAYSYNC Input Cycle Button: Press this button on the headset to cycle between connected Xbox, PS5, and PC inputs.
• Game/Voice Balance Control: Adjust the mix between game audio and voice chat using the dedicated controls on the earcup.
• LIGHTSPEED Wireless Technology: Provides high-performance, low-latency audio for a responsive gaming experience.
• Bluetooth Connectivity: Connect to mobile devices for calls or music while simultaneously receiving game audio.

Dual-Device Mixing

The A50 X allows you to listen to audio from two devices simultaneously. For example, you can connect your game console via LIGHTSPEED and your phone via Bluetooth to mix game audio with calls or music from your mobile device.

This image demonstrates the Astro A50 X's ability to mix audio from two sources, such as a game console and a Bluetooth-connected mobile phone.

G HUB and Mobile App Control

Customize and fine-tune your audio experience with the Logitech G HUB software on PC/Mac and the dedicated mobile application. These tools provide advanced control over your headset settings.

• Access a 10-band parametric equalizer for precise audio tuning.
• Adjust microphone settings, including noise reduction and gain.
• Control output mixing and create custom audio profiles.

A visual representation of the Logitech G HUB software, which allows users to fine-tune audio settings, including a 10-band parametric equalizer, for their Astro A50 X headset.

Maintenance and Care

Charging

The A50 X headset offers up to 24 hours of battery life on a single charge. To charge, simply place the headset onto the magnetic dock of the base station. The base station's LED indicators will show the charging status.

The Astro A50 X headset is shown securely docked on its base station, indicating it is charging. The base station's LED lights are visible, showing charging status.

Cleaning

To maintain the appearance and functionality of your headset and base station, use a soft, dry cloth for cleaning. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surfaces.

Troubleshooting Common Issues

No Audio / Disconnection

• Ensure all cables (HDMI, USB, power) are securely connected to the base station and your gaming device/PC.
• Verify the base station is powered on and the headset is properly docked for charging/connection.
• Use the PLAYSYNC button on the headset to cycle through inputs (Xbox, PS5, PC) to ensure the correct source is selected.
• Check your device's audio output settings to ensure the Astro A50 X is selected as the default audio device.
• Restart your console/PC and the headset.

Microphone Not Working

• Ensure the microphone boom is flipped down to unmute.
• Check microphone settings in your game, chat application, and system audio settings.
• Verify the headset is properly connected to the base station.
• Update headset firmware via Logitech G HUB to ensure optimal performance.

Battery Life Issues

• Ensure the headset is correctly seated on the magnetic charging dock for proper contact.
• Allow sufficient time for a full charge. A full charge provides up to 24 hours of play time.
• If issues persist after following these steps, contact customer support for further assistance.

Technical Specifications

Warranty and Customer Support

Warranty Information

The Logitech G Astro A50 X headset comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for all warranty claims. This warranty covers defects in materials and workmanship under normal use.

Customer Support

For further assistance, technical support, or warranty claims, please visit the official Logitech G support website. You can find detailed FAQs, troubleshooting guides, and contact information for customer service there.

Note: Specific support contact details and warranty terms may vary by region. Refer to the Logitech G website for your local support information.
