1. Introduction
The Logitech Slim Folio is an all-in-one keyboard case meticulously designed for the iPad (10th generation), offering a seamless blend of comfortable typing and robust protection. Its lightweight and elegant design ensures ease of use and portability, safeguarding your iPad from daily bumps and scratches.
The Slim Folio securely positions your iPad at an optimal angle, making it ideal for various activities such as typing, viewing content, or drawing on any flat surface.
Compatibility
This keyboard case is compatible with the following iPad (10th generation) models:
- iPad (10th generation): A2696, A2757, A2777
2. What's in the Box
Your Logitech Slim Folio package should contain the following items:
- Logitech Slim Folio Keyboard Case
- USB Cable
Note: The keyboard itself is powered by replaceable coin cell batteries and does not require charging via the USB cable. The USB cable included is typically for your iPad or other devices.
- User Documentation (this manual)
3. Setup Guide
3.1. Inserting Your iPad
- Gently align your iPad with the case, ensuring the camera cutout and ports match the case openings.
- Press the iPad firmly into the protective shell of the Slim Folio until it is securely seated. Ensure all edges are properly enclosed by the case for maximum protection.
3.2. Pairing the Keyboard via Bluetooth
The Slim Folio keyboard connects to your iPad using Bluetooth Low Energy for a reliable and power-efficient connection.
- Ensure your iPad's Bluetooth is turned on. Go to Settings > Bluetooth and toggle it to the On position.
- Open the Slim Folio case and place your iPad into the typing position. The keyboard should automatically power on.
- On the keyboard, press the Bluetooth connect button (usually located near the top right of the keyboard, often with a Bluetooth symbol) for 3 seconds until the status light blinks blue.
- On your iPad, under Bluetooth Devices, select "Logitech Slim Folio" from the list of available devices.
- If prompted, enter the pairing code displayed on your iPad screen using the Slim Folio keyboard and press Enter.
- Once paired, the status light on the keyboard will turn solid blue, and your iPad will show "Connected" next to the device name.
4. Operating the Slim Folio
4.1. Usage Modes
The Slim Folio offers multiple modes to enhance your iPad experience:
- Typing Mode: Position your iPad upright in the magnetic typing stand. This activates the keyboard, allowing for comfortable and efficient typing with full-size, well-spaced keys.
- Viewing Mode: Fold the keyboard behind the iPad to enjoy content without the keyboard interfering. The case provides a stable stand for watching videos or making video calls.
- Drawing Mode: Lay the iPad flat with the keyboard tucked away. The case provides a slight incline, perfect for drawing, sketching, or taking notes with a digital pen.
4.2. Using the Keyboard
The Slim Folio features a full-size keyboard with a dedicated row of iPadOS shortcut keys for quick access to common functions:
- Home: Return to the iPad home screen.
- Screen Brightness: Adjust screen brightness up or down.
- Search: Activate iPad search.
- Virtual Keyboard: Show or hide the on-screen keyboard.
- Media Controls: Previous track, Play/Pause, Next track.
- Volume Controls: Mute, Volume Down, Volume Up.
- Lock Screen: Lock your iPad screen.

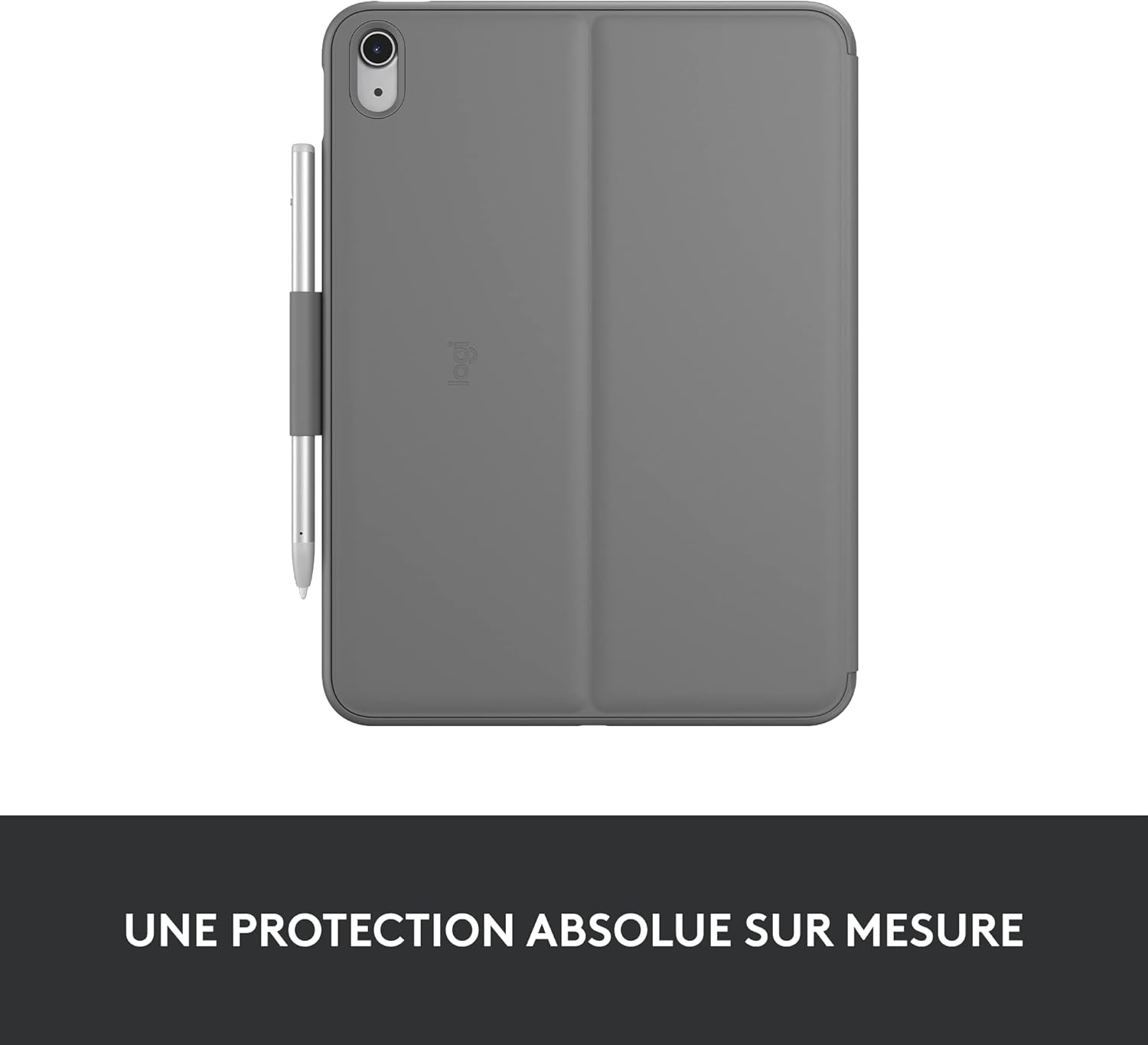

4.3. Integrated Pencil Storage
The Slim Folio includes a convenient holder for your Logitech Crayon or Apple Pencil. This ensures your digital pen is always within reach and securely stored when not in use, preventing loss or damage.
5. Maintenance
5.1. Cleaning the Case and Keyboard
- To clean the exterior of the Slim Folio case, use a soft, damp cloth. Avoid abrasive cleaners or solvents.
- For the keyboard, use a soft, lint-free cloth. You can lightly dampen the cloth with water or a mild electronics cleaner. Do not spray liquids directly onto the keyboard.
- For debris between keys, use compressed air.
5.2. Battery Information
The Slim Folio keyboard is powered by two replaceable coin cell batteries, offering an impressive battery life of up to 3 years with typical use. When the battery is low, the status indicator light on the keyboard will flash red.
To replace the batteries:
- Locate the battery compartment on the keyboard (refer to the diagram in the quick start guide if unsure).
- Use a small coin or screwdriver to open the compartment.
- Remove the old batteries and insert two new coin cell batteries (e.g., CR2032), ensuring correct polarity (+/-).
- Close the battery compartment securely.
6. Troubleshooting
| Problem | Possible Solution |
|---|---|
| Keyboard not connecting to iPad. |
|
| Keys are not responding or typing incorrectly. |
|
| iPad not sitting securely in the case. |
|
7. Specifications
| Brand | Logitech |
| Model Number | 920-011425 |
| Series | Slim Folio |
| Color | Graphite |
| Compatibility | iPad (10th gen) |
| Connectivity Technology | Bluetooth Low Energy |
| Keyboard Description | Standalone, AZERTY French Layout |
| Power Source | Battery Powered (2 x replaceable coin cell batteries) |
| Battery Life | Up to 3 years |
| Dimensions (L x W x H) | 20.3 x 12.3 x 28.3 cm |
| Number of Keys | 105 |
8. Warranty and Support
8.1. Manufacturer's Warranty
The Logitech Slim Folio Keyboard Case comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the official Logitech website or the warranty card included with your product.
8.2. Customer Support
For further assistance, technical support, or to access additional resources such as FAQs and software downloads, please visit the official Logitech support website:
(Please note that the specific support page for your product may vary by region.)
