MEEDEN H-Frame Studio Easel Stand Instruction Manual

Introduction

Thank you for choosing the MEEDEN H-Frame Studio Easel Stand. This heavy-duty easel, crafted from European seasoned beech wood, is designed to provide a stable and versatile platform for artists. Its adjustable features and robust construction make it suitable for various painting techniques and canvas sizes. This manual provides detailed instructions for assembly, setup, operation, and maintenance to ensure optimal use and longevity of your easel.

Package Contents

Before beginning assembly, please verify that all components listed below are present and undamaged. Refer to the assembly video for a visual overview of the parts.

• Easel Frame Components (various sizes)
• Canvas Tray
• Hardware Kit (screws, nuts, screwdrivers)
• 4 Lockable Casters (wheels)
• Instruction Manual

Assembly Instructions

Follow these steps carefully to assemble your MEEDEN H-Frame Studio Easel. It is recommended to have a clear, spacious area for assembly.

1. Unpack Components: Carefully remove all parts from the packaging. Identify and separate the different wooden pieces and the hardware kit.
2. Assemble the Base: Connect the base frame pieces using the provided screws. Ensure all connections are secure.
3. Attach Casters: Securely attach the four lockable casters to the bottom of the assembled base using the appropriate screws. Ensure they are firmly in place for stability and mobility.
4. Install Vertical Supports: Attach the main vertical support beams to the base. These form the H-frame structure.
5. Mount Canvas Tray: Position the canvas tray onto the vertical supports. This tray is adjustable and will hold your canvas.
6. Install Upper Canvas Holder: Attach the upper canvas holder to the main mast. This piece slides up and down to secure the top of your canvas.
7. Final Adjustments: Tighten all knobs and screws to ensure the easel is stable.

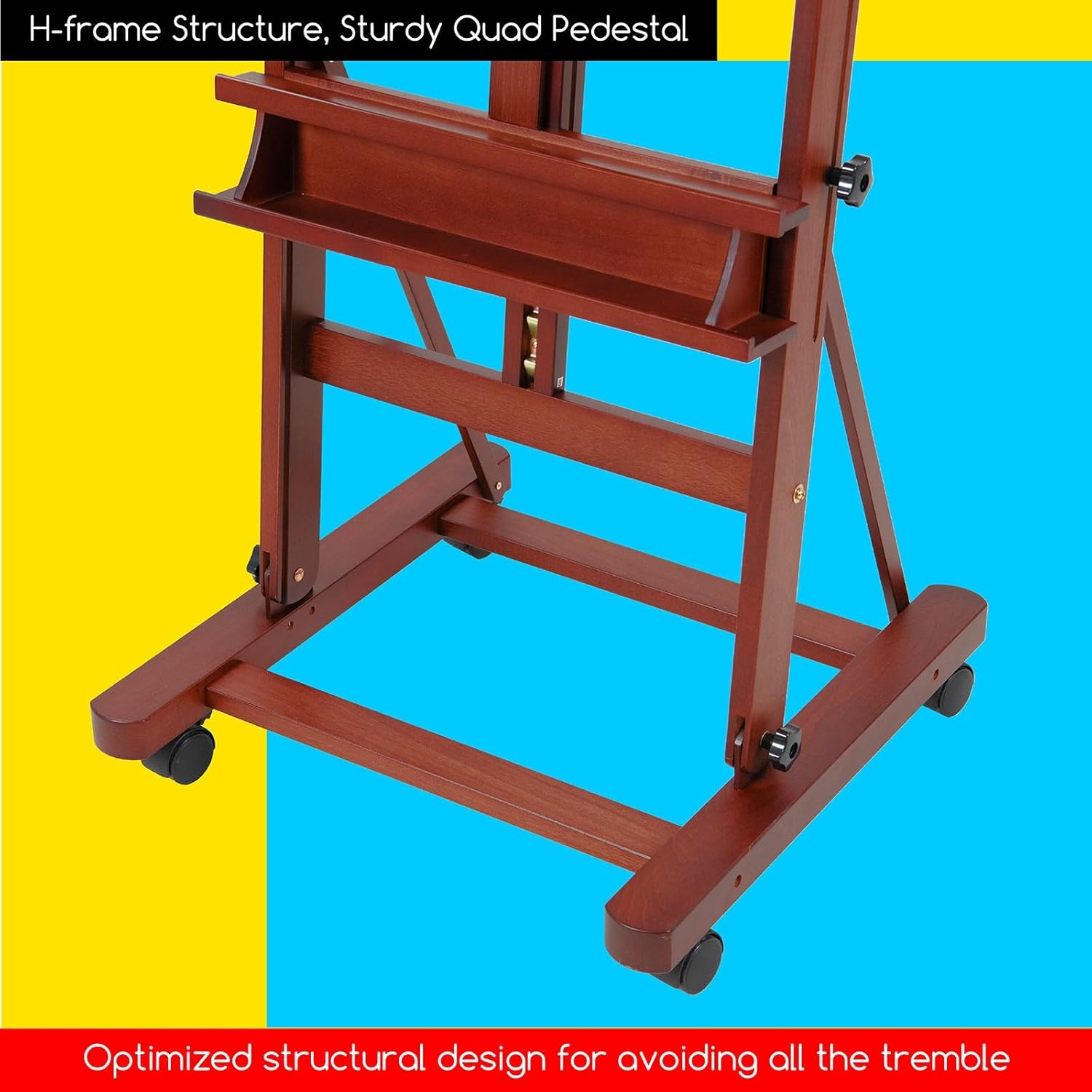

Image: The H-frame structure and quad pedestal base provide stability for the easel.

Image: Visual representation of the easel's adjustable height and canvas support mechanism.

Setup

Once assembled, your easel is ready for setup. The MEEDEN H-Frame Easel offers various adjustments to suit your artistic needs.

• Adjusting Height: The total height of the easel can be adjusted from 75 inches (190 cm) to 145 inches (370 cm) by manipulating the main mast and support arms. Loosen the adjustment knobs, slide the components to the desired height, and then securely tighten the knobs.
• Canvas Support: The easel can hold canvases up to 93 inches high and supports a maximum weight of 66 lbs (30 kg). Place your canvas on the canvas tray and use the upper canvas holder to secure it firmly in place.
• Tilting Mechanism: The easel features a tilting mechanism allowing you to adjust the angle of your canvas from vertical to horizontal. Loosen the appropriate knobs, adjust the angle, and re-tighten to secure.
• Mobility: The four lockable casters allow for easy movement of the easel. Engage the locks on the casters to keep the easel stationary during use.

Image: The easel's dimensions highlight its adjustable height and capacity for large canvases.

Video: MEEDEN Studio Easel for Painting - This video demonstrates the easel's adjustability, including height and angle, and how to secure a canvas.

Operating Instructions

Using your MEEDEN H-Frame Studio Easel is straightforward. Follow these guidelines for an optimal painting experience.

1. Positioning Your Easel: Use the lockable casters to move the easel to your desired location. Engage the wheel locks to prevent accidental movement during painting.
2. Securing Your Canvas: Place the bottom edge of your canvas onto the canvas tray. Adjust the height of the tray and the upper canvas holder to firmly grip your canvas. Ensure the canvas is stable and does not wobble.
3. Adjusting Working Angle: Loosen the tilt adjustment knobs on the side of the easel to set your preferred working angle. Re-tighten the knobs securely once the desired angle is achieved.
4. Using the Storage Tray: The large canvas tray also serves as a convenient storage ledge for brushes, paints, and other art supplies, keeping them within easy reach.

Image: An artist utilizing the easel for painting, showcasing its practical use in a studio environment.

Maintenance

Proper maintenance will extend the life and functionality of your easel.

• Cleaning: Wipe down wooden surfaces with a soft, dry cloth. For paint spills, use a damp cloth immediately. Avoid harsh chemicals that may damage the wood finish.
• Hardware Check: Periodically inspect all screws and knobs to ensure they are tight. Re-tighten as necessary to maintain stability.
• Storage: When not in use, the easel can be folded flat for compact storage. This helps protect it from dust and damage. Store in a dry environment away from extreme temperature changes.

Image: The easel shown in its folded position, demonstrating its space-saving storage capability.

Troubleshooting

If you encounter any issues with your easel, refer to the following common solutions:

• Easel is Wobbly: Ensure all assembly screws and adjustment knobs are fully tightened. Check that the casters are locked if you intend for the easel to remain stationary.
• Difficulty Adjusting Height/Angle: Loosen the adjustment knobs sufficiently before attempting to slide or tilt components. Do not force any parts. If resistance persists, check for any obstructions or misaligned pieces.
• Casters Not Rolling Smoothly: Inspect casters for any debris or hair that may be obstructing movement. Clean as necessary. Ensure the caster locks are disengaged for free movement.
• Missing or Damaged Parts: If any parts were missing or damaged upon arrival, please contact MEEDEN customer support for assistance.

Specifications

Warranty and Support

MEEDEN is committed to providing high-quality art supplies and ensuring customer satisfaction. If you have any questions, require assistance with assembly, or experience any issues with your easel, please do not hesitate to contact MEEDEN customer support. We are dedicated to helping you with your artistic endeavors.

Contact information can typically be found on the product packaging or the official MEEDEN website.
